Looking for Geprc-mark4 Frame? GEPRC-Mark4-7 Frame is available at Zbotic with fast shipping across India.

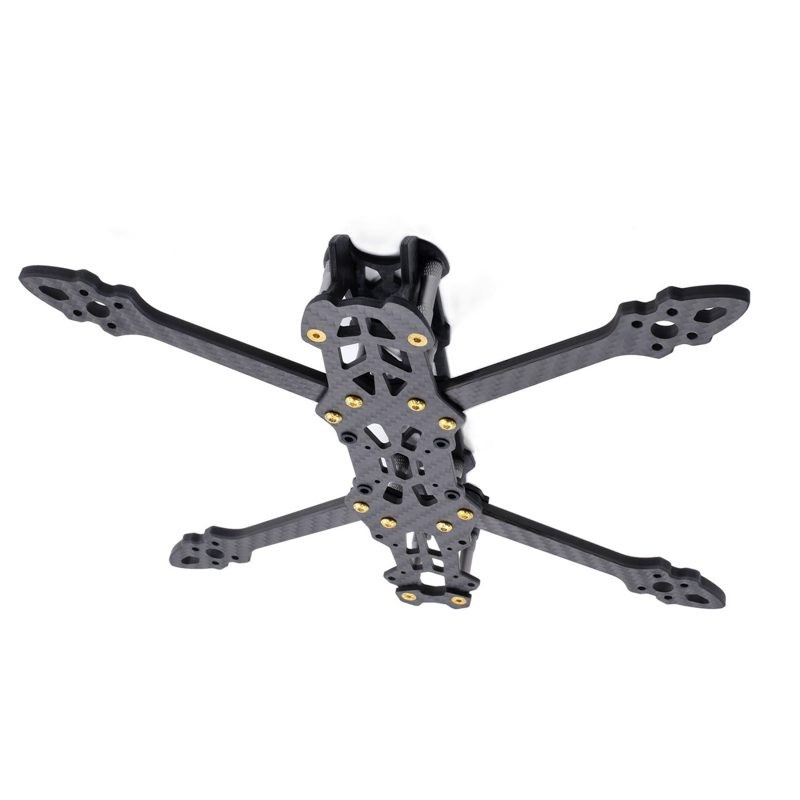

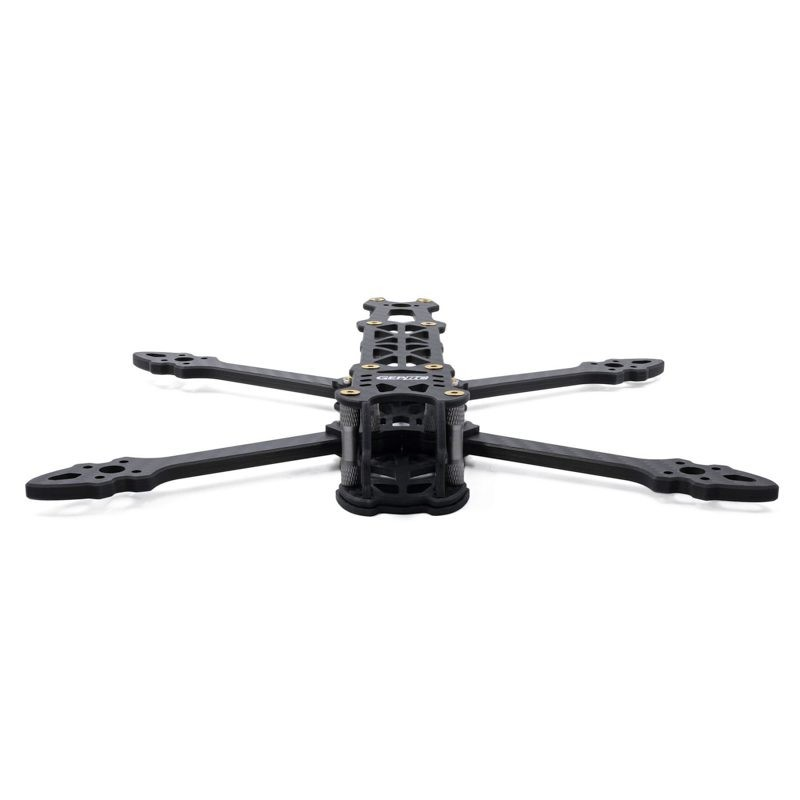

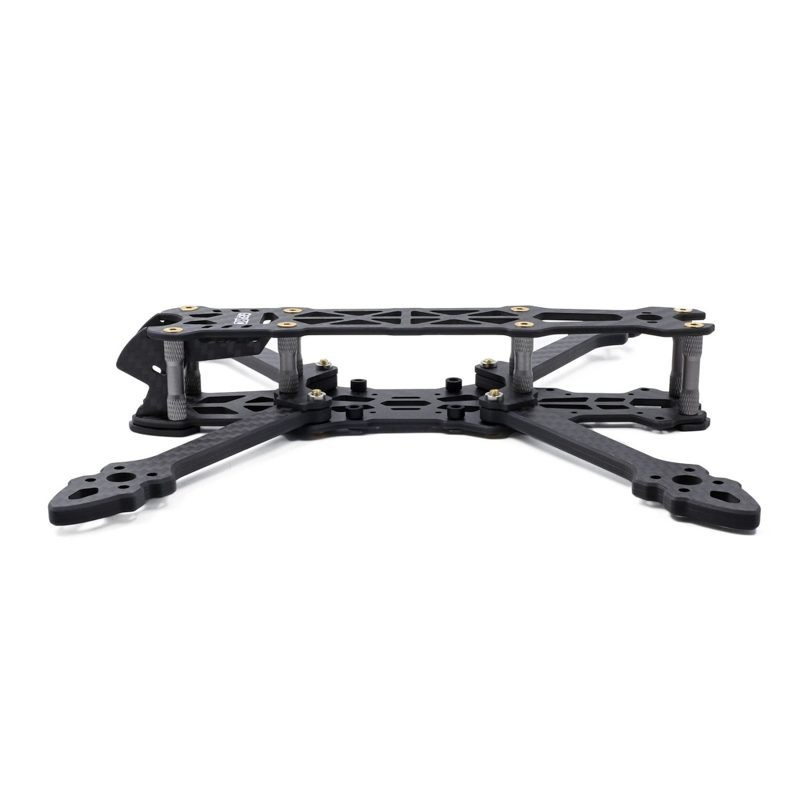

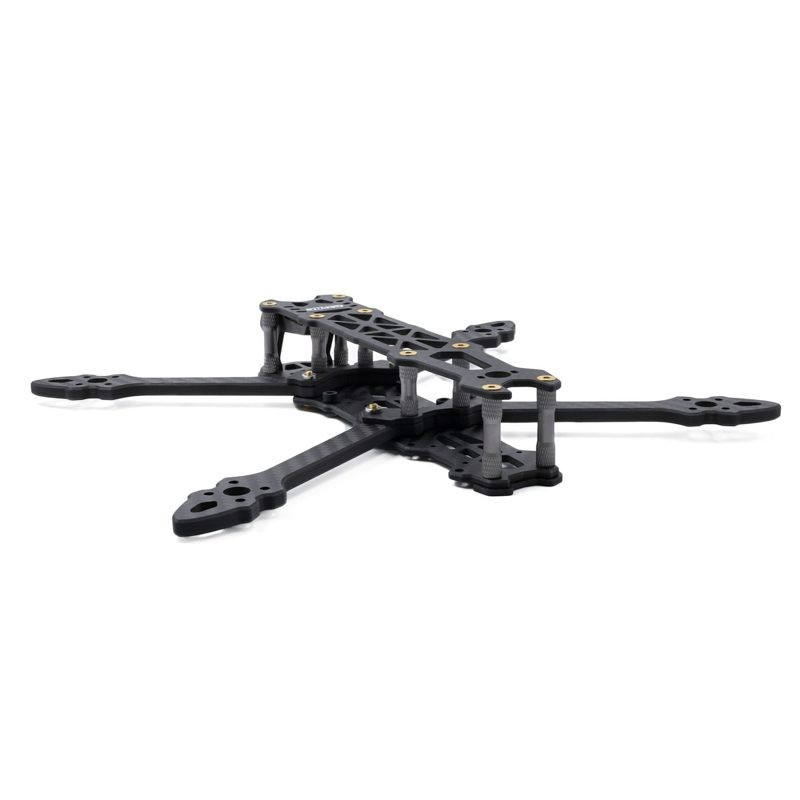

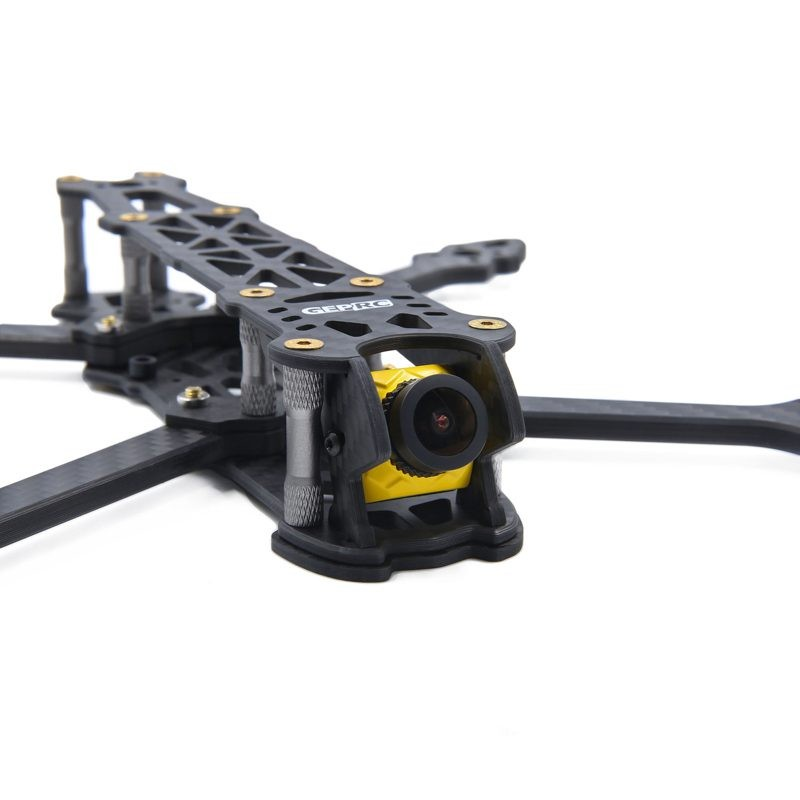

GEPRC-Mark4-7 Frame:
The GEPRC Mark4-7 is a 7-inch freestyle FPV drone frame crafted for long-range flights and smooth freestyle performance. Designed with a lightweight H-type layout, it offers a balanced center of gravity and easy electronics installation. Built from high-strength carbon fiber with reinforced arms, the Mark4-7 ensures excellent durability and precision. It’s a premium choice for FPV pilots seeking stability, strength, and smooth aerial shooting in expansive environments.
Features:
- H-style frame optimized for stability and freestyle precision.
- Reinforced 5mm thick arms for maximum durability.
- 25mm standoffs ensure optimal CG and space for electronics.
- Quick arm replacements for easier maintenance.
- Alu6061 standoffs in titanium finish for strength and aesthetics.
Specification
| em Type: | Drone Frame |
|---|---|
| Model Type: | Mark4-7 |
| Material: | Carbon Fiber |
| Color: | Black |
| Compatibility: | 2207.5–2507 Motors, 40A–60A ESCs, 7″ Props |
| Top plate thickness (mm) | 2.5 |
| Bottom Plate Thickness(mm) | 2.5 |
| Thickness of Arms | 5 |
| Shipping Weight | 0.35 kg |
Package Includes:
Frame Components:
4 x 5mm 7-inch Arms Plate
2 x 2.5mm Side Plate
1 x 2.5mm Top Plate
1 x 2.5mm Bottom Plate
2 x 2mm Bumper Plates
2 x 2mm Reinforce Plates
1 x Lipo Silicone Pad
Hardware:
8 x M3x25mm Alu6061 Standoff (Titanium Color)
4 x M3x18mm Alu6061 Standoff (Titanium Color)
8 x M3x8 YFS Flat Screws
4 x M3x10 YFS Flat Screws
4 x M3x12 YFS Button Screws
4 x M3x14 YFS Button Screws
4 x M3x20 YFS Button Screws
4 x M3 Flight Control Silicone Grommets
4 x M3 Nylon Nuts
4 x 5×150 Nylon Ties
2 x 20×220 GEPRC Lipo Straps
1 x 15×250 GEPRC Lipo Strap
1 x 2.4G Antenna Fixed Tube
GEPRC-Mark4-7 Frame Overview
The GEPRC-Mark4-7 Frame is a super lightweight H-style 7-inch freestyle FPV drone frame designed for pilots seeking smooth aerial shooting and long-range performance. Crafted from high-strength carbon fiber with reinforced 5mm arms, it offers a balanced center of gravity and straightforward electronics installation.
Key Features of GEPRC-Mark4-7 Frame
- H-style 7-inch layout optimized for stable freestyle and long-range flights
- Durable 5mm-thick carbon fiber arms for maximum impact resistance
- Optimized center of gravity for smooth cinematic and acrobatic maneuvers
- Dual flight controller mounting holes: 30.5×30.5 mm & 20×20 mm
- 25 mm aluminum standoffs to provide ample space for electronics and wiring
- Fast shipping across India from Zbotic—get your frame delivered in 1–2 days
Applications and Use Cases
- Building a long-range FPV drone for expansive aerial exploration
- Freestyle and cinematic shooting with smooth roll and pitch stability
- Forest and mountain runs where lightweight agility is critical
- Custom 7-inch propeller builds for efficient thrust and flight times
- Durable racing frames that withstand hard landings and crashes
- Testbed for new flight controllers and power distribution stacks
How to Use GEPRC-Mark4-7 Frame
Begin by securing the 5mm carbon fiber arms to the H-style center plate using the supplied screws and 25 mm standoffs. Choose the appropriate flight controller mounting holes (30.5 × 30.5 mm or 20 × 20 mm) and attach your FC/PDB stack. Route motor wires through the arm channels, mount motors on the reinforced arm ends, and finalize by installing your camera and video transmitter in the front section for optimal balance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What material is used for the GEPRC-Mark4-7 Frame?
The frame is made from high-strength carbon fiber with 5 mm thick arms, offering an excellent strength-to-weight ratio and resistance to impact during freestyle flights.
Can I mount both 30.5×30.5 and 20×20 flight controllers?
Yes. The Mark4-7 frame features dual mounting holes that accommodate standard 30.5×30.5 mm and compact 20×20 mm FC/PDB stacks for maximum compatibility.
Is the frame suitable for mounting 7-inch propellers?
Absolutely. The H-style design and optimized center of gravity make it perfect for 7-inch prop setups, delivering smooth thrust and extended flight times.
