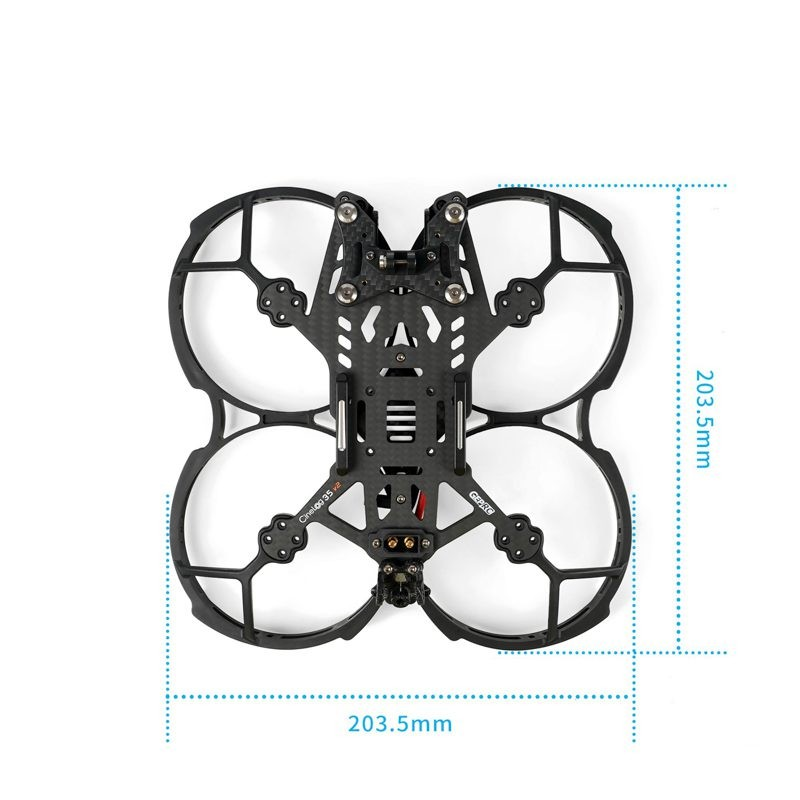

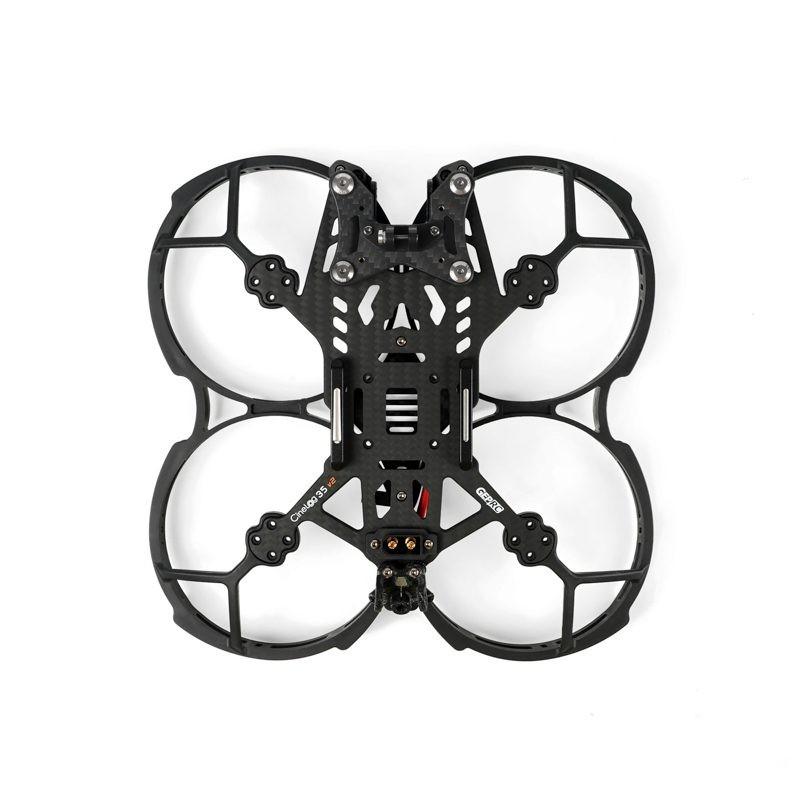

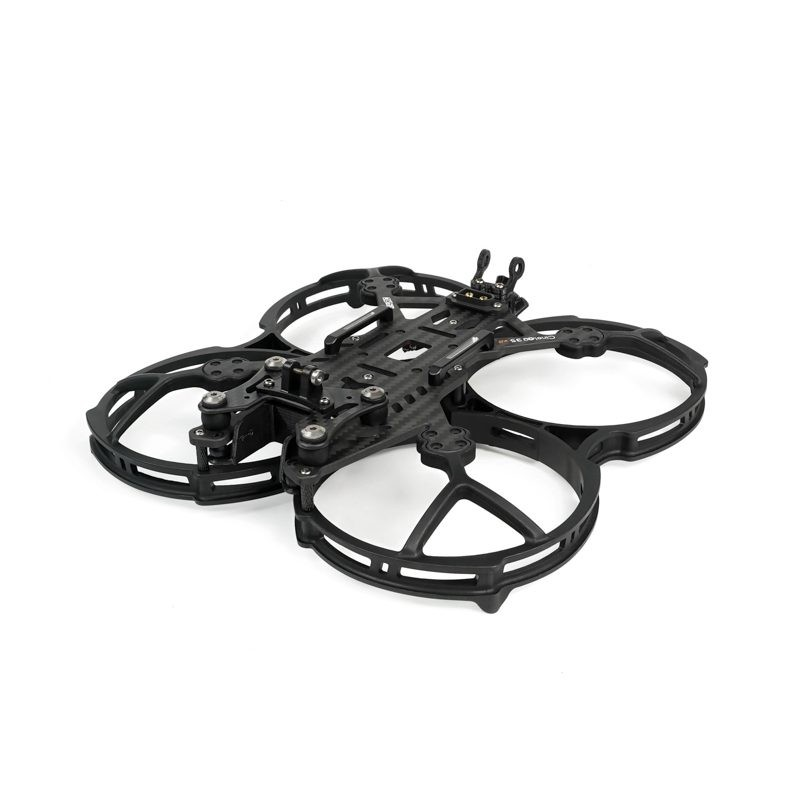

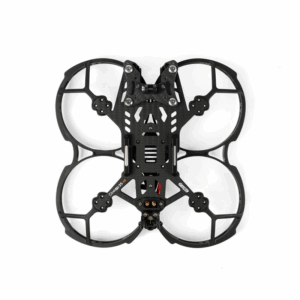

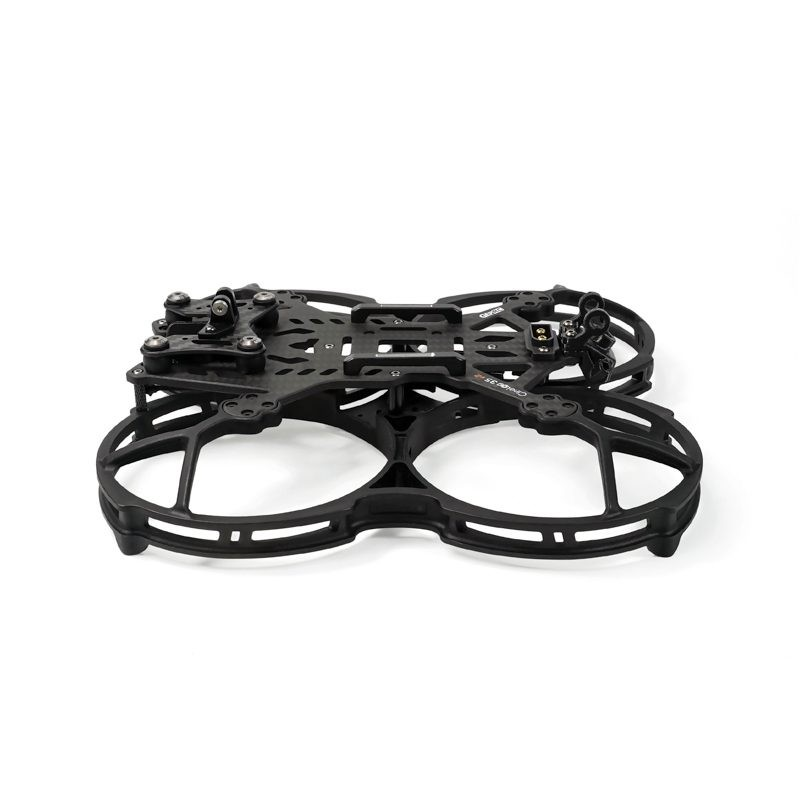

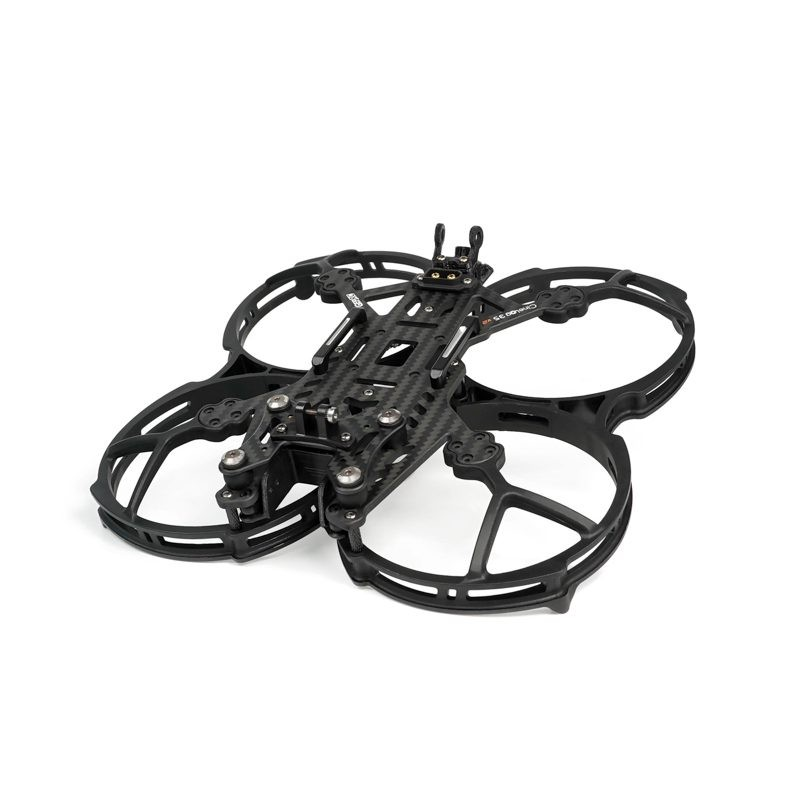

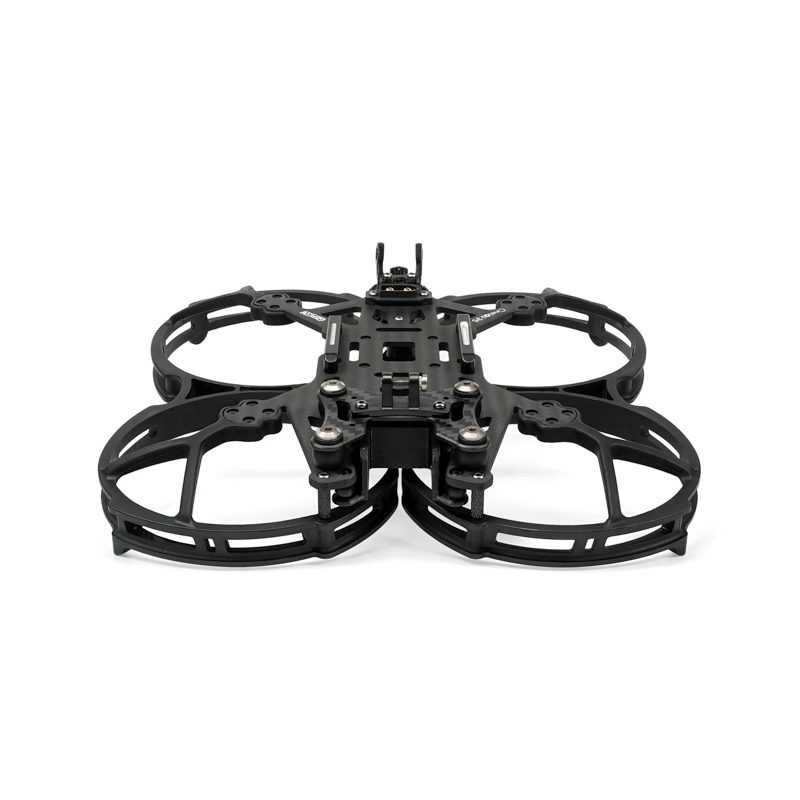

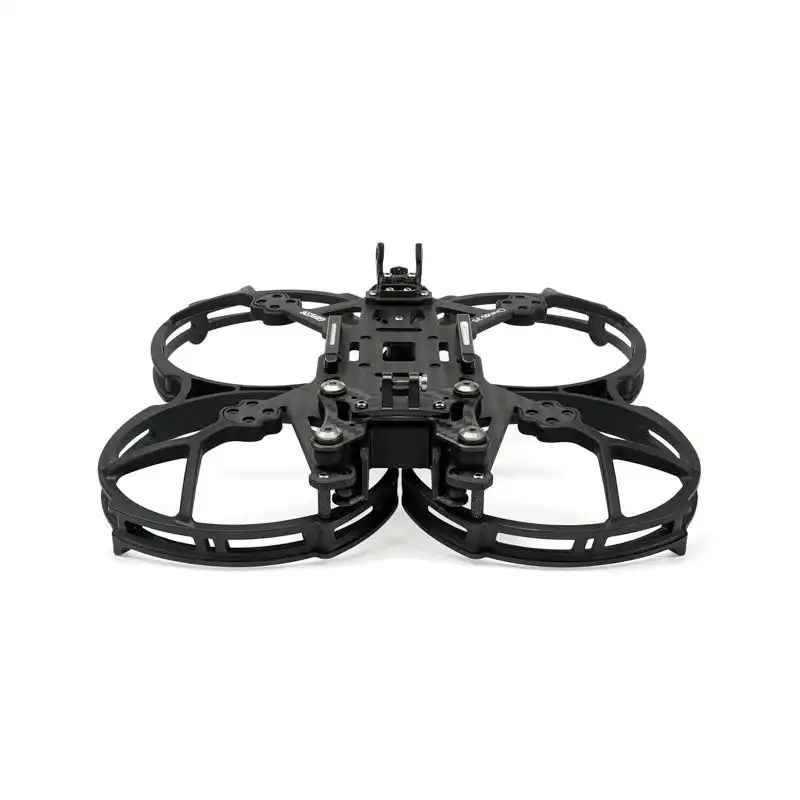

GEPRC-CL35V2 Frame:
The GEPRC CL35 V2 Frame is a refined upgrade designed for cinematic drone builders using the DJI O3 Air Unit. With enhanced anti-vibration camera mounting, reinforced carbon and aluminum construction, and injection-molded prop guards, it offers maximum stability and performance. Built with user-friendly features like an integrated XT60E1-M plug and easy-access SD/USB ports, the CL35 V2 ensures a seamless flying and filming experience for professionals and hobbyists alike
Features:
- Storage card & USB port access on O3 prop guard.
- Anti-shake camera mount combats IMU resonance.
- Secure battery mounting with aluminum strap hardware.
- XT60E1-M plug and carbon plate integration.
- Durable prop guards with reinforced aluminum columns.
- Lightweight, impact-resistant structure.
- Easy camera and component installation.
- Compatible with 3.5″ props and O3 Air Unit.
Specification
| Item Type: | Drone Frame |
|---|---|
| Model Type: | MK5D-LR7 |
| Material: | Carbon Fiber + 7075 Aluminum + Injection Molded PlasticCarbon Fiber |
| Color: | Black |
| Compatibility: | Analog/Digital VTX, DJI O3, GP Camera |
| Motor Hole Dia. (mm) | 142 |
| Top plate thickness (mm) | 2 |
| Bottom Plate Thickness(mm) | 1.5 |
| Compatible Prop (inch): | 3.5 |
| Thickness of Arms | 3.5 |
| Shipping Weight | 0.25 kg |
Package Includes:
Carbon Plates:
1 × Main carbon plate (3.0mm)
1 × Top Plate (2.0mm)
1 × Bottom plate (1.5mm)
Screw Kits:
2 × Battery strap aluminum parts
2 × 7075 mesh aluminum column M2×11.5×4
4 × 7075 mesh aluminum column M2×25×3.3
4 × Custom half crescent head screws M3×15
6 × Cup head screw M2×18
2 × Round head screws M2×16
4 × Round head screws with pad M2×4
4 × Round head screws M2×5.5
30 × Round head screws M2×7
14 × Round head screws M2×12
16 × Round head screws M2×8
6 × Round head screws M1.6×8
4 × Round head screws M2×6
6 × Round head screws M2.5×6
1 × Chamfered hex socket screw M5×28
4 × Press rivet nuts M3
4 × Self-tightening nuts M2
18 × Iron nuts M2
1 × Flange nut M5
12 × Press rivet nuts Brass Color M2×1.9-OD4.9
3D Printed Parts:
1 × Camera mount (2 holes)
1 × Camera mount (4 holes)
1 × Receiver mount
1 × T-shaped antenna mount
1 × VTX antenna mount
1 × Capacitor mount
1 × Power plug printed part
1 × GP Camera base mount
Injection Molded Parts:
1 × Propeller guard
4 × FC vibration rubber (M2×6)
6 × Camera vibration rubber
4 × Gimbal shock absorber rings M3×10.5×10.25
Other Accessories:
1 × XT60E1-M plug with cable
4 × Motor hubs M7×15mm
3 × 5.8G VTX extension cable (80mm)
7 × Heatshrink tubes
1 × Naked GP Camera base mount
4 × BEC pads
2 × Battery non-slip pads (Cinelog 35 V2)
2 × Receiver antenna sticks (100mm)
1 × Battery strap M20×250
1 × Battery strap M20×220
1 × L-shaped screwdriver 1.5mm
1 × L-shaped screwdriver 2.0mm
1 × L-shaped screwdriver 3.0mm
1 × M5 wrench
1 × Keychain
1 × Quick Start Guide
2 × GEPRC Stickers
1 × Service Card
1 × Packaging Box
1 × User Manual
1 × Promotion Card
GEPRC-CL35V2 Frame Overview
The GEPRC-CL35V2 Frame is a specialized cinewhoop drone chassis built to house the DJI O3 Air Unit. Crafted from reinforced carbon fiber and 7075 aluminum, it delivers stability and vibration reduction for professional aerial videography.
Key Features of GEPRC-CL35V2 Frame
- Dedicated mounting for DJI O3 Air Unit with convenient SD/USB port access
- Anti-shake gimbal camera mount minimizes IMU resonance for smooth footage
- Reinforced carbon plates paired with 7075 aluminum for a lightweight yet durable build
- Integrated XT60E1-M power plug and carbon mounting plate for secure connections
- Durable injection-molded prop guards supported by aluminum standoffs
- Secure battery attachment using aluminum strap hardware
- Fast shipping from Zbotic to get your frame ready for assembly quickly
Applications and Use Cases
- Cinematic aerial filming in tight indoor and urban environments
- FPV freestyle and tight-space gymkhana flying
- Professional content creation for real estate, events, and inspections
- Hobbyist builds seeking vibration-free onboard video recording
- Demonstration rigs for drone technology exhibitions and workshops
How to Use GEPRC-CL35V2 Frame
Begin by mounting the DJI O3 Air Unit onto the top plate and securing it with included screws. Install the anti-vibration camera mount in the front bay, then attach your gimbal camera. Route power through the integrated XT60E1-M plug and fasten your battery beneath the frame using the aluminum strap hardware. Finally, snap on the prop guards and verify SD/USB port accessibility before your first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the GEPRC-CL35V2 Frame include the DJI O3 Air Unit?
No, the DJI O3 Air Unit is not included. The frame is designed with a dedicated mounting system and access ports to accommodate your existing O3 Air Unit.
What battery configurations are supported?
The frame features an integrated XT60E1-M plug and adjustable aluminum strap hardware, allowing you to fit common 4S or 6S LiPo batteries securely beneath the main plate.
Is the frame ready to fly out of the box?
The CL35V2 ships as a modular kit. Basic assembly is required—mount the Air Unit, secure the camera, attach prop guards, and connect power before first flight.
