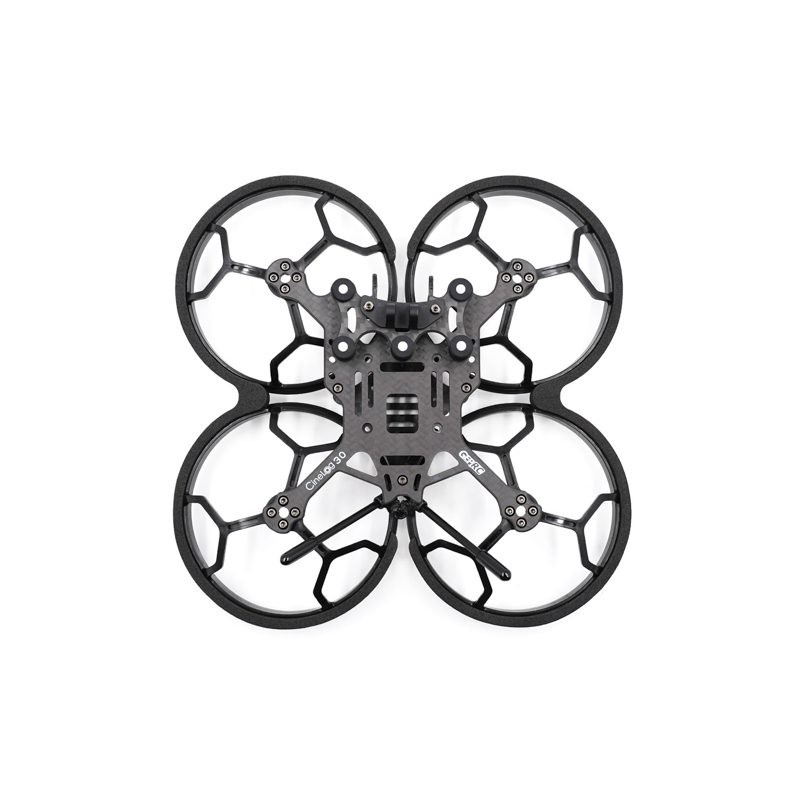

GEPRC -CL30 Frame:
The GEPRC CL30 is a compact and ultra-lightweight 3-inch drone frame optimized for stability, performance, and camera compatibility. It builds on the CL25 design with enhanced damping for smoother footage and strong power output for 1404–1408 motors. Supporting Naked GP8 and Insta360 Go2, this frame offers versatile mounting and solid protection with prop guards. Ideal for freestyle and cinematic flying, the CL30 delivers extended functionality in a refined, robust structure.
Features:
- Compact 126mm motor-to-motor structure.
- Compatible with mainstream 26.5×26.5mm FC and 20x20mm VTX mounts.
- Enhanced shock absorption for camera stability.
- Supports 9x9mm motor holes for 1404–1408 motors.
- Built-in mounts for Naked GP8 and Insta360 Go2.
- Lightweight construction with integrated propeller guards.
- Pre-cut 3D prints for antenna, camera, and receiver.
- Full hardware kit included for easy assembly.
Specification
| tem Type: | Drone Frame |
|---|---|
| Model Type: | CL30 |
| Material: | Carbon Fiber |
| Compatibility: | 1404–1408 Motors, Insta360 GO2, Naked GP8 |
| Motor Hole Dia. (mm) | 9 X 9 |
| Top plate thickness (mm) | 2 |
| Bottom Plate Thickness(mm) | 2 |
| Compatible Prop (inch): | 3 |
| Thickness of Arms | 3.0mm |
| Thickness (mm): | Top/Bottom: 2.0mm |
| Wheelbase (mm) | 126mm |
| Shipping Weight | 0.25 kg |
Package Includes:
Carbon Plate:
- 1 x Top Plate (2.0mm)
- 1 x Arm Plate (3.0mm)
- 1 x Bottom Plate (2.0mm)
- Screws & Fasteners:
- 2 x Knurled nut M2
- 4 x Aluminum Column M2x3.5×25
- 2 x M2x4mm Cup Head Screws
- 28 x M2x6.5mm Round Head Screws
- 10 x M2x8mm Round Head Screws
- 7 x M2x9mm Round Head Screws
- 4 x M2x10mm Round Head Screws
- 1 x M2x12mm Cup Head Screw
- 4 x M2x16mm Cup Head Screws
- 1 x M2 Rivet Nut
- 4 x M2 Lock Nuts
- 8 x M2 Iron Nuts
- 8 x M2x6.5mm Damping Rings
- 9 x Damping Platform Rings
- 3D Printings:
- 1 x 19x19mm Camera Mount
- 1 x VTX Antenna Mount
- 1 x TBS T-shaped Antenna Mount
- 1 x TBS NanoRX Mount
- 1 x Camera Protector
- Injection Parts:
- 6 x 3-inch Propeller Guards
- 1 x GP Camera Mount
- Other Accessories:
- 4 x EVA Damping Ring of Guards
- 2 x 3M Double-Sided Tapes
- 2 x Silicone Pads
- 2 x Landing Pads
- 1 x Battery Strap M15x200mm
- 1 x Battery Strap M15x150mm
- 1 x L-shaped Tool (1.5mm)
- 1 x Antenna Tubes
GEPRC -CL30 Frame Overview
The GEPRC -CL30 Frame is an ultra-light 3-inch drone frame designed for freestyle and cinematic flying. Its compact 126 mm motor-to-motor layout and enhanced damping platform deliver stable footage while supporting 1404–1408 motors and 3-inch propellers.
Key Features of GEPRC -CL30 Frame
- Ultra-light 3-inch frame with 126 mm motor-to-motor distance for agile flight
- Enhanced shock-absorption platform to minimize camera vibration
- Compatible with 1404–1408 motors and 3-inch props for strong power output
- Built-in mounts for Naked GP8 and Insta360 Go2 action cameras
- Supports standard 26.5×26.5 mm flight controller and 20×20 mm VTX mounting patterns
- Durable construction with integrated prop guards for added protection
- Fast shipping from Zbotic with tracking
Applications and Use Cases
- Freestyle FPV sessions in parks or urban areas
- Cinematic aerial videography with Insta360 Go2 or Naked GP8
- Indoor racing where compact size and agility matter
- Lightweight travel build for on-the-go adventures
- Training frame for pilots upgrading from micro drones
- Content creation for real estate or event coverage
How to Use GEPRC -CL30 Frame
Begin by mounting your chosen flight controller (26.5×26.5 mm) and video transmitter (20×20 mm) onto the provided standoffs. Install 1404–1408 motors using the 9×9 mm holes, attach 3-inch props, then secure your Insta360 Go2 or Naked GP8 into the dedicated camera mounts. Wire and configure your electronics before performing a balance and flight control setup.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which motors are compatible with the GEPRC -CL30 frame?
The CL30 supports 1404 to 1408 motors using 9×9 mm mounting holes, offering a balance of power and efficiency for 3-inch propellers.
Can I mount an Insta360 Go2 on this frame?
Yes. The frame includes pre-drilled mounts specifically designed to secure an Insta360 Go2 or Naked GP8 camera without additional adapters.
What flight controller and VTX mounting patterns does the CL30 support?
The GEPRC CL30 accommodates mainstream 26.5×26.5 mm flight controllers and 20×20 mm video transmitter boards, providing broad compatibility with popular FC and VTX modules.
