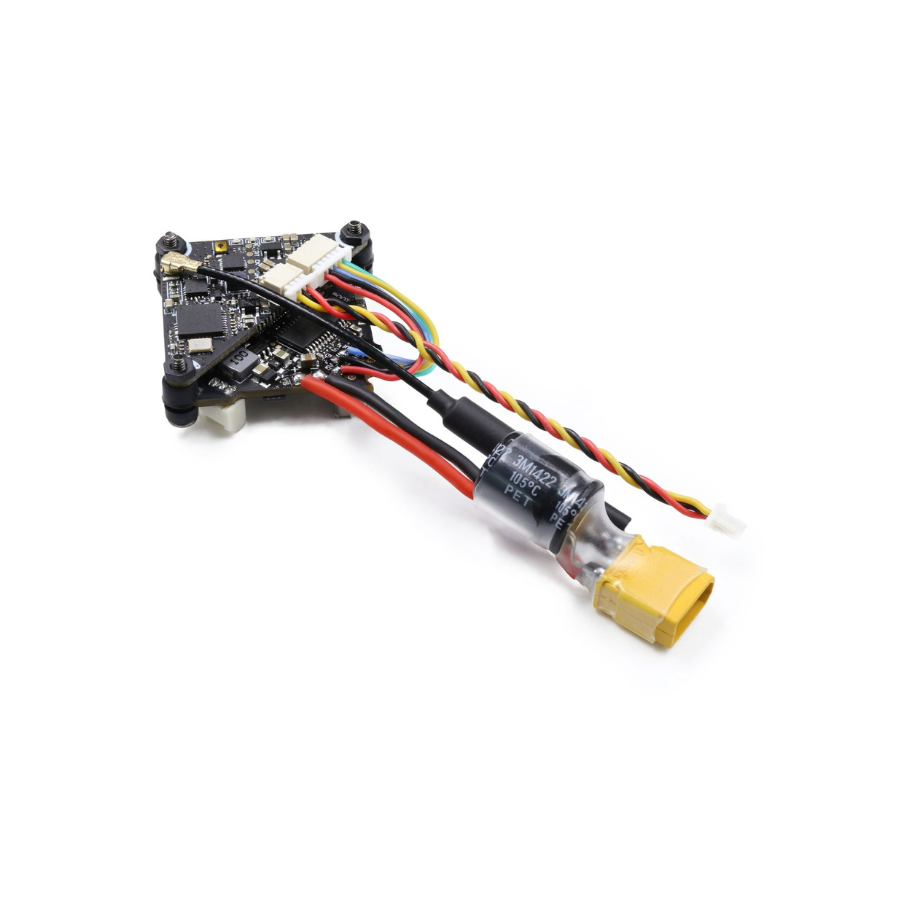

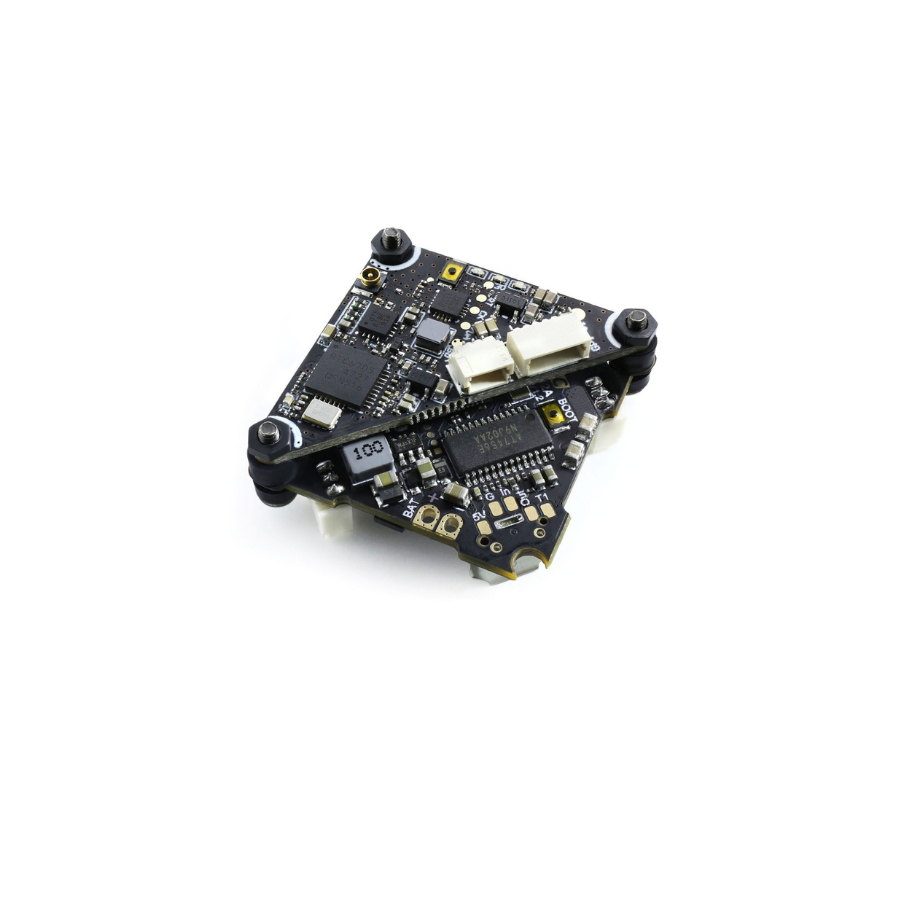

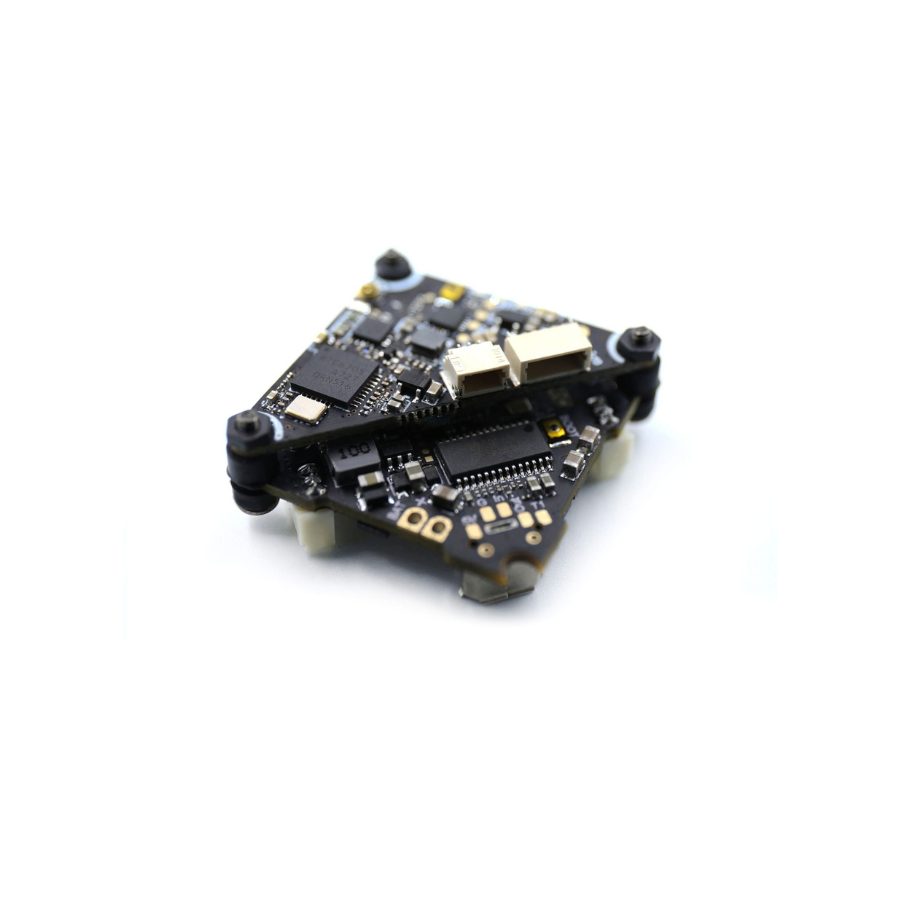

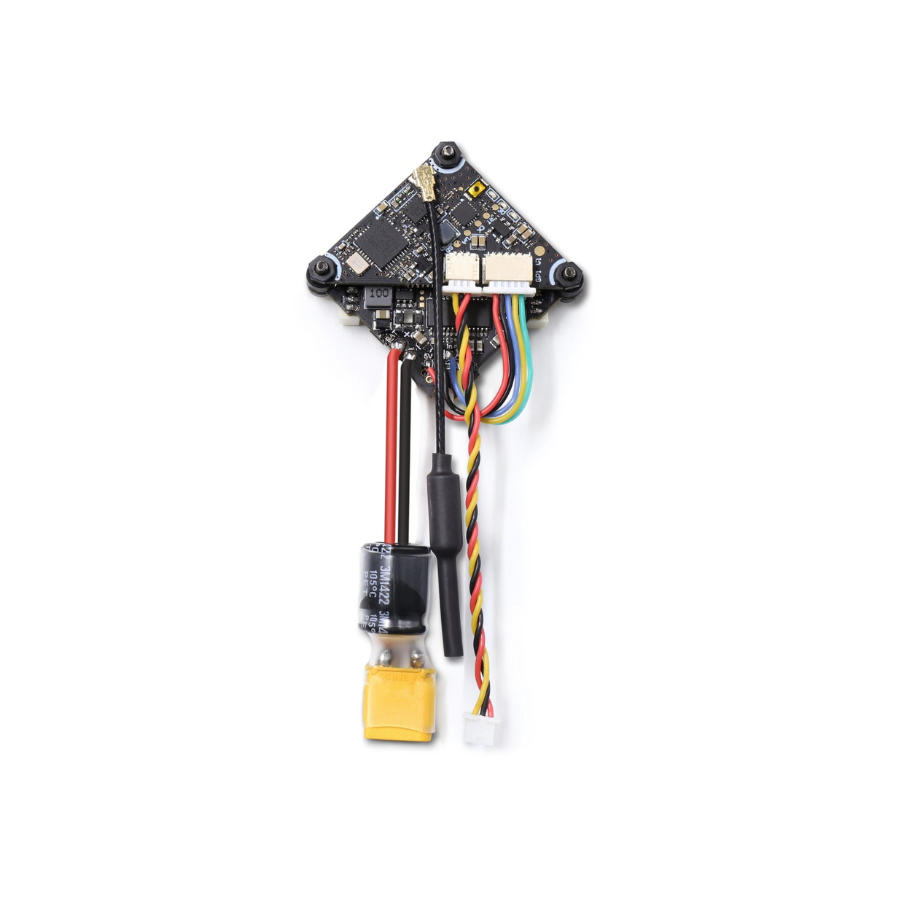

GEPRC CEP-STABLE 12A Whoop Stack
Description:
The GEPRC CEP-STABLE 12A Whoop Stack is a compact and lightweight flight controller and 4-in-1 ESC stack designed for small FPV whoop drones. With a 12A ESC rating, it provides reliable motor control, smooth throttle response, and stable flight performance. Its space-saving design makes it suitable for compact drone builds, while the integrated stack helps simplify installation and wiring. It is an ideal choice for micro FPV, indoor flying, freestyle, and DIY whoop drone projects.
GEP-12A-F4 Flight contorller:
Specifications:
- Model Name:GEP-12A-F4
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- BEC Output: 5V@1A
- Integrated LC Filter
- Firmware target: GEPRCF411
- Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
- Installing Hole: 25.5×25.5mm, M2
- ESC MCU: BB21F16G
- Continuous current: 12A
- Input:2-4s lipo
- Supports Dshot600 ,Oneshot,Multishot
- Current meter: 210
- Target: G_H_30
VTX Specifications:
- Model Name:GEP-VTX200-Whoop
- Item name: 25~200mw 48CH VTX FPV Transmitter
- Output power: Pit/25/100/200mw switchable
- Channels: 48CH
- Input voltage: 4.5V – 5.3V
- Current consumption: 300mA(type)
- Antenna: RG178 antenna U.FL interface
- Frequency: 5.8GHz 5 bands 48 channels With Raceband
- Video Format:PAL/NTSC
- Control protocol：IRC Tramp
- Weight: 2g without antenna
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS

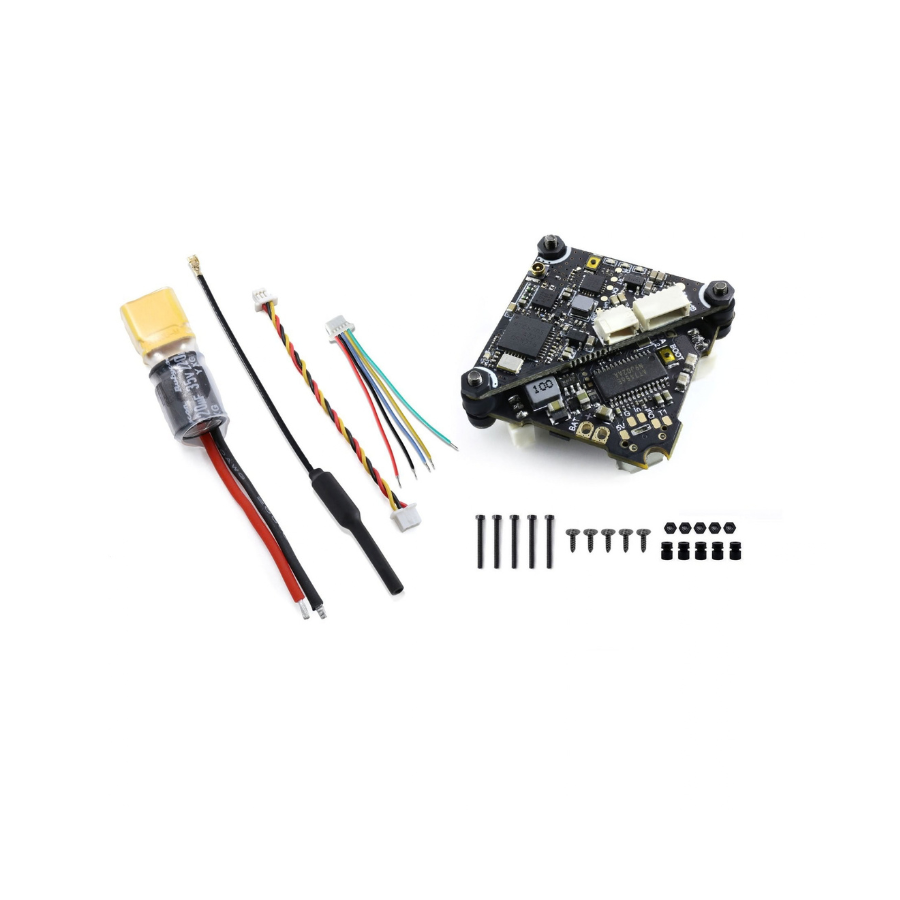

Package Includes:
1 x GEP-12A-F4
1 x GEP-VTX200-Whoop
1 x Power cable
8 x screw
4 x Soft silicone
Long Range FPV Drone: How to Build a 50km+ Fixed Wing UAV in India (2026)
Fixed-wing UAVs capable of flying 50 kilometres or more represent the pinnacle of amateur and professional drone engineering....
Read More →
Drone Maintenance Checklist: Pre and Post Flight
Table of Contents Understanding Drone Maintenance Checklist Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Best Budget FPV Complete Kits India Under ₹5000 in 2026
Table of ContentsThe Budget FPV Reality Check for Indian BeginnersWhat a ₹5000 Budget Actually Gets YouFPV Kit Categories...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 12A |
| Interface / Protocol | BLE |
| SKU | AI5033 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC CEP-STABLE 12A Whoop Stack is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
