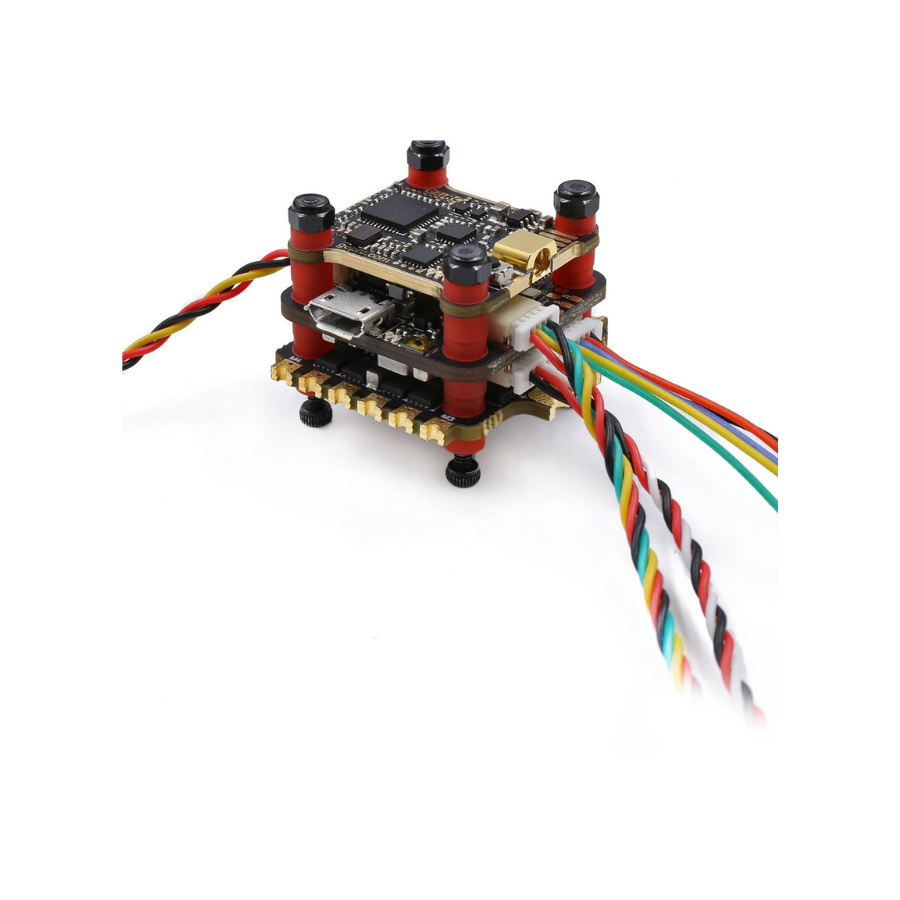

GEPRC GEP-STABLE V2 F4 30A
Description:
GEPRC GEP-STABLE V2 F4 30A is a compact and reliable flight controller and ESC stack designed for FPV drones. It combines an F4 flight controller with a 30A 4-in-1 ESC, offering stable flight performance, efficient motor control, and easy integration for drone builds.

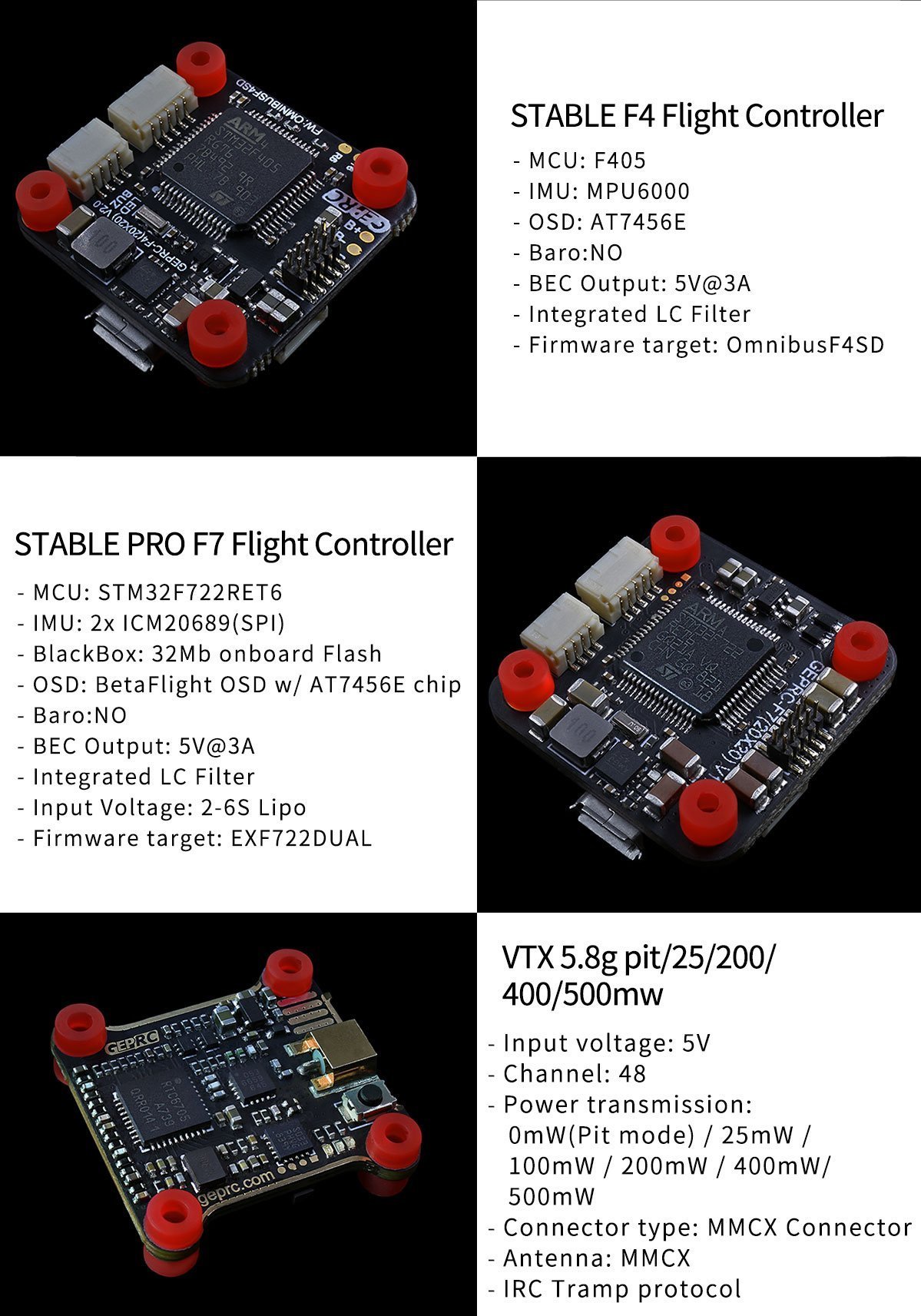

STABLE V2 F4 Flight Controller Specs：
- Model:STABLE F4 30A
- MCU: F405
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- BEC Output: 5V@3A
- Integrated LC Filter
- Firmware target: OmnibusF4SD
- Size: 26x26mm board, 20mm mounting holes (M2)

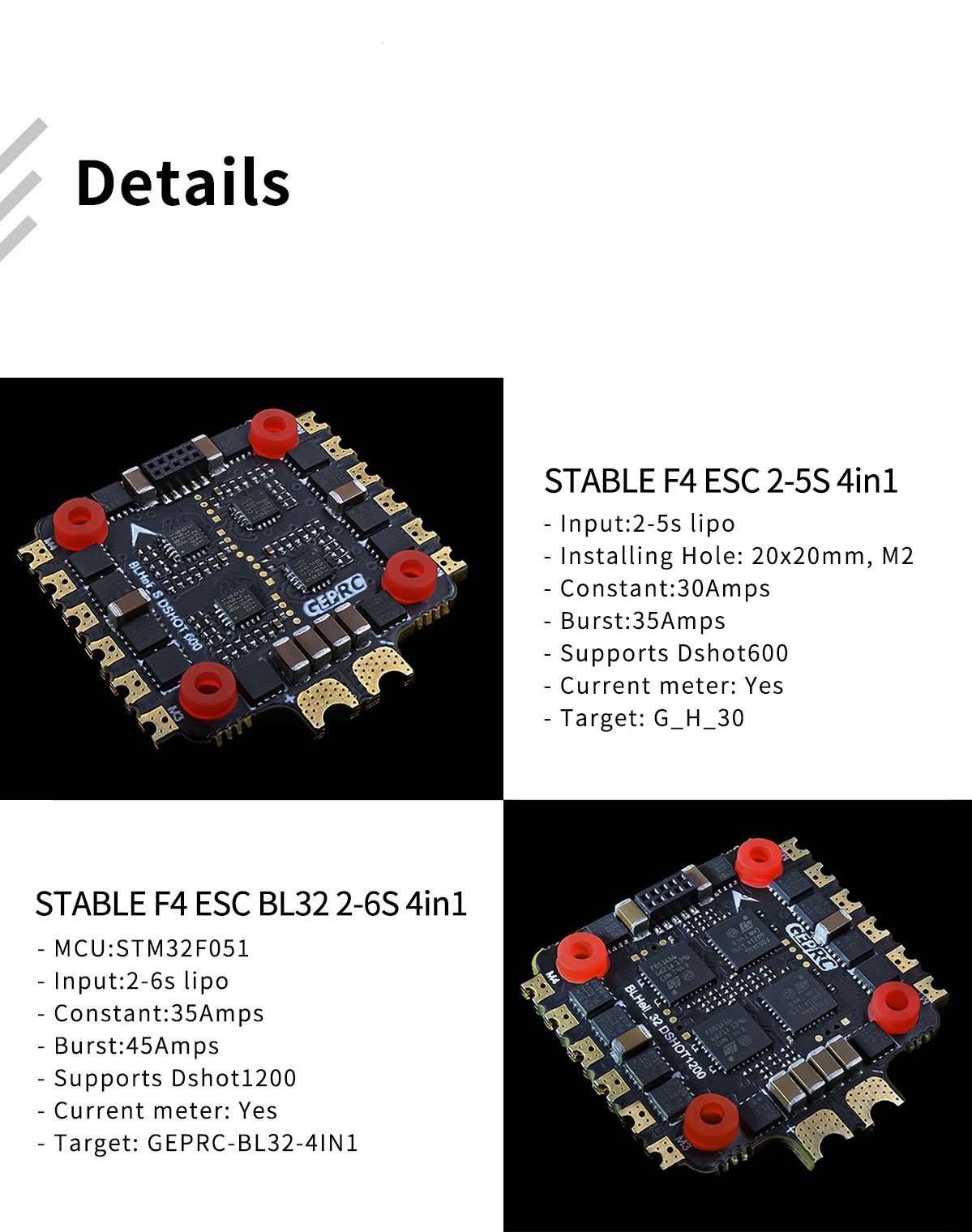

STABLE V2 F4 ESC 2-5S 4in1 Specs：
- Input:2-5s lipo
- Constant:30Amps
- Burst:35Amps
- Dimensions:31*31mm(including the power pads)
- Mounting Holes:20*20mm,M2
- Supports Dshot600,Proshot,Oneshot,Multishot
- Current meter: Yes
- Target: G_H_30
STABLE F4 5.8g 600mW VTX Specs:
- Input voltage: 5V
- Channel: 48
- Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 600mW
- Size: 24 * 26 mm
- Mounting Holes Dimension: 20mm x 20mm
- Connector type: MMCX Connector
- BEC Output：5V/1A for Camera of FC
- Weight: 2.3g
- Traditional button
- IRC Tramp protocol
Features:

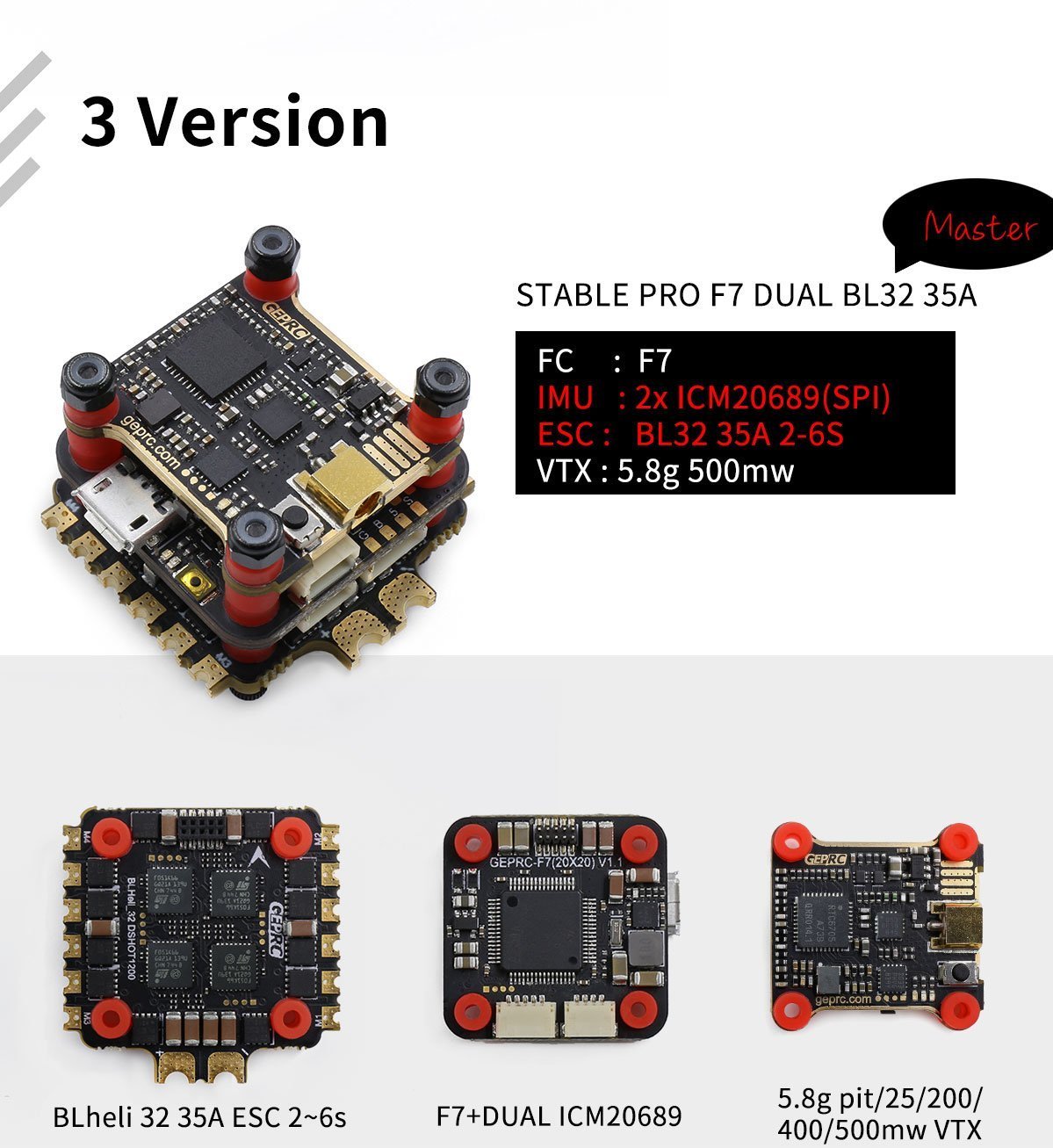

- F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience

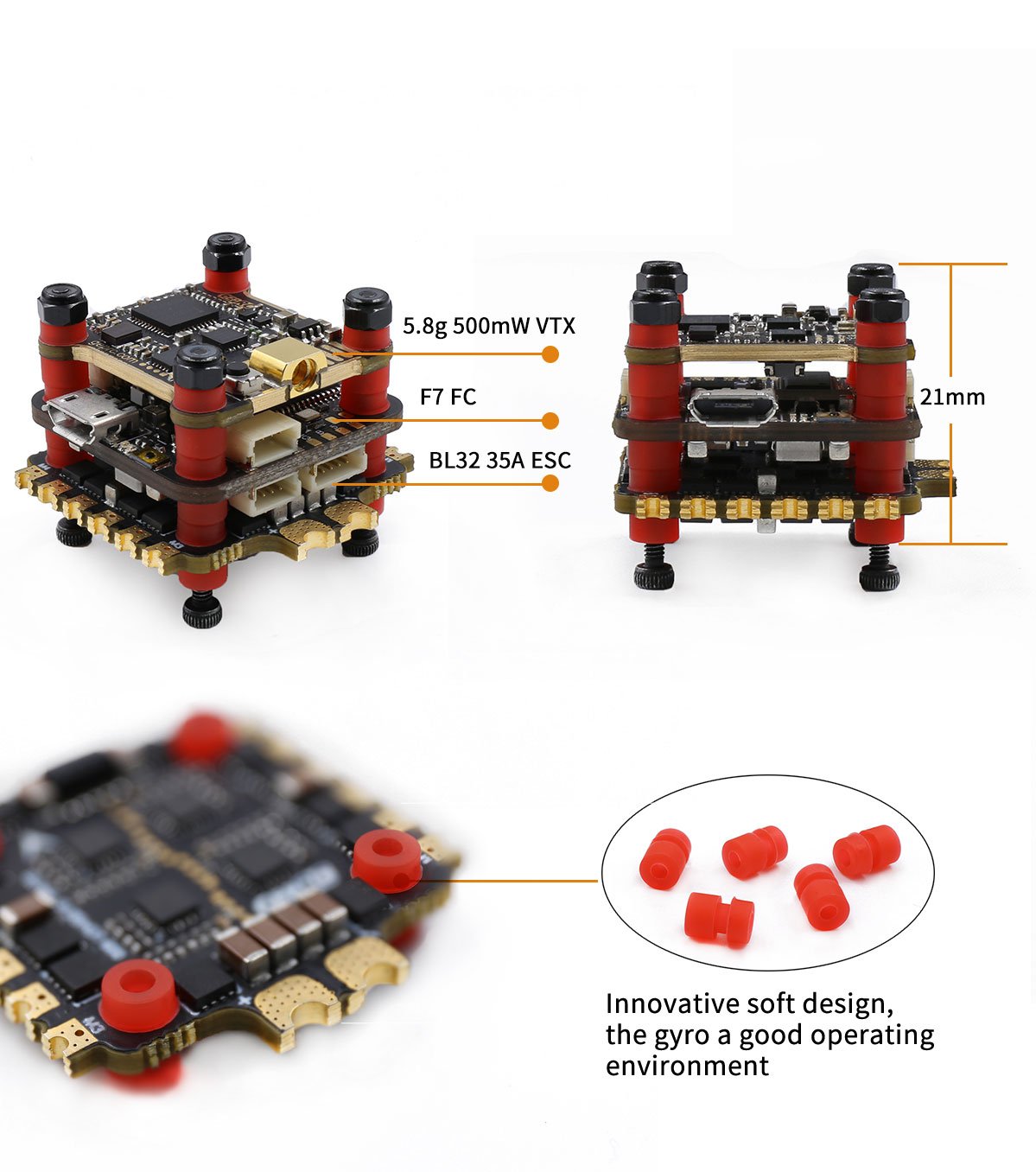

- Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise
- Simple installation method, compact space
- STM32 F405 MCU or STM32F722RET6 MCU
- Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)
- Support 2-6s battery and current meter
- Support blackbox and use 32M on-board flash storage
- 8g VTX Support IRC protocol, PIT/ 25/100/200/600mw adjustable, 48 frequency
- Mounting Holes: 20x20mm(M2)
- Size: 26x26x21mm
- Weight 16.5g (Including Wire and screws)
Package Include：
– 1 x F4 Flight Controller
– 1 x BLheli_s 30A 2-5S ESC
– 1 x 5.8g 600mW VTX
– 1 x Antenna
– 1 x Capacitance
– 5 x cable set
– 4 x M2*28mm screw
– 16 x Soft silicone
FPV Freestyle Tricks Tutorial: Rolls, Flips and Split-S
FPV Freestyle Tricks Tutorial: Rolls, Flips and Split-S FPV freestyle is one of the most exciting forms of...
Read More →
VTOL Drone Build: Tilt-Rotor Transition from Hover to Flight
VTOL Drone Build: Tilt-Rotor Transition from Hover to Flight VTOL (Vertical Take-Off and Landing) drones represent the perfect...
Read More →
Drone Antenna Guide: LHCP vs RHCP, Omni vs Patch
Table of Contents Understanding Drone Antenna Guide Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 30A |
| Interface / Protocol | BLE |
| SKU | AI5037 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC GEP-STABLE V2 F4 30A is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
