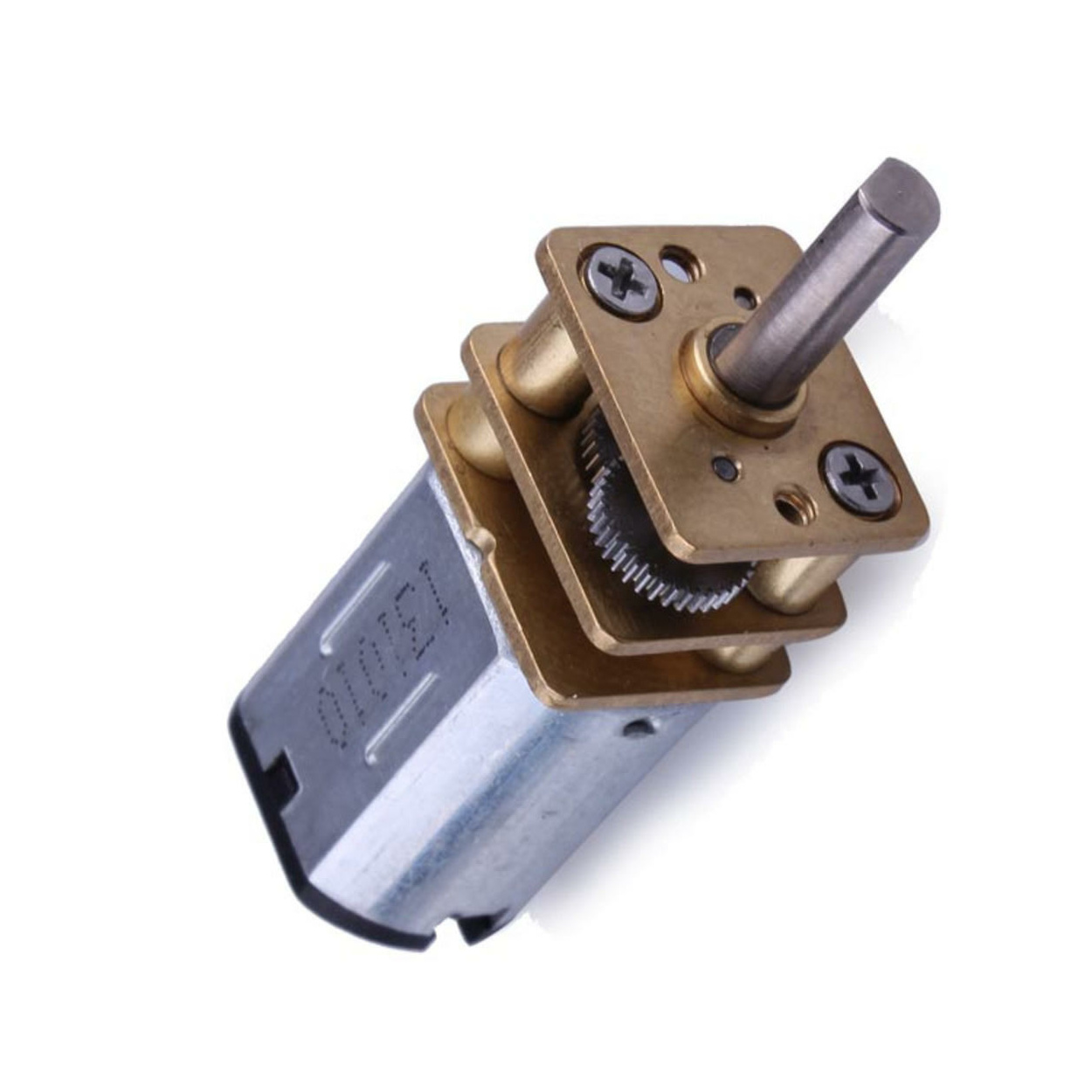

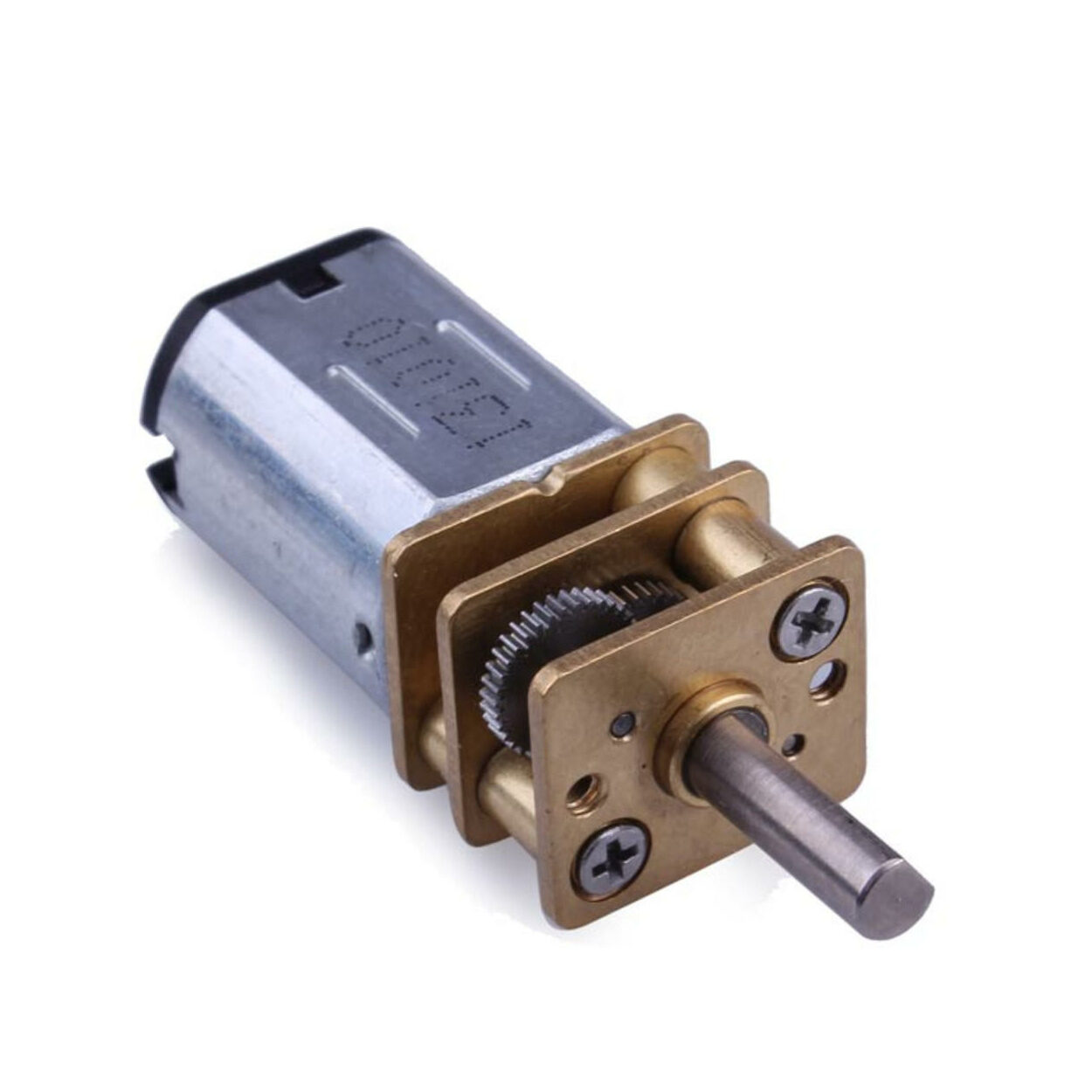

GA12-N20 3V 60RPM Micro DC Metal Gear Reduction Motor
Introducing the N20 3V 60 RPM Metal Gear Micro DC Motor with Precious Metal Brush, a lightweight yet high-torque motor designed to excel in a wide range of industrial, home appliance, and hobby applications. Engineered with an all-metal gearbox assembly, this motor delivers impressive torque for its compact size. Unlike motors with carbon brushes, the N20 motor features precious metal brushes, ensuring a longer working life and enhanced reliability.
Compared to similar-sized motors with either metal or plastic gears, the N20 all-metal geared motor offers a significantly higher torque-to-size ratio. While other motors like the BO motor series 1 and series 2, as well as center shaft 12V motors, are commonly used in small industrial applications or robotic projects, the N20 motor surpasses them in terms of torque, sturdiness, reliability, and working life.
With its exceptional performance, the N20 motor is an ideal choice for small IIoT (Industrial IoT) products such as electric locks, webcam pan-tilt mechanisms, and other actuator products requiring substantial torque within limited space and weight constraints. Additionally, in hobbyist segments, including projects like robotic cars, micro mice, electric boats, and various small motor-related endeavors where power consumption and pricing are crucial factors, the N20 all-metal gear motor stands out as the perfect solution.
Furthermore, for applications requiring precise motor control, the N20 motor is available with an encoder option, allowing for accurate position control. Be sure to explore the N20 motor with encoder variants for enhanced functionality and control.
Upgrade your projects with the reliability, torque, and versatility of the N20 3V 60 RPM Metal Gear Micro DC Motor, offering unparalleled performance in a compact package.
specification-:
| Parameter | Value |
|---|---|
| Model | GA12-N20-60 |
| Rated Voltage | 3V |
| Revolving Speed | 60 RPM |
| Rated Torque | 0.65 kg·cm |
| Stall Torque | 2.6 kg·cm |
| Rated Current | 0.08A |
| Stall Current | 0.67A |
| Total Length (LxWxH) | 36x12x10mm |
| Gear Material | Full Metal |
| Shaft Size | 3 x 9mm (DxL) |
| Shaft Type | D Type |
| Net Weight | 12g |
package include-:
1 X GA12-N20 3V 60RPM Micro DC Metal Gear Reduction Motor
GA12-N20 3V 60RPM Micro DC Metal Gear Reduction Motor Overview
The GA12-N20 3V 60RPM motor is a compact brushed DC gear motor featuring a full-metal spur gearbox and precious metal brushes for enhanced durability. Its high torque-to-size ratio makes it ideal for precise motion applications in robotics, automation and hobby projects.
Key Features of GA12-N20 3V 60RPM Micro DC Metal Gear Reduction Motor
- Precise 60 RPM output at a nominal 3 V input for controlled slow-speed motion
- Rated torque of 0.65 kg·cm (stall torque 2.6 kg·cm) suitable for small actuators
- All-metal spur gearbox with copperplate case and sleeve bronze bushings for long life
- Precious metal brushes deliver lower wear and extended operating lifespan
- Compact dimensions (36×12×10 mm) and 3×9 mm D-type shaft for easy mounting
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Micro mobile robots and wheeled platforms requiring precise low-speed drive
- Pan/tilt camera mounts and small gimbal actuation
- DIY automation: valve control, conveyor belts, slider mechanisms
- Educational and STEM kits for demonstrating gear reduction principles
- Toy vehicles or small RC models needing reliable torque at low RPM
How to Use GA12-N20 3V 60RPM Micro DC Metal Gear Reduction Motor
Mount the motor securely using a clamp or bracket around its 12 mm diameter housing, then connect the 3 V DC supply (or motor driver) to its leads, observing polarity to set rotation direction. Use a suitable H-bridge or driver board if you need speed control or reversing functions, and ensure the motor shaft is coupled to your mechanism via a 3 mm D-shaft collar or gear.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply and current does this motor require?
This motor runs on a stable 3 V DC source. Under no-load conditions it draws about 0.08 A; at stall it can draw up to 0.67 A, so use a supply or driver capable of delivering at least 1 A peak.
How can I reverse the rotation direction?
Simply swap the polarity of the 3 V supply leads or use an H-bridge driver to change direction electronically. Reversing the connections reverses the motor’s rotation.
What mounting options work best for this motor?
Use a small clamp or bracket around the 12 mm body, securing it with screws or brackets. For the D-type 3 mm shaft, standard shaft collars or couplings ensure firm attachment to gears, wheels or pulleys.
