Looking for Fs300a Sensor? FS300A Water Flow Sensor is available at Zbotic with fast shipping across India.
Product Description

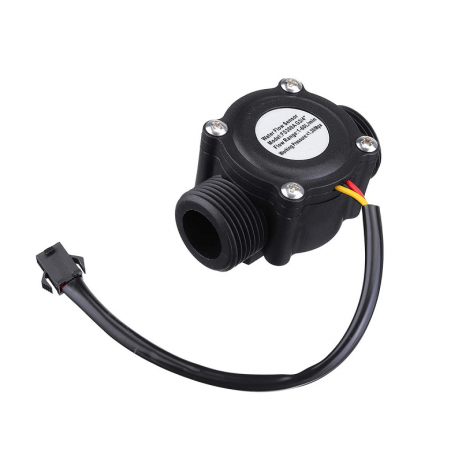

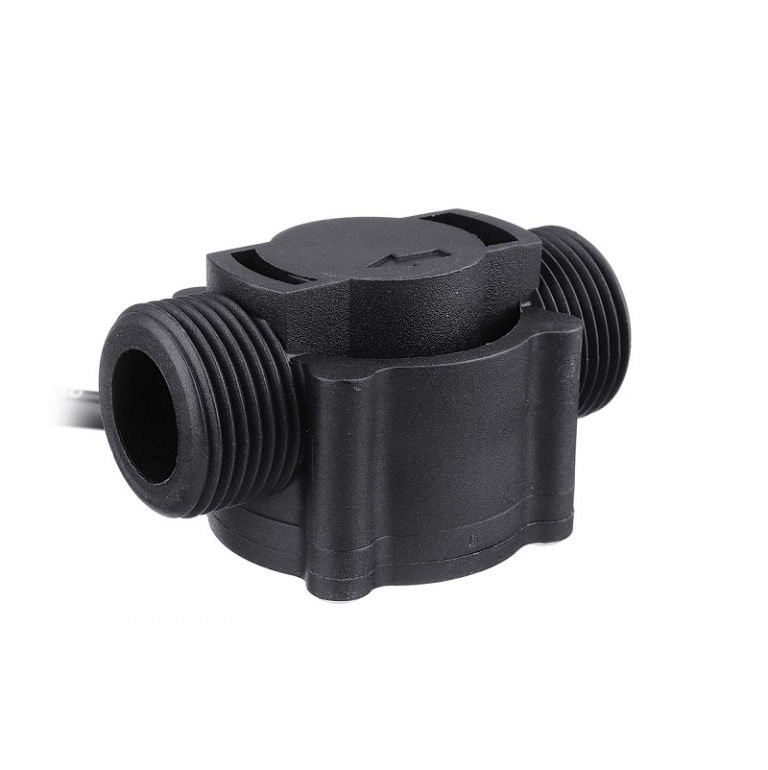

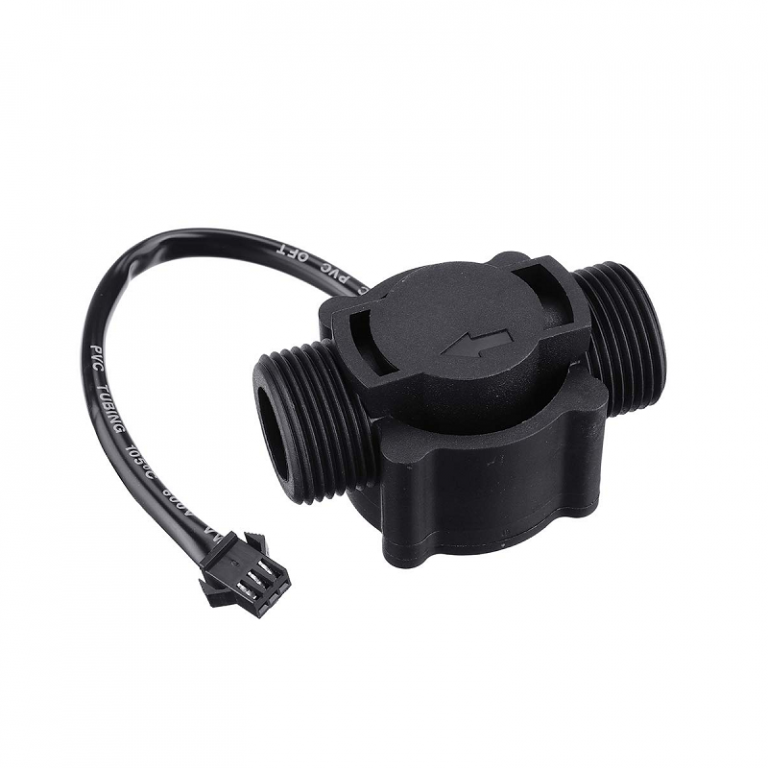

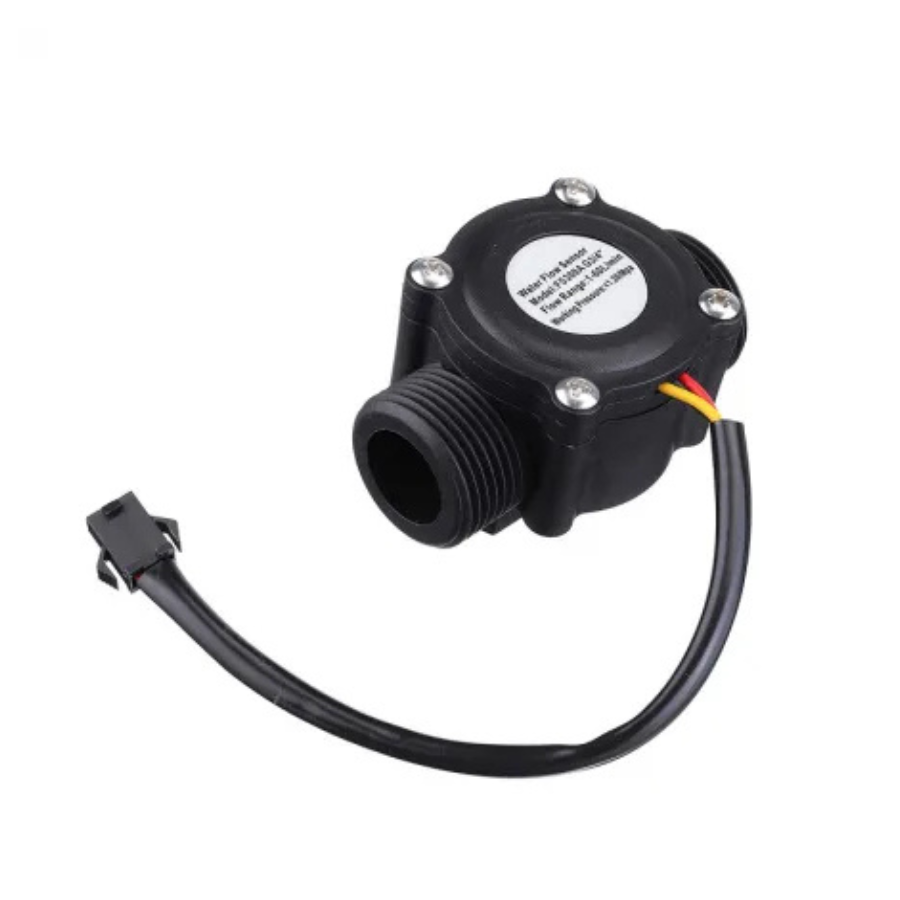

A water flow sensor consists of three parts: a plastic valve body, a water flow rotor assembly, and a Hall sensor. It is attached to the water inlet of the water heater to measure the water flow rate. The magnetic rotor in the water flow rotor assembly spins faster or slower depending on the water flow. The Hall sensor sends a pulse signal that corresponds to the rotor speed to the controller. The controller then adjusts the water flow based on the signal.
Precautions for Use:
- Severe impact and chemical erosion are strictly prohibited.
- Throwing or collision is strictly prohibited.
- The temperature of the medium should not exceed 120 degrees.
- If the water quality is too bad, please add a filter at the water inlet.
- Do not use beyond the flow range.
Features:
- This Sensor is Light and Handy in Appearance, Small in Size, and Easy to Install.
- The Impeller Rotates Around the Entire Stainless-Steel Bearing, and the Stainless-Steel Ball is Embedded to Improve the Rotational Sensitivity.
- The Sealing Ring Adopts an Upper and Lower Force Structure and will Never be Affected by Thermal Expansion and Contraction.
- The Hall Element is Imported, and Designed to be Isolated from Water, Epoxy Resin Encapsulated, Anti-Oxidation.
- All Raw Materials are in Compliance with ROHS Testing Standards
- Porous Design and Small Flow Can be Sensed as Usual.
Package Includes:
1 x FS300A Water Flow Sensor
Datasheet:
FS300A Water Flow Sensor Overview
The FS300A Water Flow Sensor is a precision device designed to measure liquid flow rates between 1 L/min and 60 L/min. It features a plastic valve body, magnetic rotor assembly, and integrated Hall-effect sensor to deliver real-time pulse signals proportional to water flow for controllers and monitoring systems.
Key Features of FS300A Water Flow Sensor
- Operating Voltage: 3.5 – 24 VDC compatible with Arduino, PLCs, and other controllers
- Flow Range: 1 – 60 L/min for low to moderate water flow applications
- Pressure Rating: Suitable for water pressure up to 1.75 MPa
- Hall-Effect Sensor: Provides stable pulse output proportional to rotor speed
- Durable Construction: Plastic valve body resists everyday wear (avoid chemical erosion)
- Fast Shipping from Zbotic: Quick dispatch across India with tracking
Applications and Use Cases
- Water heater flow monitoring to regulate temperature and prevent dry heating
- Irrigation systems for precise water usage tracking in agriculture and gardens
- Home and industrial water filtration performance testing
- Liquid dispensing machines and beverage automation setups
- DIY smart-water meter projects with microcontrollers
- Cooling loops monitoring in small-scale industrial equipment
How to Use FS300A Water Flow Sensor

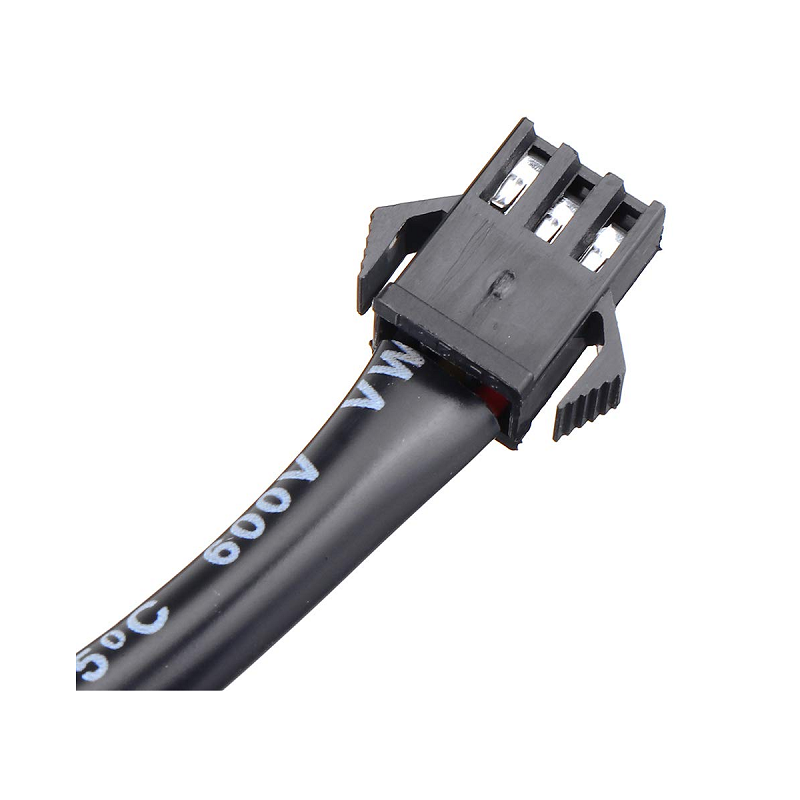

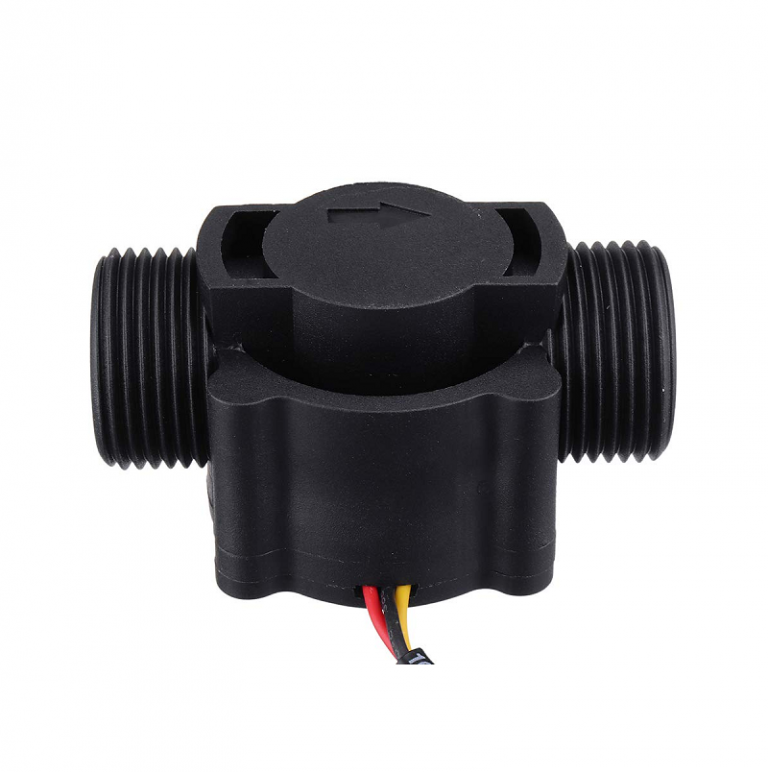

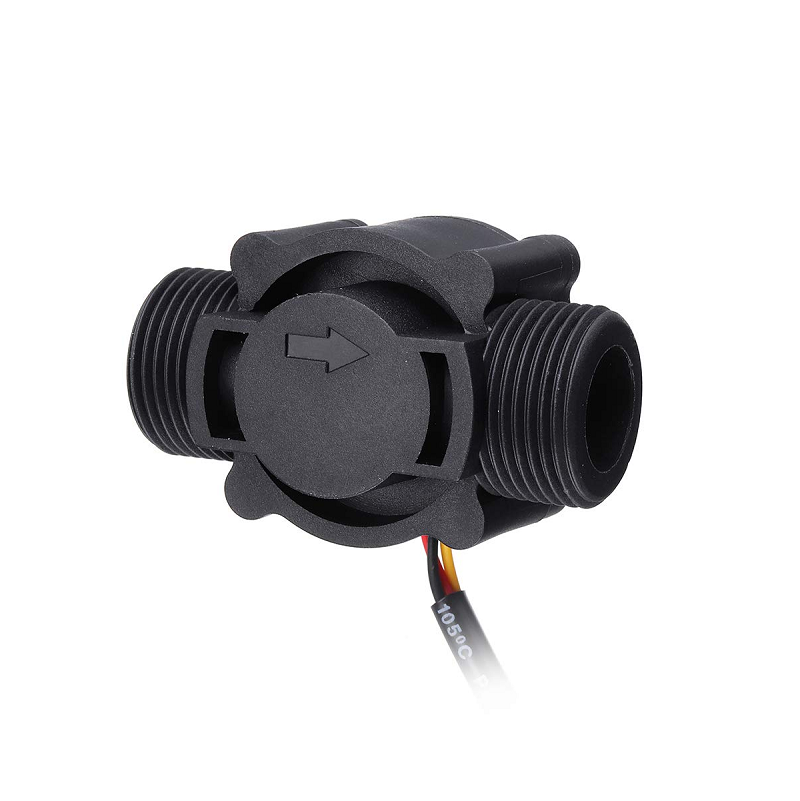

Mount the FS300A inline at the water inlet, ensuring the arrow on the body aligns with flow direction. Connect the red wire to your DC supply (3.5–24 V), black to ground, and yellow to the microcontroller input to read pulse signals. Calibrate your controller’s pulse-to-flow conversion and avoid impacts or high-temperature fluids above 120 °C.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What type of output does the FS300A provide?
The FS300A emits digital pulse signals via its Hall-effect sensor. The pulse frequency is directly proportional to flow rate, allowing accurate flow calculation when counted by a microcontroller or PLC.
Can I use this sensor with liquids other than water?
This sensor is designed for clean water applications. Avoid corrosive or particulate-laden liquids and ensure medium temperature does not exceed 120 °C to prevent damage.
How should I install the FS300A for reliable readings?
Install the sensor inline with the flow arrow pointing in the direction of water movement. Keep mounting stable to prevent vibration, and ensure there are no air bubbles at the inlet for consistent readings.
MHZ19 CO2 Sensor UART: Budget NDIR Indoor Air Monitor
Indoor CO2 concentration is one of the most overlooked factors in workplace productivity, classroom learning outcomes, and sleep...
Read More →
Strain Gauge Basics: Bridge Configuration and Signal Conditioning
Strain gauges are the invisible heart of almost every weighing and force measurement system in the world. From...
Read More →
VCNL4040 Proximity Sensor: IR Distance and Ambient Light Sensing with Arduino
The VCNL4040 is a fully integrated proximity and ambient light sensor from Vishay Semiconductors. Combining an IR LED,...
Read More →Technical Specifications
| Model | FS300A |
|---|---|
| SKU | AI2645 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The FS300A Water Flow Sensor is a versatile flow used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
