For electronic enthusiasts with a passion for copters and their mechanics, understanding the receiver is crucial, as it is the key to communicating with your drone.

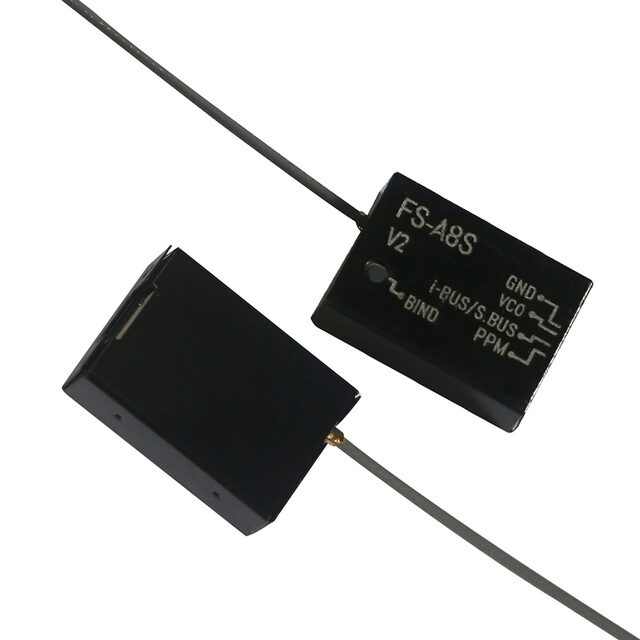

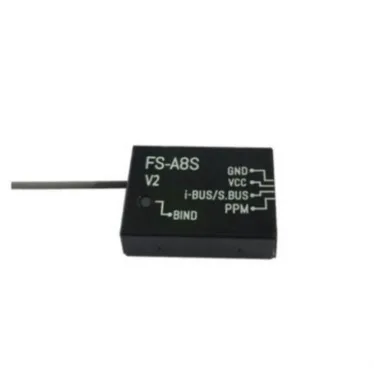

The FlySky FS-A8S 2.4G 8CH Mini Receiver Rev 2 is designed for multi-rotor drones and functions as a one-way receiver without telemetry.
In drone racing, the essential criteria are small and lightweight components that contribute to a drone’s agility. The FS-A8S receiver meets these criteria perfectly with its dimensions of 20x14x5.3mm and a weight of just 1.2g.
It operates on the highly stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output, and offers i-BUS support for up to 18 channels.
This receiver is a great complement to your FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F, and other FS series RC Transmitters.
Features :
- AFHDS 2A –2.4GHz system.

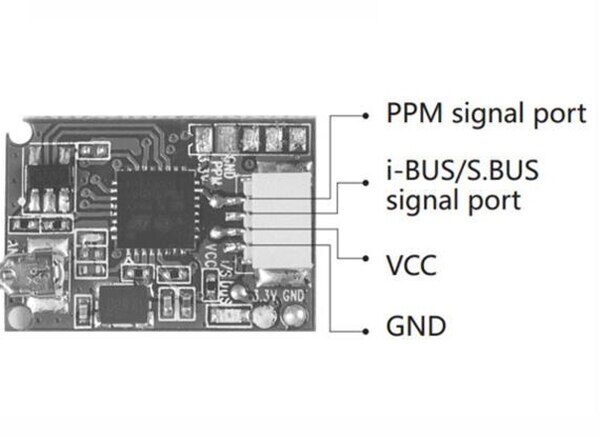

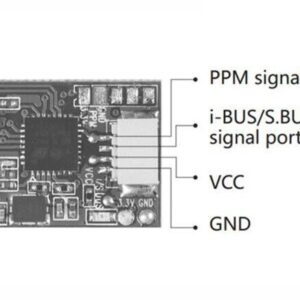

- SC port:Â PPM/i-BUS/S.BUS.
- The channel delay is <15mS.
- Certificate:Â CE0678.
- FCCID: N45ZA8S00.
- Low Voltage Alarm:Â No.
- Online update:Â No.
- Compatible with: FS i4 i6 i6S i6X TM10 TM8 Transmitter.
Specification
| Item Type: | Receiver |
|---|---|
| No. of Channels | 8 |
| Frequency(GHz) | 2.4 |
| Operating Voltage (VDC): | 4.0 ~ 8.4V |
| Current Consumption (mA): | 40 |
| Control Distance | 300m |
| No. of Band | 135 |
| Modulation Type | GFSK |
| RF Range | 2.408-2.475 GHz |
| Bandwidth (KHz) | 500 |
| Sensitivity (dBm) | -92 |
| Signal Output | IBUS, PPM |
| i-Bus Interface | Yes |
| Antenna Length (mm) | 90 |
| Color: | Black |
| Weight (g): | 6 |

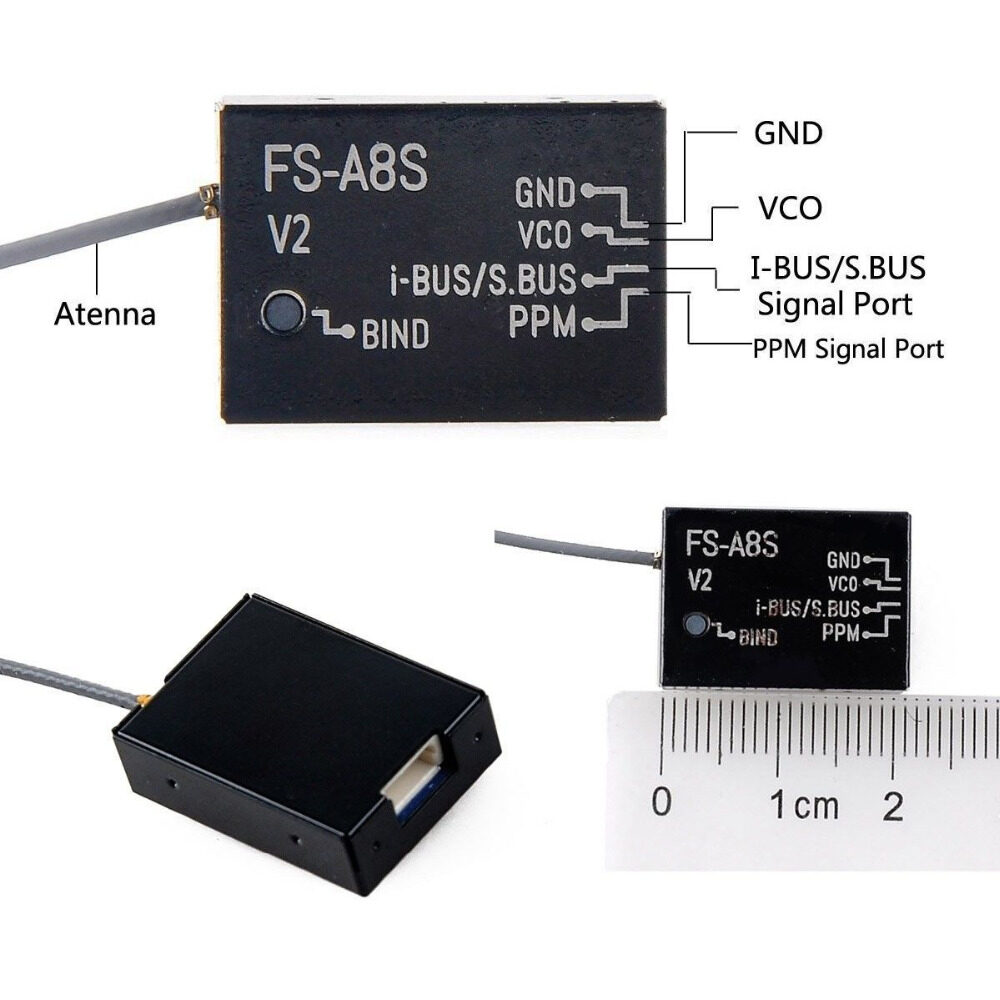

| Dimensions (L x W x H) mm | 20 x 14 x 5.3 |
| UPC | 711005954549 |
Package Includes :
1 x FlySky FS-A8S 2.4G 8CH Mini Receiver module Rev 2.
1 x Connecting Cable.
