This is the 20mm variant of the Flexible Coupling OD:20mm x L:25mm Bore: 5 x 8mm in 3D Printer Coupling. Available at ₹154.58 (₹131.00 + GST) with free shipping across India.
Product Description
This flexible type motor coupling can connect your driving shaft with the driven shaft while it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Flexible Coupling OD:20mm x L:25mm Bore: 5x8mm.

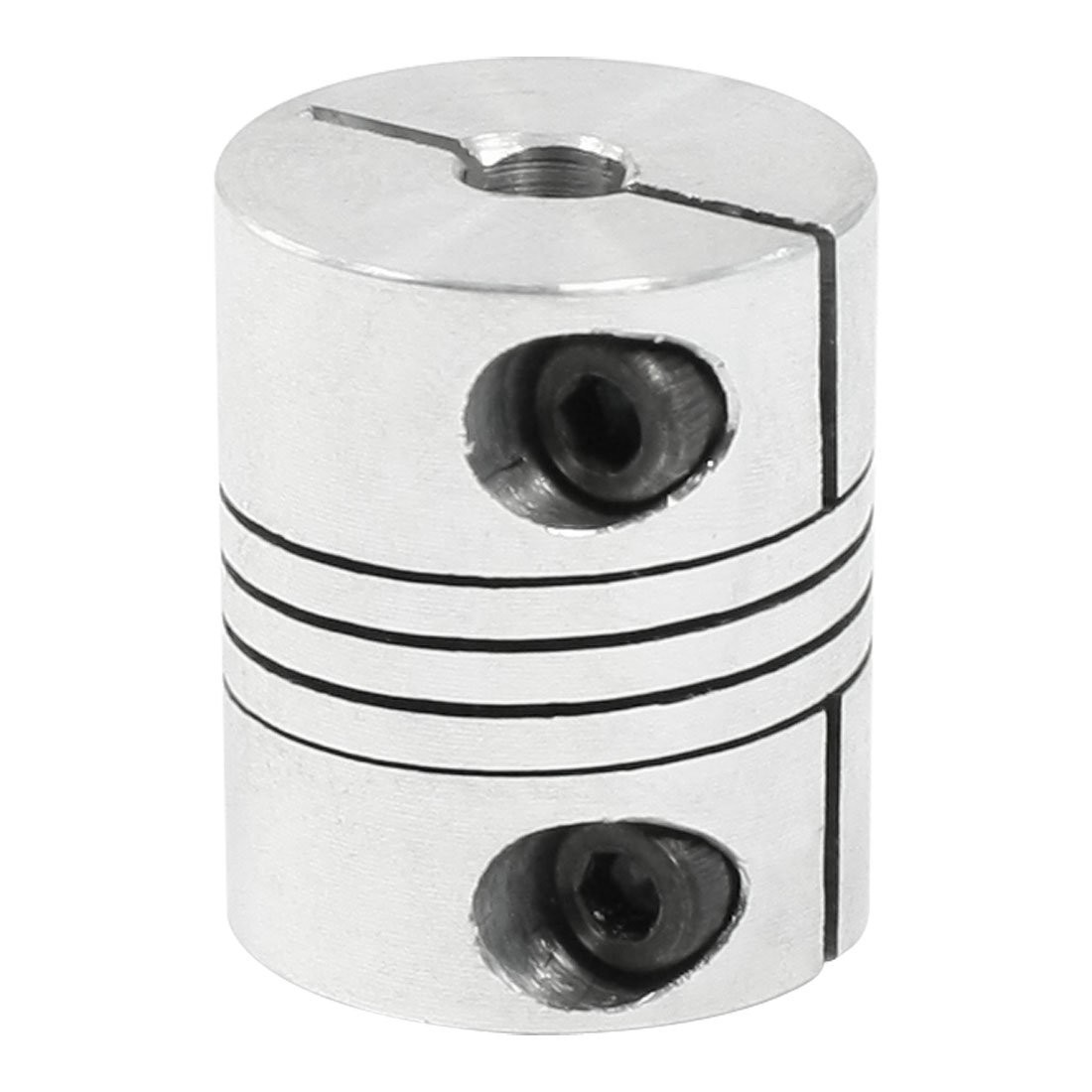

This Flexible coupling with the outer diameter of 20mm and the length of 25mm is machined aluminum coupling.
The screws that clamp the shafts will be tightened, but not too much. These types of clamping couplings will not damage the shafts.

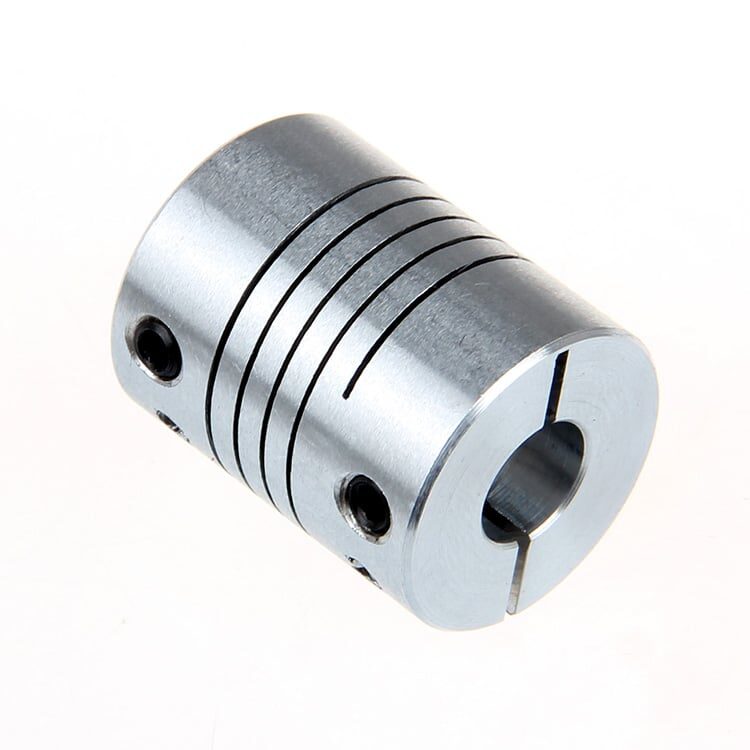

It comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.
Some of the important features of flexible shaft coupling are,
- Helical cut makes them behave like a springy in the X Y and Z linear axis but not in the rotational axis. That means that you won’t get more backlash, hence they are suitable for precision CNC work.
- A coupling is a device which transmits power and torque. Couplings do not normally allow disconnection of shafts during operation. However, there are torque limiting couplings which can slip or disconnect when some torque limit exceeds.
- By careful selection, installation and maintenance of couplings, substantial savings are possible in reduced maintenance costs and downtime.
- It can protect the driving and driven shaft members against harmful effects because of misalignment of the shafts, sudden shock loads, shaft expansion or vibrations etc.
Features :
- Corrosion resistance and High Durability
- One piece construction with long-lasting performance
- Torsional stiffness: Zero backlash
- Low moment of inertia offering constant velocity
Package Includes :
1 x Flexible Coupling OD:20mm x L:25mm Bore: 5x8mm
3D Printing Tolerances: Designing Gaps for Press Fits, Threads, and Snap Fits
3D Printing Tolerances: Designing Gaps for Press Fits, Threads, and Snap Fits One of the most frustrating experiences...
Read More →
TPU Filament Printing Guide: Settings, Tips & Tricks
TPU (Thermoplastic Polyurethane) is one of the most versatile and useful materials in the FDM 3D printing world....
Read More →
TPU Flexible Filament Printing: Settings and Best Practices
Table of ContentsWhat is TPU Filament?Why Use TPU for 3D Printing?Printer Requirements for TPUTemperature SettingsSpeed SettingsRetraction SettingsBed Adhesion...
Read More →Technical Specifications
| Dimensions | 5x8mm |
|---|---|
| Interface / Protocol | BLE |
| Package Quantity | 8 pcs |
| SKU | AI2783 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Flexible Coupling OD:20mm x L:25mm Bore: 5 x 8mm is a versatile 3d printer coupling used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
