ESPresso Lite V2.0 IoT Starter Kit ESP8266

The ESPresso Lite V2.0 IoT Starter Kit, developed by Espressif in collaboration with Singaporean IoT technology company ESPert, stands as the inaugural low-cost Arduino-compatible ESP8266 WiFi development board. This board, proudly manufactured in Malaysia, serves as an excellent platform for individuals to delve into IoT projects with ease and speed.

Functioning as a comprehensive IoT Starter Kit, it arrives equipped with all essential components necessary to initiate and propel your IoT endeavors. A detailed tutorial available at www.espressolite.com guides users through the setup and implementation process.

At the heart of ESPresso Lite V2.0 lies Espressif System’s ESP8266 WROOM-02 WiFi module, renowned for its reliability and performance. Programming this board is simplified through compatibility with the Arduino IDE, ensuring a seamless transition for those familiar with Arduino programming.

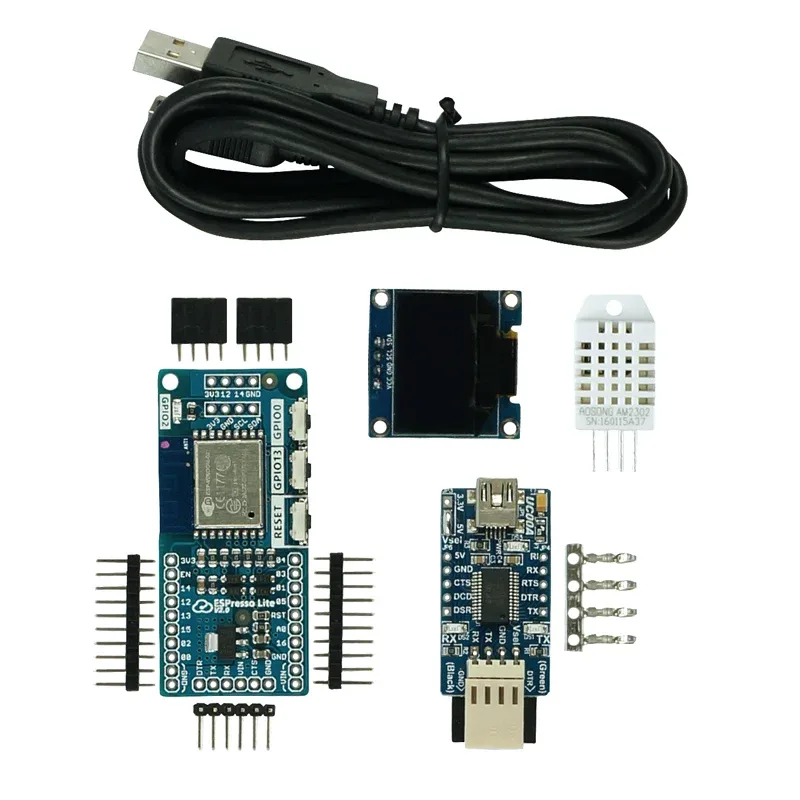

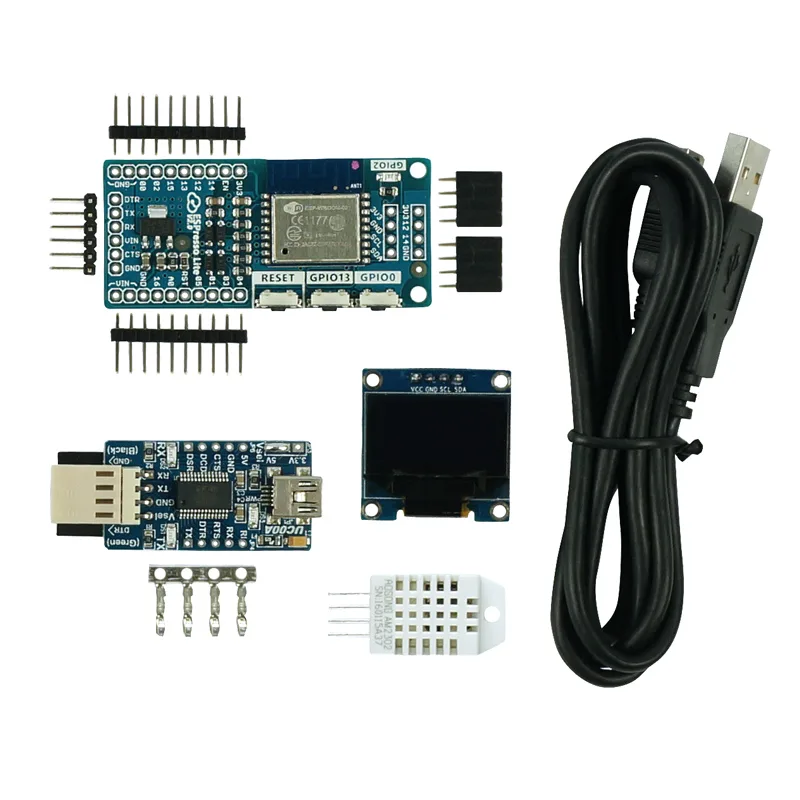

Included in the kit are the ESPresso Lite V2.0 main board, UC00A (USB to UART Converter), OLED display, DHT22 sensor, and USB mini-B cable (for UC00A), facilitating a holistic and immersive IoT development experience right out of the box.

To buy ESPresso Lite V2.0 separately click below,

ESPresso Lite V2.0 ESP8266

Features:

1. Features Espressif System’s ESP8266 WROOM-02 Wi-Fi module (with 4Mb flash)
2. Design for IoT with free espert.io cloud and app service.
3. Support the Arduino IDE (boards manager) and libraries.
4. Auto program loading from Arduino IDE, using UC00A (or other compatible USB to Serial)
5. One Reset button, two User Programmable buttons
6. Ready pads for I²C OLED panel
7. Breadboard friendly breakout pins
8. The WROOM-02 module is FCC, CE & TELEC certified.

Specification:

Useful Links:

Package Includes:

ESPresso Lite V2.0 IoT Starter Kit ESP8266 Overview

The ESPresso Lite V2.0 IoT Starter Kit ESP8266 is an Arduino-compatible development board built around Espressif’s ESP8266 WROOM-02 Wi-Fi module with 4 Mb flash. Designed for rapid prototyping, it provides all essential on-board components to connect your project to the internet and to the free espert.io cloud and mobile app.

Key Features of ESPresso Lite V2.0 IoT Starter Kit ESP8266

• ESP8266 WROOM-02 Module: FCC, CE & TELEC certified Wi-Fi module with 4 Mb flash for stable connectivity.
• Arduino IDE Support: Install via Boards Manager, use existing ESP8266 libraries and examples for rapid sketch development.
• Easy Programming: Auto-reset and bootloader activation over UC00A or any compatible USB-to-Serial adapter—no manual jumper switching.
• Onboard 3.3 V Regulator: Supplies up to 800 mA continuous (1 A peak) to power the ESP8266 and small peripherals.
• User Controls: One Reset button plus two user-programmable buttons for custom input without extra wiring.
• Fast Shipping from Zbotic: Order today for dispatch within 24 hours and delivery across India.

Applications and Use Cases

• Remote environmental sensor nodes reporting temperature, humidity or air quality to a cloud dashboard.
• Home automation controllers for lights, fans or security cameras, controlled via smartphone.
• Data-logging projects that upload CSV or JSON files to FTP or HTTP endpoints automatically.
• Prototype Wi-Fi connected gadgets such as smart switches, door sensors or wearable trackers.
• Educational platforms teaching IoT concepts in universities or maker spaces.

How to Use ESPresso Lite V2.0 IoT Starter Kit ESP8266

Start by connecting the board to your PC using a UC00A or compatible USB-to-Serial adapter. In the Arduino IDE, add the ESP8266 boards package via Boards Manager, select the Generic ESP8266 Module or equivalent, enter your Wi-Fi SSID and password in an example sketch, then upload. Use the two user buttons for menu navigation or custom interrupts, and monitor serial output for cloud registration on espert.io.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Q: How do I upload sketches to the ESPresso Lite V2.0?

Connect the board via UC00A or any USB-to-Serial adapter, select “Generic ESP8266 Module” in Arduino IDE’s Boards Manager, set the correct COM port and baud rate (usually 115200 bps), then click Upload. The onboard auto-reset circuit takes care of entering bootloader mode.

Q: Can I power external sensors from the onboard regulator?

Yes. The on-board 3.3 V regulator can supply up to 800 mA continuously (1 A peak), suitable for most low-power sensors and modules. Ensure your total peripheral load stays within this limit.

Q: How do I connect this kit to espert.io cloud?

Register a free account at espert.io, obtain your device token, open the provided example sketch in Arduino IDE, paste your token and Wi-Fi credentials, then upload. The board automatically registers with espert.io and appears in your dashboard.
