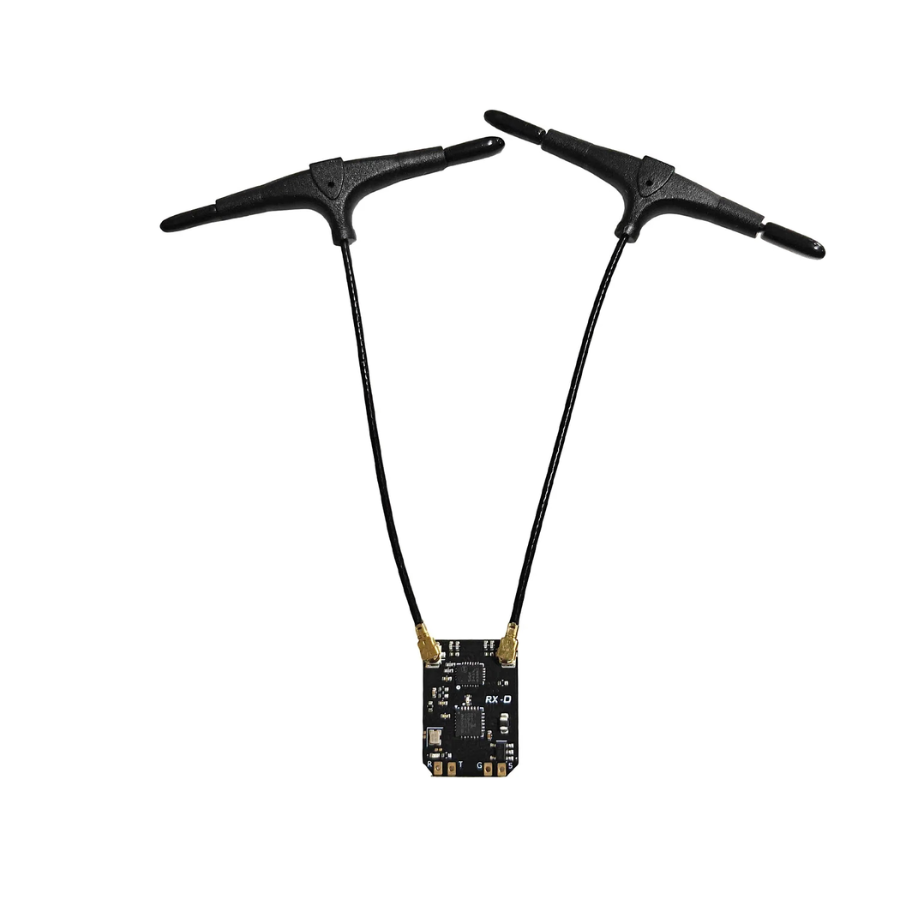

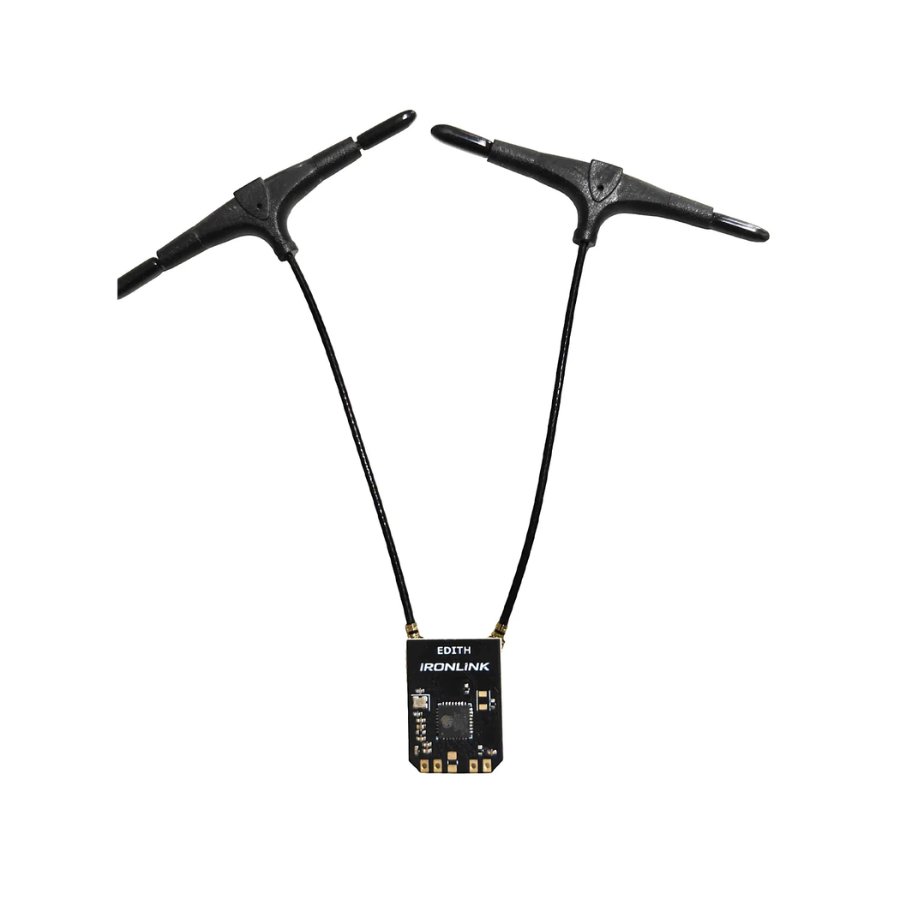

EDITHFPV IronLink Rx-D ELRS (Antenna Diversity)
Description:
The EDITHFPV IronLink RX-D ELRS 2.4GHz Diversity Receiver is a high-performance solution designed for reliable long-range FPV and UAV control. Built with an ESP8285 microcontroller and advanced RF system, it delivers ultra-low latency, fast packet rates, and stable telemetry performance. Its true antenna diversity intelligently selects the best signal source, improving link stability in complex environments.
A built-in Wi-Fi module allows easy firmware updates and configuration via ExpressLRS WebUI without disassembly. With enhanced sensitivity and up to 100mW telemetry output, it ensures strong return links even at extended distances. Compact and lightweight, the RX-D is ideal for racing drones, long-range builds, fixed-wing aircraft, and professional UAV applications requiring dependable communication and precision control.
Features:
- ExpressLRS 2.4GHz protocol support
- True antenna diversity system
- Intelligent antenna signal switching
- Ultra-low latency control performance
- High packet rate capability
- Built-in Wi-Fi for OTA updates
- Strong telemetry transmission up to 100mW
- Compact and lightweight design
Specifications:
- Item Type: IronLink Rx-D
- Telemetery RF POwer: Max. 100MW
- Antenna: 2.4GHz T Dual Antenna
- Working Voltage: DC 5 V
- Microcontroller: ESP8285
- Telemetry Power: Up to 100 mW
- Connectivity: Built-in Wi-Fi
- Dimensions: 21 x 15 x 3.7 mm
- Weight: 1.2 g (Without Antenna)
Package Includes:
1 x EDITHFPV IronLink Rx-D ELRS (Antenna Diversity)
1 x wire set
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
GPS Rescue Mode Setup: Return-to-Home Safety Feature in Betaflight
GPS Rescue Mode in Betaflight: Complete Setup Guide for Return-to-Home Safety Losing your FPV quad in a tree,...
Read More →
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →Technical Specifications
| Brand | EDITH |
|---|---|
| Interface / Protocol | ELRS |
| SKU | AI5078 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The EDITHFPV IronLink Rx-D ELRS (Antenna Diversity) is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
