This is the 36V variant of the Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor (GB) in Ebike Motors and Controllers. Available at ₹7,605.10 (₹6,445.00 + GST) with free shipping across India.
Looking for My1020z Motor 600w? Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor (GB) is available at Zbotic with fast shipping across India.

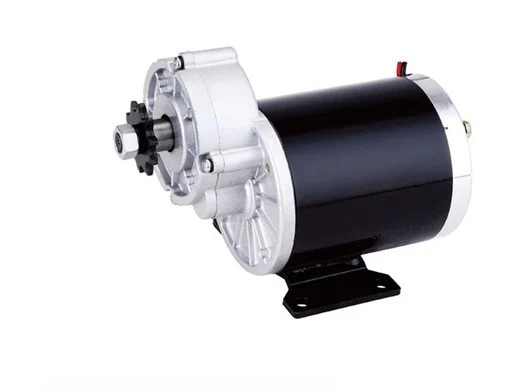

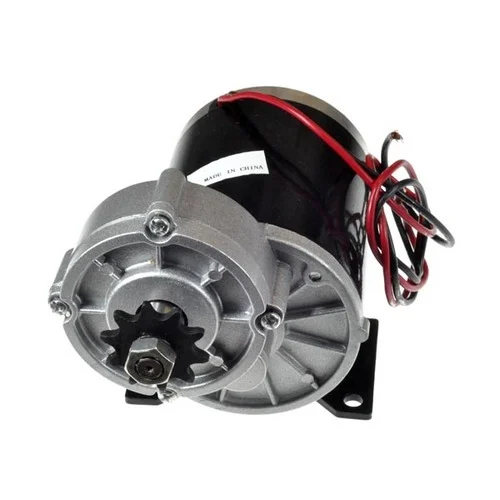

Ebike MY1020Z 600W 36V 480RPM DC Motor (GB) is a motor that can be used for some Xtreme or Razor electric scooters, mini bikes or go-karts that have a 600W motor. It can also be compatible with other brands that have similar specifications for the motor.
specification-
| Model | MY 1020Z2. 600W |
|---|---|
| Operating Power | 600 W |
| Operating Voltage (VDC) | 36 |
| Rated Current(A) | 2.5 |
| Rated Speed (RPM) | Base: 3200 |
| Rated Speed After Reduction (RPM) | 480 |
| Rated Torque (Kg-Cm) | 18.35 |
| Gearbox | Yes |
| Weight (Kg) | 5.438 |
| Efficiency | ≥78%. |
| Application | Small and Medium-size E-Tricycle |
| Gear Ratio | 6.67:1 |
| Cable Length (Meter) | 0.5 |
| Shipping Weight | 6.1 kg |
| Shipping Dimensions | 19 × 10 × 16 cm |
Package Includes:
1 x Ebike MY1020Z 600W 36V 480RPM DC Motor
Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor Overview
The Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor (GB) is a geared brush-commutated motor designed for electric mobility applications. With an integrated 6.67:1 gearbox, it delivers reliable low-speed torque for e-scooters, mini bikes, go-karts and small e-tricycles requiring 600W of drive power.
Key Features of Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor
- 600W continuous output at 36V DC for steady acceleration and hill climbing
- Integrated gearbox yielding a reduced speed of 480 RPM and torque of 1.80 N·m (18.35 kg-cm)
- Full-load current of 21.40 A with overall efficiency of ≥78% for energy-efficient performance
- Compact 5.44 kg assembly ideal for tight installations on small vehicles and DIY Ebike frames
- Compatible with many Xtreme and Razor electric scooters, mini bikes or custom go-kart builds
- Genuine Yalu motor, fast shipping from Zbotic across India
Applications and Use Cases
- Retrofit or upgrade electric scooters requiring a 600W geared motor
- Powertrain for small and medium-size electric tricycles or cargo trikes
- Drive unit for DIY mini bikes, go-karts or off-road fun vehicles
- Replacement motor for existing 36V 600W systems on recreational e-vehicles
- Experimental robotics and automation platforms needing robust DC drive
How to Use Yalu Ebike MY1020Z 600W 36V 480RPM DC Motor
Mount the motor securely to your vehicle’s chassis using the integrated gearbox housing as a reference point. Connect the output shaft to your wheel or sprocket, wire the motor leads to a compatible 36V controller rated above 25 A, and link the controller to a 36V battery pack. Ensure all cables are fastened, test throttle response at low speed, then fine-tune for smooth operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use the MY1020Z motor in a DIY electric scooter project?
Yes. The 36V 600W specification matches many DIY scooter builds. Confirm your frame accommodates the 6.67:1 gearbox and that your controller can supply at least 22 A continuous.
Does this motor include a gearbox and mounting hardware?
The Yalu MY1020Z comes factory-fitted with a 6.67:1 planetary gearbox. Mounting brackets are not included, but standard U-bolt or clamp systems for 50 mm housings will fit the gearbox body.
What controller and battery should I pair with this motor?
Use a 36V brush-commutated controller rated for 25–30 A continuous output. Pair it with a 36V lithium-ion or lead-acid battery pack capable of delivering 22 A without voltage sag for optimal performance.
