If you want to build an E-bike but don’t know how to choose the best motor controller, you can rely on zbotic. We have everything you need to start your E-bike project.

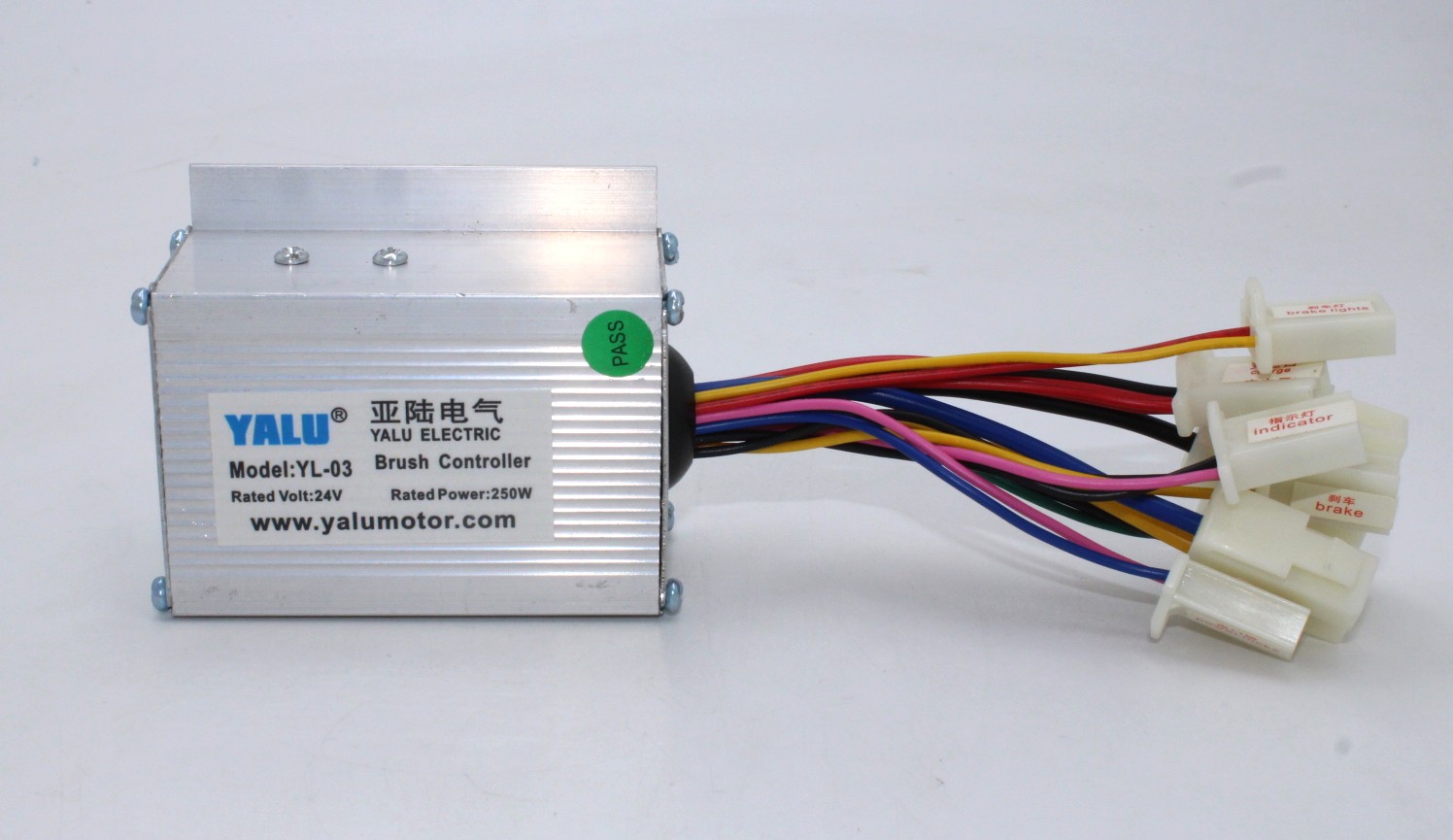

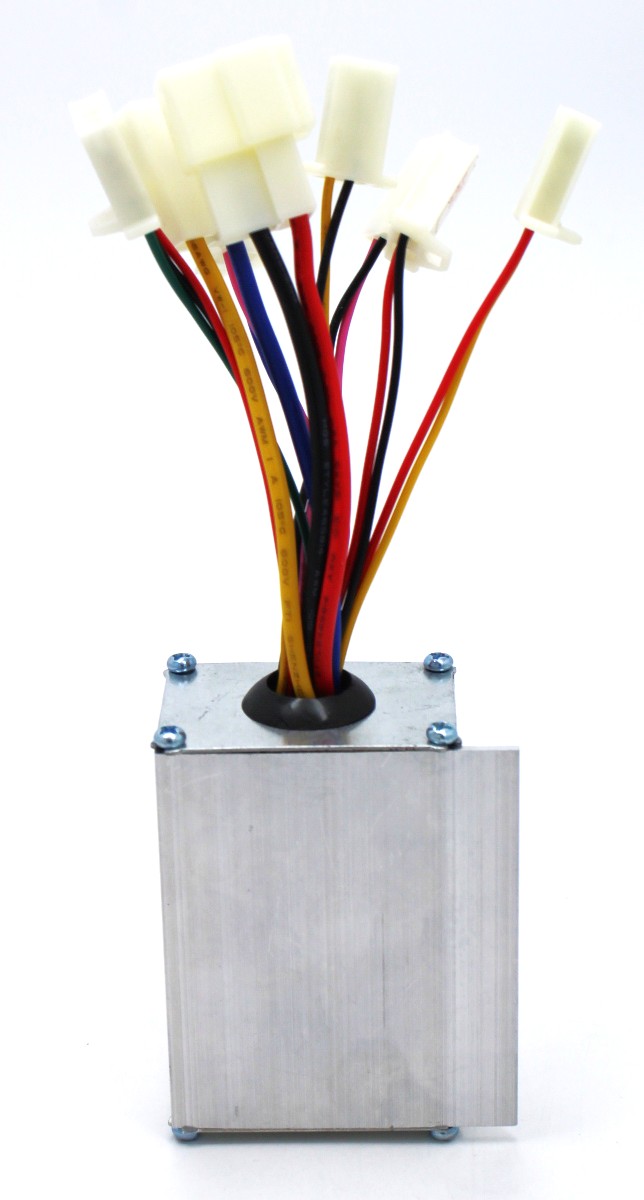

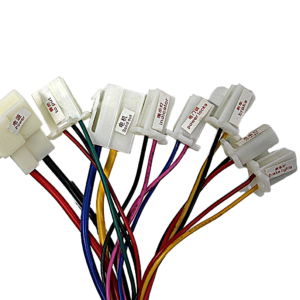

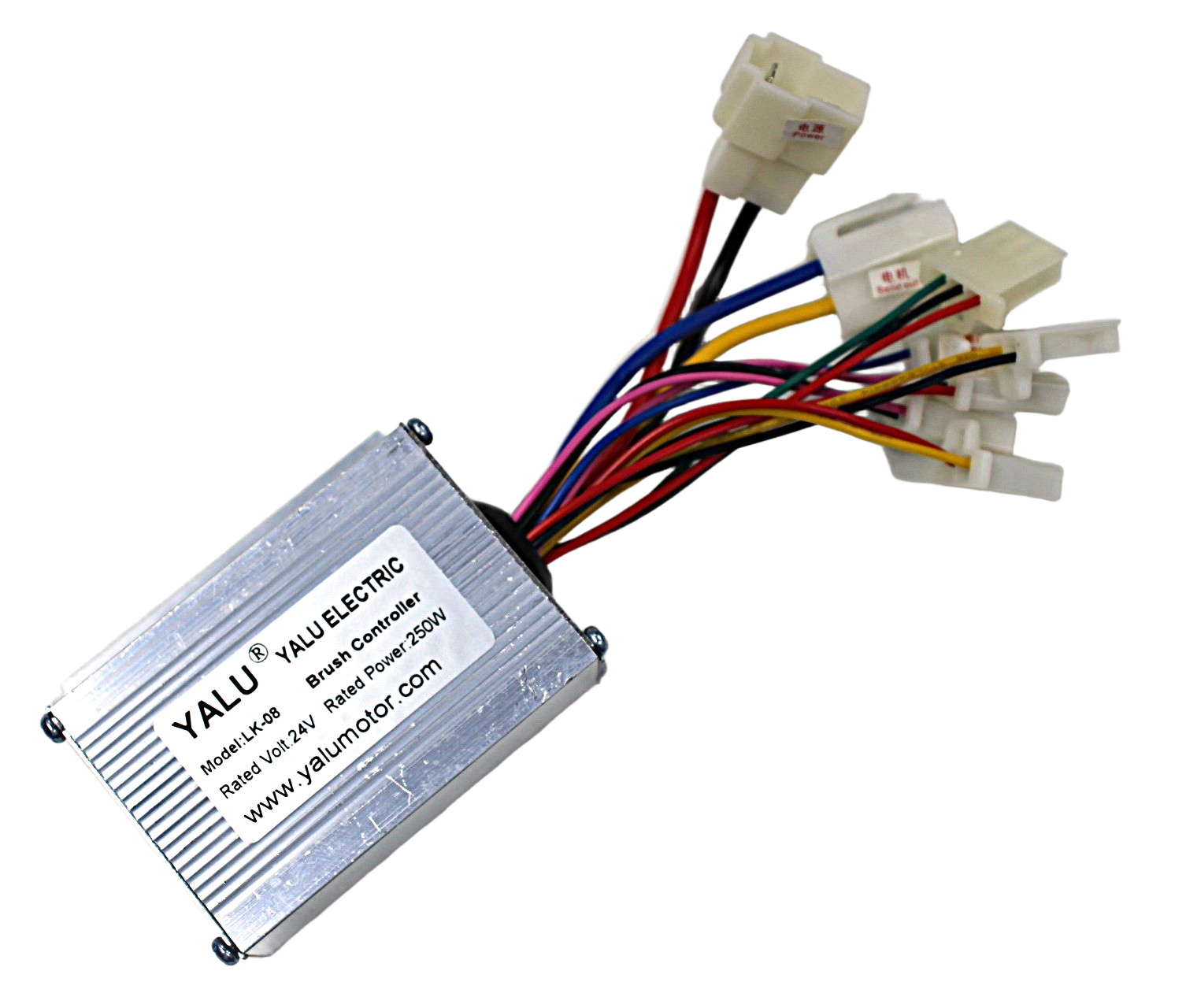

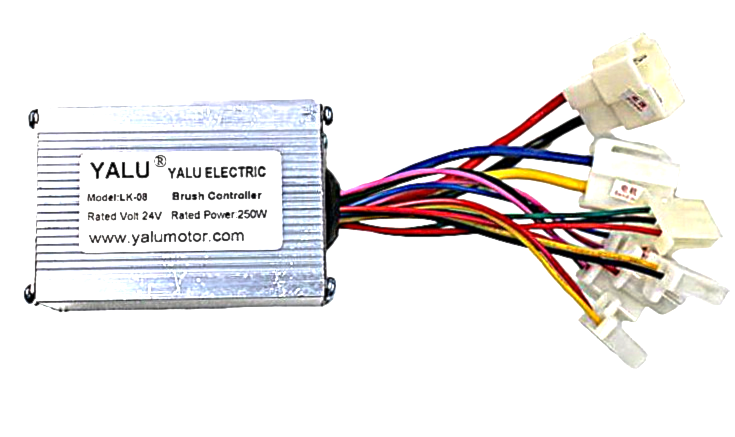

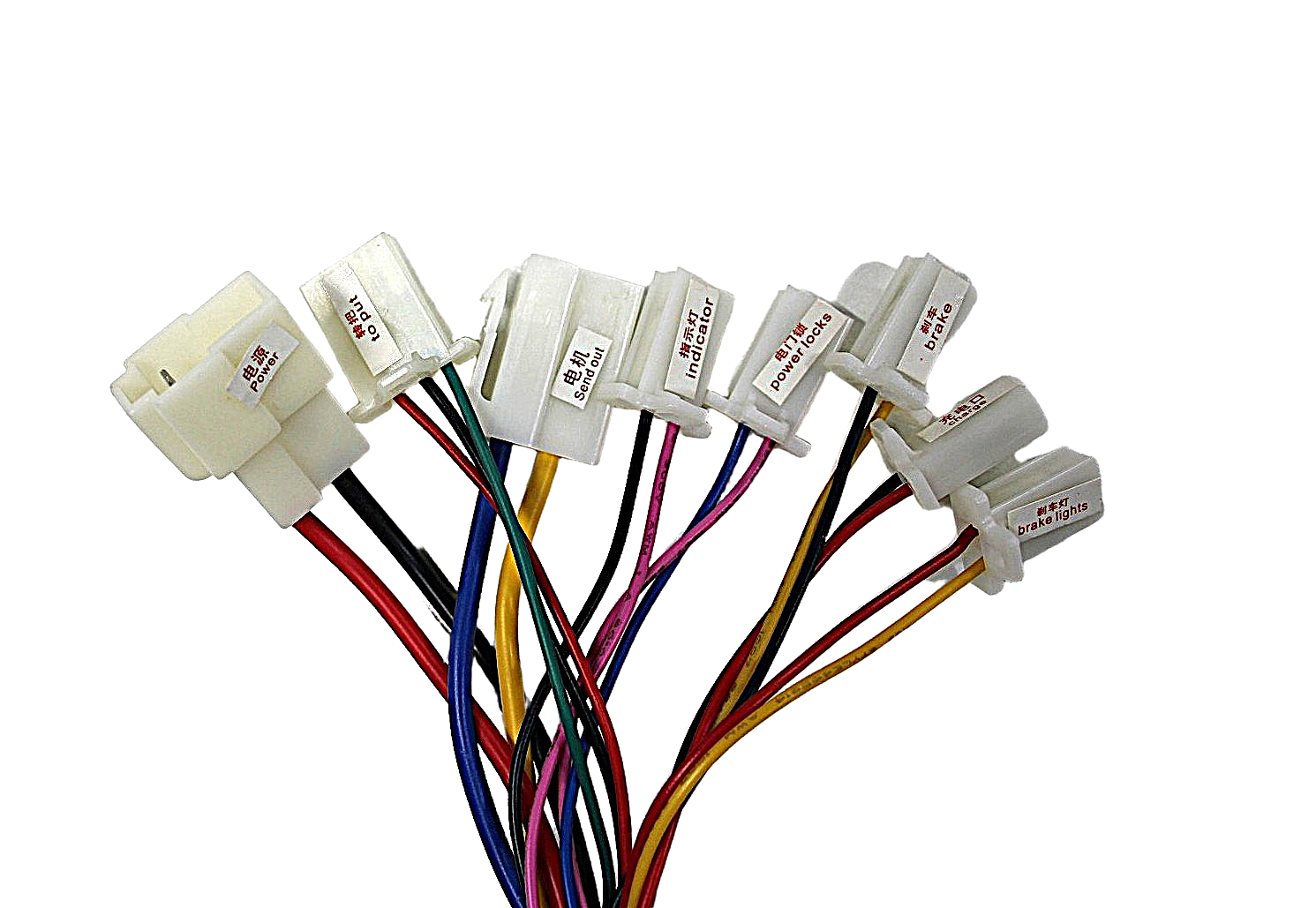

This Motor Controller 24V for MY1016 250W comes with attachments for the motor, accelerator, brake, battery, battery charging, brake light, and power lock. DC Motors are also known as scooter motors or general application motors. They are very durable and reliable. They are commonly used in 24V scooters or small kids’ carts and they have also proven to be effective in robotics.
The E-bike controller is the brain of the e-bikes. It connects to all the other electronic parts such as the battery, motor, and throttle if there is one. It receives all the inputs from these components and decides what to signal back to them.
This motor brush controller for electric bicycles and scooters is compatible with the MY1016 250W DC motor.
specification-
| Body Material | Aluminium |
|---|---|
| Cable Length (cm) | 10 |
| Compatible for Motor | MY1016 250W |
| Current Limit (A) | 33 |
| Rated Voltage(V) | 24 v dc |
| Under-Voltage Protection (V) | 20 V |
| Weight (gm) | 122 |
| Dimensions in mm (LxWxH) | 83 x 70 x 38 |
| Rated Power (W) | 250 |
| Shipping Weight | 0.13 kg |
| Shipping Dimensions | 15 × 10 × 5 cm |
Package Includes:
1 x Motor Controller 24V for MY1016 250W
