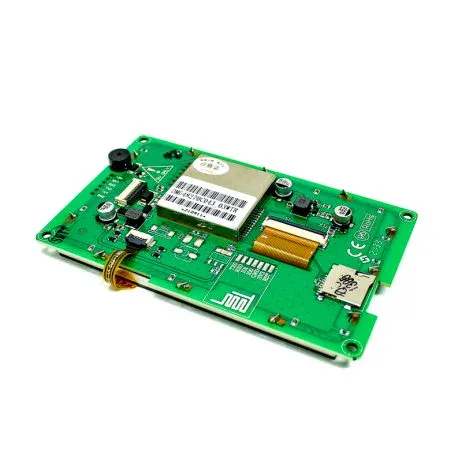

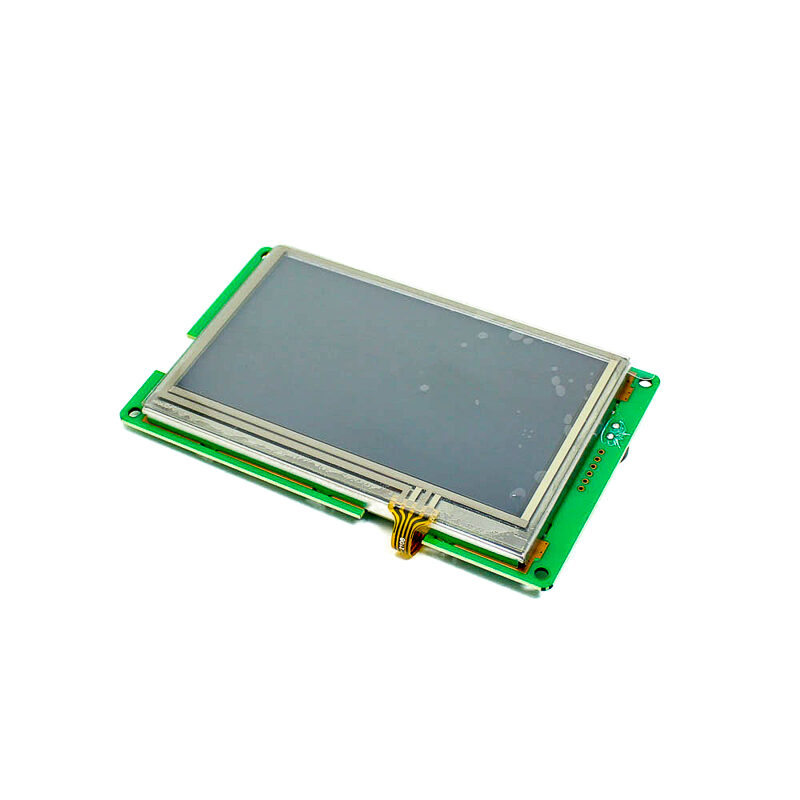

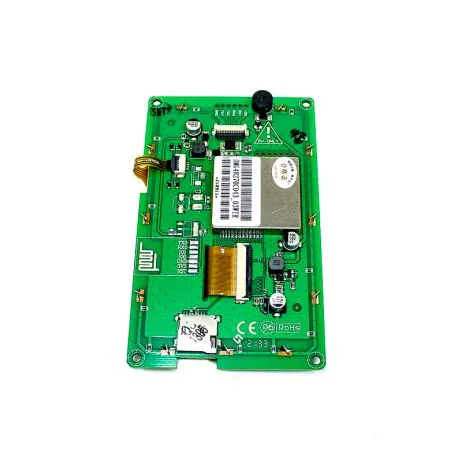

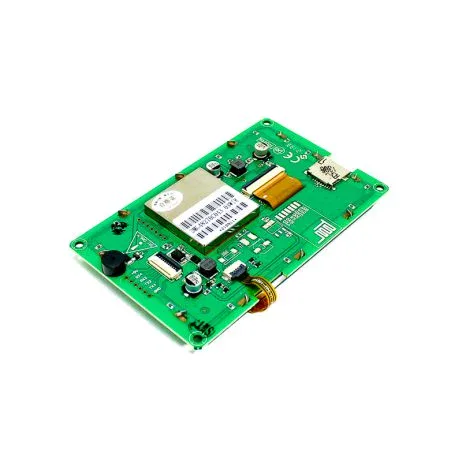

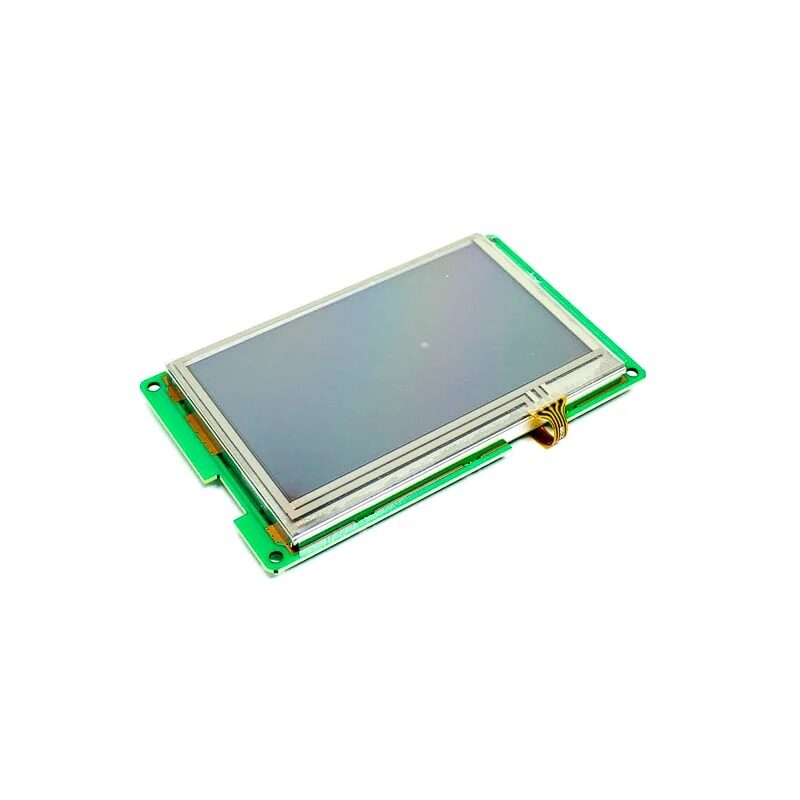

DWIN HMI 4.3 Inch TN LCD Resistive Touch Display
Description:
This DWIN 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI SUch as a button, slider, Graph, Text Display, etc on their own.
User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 200 nit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards. which can be interface with I2C communications.
Features:
- UI Version: TA / DGUS II ( DGUS II pre-installed)
- Powerful data management
- Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
- Capacitance touch panel, Buzzer, WIFI module interface
- Powerful data management
- Built-in DGUS II intelligent software
- 16.7M colors
- FLASH Memory 16Mbytes
- RAM Memory:128Kbytes
Display:
- Size -4.3″
- Display Format -480×800 Pixel Matrix
- Brightness -200nit
- Active Area – 56.16mm (W) ×93.6mm (H)
- Colour – 24-bit colour 8R8G8B
- Backlight – LED
Interface:
- UART2 : N81 , 3.3V TTL/CMOS
- UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS
Datasheet:
Package Includes :
1 x 4.3″ SMART SCREEN
About Dwin Hmi 4.3 Display Ai1812
DWIN HMI 4.3 Inch TN LCD Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: DWIN
- SKU: AI1812
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Hmi 4.3 Display Ai1812 and other products.
Applications
Dwin Hmi 4.3 Display Ai1812 can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Hmi 4.3 Display Ai1812 today and start building.
About Dwin Hmi 4.3 Display Ai1812
DWIN HMI 4.3 Inch TN LCD Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: DWIN
- SKU: AI1812
- Category: PCT and DC Power Connectors
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Hmi 4.3 Display Ai1812 and other products.
Applications
Dwin Hmi 4.3 Display Ai1812 can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Hmi 4.3 Display Ai1812 today and start building.
About Dwin Hmi 4.3 Display Ai1812
DWIN HMI 4.3 Inch TN LCD Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: DWIN
- SKU: AI1812
- Category: PCT and DC Power Connectors
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Hmi 4.3 Display Ai1812 and other products.
Applications
Dwin Hmi 4.3 Display Ai1812 can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Hmi 4.3 Display Ai1812 today and start building.
This Dwin Hmi 4.3 Display 4.3inch is a popular choice among hobbyists and professionals. The Dwin Hmi 4.3 Display 4.3inch offers reliable performance for your projects.
DWIN HMI 4.3 Inch TN LCD Resistive Touch Display Overview
The DWIN HMI 4.3 Inch TN LCD Resistive Touch Display is an integrated smart screen module designed for building custom graphical interfaces in embedded systems and industrial applications. It combines a 4.3″ TN LCD panel with a resistive touch layer and pre-installed DGUS II firmware, enabling rapid UI development and deployment.
Key Features of DWIN HMI 4.3 Inch TN LCD Resistive Touch Display
- 4.3″ TN LCD panel with resistive touch for reliable input
- 200 nit brightness and 16.7 million color display
- 16 MB onboard FLASH and 128 KB RAM for graphics and data storage
- 5 V operating voltage (4.5 V minimum, 5.5 V maximum)
- Pre-installed TA / DGUS II UI firmware and manufacturer’s UI development software
- Genuine DWIN smart screen; fast shipping from Zbotic across India
Applications and Use Cases
- Human-machine interfaces in CNC and automation equipment
- Control panels for 3D printers and laser cutters
- Touchscreen dashboards in laboratory instruments
- Embedded display modules in home appliance prototypes
- Graphical monitoring consoles for power supplies and battery testers
How to Use DWIN HMI 4.3 Inch TN LCD Resistive Touch Display
Connect a regulated 5 V supply to the module’s power pins, link the serial or parallel data interface to your MCU, and install the DGUS II software on your PC. Design your screens (buttons, sliders, graphs, text) in the development tool, compile the project into a binary, then upload it to the display’s FLASH via microSD or serial bootloader. Power cycle the unit and perform touch calibration through the built-in settings menu.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I upload my custom UI to the DWIN 4.3″ display?
Use the DGUS II development software to design and compile your interface into a .dg or .bin file, then transfer it to the screen’s 16 MB FLASH via the serial bootloader or a microSD card slot. After upload, reset the module to load your UI.
What power supply specifications are required?
The module requires a stable 5 V DC supply, with an acceptable range of 4.5 V to 5.5 V. Ensure low ripple and sufficient current (at least 200 mA) for reliable operation.
Is the touch panel calibrated out of the box?
Yes, a factory calibration is applied. If you notice any misalignment, access the touch calibration routine in the on-screen settings menu to fine-tune accuracy.
