This is the 100V variant of the Dual Led 0.28 ” Display for DC0-100V 100A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 100A in Digital Voltage, Current and Frequency Meter. Available at ₹136.88 (₹116.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION

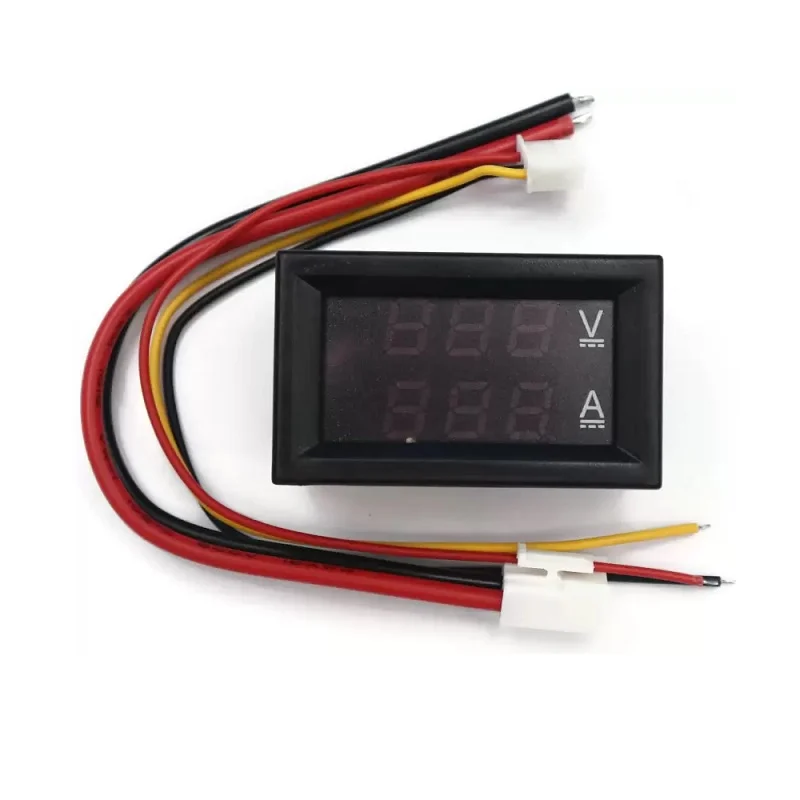

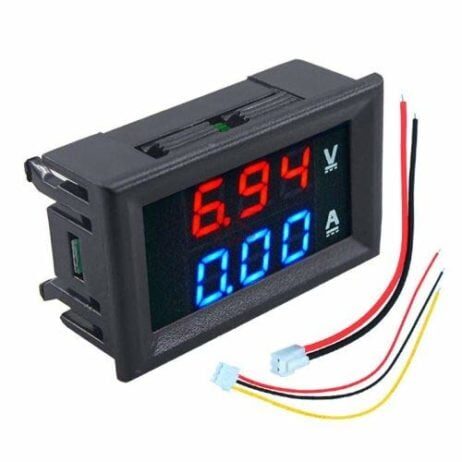

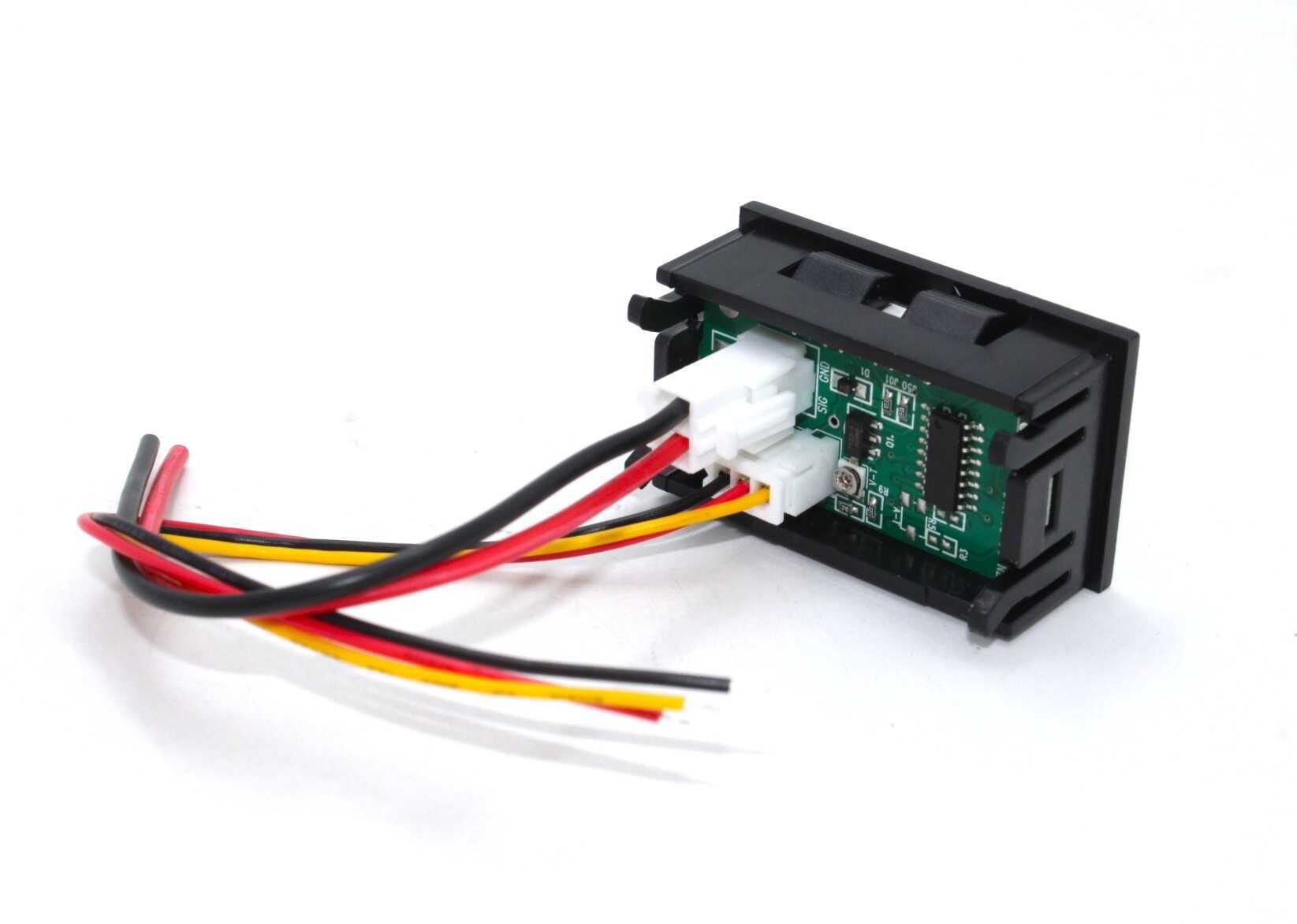

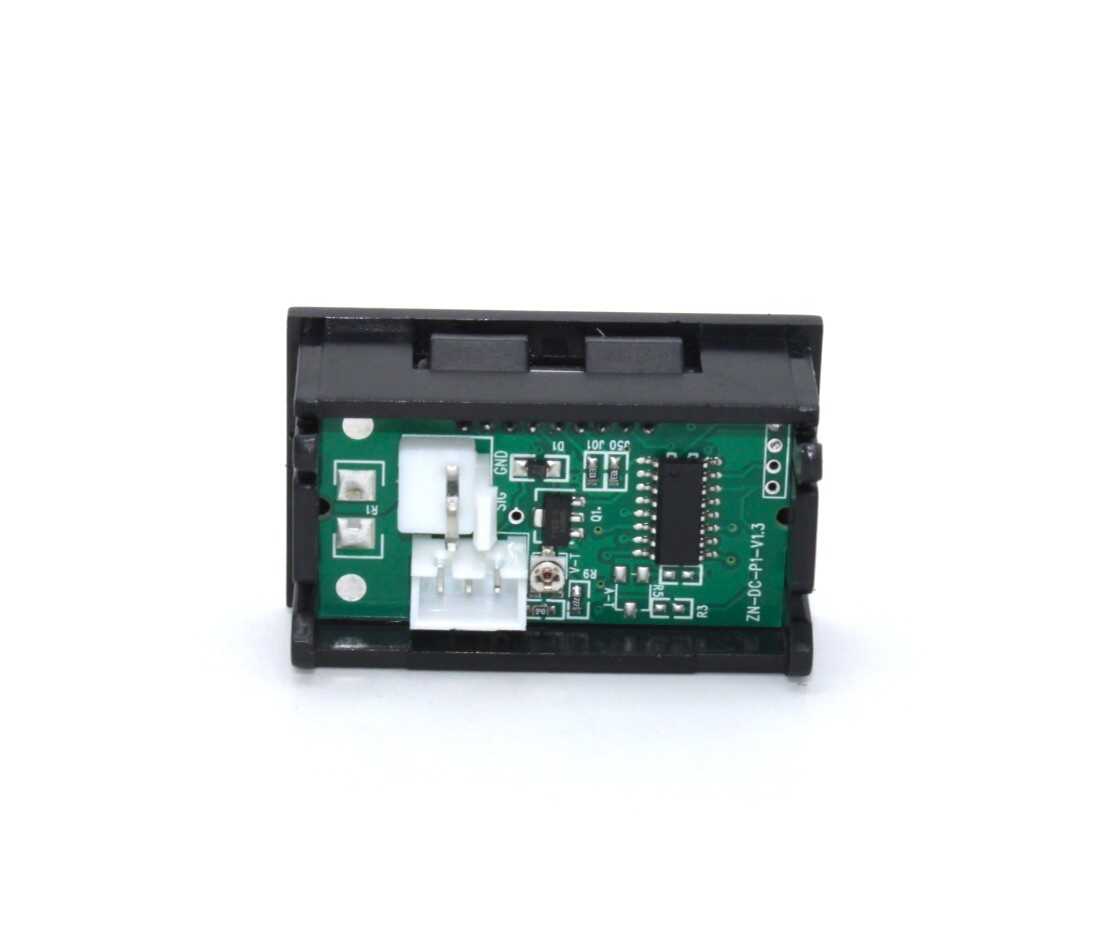

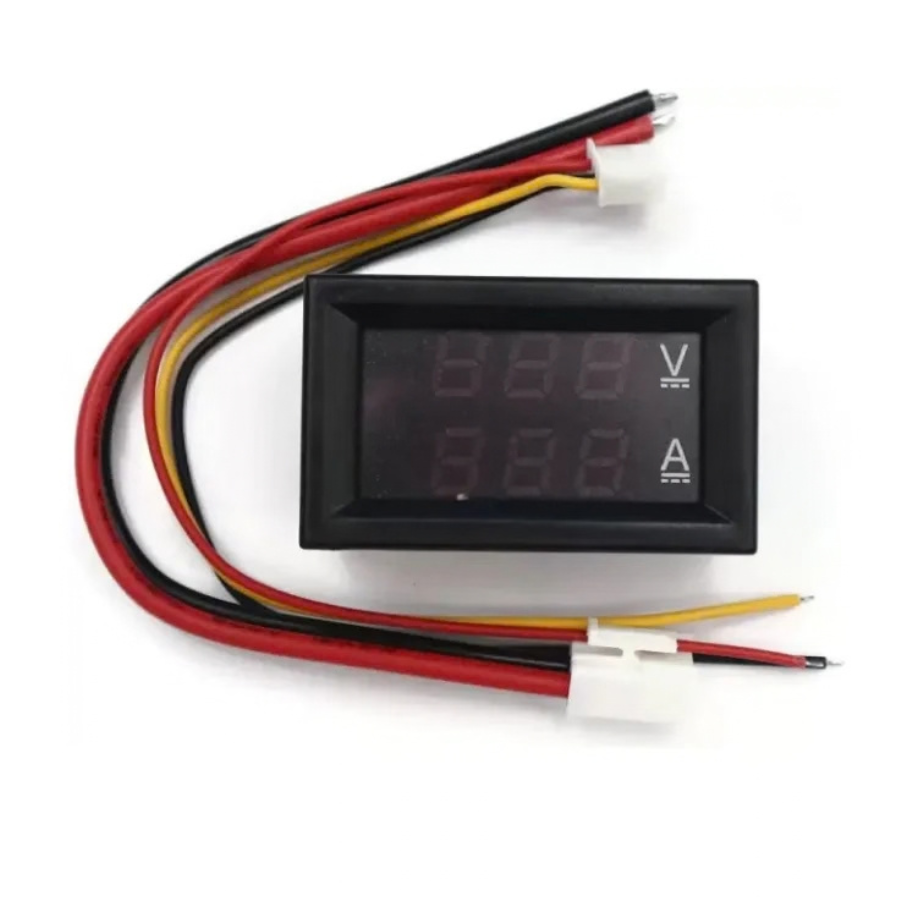

Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. 4 With built-in shunt, has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
Features:
- Measure voltage: DC 0 ~ 100V
- Operating voltage: DC 4.5 ~ 30V
- Minimum resolution(V): 0.1V
- Minimum resolution(A): 0.01A
- Operating current: 20mA
- Display: three 0.28″ LED digital tube
- Display color: Red and Blue (two-color display)
- Dimensions: 48 x 29 x 21mm
- Mounting cutout: 45.5 x 26.5mm
- Refresh rate: about 500mS / times
- Measure accuracy: 1%
- Operating temperature: -10 to 65ºc
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 to 106 kPa
Specification:
- 100% Brand New!!!
- Color: Like the picture show
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- Quantity: 1 pc.
- High precision, four digital display.
- Working voltage: DC 4V-28V.
- Working current: 20mA.
- Display: 0.28″ Two-color blue and red.
- Measuring range: DC 0-100V 0-10A .
- Operating temperature: -10 to 65° c.
- Working pressure: 80 to 106 kPa.
- Size: 48×25×20 mm.
- Current: Range x 0.08% Two digits.
- Voltage: Range x 0.08% Two digits.
Package Includes:

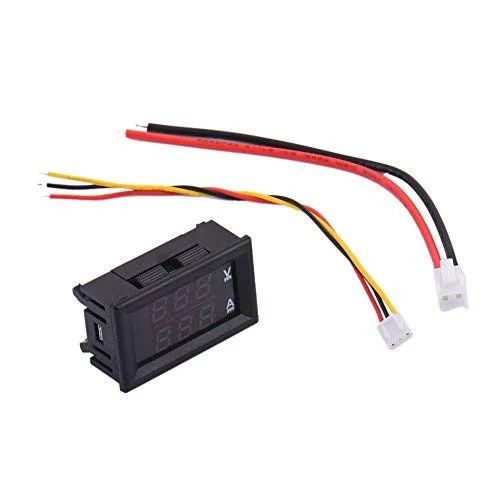

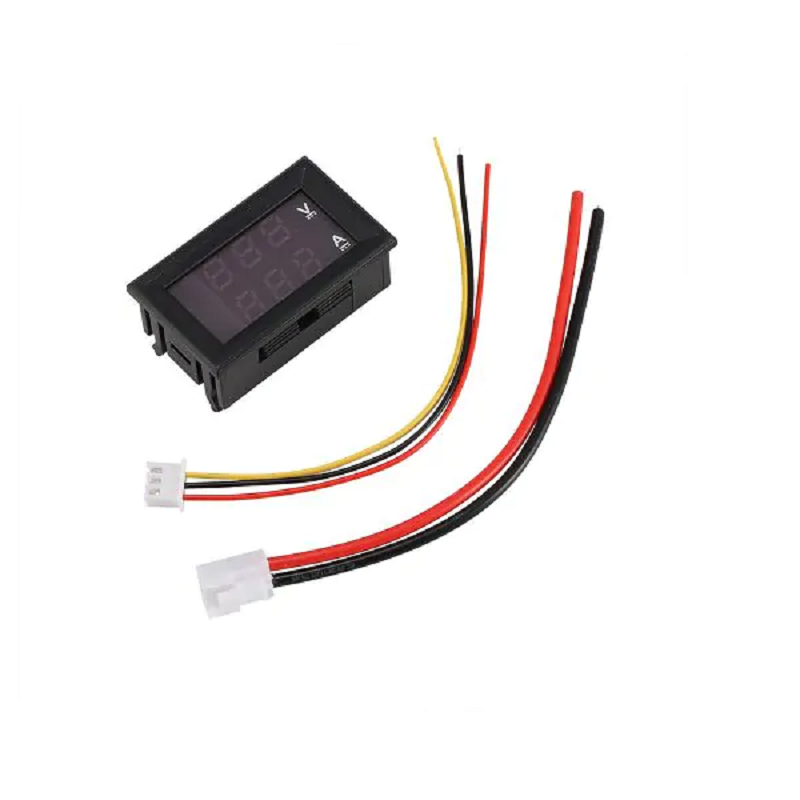

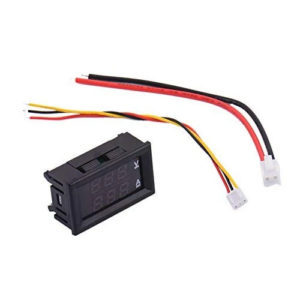

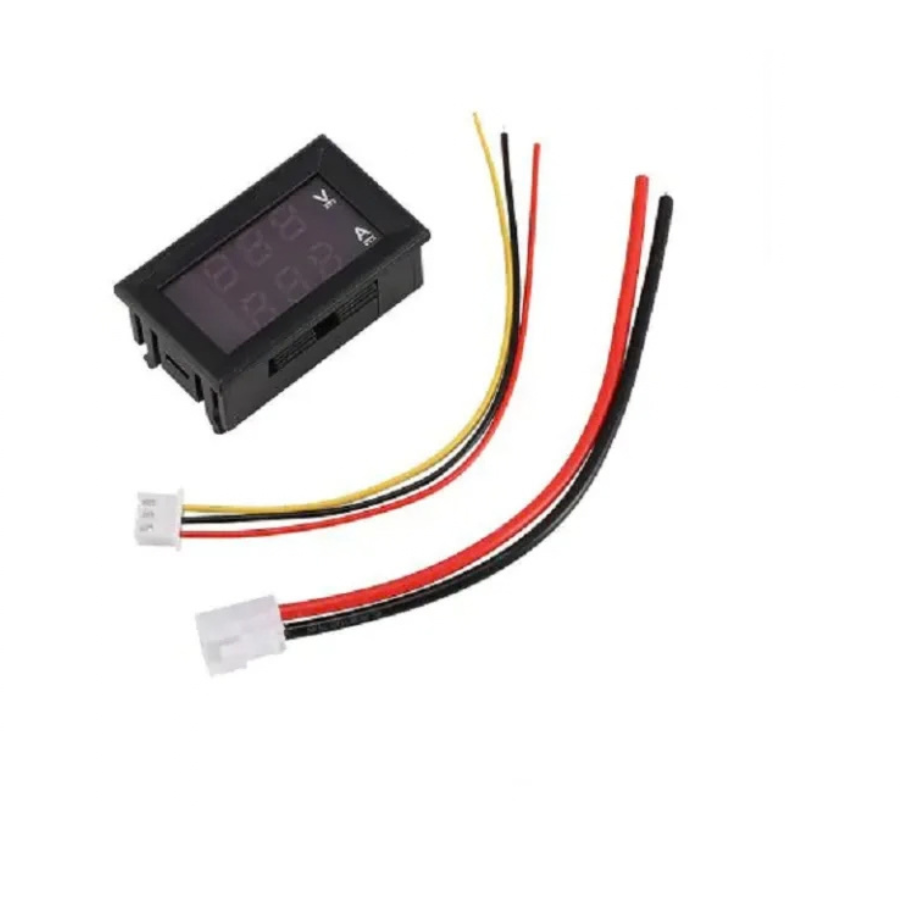

1 x Dual Led 0.28 ” Red Blue Display for DC.0-100V 100A Voltage and Current Test Digital Instrument.
Technical Specifications
| Model | DC0-100V |
|---|---|
| Current Rating | 100A |
| Color | Red |
| SKU | AI3247 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Dual Led 0.28 ” Display for DC0-100V 100A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 100A is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
