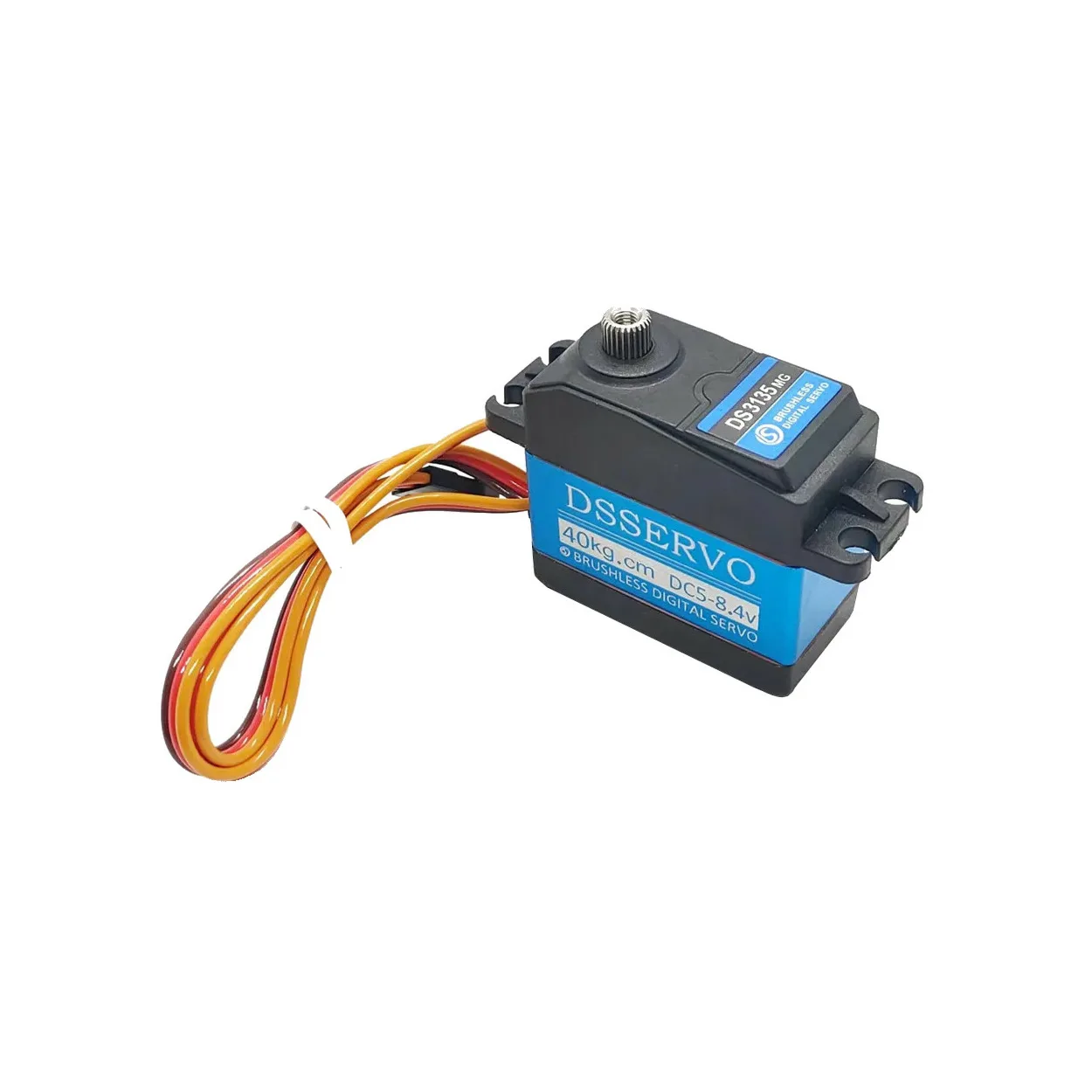

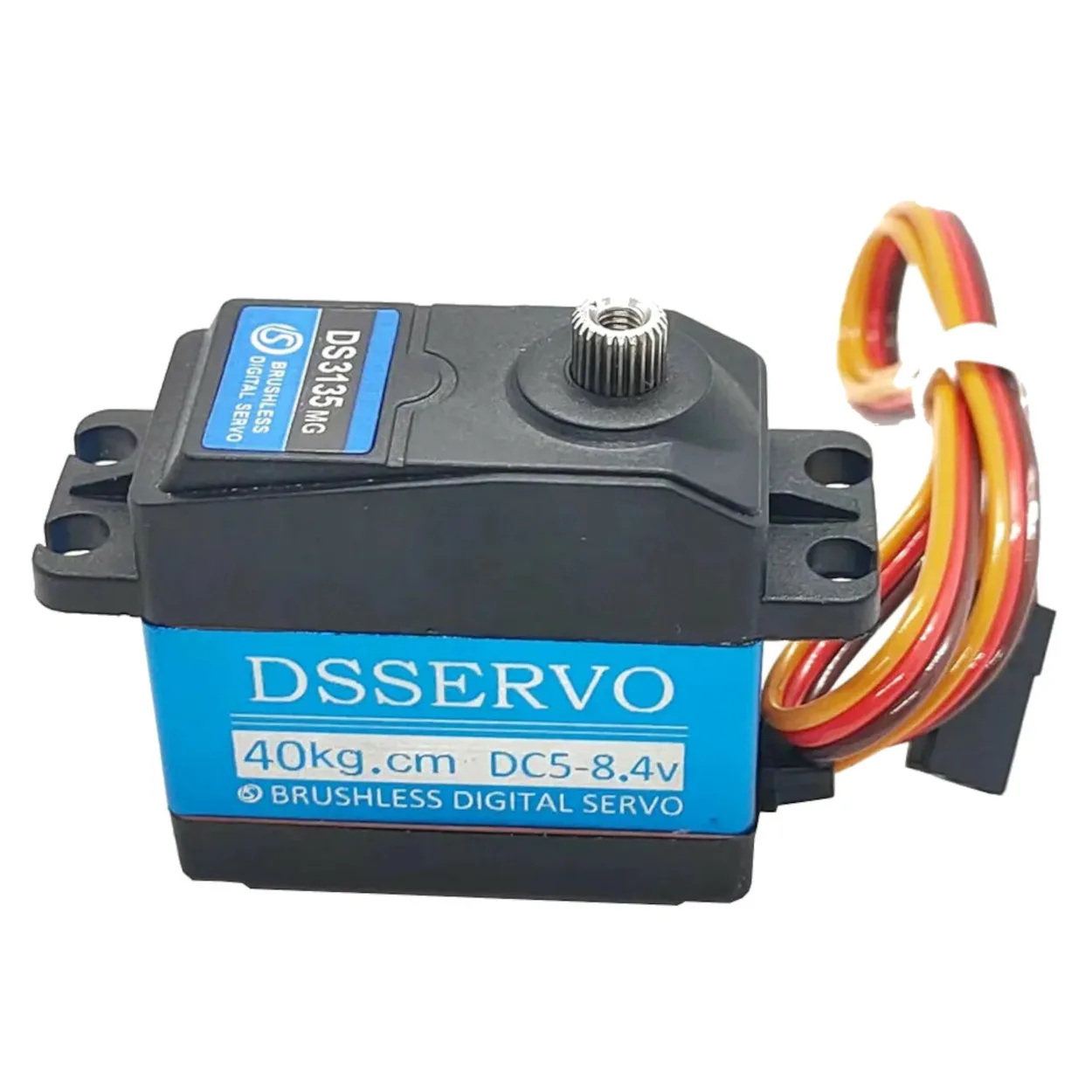

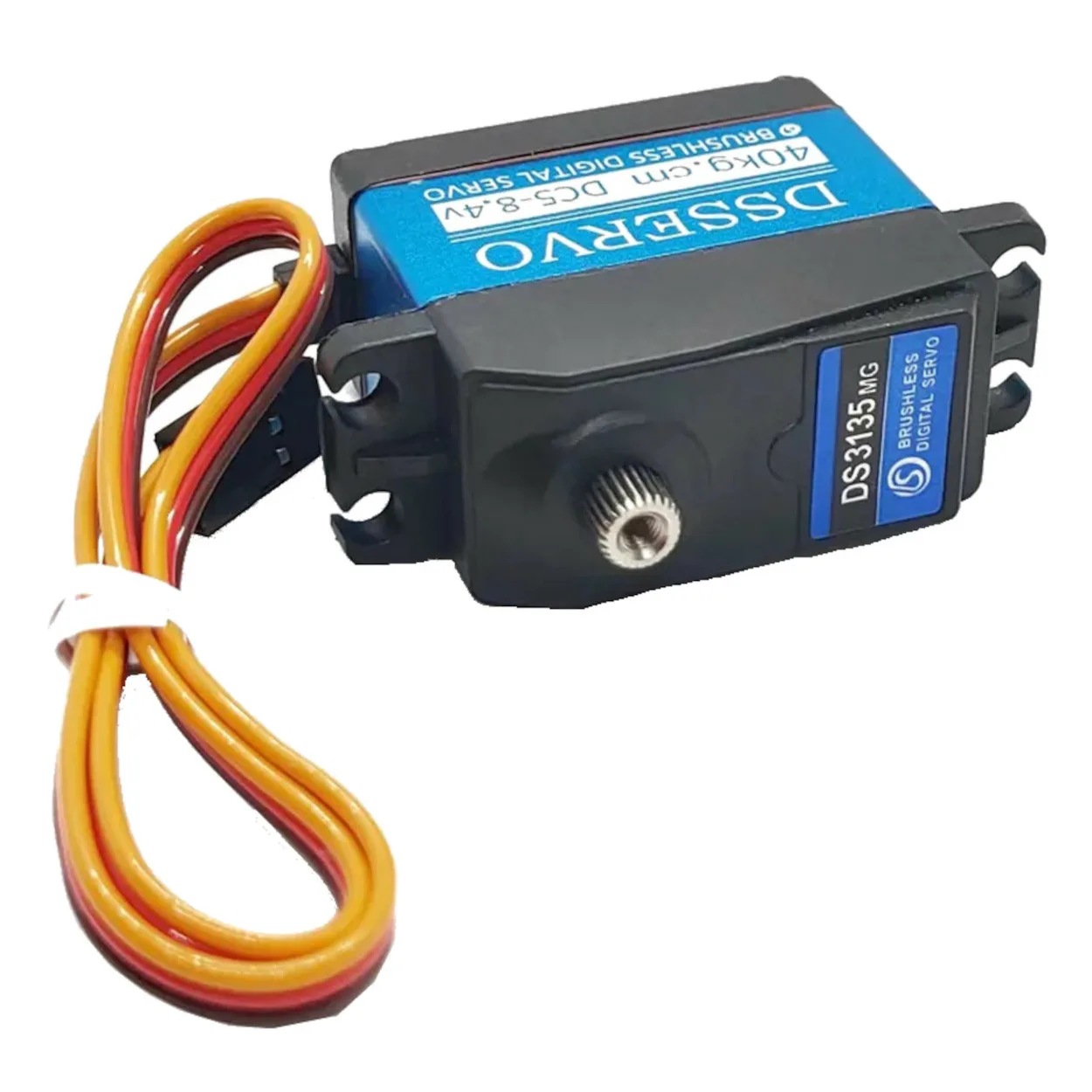

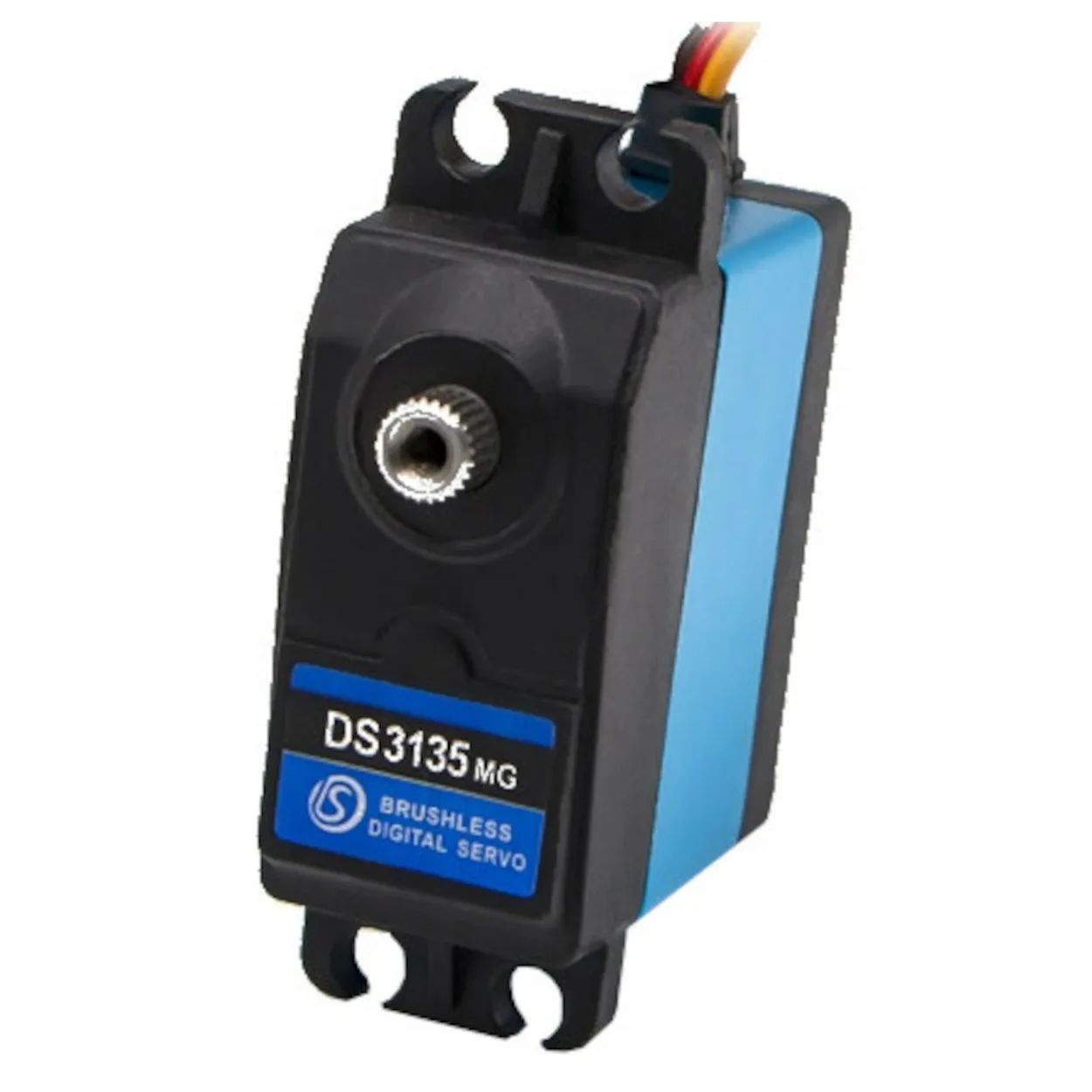

DSSERVO DS3135 180 Degree Brushless High-Pressure High-Speed Servo（Send metal plate feed） Torque:40KG.
The DS3135 servo motor is a top-tier component renowned for its exceptional performance, capable of delivering torque of up to 40kgs. Primarily designed for high-torque applications, it finds its niche in various fields such as robot arms, grippers, RC planes’ flap control, and steering mechanisms in RC cars, among others.
Featuring digital technology, the DS3135 servo boasts attributes like high torque, metal gear construction, efficient heat dissipation, sensitivity, and remarkable responsiveness. Crafted with precision and reliability in mind, it caters to the needs of RC hobbyists, promising unparalleled experiences and satisfaction.
Servo motors, such as the DS3135, excel in applications requiring precise positional control. Operating within a 180° rotation range, these motors enable users to adjust the shaft to any desired angle using a PPM signal. What sets servo motors apart is their user-friendly nature; they eliminate the need for external motor drivers or feedback sensors. Simply connect the servo motor to your microcontroller via a Digital IO pin, and you’re ready to take full control of its operation.
Features:
- High-performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminum middle Shell
- Dual ball bearings
Specification:
- Module: DS3135 40KG Large Torque Digital Servo
- Gear Type: Metal
- Motor Type: Brushless motor
- Operating Voltage: 5 ~ 8.4 DC Volts
- Stall Torque (8.4V): 40 kg/cm
- Speed: 0.08 sec/60°(8.4V)
- Dead band: 2μs
- Max frequency: 500-2500us
- Max Rotation Angle: 180°
- Size: 40 x 20 x 40.5 mm
- Weight: 55 gm

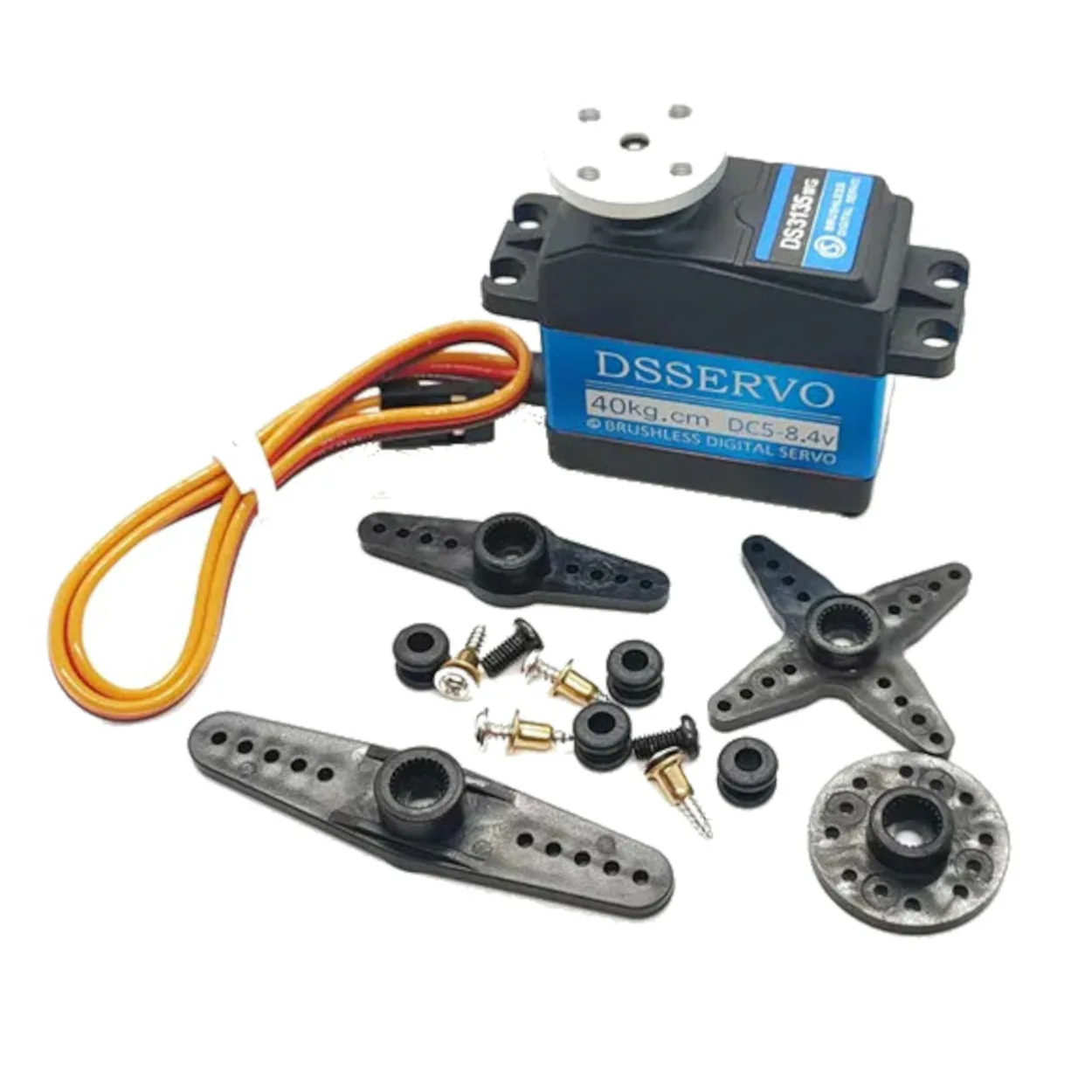

Package Include:
1 x DSSERVO DS3135 180 Degree Brushless High-Pressure High-Speed Servo Send metal plate feed） Torque:40KG.
BLDC Motor Controller Programming: Six-Step Commutation Guide
Table of ContentsIntroduction to BLDC Motor ControlBLDC vs Brushed Motors: Why It MattersSix-Step (Trapezoidal) Commutation TheoryHall Effect Sensors:...
Read More →
DRV8833 Motor Driver: Dual DC Motor Control for ESP32
When building a small autonomous robot, wheeled platform, or any battery-powered motor project with an ESP32, the choice...
Read More →
Hall Effect Sensor for Motor Speed Measurement with Arduino
Accurate motor speed measurement is the foundation of any closed-loop control system. Without knowing how fast your motor...
Read More →Technical Specifications
| Max Temperature | 180°C |
|---|---|
| SKU | AI3821 |
| Weight | 0.1 kg |
| Availability | In Stock |
Applications & Use Cases
The DSSERVO DS3135 180 Degree Brushless High Pressure High Speed Servo(Send metal plate feed)Torque:40KG is a versatile towerpro and other servo motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
