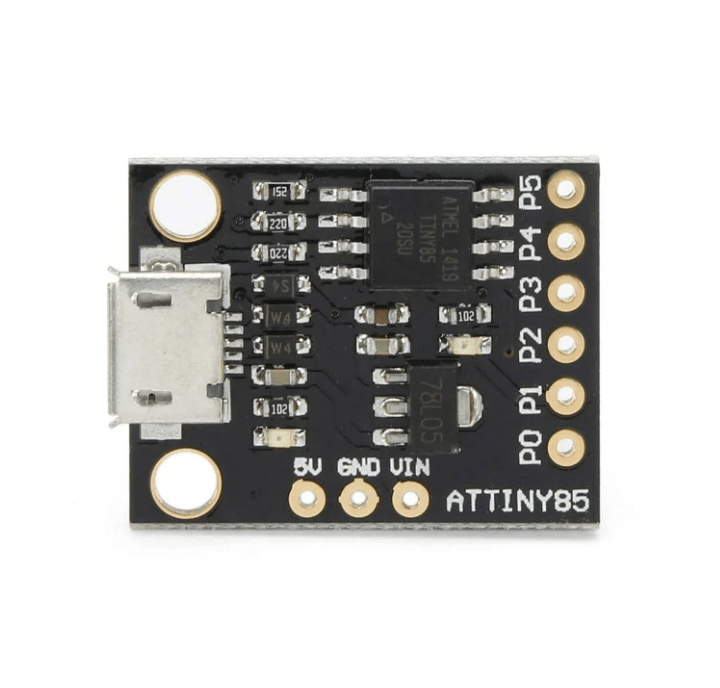

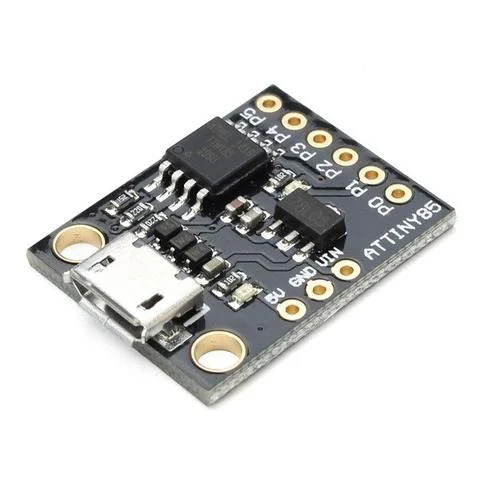

Digispark ATTINY85 Mini USB Development Board
The Digispark ATTINY85 Mini USB Development Board, akin to the Arduino, is more affordable and compact, albeit slightly less potent. Boasting a variety of shields to enhance its capabilities and compatibility with the well-known Arduino IDE, this board offers an excellent entry point into the world of microcontroller electronics.
Complete USB Development Board Cheap Enough to Leave in a Project. If you have never heard of the Digispark Attiny board before, it may take you more than a moment to understand its full power and potential. So read this carefully:
Firstly, it’s a 20MHz, AVR 8-bit microcontroller with 8 KB flash, 512 bytes of RAM
You get up to 5 GPIOs, 4 ADCs, 2 PWMs, 1 SPI, and 1 I2C[*]
Secondly, it’s fully compatible with Arduino
Thirdly, it can be directly programmed via USB without needing any other programmer!

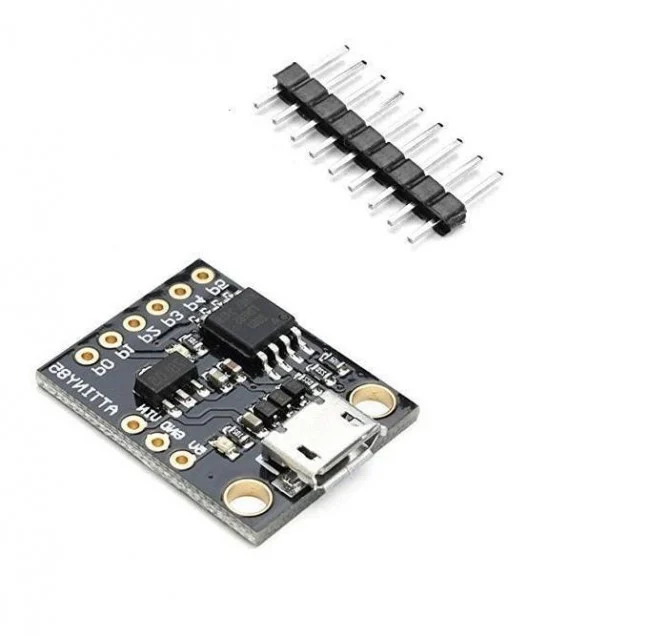

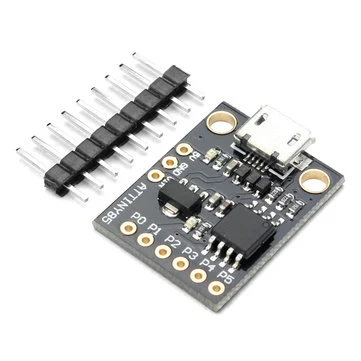

The Digispark is shipped fully assembled except for the two included and easy to solder headers.
Note: The Board is available in Black and Blue color we will ship it Randomly
Specification:
Length (mm): | 21 |
---|---|
Width (mm): | 18 |
Height (mm): | 4 |
Weight (g): | 4 |
Features
- High Performance, Low Power AVR® 8-Bit Microcontroller
- Non-volatile Program and Data Memories
- 8K Bytes of In-System Programmable Program Memory Flash
- Endurance: 10,000 Write/Erase Cycles
- 512 Bytes In-System Programmable EEPROM
- 512 Bytes Internal SRAM
- Peripheral Features
- Two High-Frequency PWM Outputs with Separate Output Compare Registers
- USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
- 10-bit ADC
- 4 Single Ended Channels
- Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
- Speed Grade
- 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
- Industrial Temperature Range
- Low Power Consumption
- Active Mode:1 MHz, 1.8V: 300 µA
Package Includes
1 x Digispark ATTINY85 Mini USB Development Board
1 x Berg Pin
