Crystal Oscillator Assorted kit
The Crystal Oscillator Assorted Kit is a comprehensive collection designed to meet the varied needs of electronics enthusiasts and professionals alike. With its wide range of crystal oscillators, this kit offers unparalleled flexibility and versatility for a multitude of projects and applications. From simple oscillator circuits to complex frequency-tuning endeavors, the kit provides an extensive selection to cater to diverse requirements.
Whether you’re a hobbyist tinkering with DIY electronics or an experienced engineer working on cutting-edge technology, having access to a range of crystal oscillators is indispensable. These tiny yet crucial components serve as the heartbeat of countless electronic devices, providing precise timing and synchronization for seamless operation.
Each crystal oscillator in the kit is meticulously chosen to ensure reliability, accuracy, and compatibility with various electronic systems. Whether you need a high-frequency oscillator for digital communication or a low-frequency one for microcontroller applications, you’ll find the perfect crystal in this assortment.
Experimenting with different oscillator frequencies has never been easier. With this kit, you can explore a wide range of frequencies and waveforms, allowing you to fine-tune your circuits and optimize performance. Whether you’re designing audio equipment, communication systems, or embedded controllers, having a diverse selection of crystal oscillators at your disposal empowers you to achieve your desired outcomes with precision and efficiency.
This is the most demanded Crystal Oscillator Assorted kit – 9 Kind
Package Includes:

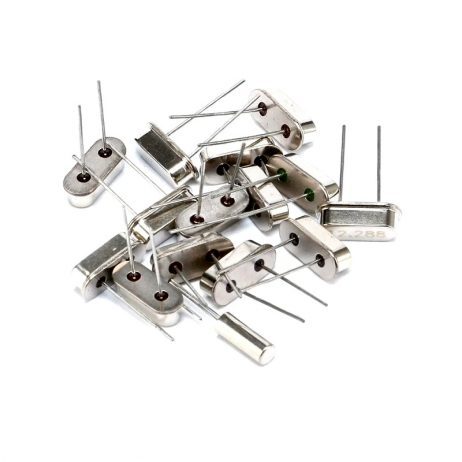

1 x Crystal Oscillator Assorted kit – 9 Kinds
3 x 32KHZ 2*6
3 x 32.768KHZ 3*8
3 x 49S DIP 6M
3 x 49S DIP 8M
3 x 49S DIP 11.0592M
3 x 49S DIP 12M
3 x 49S DIP 24M
3 x 49S DIP 24.576MHZ
3 x 49S DIP 22.1184MHZ
Crystal Oscillator Assorted kit – 9 Kinds Overview
The Crystal Oscillator Assorted kit – 9 Kinds is a curated selection of nine through-hole quartz crystals in standard metal can packages, each marked with its resonant frequency. This kit provides a range of timing elements for designing clock generators, microcontroller crystal circuitry, and frequency-tunable oscillator modules.
Key Features of Crystal Oscillator Assorted kit – 9 Kinds
- Nine different frequency crystals covering low-frequency watch types to high-frequency microcontroller clocks
- Standard through-hole metal can packages with clear frequency markings for easy identification
- High frequency stability and low phase noise suitable for precision timing applications
- Versatile selection enables rapid prototyping of oscillator circuits and clock sources
- Ideal for hobbyists and electronics enthusiasts experimenting with various resonant frequencies
- Fast shipping from Zbotic – dispatch within 24 hours on in-stock items
Applications and Use Cases
- Building microcontroller clock circuits (Arduino, AVR, PIC) with matched crystal frequency
- Designing real-time clocks (RTC) and timekeeping modules using low-frequency watch crystals
- Prototyping RF front-end oscillators and local oscillators in communication devices
- Frequency reference in test equipment such as frequency counters and signal generators
- Educational projects demonstrating crystal resonance and load capacitance effects
How to Use Crystal Oscillator Assorted kit – 9 Kinds
Select the crystal with the required frequency, mount its two leads into your PCB or breadboard, and wire it into your oscillator circuit along with appropriate load capacitors. Ensure the crystal’s load capacitance matches the circuit design, then power up and verify output stability with a frequency meter or scope.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What frequencies are included in this 9-kind kit?
The kit contains nine standard quartz crystal frequencies ranging from low-frequency timekeeping types (e.g., 32.768 kHz) up to common microcontroller clock crystals (e.g., 4 MHz, 8 MHz, 16 MHz). Each crystal is labeled with its exact frequency on the metal can.
Do I need additional components to use these crystals?
Yes, most crystal oscillator circuits require two load capacitors (typically 12 pF–22 pF each) and an inverting amplifier stage or dedicated MCU oscillator input. Refer to your circuit’s load capacitance requirements for optimal stability.
Can I swap crystals without redesigning the PCB?
If your board uses a standard through-hole footprint and adjustable load capacitors, you can interchange crystals easily. Ensure each new crystal’s load capacitance matches or adjust capacitor values accordingly for reliable oscillation.
