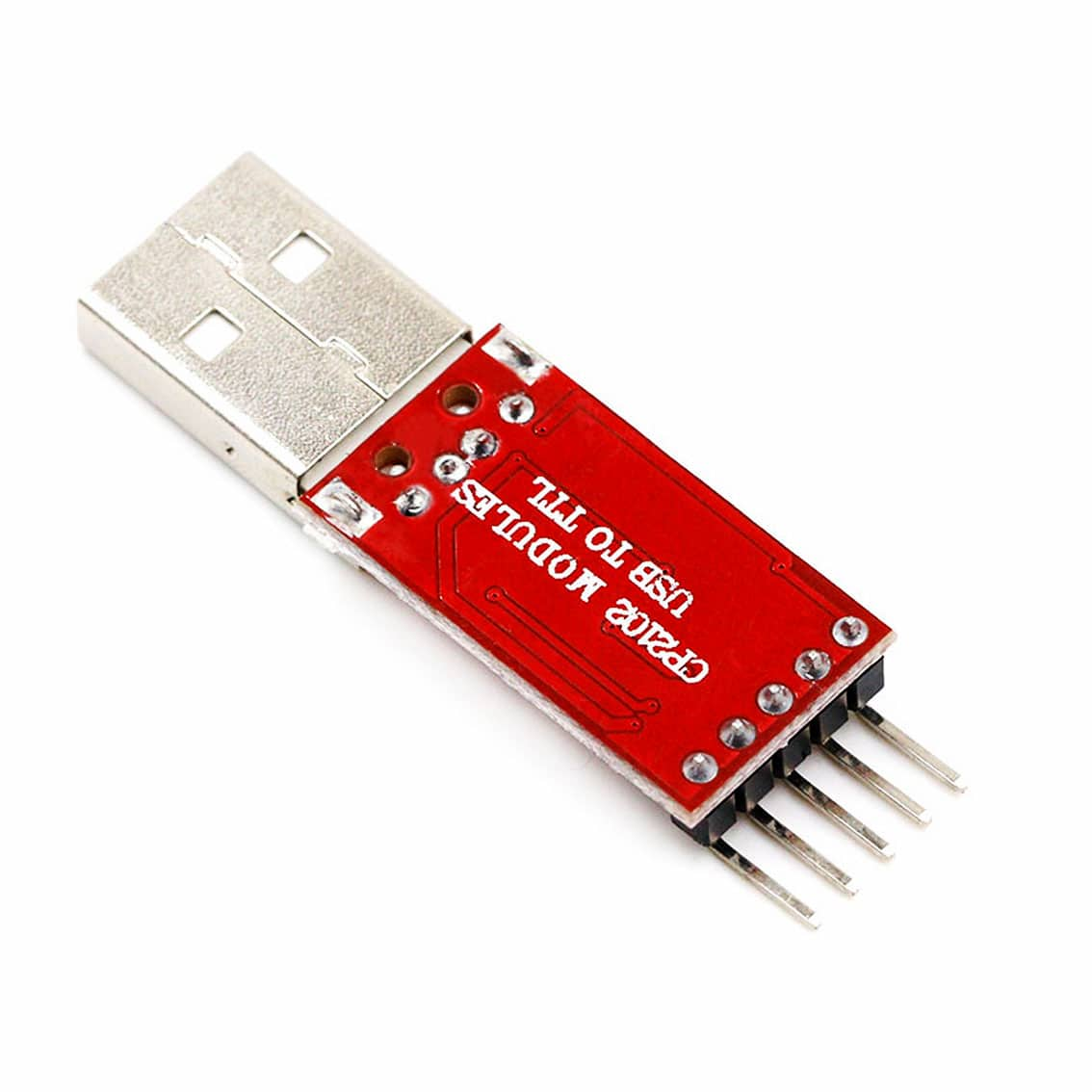

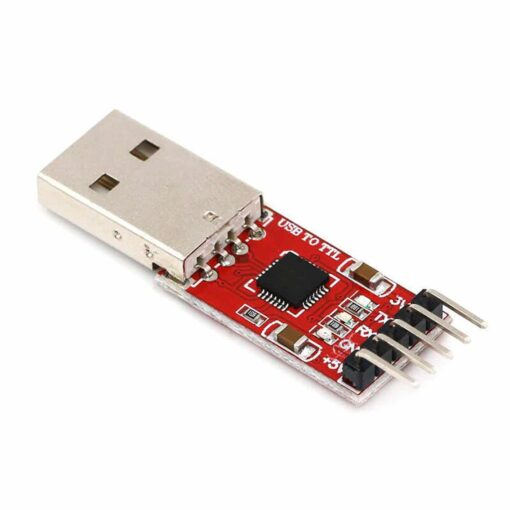

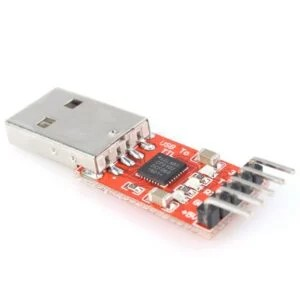

CP2102 USB 2.0 to TTL UART Serial Convertor Module
The CP2102 USB 2.0 to TTL UART Serial Converter Module is a compact and efficient interface solution designed to enable seamless communication between a USB-enabled device (like a computer) and microcontrollers or other UART-based devices. This module connects via a USB 2.0 interface and provides a TTL UART interface, allowing easy communication with microcontrollers, sensors, and peripherals that support UART serial protocols.
Powered by the CP2102 USB-to-UART bridge controller chip the module ensures stable and high-speed serial communication. It supports both 3.3V and 5V operation, making it compatible with a wide range of microcontrollers and devices operating at different voltage levels.
With its compact form factor LED indicators for power and data transmission, and built-in driver support for multiple operating systems, the CP2102 module is perfect for a variety of applications, including microcontroller programming hardware debugging and interfacing with sensors or other external devices. It is a reliable and versatile tool for both hobbyists and professionals working with UART communication in embedded systems.
Features
Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
6pins for 3.3V, RST, TXD, RXD, GND & 5V.
Baud rates: 300 bps to 1.5 Mbps
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85.
Size: 42mm X 15mm.
Weight: 4g

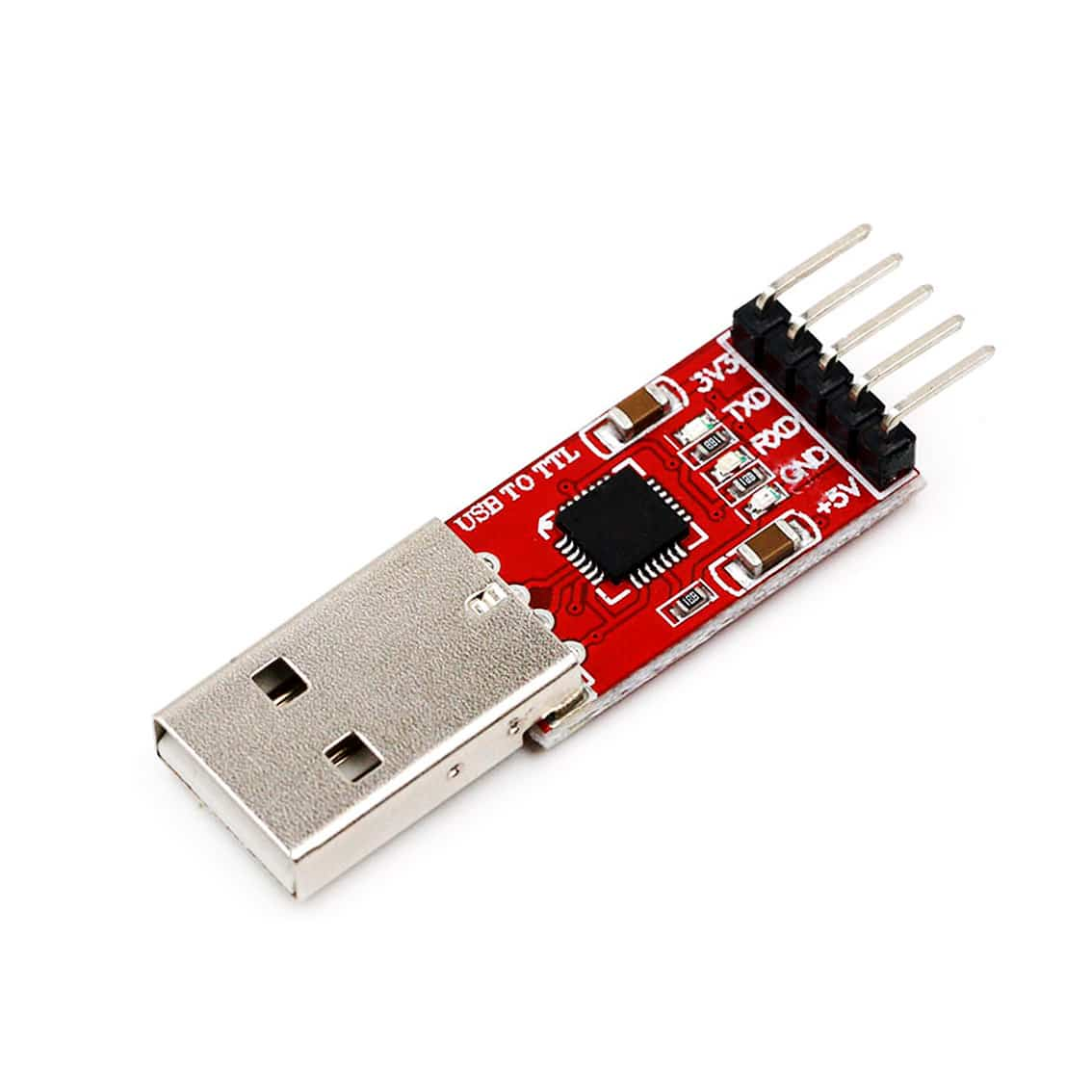

Pinouts:-
TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs.
GND = Should be common to microcontroller ground.
3V3 = Optional output to power external circuit upto 50mA.
5V = Optional output to power external circuit up to 100mA
Specification:
Stable and reliable chipset CP2102.
USB specification 2.0 compliant with full speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
6pins for 3.3V, RST, TXD, RXD, GND & 5V.
Baud rates: 300 bps to 1.5 Mbps
Package Includes
1 x CP2102 USB 2.0 to TTL UART Serial Convertor Module
