This is the Red variant of the 5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder in DC Worm Geared Motors. Available at ₹3,457.40 (₹2,930.00 + GST) with free shipping across India.

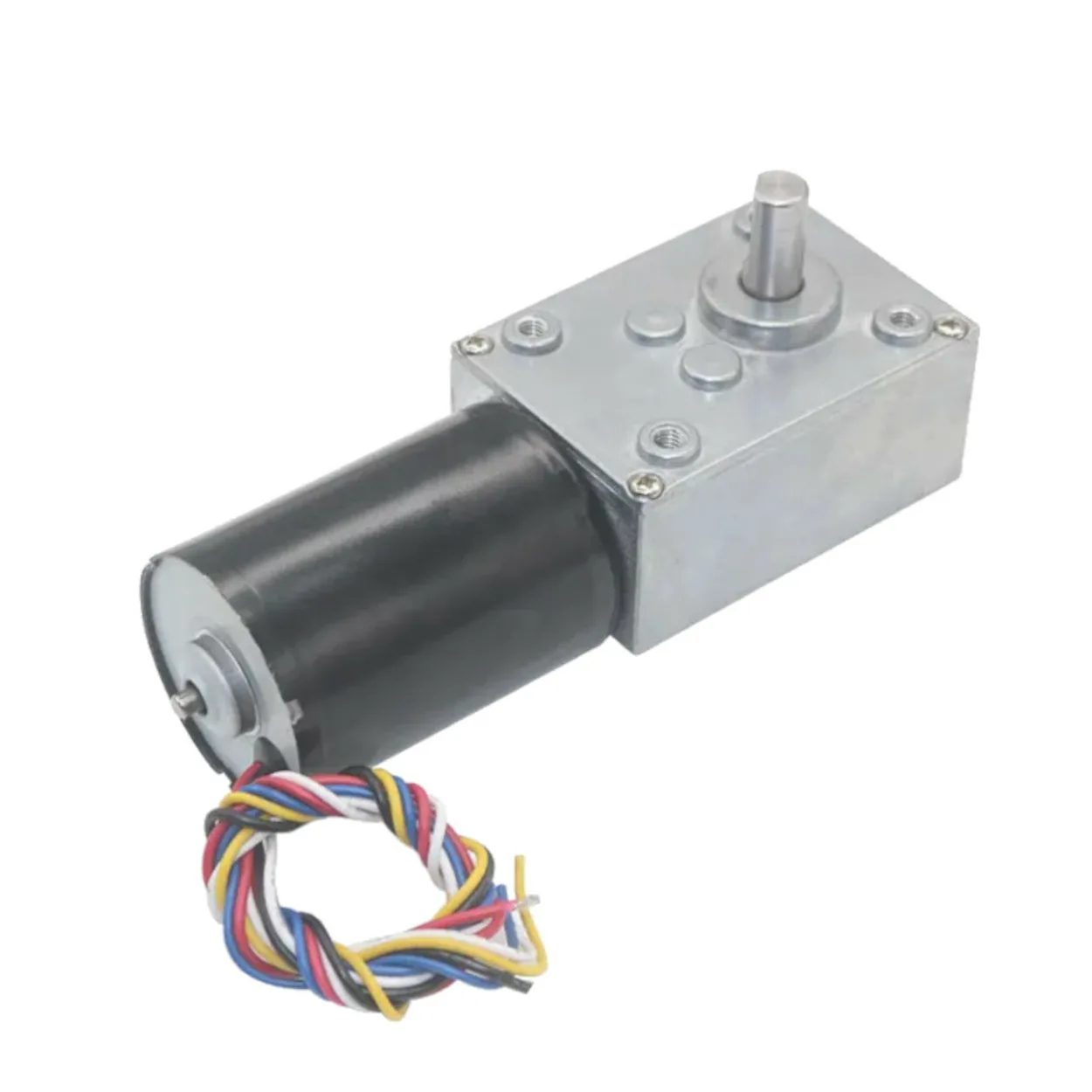

5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder
The Brushless Geared Motor combines a high-speed brushless motor with a gearbox to create a comprehensive DC brushless geared motor. This integration significantly lowers maintenance costs for projects. When the project load remains within the motor’s rated torque, it becomes an ideal choice for smart devices requiring long lifespans. Controlled through frequency conversion technology, the brushless motor offers greater energy efficiency compared to carbon brush motors.
Features:
- The motor is a Gear DC motor with a micro-turbine worm, you can change the wiring connection to change motor rotation
- Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock
- The reducer output shaft is arranged vertically with the motor shaft, whole motor output
- Metal gears are characterized by high precision, durability, and low loss..
Applications:
- Bank Equipment, Safe Box
- Paper Feeder
- Intelligent Gas Meter
- Machine Accessories and Ad Equipment
- Analysis Instrument
- Electronic Game Machine
- Remote Control Curtains
- Locks
- Paper Shredders
- Copying Machines
- Safes Inner
Specifications:
- Model:Probots PB-BLDC-5840-3650-160
- Rated Voltage: 12V
- Revolving Speed: 10 RPM
- Rated Torque: 60 kg. cm
- Stall Torque: 70 kg. cm
- Rated Current: 1.2 A
- Stall Current: 3.8 A
- Total Length(LxWxH) : 115x40x55mm
- Gear Material: Full Metal
Package Includes:
1pc x PB-BLDC-5840-3650 12V 10 RPM Brushless DC Worm Gear Reduction Motor with Encoder
5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction Overview
The 5840-3650 12V 10RPM Brushless DC Worm Gear Reduction Motor with Encoder is a high-torque, low-speed geared motor combining a brushless DC drive with a worm gear box and built-in encoder. Designed for applications requiring precise positioning and self-locking under load, it delivers up to 60 kg·cm of rated torque at 10 RPM while ensuring long service life and minimal maintenance.
Key Features of 5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction
- Brushless DC Design: Frequency conversion control for higher energy efficiency and longer lifespan compared to brushed motors.
- Worm Gear Reduction: Full-metal micro-turbine worm gears provide a self-locking function when power is off.
- High Torque: Rated torque of 60 kg·cm and stall torque up to 70 kg·cm for demanding loads.
- Built-in Encoder: Integrated encoder feedback for accurate speed and position control in automation systems.
- Reverse Wiring: Simple polarity swap on motor leads to change rotation direction without mechanical modification.
- Fast Shipping from Zbotic: In-stock and ships within 24 hours, backed by genuine distributor sourcing.
Applications and Use Cases
- Precision robotic arm joints requiring high holding torque and positional feedback.
- Pan-and-tilt camera systems for security or observational platforms.
- Automated gate or door drives where self-locking prevents backdriving.
- Miniature conveyors and turntables in assembly lines that need controlled low-speed motion.
- Solar tracking mounts requiring slow, precise adjustment throughout the day.
- Mechanical actuators in smart furniture or adjustable ergonomic fixtures.
How to Use 5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction
Mount the motor securely using its standard flange holes, then connect a 12 V DC supply and a compatible brushless motor driver. Wire the encoder signals to your controller for speed and position feedback. To reverse rotation, simply swap the two main motor power leads. Ensure your application’s load stays within the 60 kg·cm rated torque to maintain efficiency and prolong motor life.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does this motor include an encoder and what outputs does it provide?
Yes, the 5840-3650 model comes with an integrated incremental encoder. It typically provides A and B quadrature outputs for precise speed and position feedback to your control system.
How can I reverse the direction of rotation?
To reverse rotation, simply swap the two DC power leads going to the motor windings. No gearbox modifications are needed.
What maintenance is required for this brushless worm gear motor?
Minimal maintenance is needed thanks to the brushless design and full-metal worm gears. Periodically check mounting hardware and wiring connections; no lubrication is required under normal use.
Worm Gear Motor vs Planetary Gear Motor: Torque & Efficiency Compared
When building a robot, CNC machine, automated gate, or any motorised mechanism, the type of gearmotor you choose...
Read More →
MG90S Metal Gear Servo: Installation, Specs & Robotic Uses in India
The MG90S is one of the most popular micro servos in India's maker community, and for good reason....
Read More →
Solenoid Guide: Door Locks, Valves, and Automation Projects
A solenoid is an electromechanical device that converts electrical energy into linear motion. When you energise the coil,...
Read More →Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Speed | 10 RPM |
| Color | Red |
| SKU | AI3791 |
| Weight | 0.48 kg |
| Availability | In Stock |
Applications & Use Cases
The 5840-3650 12V 10RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder is a versatile dc worm geared motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
