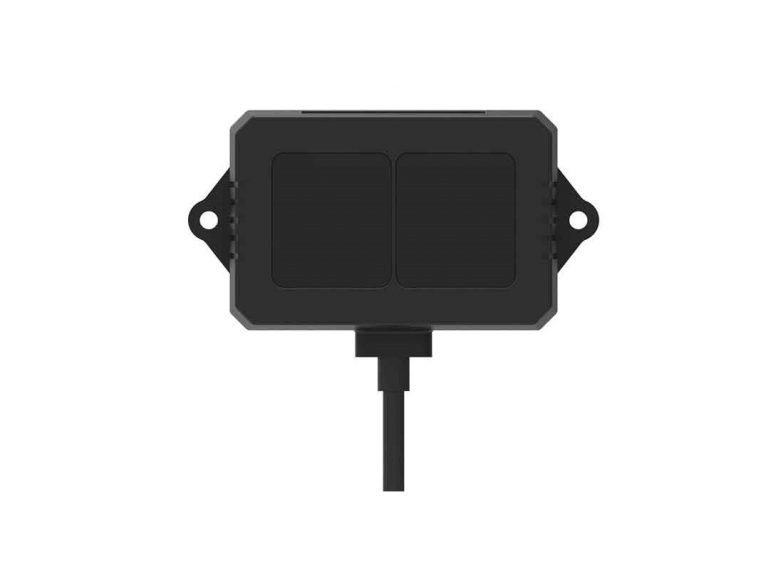

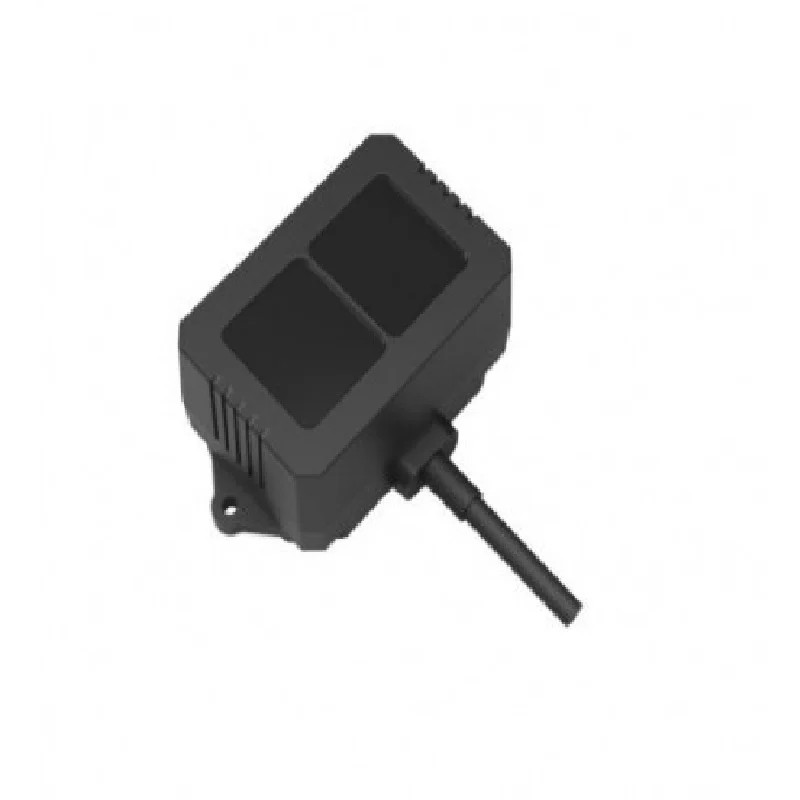

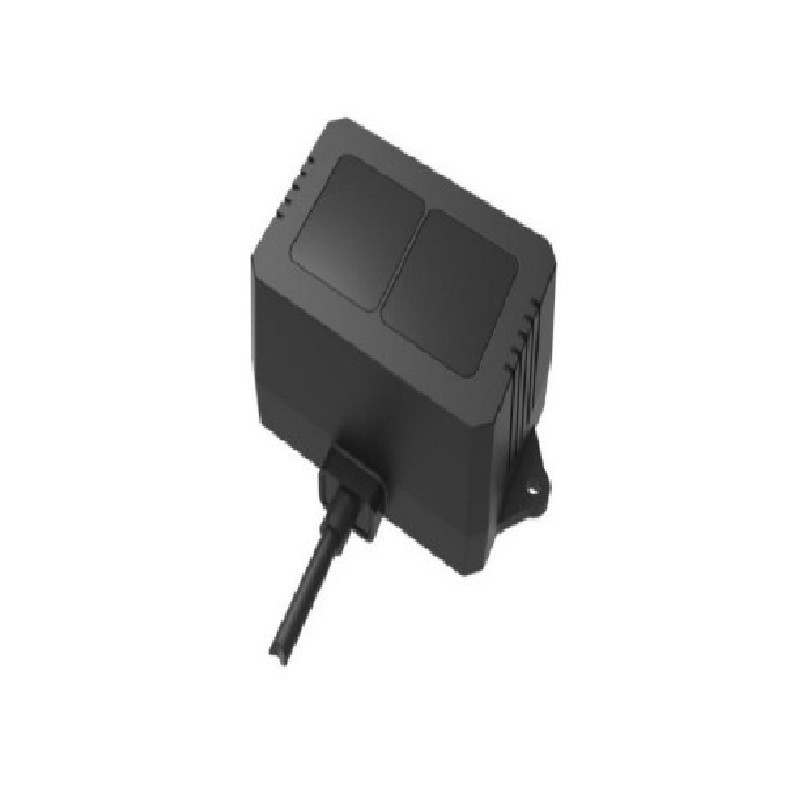

Benewake TF02-i-RS485 Long Distance sensor

Looking for Tf02 Sensor? Benewake TF02-i-RS485 Long Distance sensor is available at Zbotic with fast shipping across India.

The Benewake TF02-i LiDAR Distance Sensors are the upgraded single-point ranging LiDARs from the TF02-Pro series. These sensors have been enhanced in terms of communication interface, input voltage, and reverse protection. They feature an IP65 enclosure rating, a 100Hz frame rate, and immunity to 100Klux ambient light. Operating within a 7V to 30V supply voltage range and a -20°C to 70°C temperature range, the TF02-i sensors are suitable for various industrial applications such as pedestrian detection, vehicle testing, and altitude measurement.

The TF02-i LIDAR ToF Optical Ranging Sensor is a unidirectional ranging LiDAR primarily used for height measurement and terrain-following in drones, compatible with flight controls like Pixhawk, APM, TopXGun, EFY Technology, aiAero, DAISCH, and others.

Its protection design adheres to the IP65 standard, safeguarding against dust, water, and corrosion. It is resistant to interference from strong outdoor light and can function under 100K lux light without being affected by temperature, humidity, light, electronics, or airflow.

With high sensitivity, it can measure distances up to 40 meters with centimeter-level accuracy. The scan frequency reaches up to 1000Hz, providing real-time distance detection at a 500 times/second refresh rate for more precise data. The TF02-i includes a complete system with a protective shell made from materials that allow high infrared transmittance without compromising optical performance.

Extensively utilized for height control and terrain-following in drones, particularly in agriculture, the TF02-i LiDAR Laser Rangefinder Sensor has amassed extensive experience and data across various scenarios, informing continuous product enhancements. To ensure the TF02-i’s reliability, rigorous seismic testing is conducted, with the sensor consistently demonstrating excellent performance.

Application:

1. Robot Obstacle avoidance
2. Drones UAV Anti-collision
3. UAV Auto landing
4. UAV Height fixing / Distance keeping
5. UAV Terrain following
6. Level Measurement
7. Robots Obstacle avoidance
8. Tank volume / Bins volume/ Silo material level Detection
9. Smart Parking
10. Crane safety Operations
11. Wheel Ahead Detection/Alert
12. Vehicles Position Sensing/vehicles counting
13. Vehicles Detection for toll Gate Control
14. People Counting
15. Triggering Switch
16. Part of Rotating LiDAR

Specification-

Package Includes:

1 x Benewake TF02-i-RS485 Long Distance sensor

DATASHEET

Benewake TF02-i-RS485 Long Distance sensor Overview

The Benewake TF02-i-RS485 is a single-point LiDAR ranging sensor designed for long-distance detection from 0.1 m up to 40 m. Featuring RS485 and CAN communication interfaces, this robust module delivers high-speed distance measurements in industrial and outdoor environments.

Key Features of Benewake TF02-i-RS485 Long Distance sensor

• Extended Range: Accurate measurements from 0.1 m to 40 m
• High Frame Rate: Up to 1,000 Hz for rapid distance sampling
• Industrial Interfaces: RS485 and CAN bus support for robust data links
• Wide Power Input: Operates on 7 V to 30 V with reverse-polarity protection
• Rugged Design: IP65-rated housing for dust and water resistance
• Temperature Range: Reliable performance from –20 °C to 60 °C
• Compact & Lightweight: 60 g weight with 3° field of view
• Fast Shipping: Genuine Benewake sensor dispatched quickly from Zbotic

Applications and Use Cases

• Pedestrian and obstacle detection in automated guided vehicles (AGVs)
• Vehicle testing and collision avoidance systems
• Altitude measurement for UAVs and drone landing assistance
• Factory automation: object height verification on production lines
• Level measurement in bins, silos and storage tanks
• Robotic arm reach and positioning feedback

How to Use Benewake TF02-i-RS485 Long Distance sensor

Mount the TF02-i-RS485 on a stable bracket pointing toward the target area, then connect the power supply (7–30 V) ensuring correct polarity. Link the RS485 or CAN interface to your controller and set the baud rate via its configuration tool. Power on the sensor, verify communication, and begin real-time distance readings through your software or PLC.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the maximum detection range of the TF02-i-RS485?

The TF02-i-RS485 provides accurate distance measurements from as close as 0.1 m up to 40 m in clear conditions.

Which communication interfaces does this sensor support?

This model features both RS485 and CAN bus interfaces, allowing seamless integration with industrial controllers and data networks.

Can the TF02-i-RS485 operate outdoors in bright sunlight?

Yes, the sensor has 100 Klux ambient light immunity and an IP65-rated enclosure, making it suitable for outdoor use under bright sunlight and dusty environments.
