Description

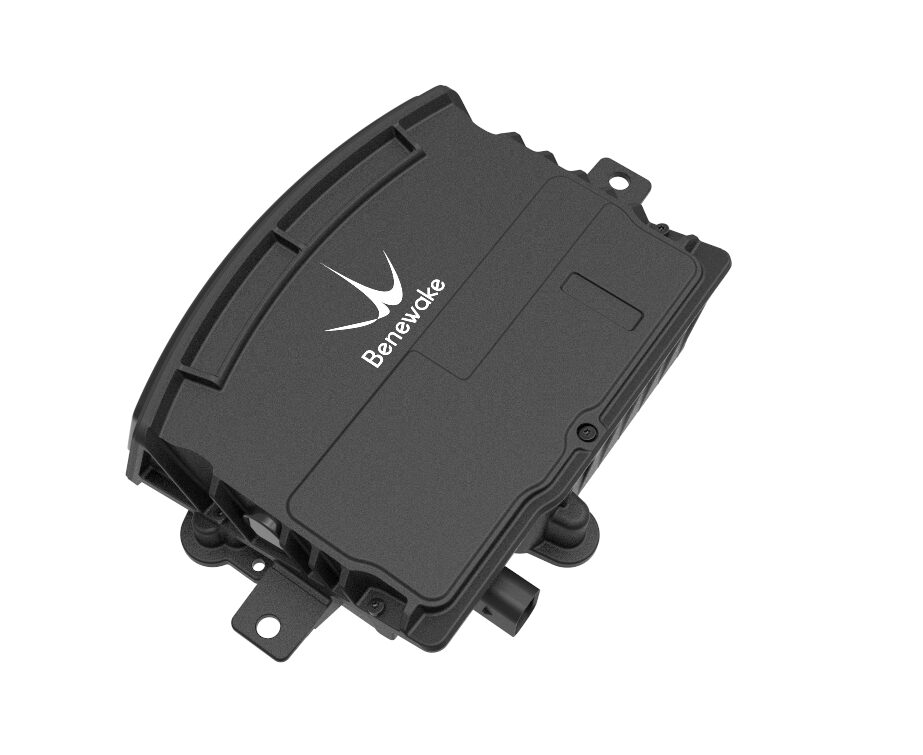

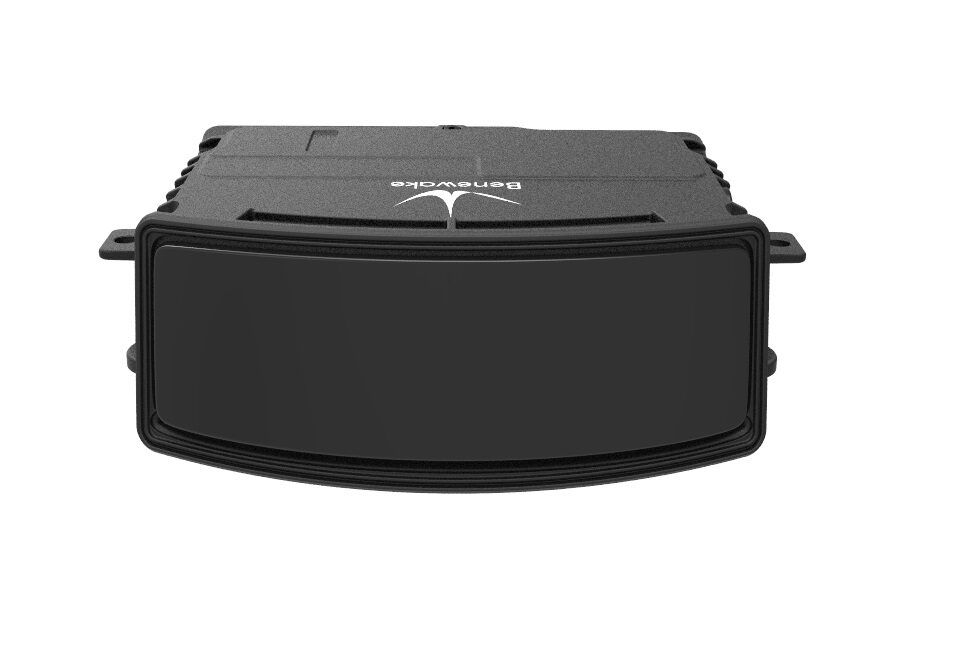

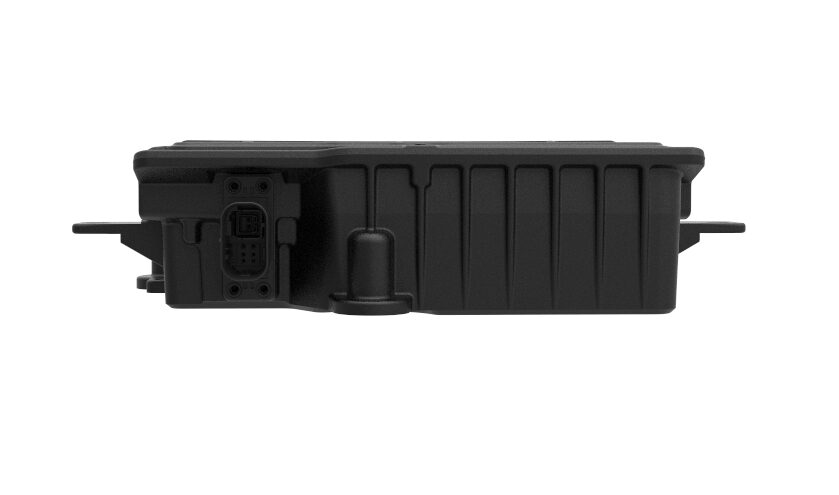

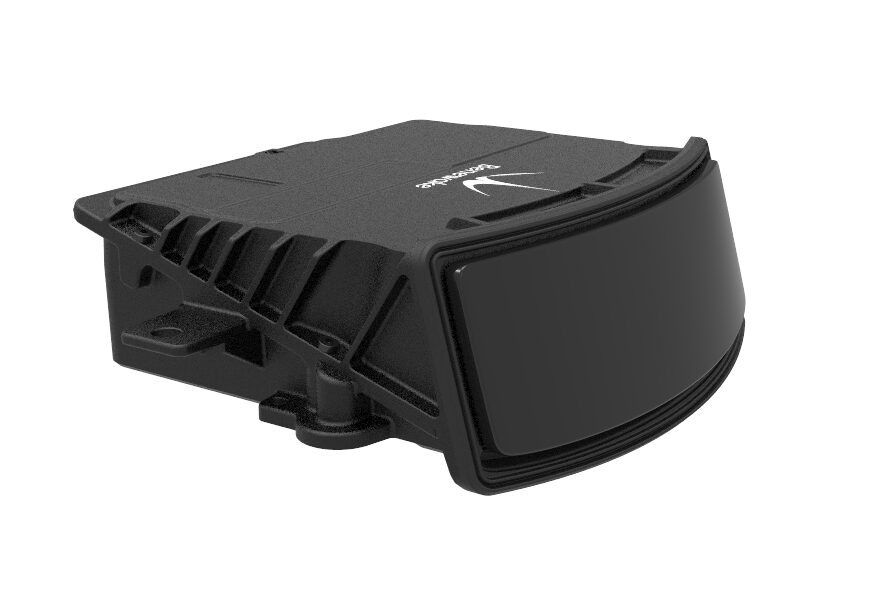

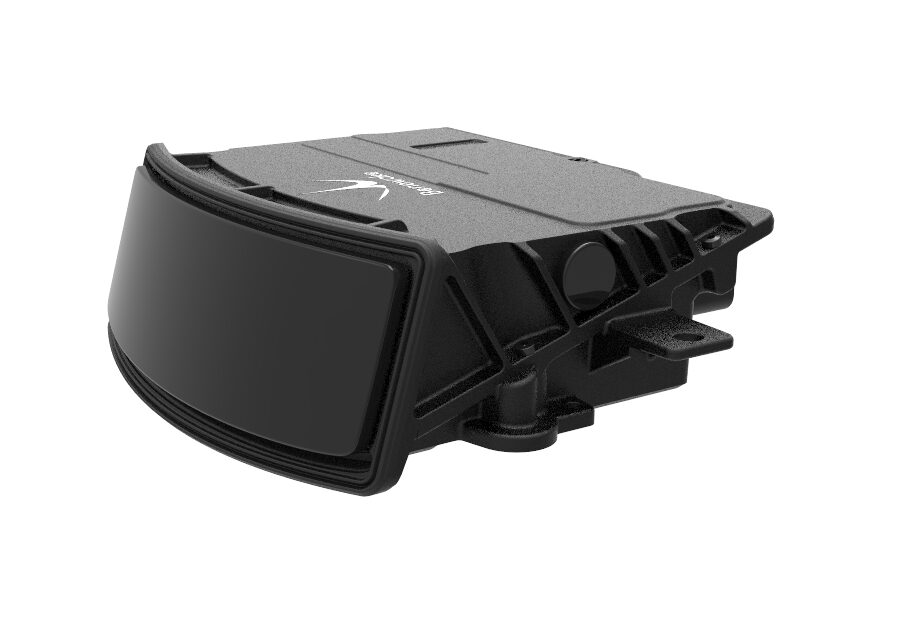

- Benewake AD2-S-X3 High-Performance Automotive-Grade LiDAR for Autonomous Driving
- Capable of constructing a real-time 3D model of the environment
- Boasts a long detection range : 350m@90% reflectivity, 200m@10% reflectivity
- Field of view: 120 x 25.6° (Non-ROI region), 120 x 8° (ROI region)
- Ideal for use in CVIS, logistics industry, and ADAS
The Benewake AD2-S-X3 High-Performance Automotive-Grade LiDAR for Autonomous Driving is a superior sensor designed to support high-level autonomous driving. This LiDAR is capable of excellent perception of the surroundings, making it an ideal primary sensor for vehicles.
It is designed to construct a real-time 3D model of the environment, providing a comprehensive understanding of the surroundings. The AD2 boasts a detection range of 200 m at 10%, a field of view of 120 x 25.6°, a resolution of 0.05° x 0.05°, and a frame rate of 10 Hz. These features make it highly suitable for a variety of application areas. It can be effectively utilized in the Cooperative Vehicle Infrastructure System (CVIS), the logistics industry, and Advanced Driver Assistance Systems (ADAS).
Specification-
- Detection Range: 200 m @ 10%
- FoV: 120 x 25.6°
- Resolution: 0.05° x 0.05°
- Frame Rate: 10 Hz
- Accuracy: 5cm @ 1σ
- Echo mode: Single & Dual Echo
- Number of equivalent lines: 256
Laser Parameters
- Laser wavelength: 905 nm
- Laser safety: Class 1 Eye-safe [IEC60825 – 1:2014]
Data Output
- Data interface: 1000Base-T1 Automotive Ethernet
- Transmission protocol: UDP/TCP
- Supported platforms: Windows, Linux (Ubuntu) & ROS drive
- Time synchronization: gPTP 802.1AS
Mechanical/Electrical
- Average power consumption: ≤15 W
- Operating voltage: 9~32 V
- Operating temperature: -40 ~ +85 ℃
- Storage temperature: -40 ~ +105 ℃
- Weight: 1.2 kg
- Device interface: Tyco 2446023-1
- Protection level: IP67 & IP6K9K
Package Include-
- 1x Benewake AD2-S-X3 LiDAR
- 3x Terminal plug
- 1x Power supply adapter
- 1x Junction box (Hub)
- 1x Gigabit ethernet cable
- 1x Data cables
