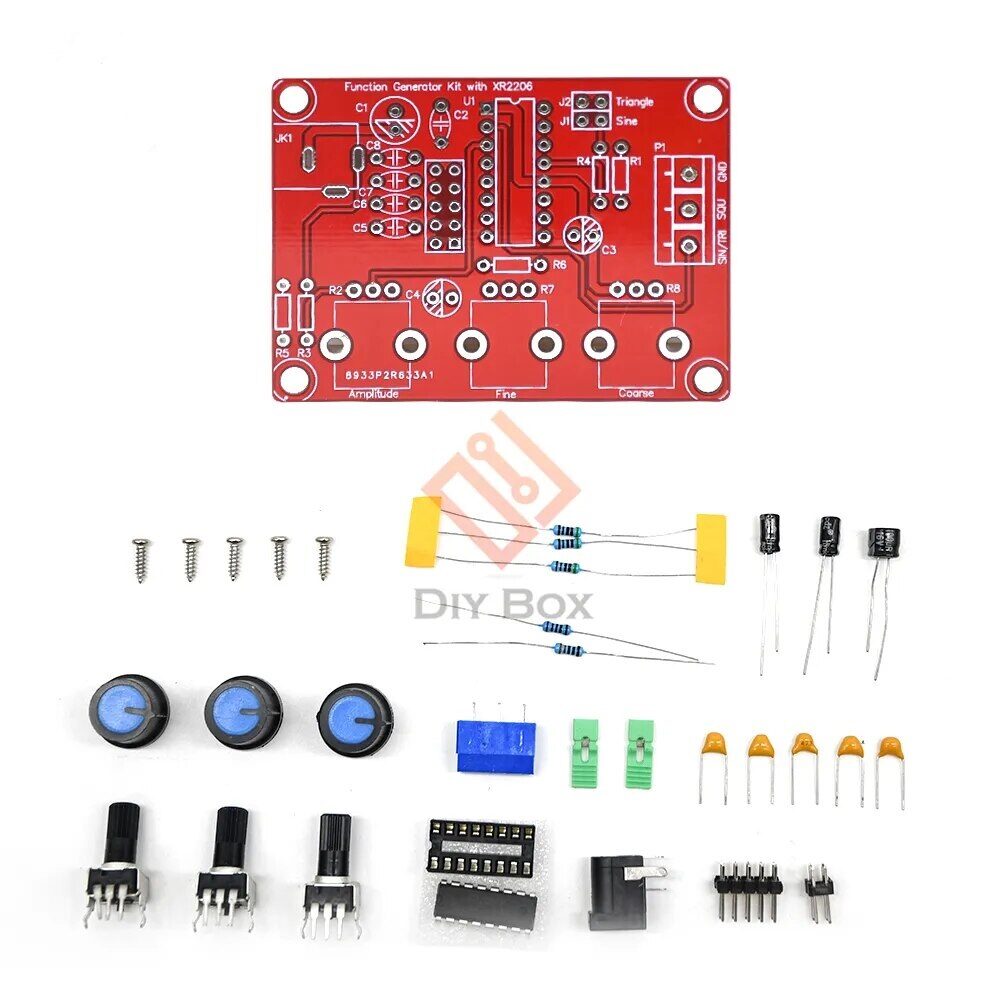

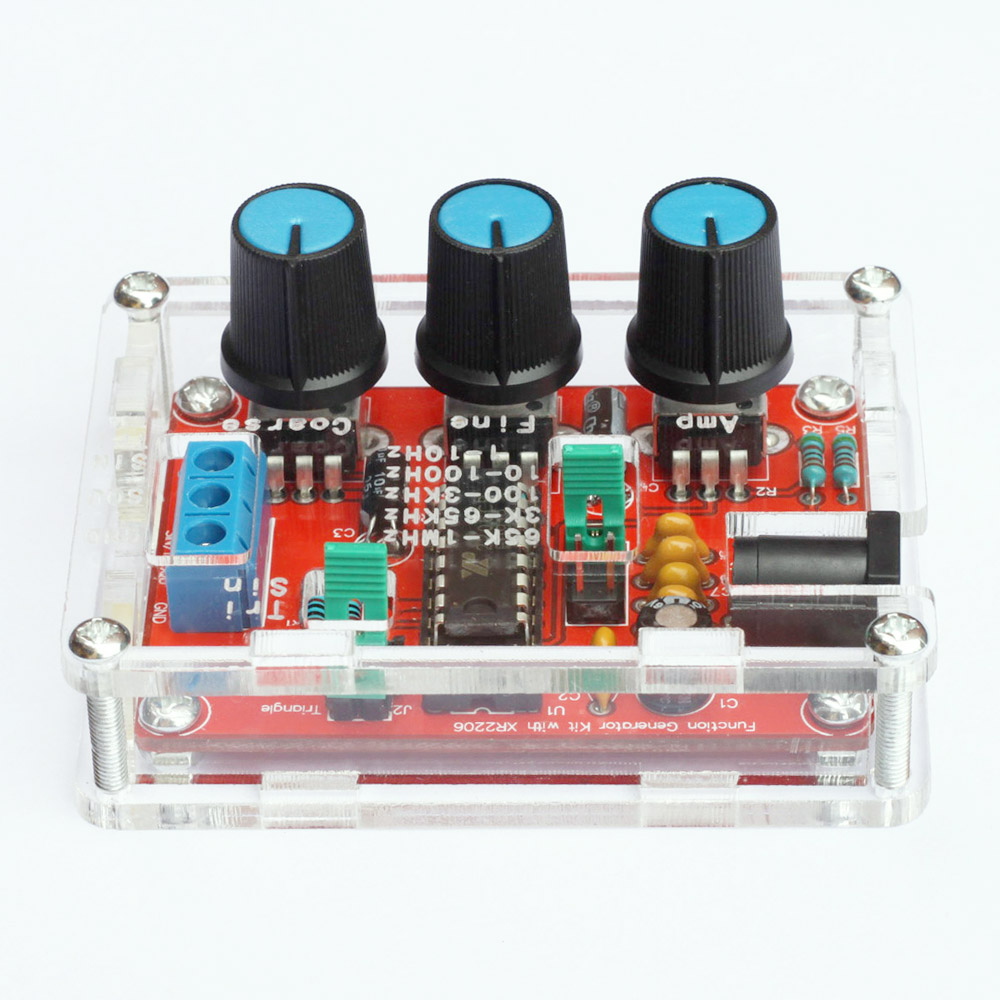

DIY 1Hz -1MHz XR2206 High Precision Function Signal Generator Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude (Unsoldered，without Case)
These are all parts, it needs your own welding and installation.
Supply voltage: 9-12V DC input
Waveforms: Square, Sine & Triangle
Impedance: 600 ohm + 10%
Frequency: 1Hz – 1MHz
sine wave
Amplitude: 0 – 3V at 9V DC input
Distortion: less than 1% (at 1kHz)
Flatness: + 0.05dB 1Hz – 100kHz
Gal square
Amplitude: 8V (no load) at 9V DC input
Rise time: less than 50ns (at 1kHz)
Fall time: less than 30ns (at 1kHz)
Symmetry: less than 5% (at 1kHz)
triangle wave
Amplitude: 0 – 3V at 9V DC input
Linearity: less than 1% (up to 100kHz) 10mA

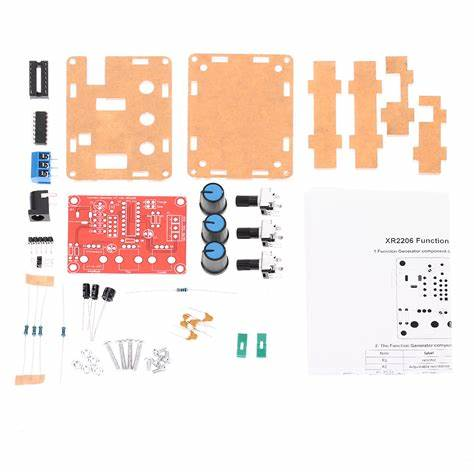

Package Include:
1 x DIY 1Hz -1MHz XR2206 High Precision Function Signal Generator Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude (Unsoldered，without Case)
Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| Frequency | 1MHz |
| Color | Red |
| SKU | AI3838 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The DIY 1Hz -1MHz XR2206 High Precision Function Signal Generator Kit Sine/Triangle/Square Output Signal Generator Adjustable Frequency Amplitude (Unsoldered，without Case) is a versatile diy hobby project parts used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
