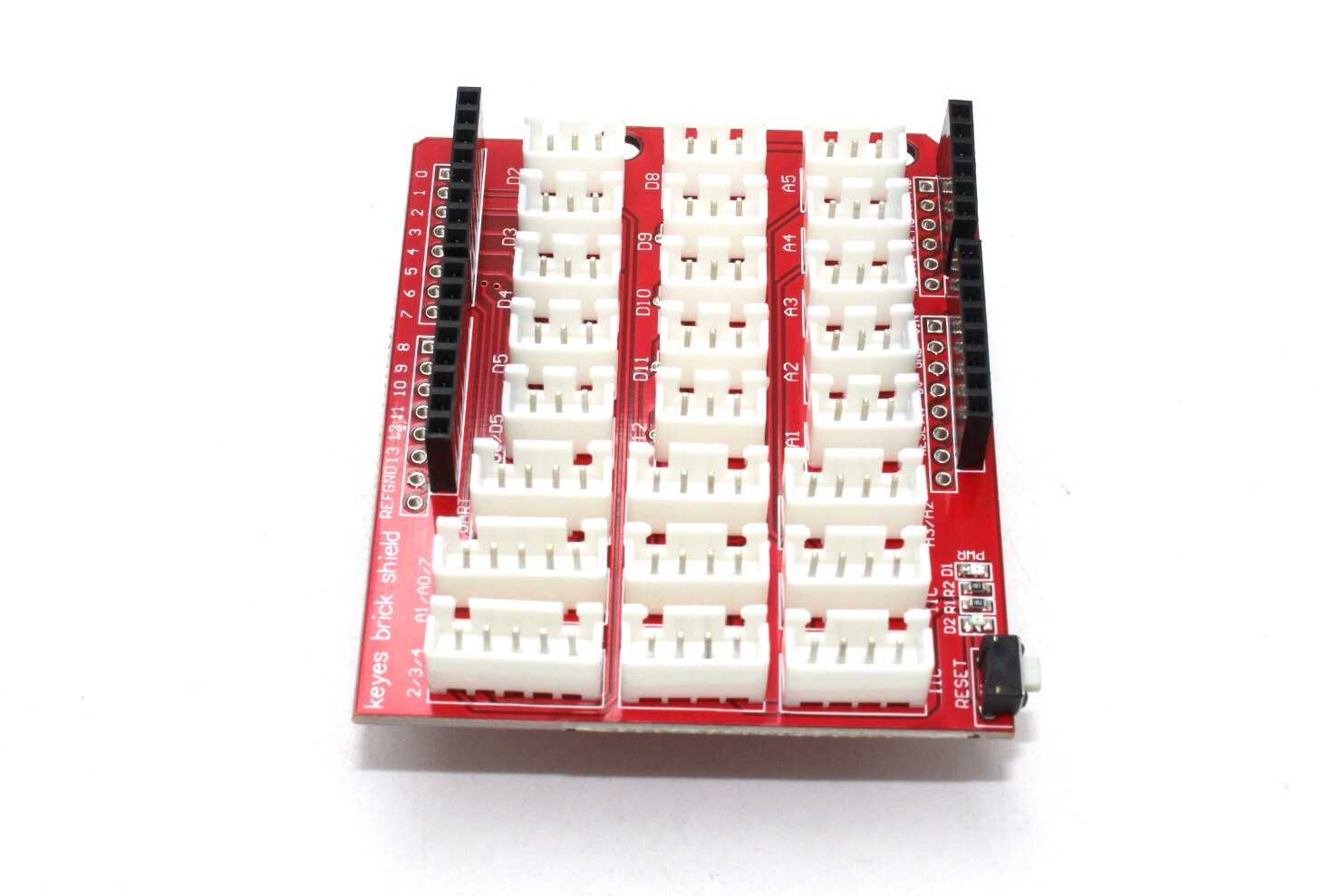

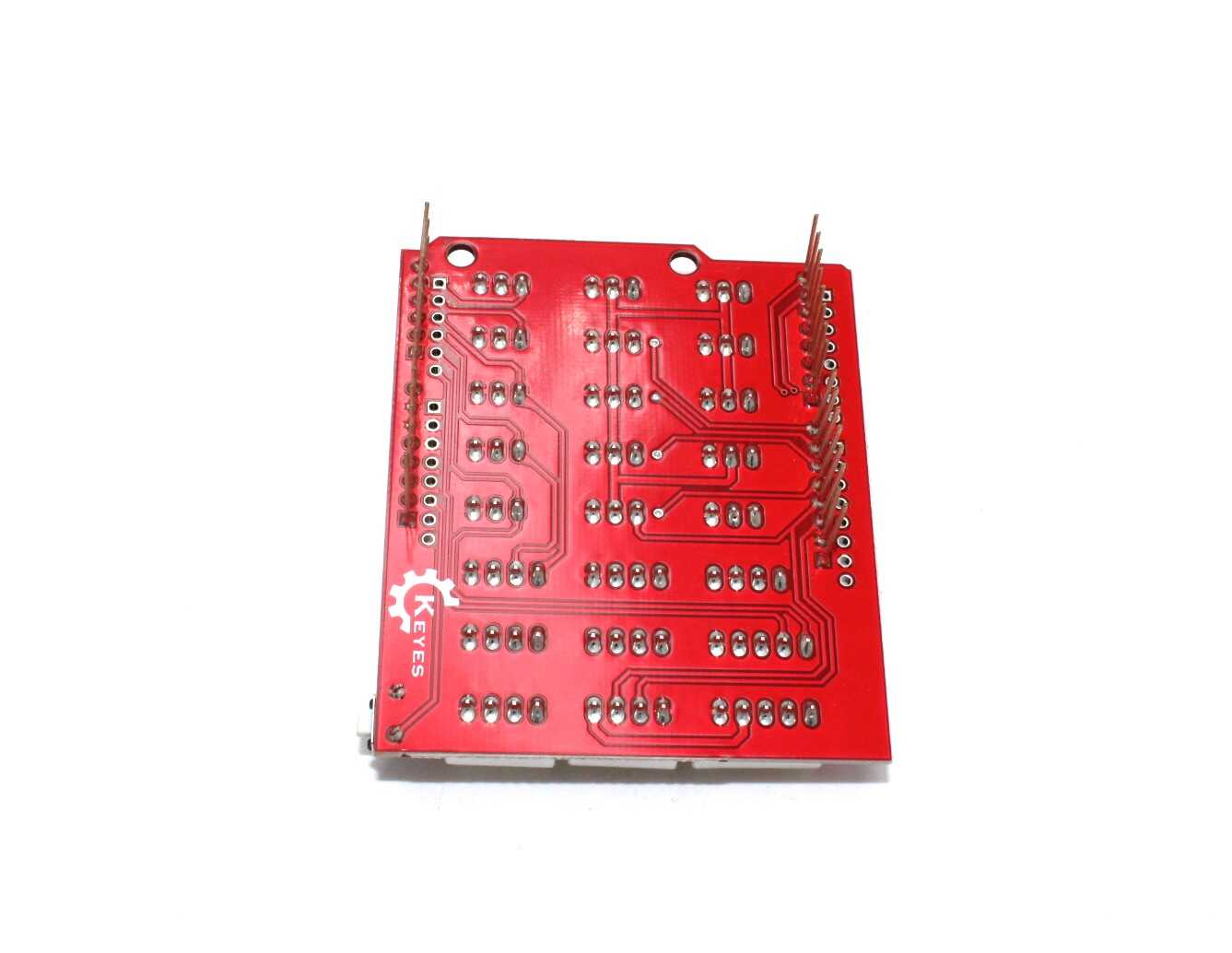

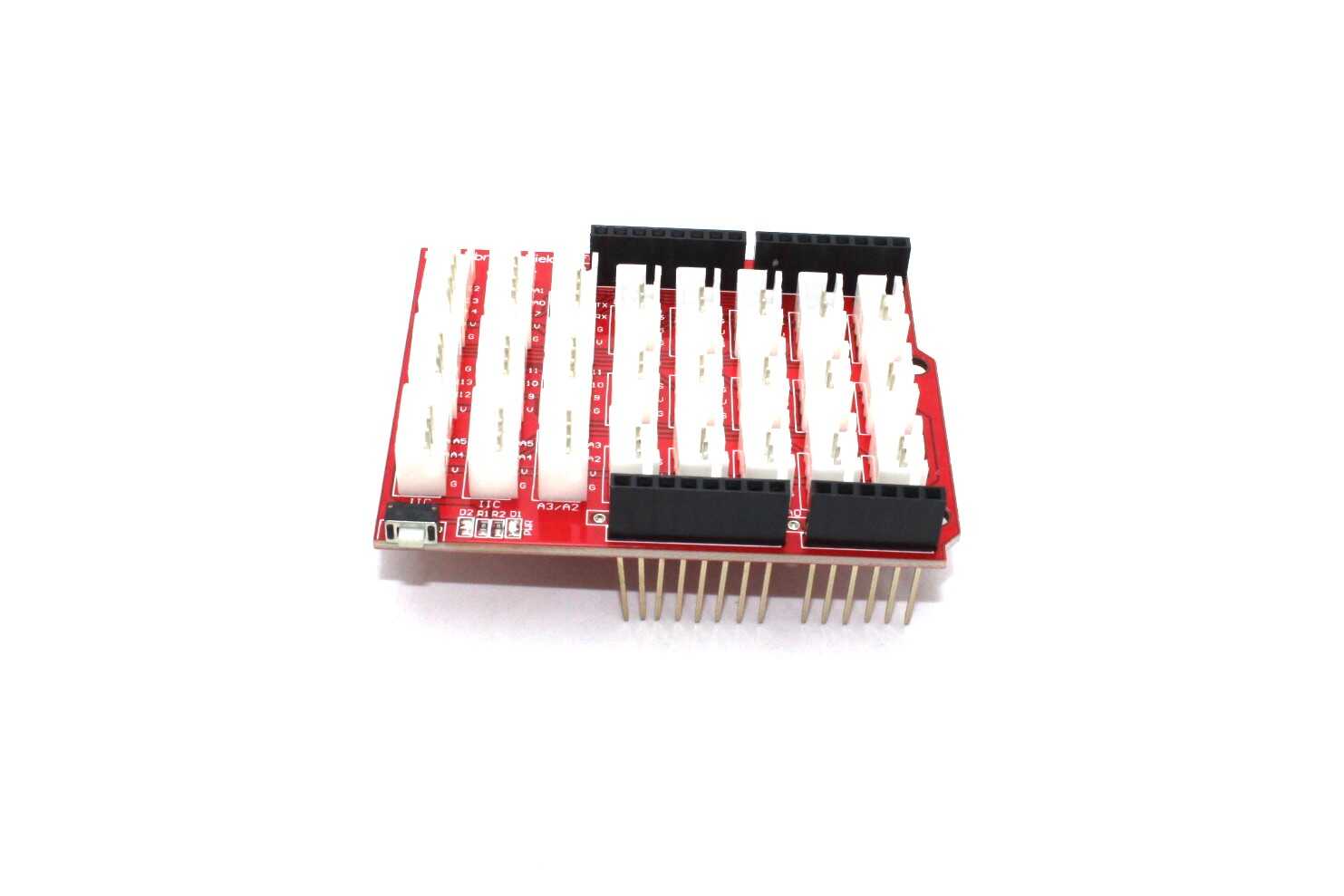

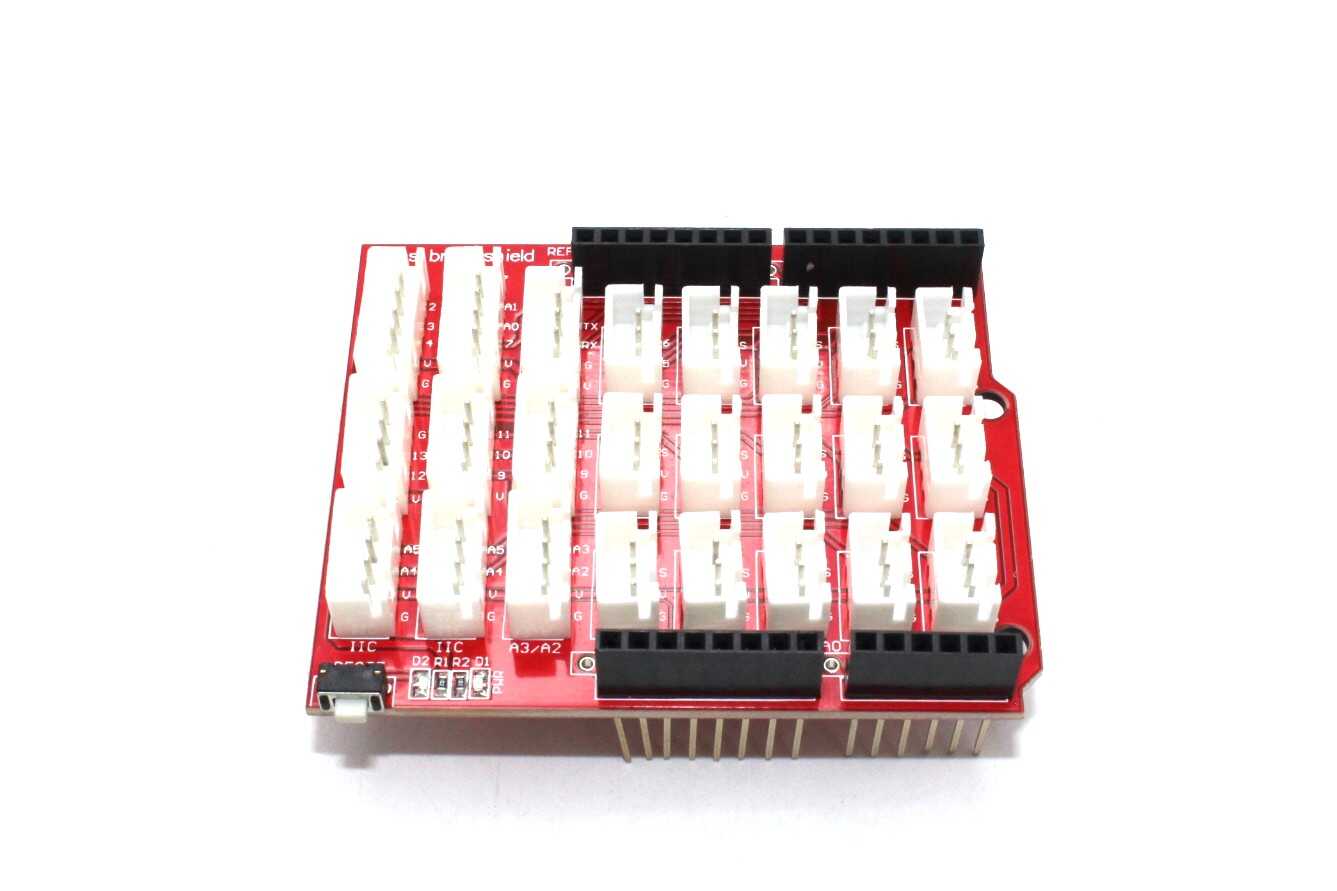

Base Shield Sensor I/O expension board
The Base Shield Sensor I/O Expansion Board serves as a versatile platform for connecting various sensors and modules to a microcontroller or development board. It features a standardized interface layout with multiple headers and connectors, making it easy to plug in and use a wide range of sensors, actuators, and other peripherals.
Key features and functions of the Base Shield Sensor I/O Expansion Board include:
- Compatibility: Designed to work with popular microcontrollers and development boards such as Arduino, Raspberry Pi, and other similar platforms.
- Plug-and-Play Connectivity: Allows for easy and hassle-free connection of sensors and modules using standard connectors and headers.
- Versatility: Supports a wide variety of sensors and modules including temperature sensors, humidity sensors, motion sensors, light sensors, and more, enabling diverse applications across various projects.
- Expansion Ports: Provides multiple expansion ports and headers for connecting additional modules and accessories, allowing for further customization and functionality.
- Convenient Layout: Features a well-organized layout with labeled pins and headers, making it easy to identify and connect sensors and modules.
- Power Supply: Offers power supply options for connected sensors and modules, ensuring reliable operation and performance.
- Compatibility with Shields: Compatible with various expansion shields and add-on boards, allowing for enhanced capabilities and functionalities.
Overall, the Base Shield Sensor I/O Expansion Board provides a convenient and flexible solution for expanding the capabilities of microcontroller-based projects, making it suitable for hobbyists, students, educators, and electronics enthusiasts alike.
Specification:
| Specification | Details |
|---|---|
| Compatibility | Arduino, Raspberry Pi, and other microcontroller boards |
| Connector Type | Standardized connectors and headers |
| Supported Sensors | Temperature, humidity, motion, light, and more |
| Expansion Ports | Multiple ports and headers for additional modules |
| Power Supply | Options available for connected sensors and modules |
| Layout | Well-organized with labeled pins and headers |
| Compatibility | Compatible with various expansion shields and add-ons |
| Dimensions | Standard dimensions for integration into projects |
| Material | High-quality materials for durability |
| Mounting | Mounting holes for secure attachment |
Package Include:
1 x Base Shield Sensor I/O expension board
Base Shield Sensor I/O expension board Overview
The Base Shield Sensor I/O expension board is an expansion interface tailored for Arduino UNO and pcDuino platforms. It provides a standardized 2.54 mm header layout and DuPont-compatible connectors to plug in Linker Kit Series modules, sensors, and actuators in a plug-and-play manner.
Key Features of Base Shield Sensor I/O expension board
- Designed for Arduino UNO and pcDuino with UNO-compatible pin layout
- Standard 2.54 mm female headers for easy module connection
- DuPont support lines for reliable jumper-wire wiring
- Dedicated I/O channels for analog and digital sensors
- Stackable design allows multiple shields on a single board
- Fast shipping across India from Zbotic’s warehouse
Applications and Use Cases
- Rapid prototyping of sensor-driven projects on Arduino UNO
- Connecting temperature, humidity, and light sensors in environmental monitors
- Educational robotics kits requiring multiple I/O connections
- Home automation proof-of-concept with motion and proximity sensors
- Industrial sensor interfacing for small-scale control systems
How to Use Base Shield Sensor I/O expension board
Mount the Base Shield directly onto the Arduino UNO’s header pins, ensuring a firm fit. Plug your Linker Kit or DuPont-compatible sensor modules into the labeled 2.54 mm headers. Power the UNO via USB or barrel jack, then upload your sketch to read and control attached sensors through the designated analog and digital ports.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Base Shield compatible with Arduino UNO R3?
Yes. The shield’s pin layout matches the UNO R3 headers exactly, ensuring seamless mounting and full access to I/O pins.
Can I connect Grove modules to this shield?
If your Grove modules use the standard 2.54 mm jumper format, they can be wired via DuPont jumpers. Direct Grove connectors are not built in.
How many sensors can I attach simultaneously?
The board provides multiple digital and analog headers. You can attach one sensor per header, typically up to 8–10 modules depending on power requirements.
