This is the 525mm variant of the B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 2Meter Cable in Temperature & Humidity Sensor. Available at ₹64.90 (₹55.00 + GST) with free shipping across India.
Looking for B3950 Sensor? B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 2Meter Cable is available at Zbotic with fast shipping across India.
Product Description

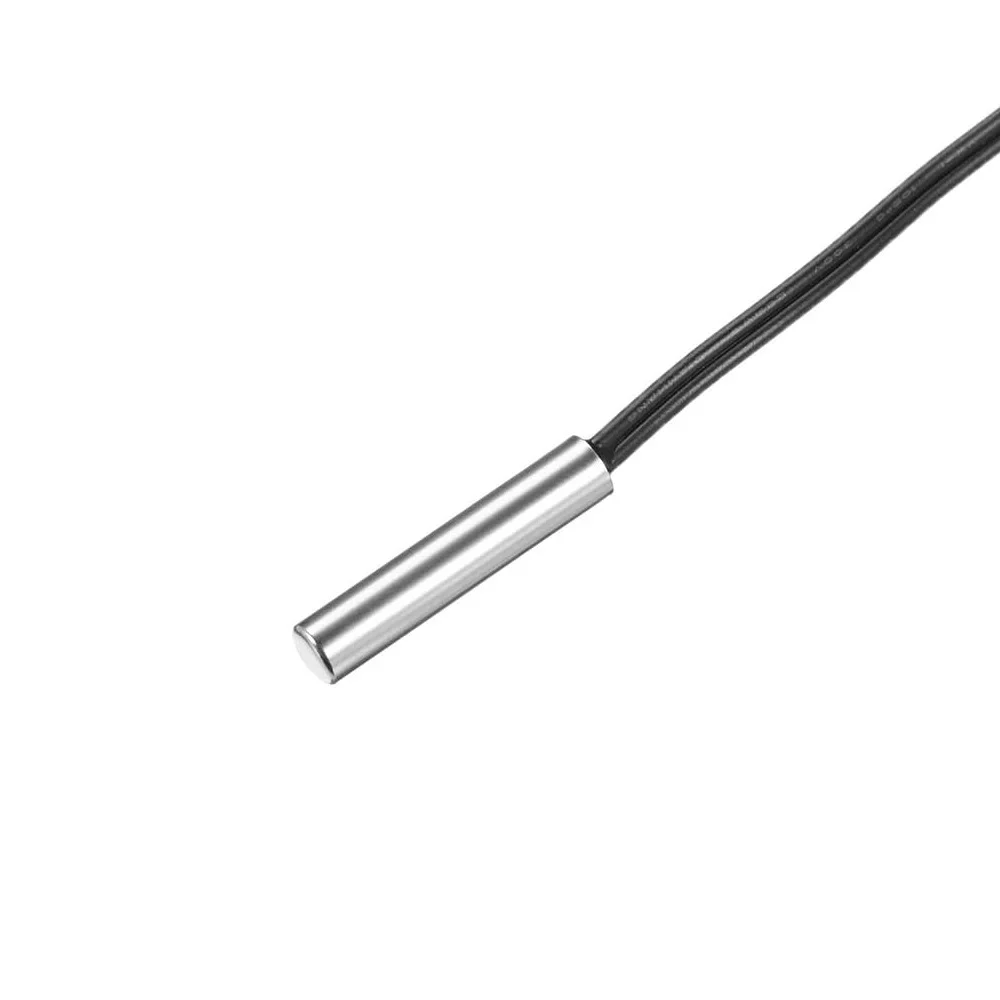

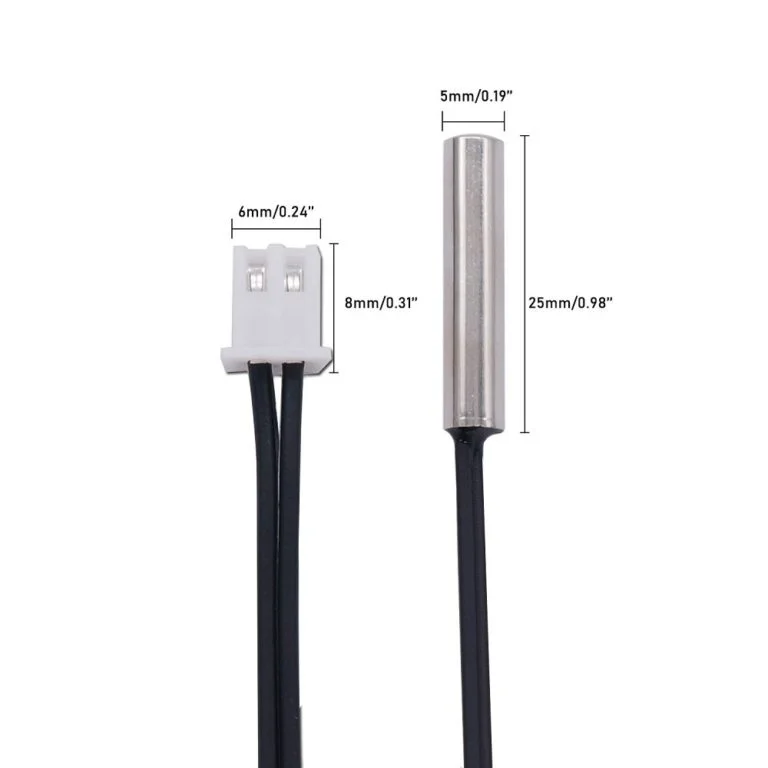

This sensor is a B3950 10K NTC waterproof high-precision thermistor that can measure temperature in various applications. It has a stainless-steel tip of 5 x 25mm with an XH2.54 connector and a 2-meter cable. Its negative thermal coefficient (NTC) means that its resistance decreases as the temperature increases. However, the relationship between resistance and temperature is not linear, so it is better to use a table of measurements than a linear formula. The table of measurements can be found in the datasheet that comes with the thermistor.
Specifications and Features:
- Probe sheath material: Stainless Steel
- Style: B3950 10K
- Resistance value: 10K ± 1%
- Measurement range: -20 to 105 °C
- Cable Length: 2 Meter
- Size of probe: 4 x 20 mm
- Output wires: 2
- Typical Dissipation Constant: 5mW/ °C
- Probe insulation: >100MOhm.
Package Includes:
1 x B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 2Meter Cable
B3950 10K NTC Thermistor Temperature Sensor 4*20mm with Overview

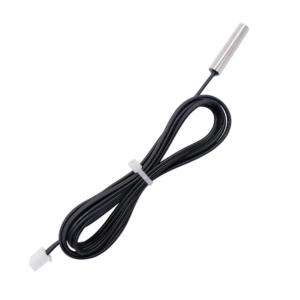

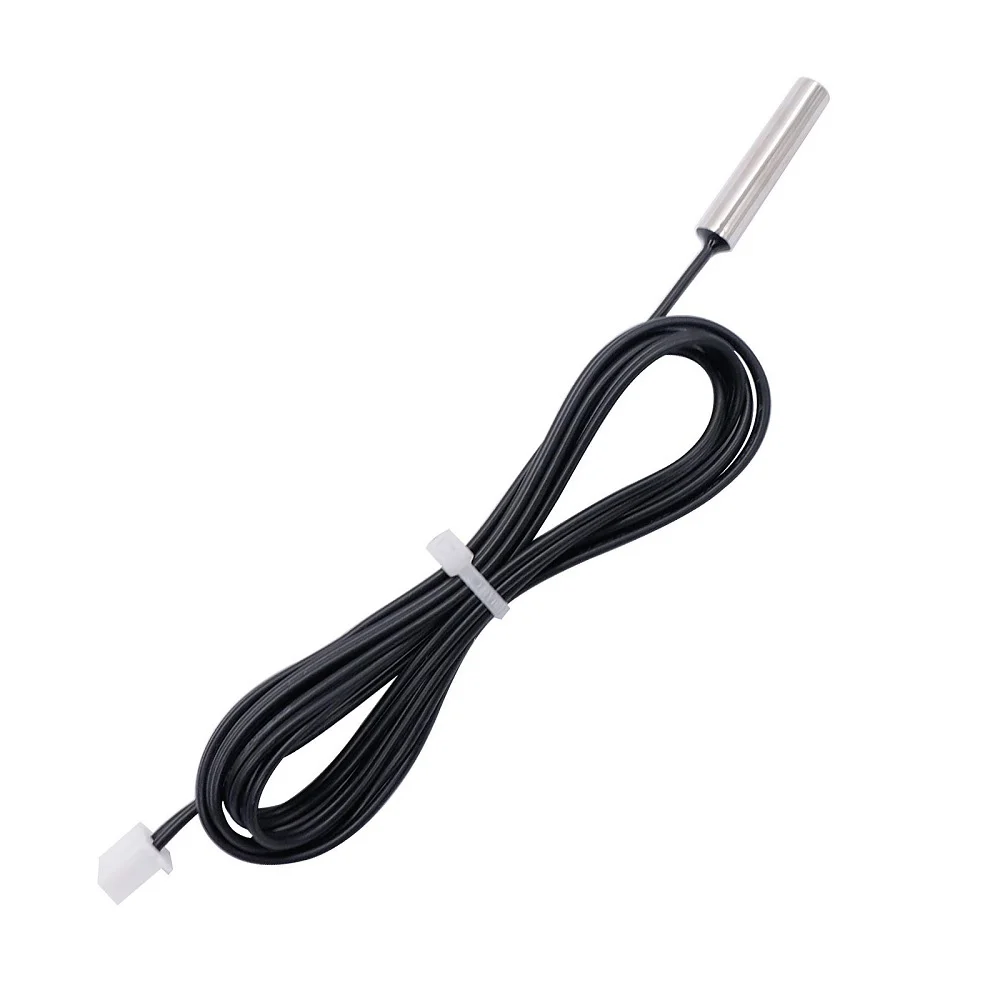

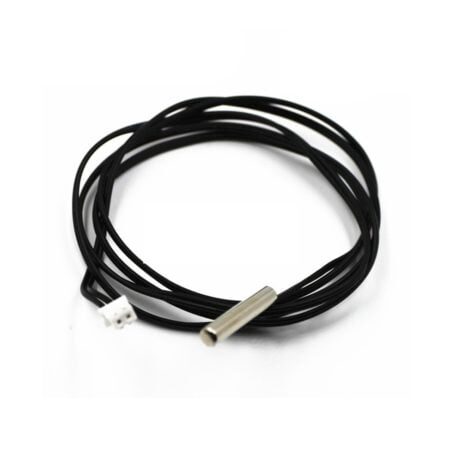

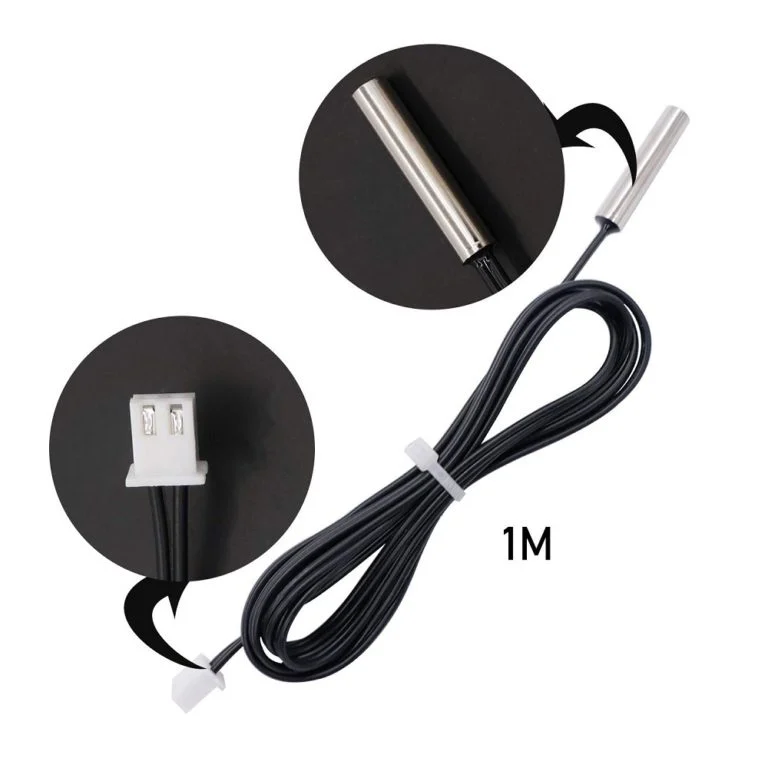

The B3950 10K NTC Thermistor Temperature Sensor features a compact 4×20 mm stainless-steel probe and a 2 m cable terminating in an XH2.54 connector. It delivers accurate temperature readings in applications ranging from liquid monitoring to environmental sensing between –20 °C and 105 °C.
Key Features of B3950 10K NTC Thermistor Temperature Sensor 4*20mm with
- High-precision B3950 NTC element with 10 KΩ ± 1% tolerance for reliable readings
- Corrosion-resistant stainless steel probe (4 × 20 mm) suitable for liquids and gases
- Waterproof design ensures durability in humid or submerged conditions
- Wide measurement range from –20 °C to 105 °C for diverse environments
- 2 m PVC-insulated cable with ready-to-use XH2.54 connector for quick wiring
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Monitoring aquarium or terrarium water temperature
- Temperature control in 3D printer heated beds or chambers
- HVAC system performance and duct temperature checks
- Industrial liquid level and process temperature sensing
- Refrigeration unit or cold storage temperature logging
- Environmental test chambers and laboratory setups
How to Use B3950 10K NTC Thermistor Temperature Sensor 4*20mm with
Insert the stainless-steel probe into the medium you wish to measure, then plug the XH2.54 connector into your data acquisition board or microcontroller breakout. Use a 10 KΩ pull-up resistor to form a voltage divider, and refer to the B3950 resistance-to-temperature lookup table from the datasheet for accurate temperature conversion. Secure the cable to avoid strain on the probe connection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this sensor fully waterproof for submerged use?
Yes, the stainless-steel sheath and sealed cable entry provide a waterproof rating suitable for immersion in liquids, making it ideal for aquarium and industrial tank applications.
What interface does the B3950 10K thermistor require?
It connects via an XH2.54 connector to any analog input. Use a standard 10 KΩ pull-up resistor to create a voltage divider, then read the voltage drop to calculate temperature.
Do I need to calibrate the sensor before use?
The thermistor is factory calibrated to ±1% tolerance. For maximum accuracy, you can perform a two-point calibration against a reference thermometer and adjust your software lookup table accordingly.
Smart Agriculture Monitoring System Using Waveshare E-Paper & LoRa
Smart Agriculture Monitoring System Using Waveshare E-Paper Display & LoRa ModuleIntroductionModern farming requires real-time monitoring of soil, weather,...
Read More →
Best Soil Moisture Sensors for Agriculture & Gardening
Monitoring soil moisture is the single most impactful thing you can do for a smart garden or precision...
Read More →
Pressure Sensor BMP280: Weather Station and Altitude Meter
The BMP280 barometric pressure sensor by Bosch measures atmospheric pressure with ±1 hPa accuracy and temperature with ±1°C...
Read More →Technical Specifications
| Model | B3950 |
|---|---|
| Size | 20mm |
| Interface / Protocol | BLE |
| SKU | AI2653 |
| Weight | 0.00455 kg |
| Availability | Out of Stock |
Applications & Use Cases
The B3950 10K NTC Thermistor Temperature Sensor 4*20mm with XH2.54 Connector with 2Meter Cable is a versatile temperature & humidity sensor used across a wide range of applications including weather stations, greenhouse monitoring, HVAC systems, cold chain logistics, and server room monitoring.
Common use cases:
- Building a home weather station with Arduino
- Monitoring greenhouse conditions via IoT
- Alerting when server room temperature exceeds threshold
This product is ideal for IoT developers, agricultural engineers, and home automation enthusiasts.
Technical Tip: DHT22 offers better accuracy than DHT11. For precision applications, use SHT31 or BME280. Ensure adequate ventilation around the sensor.
