This is the Red variant of the B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting in PIR / IR and Optical Sensor. Available at ₹106.20 (₹90.00 + GST) with free shipping across India.
Looking for B2x2 Sensor? B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting is available at Zbotic with fast shipping across India.

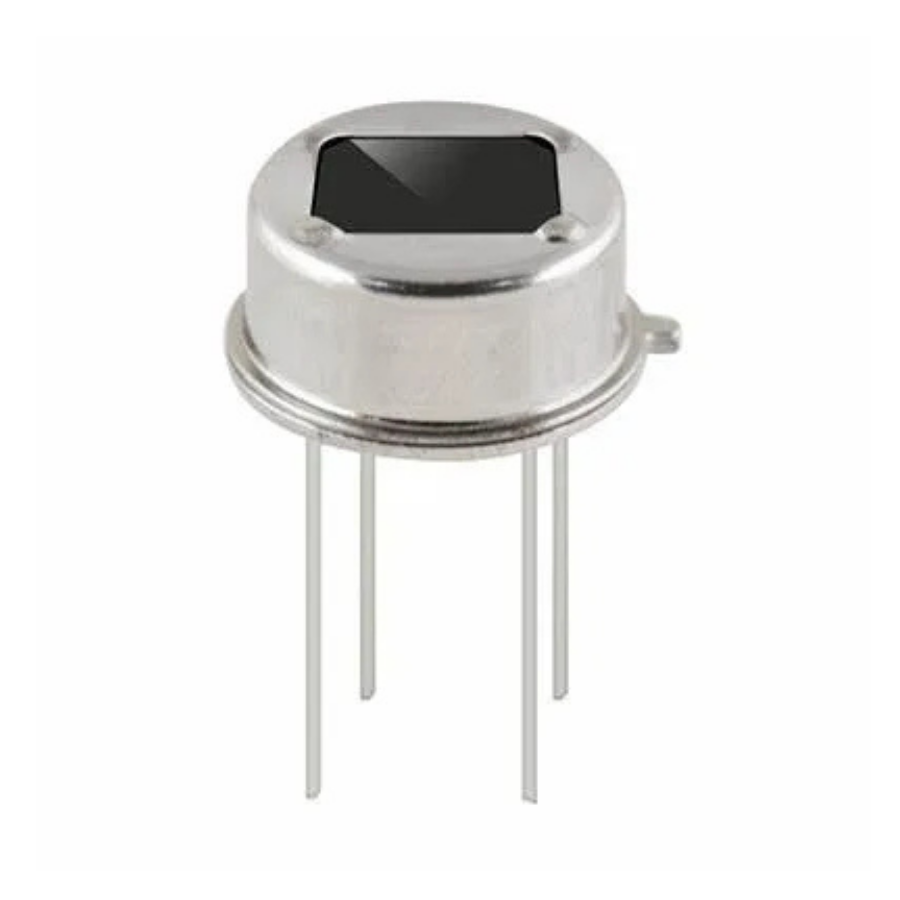

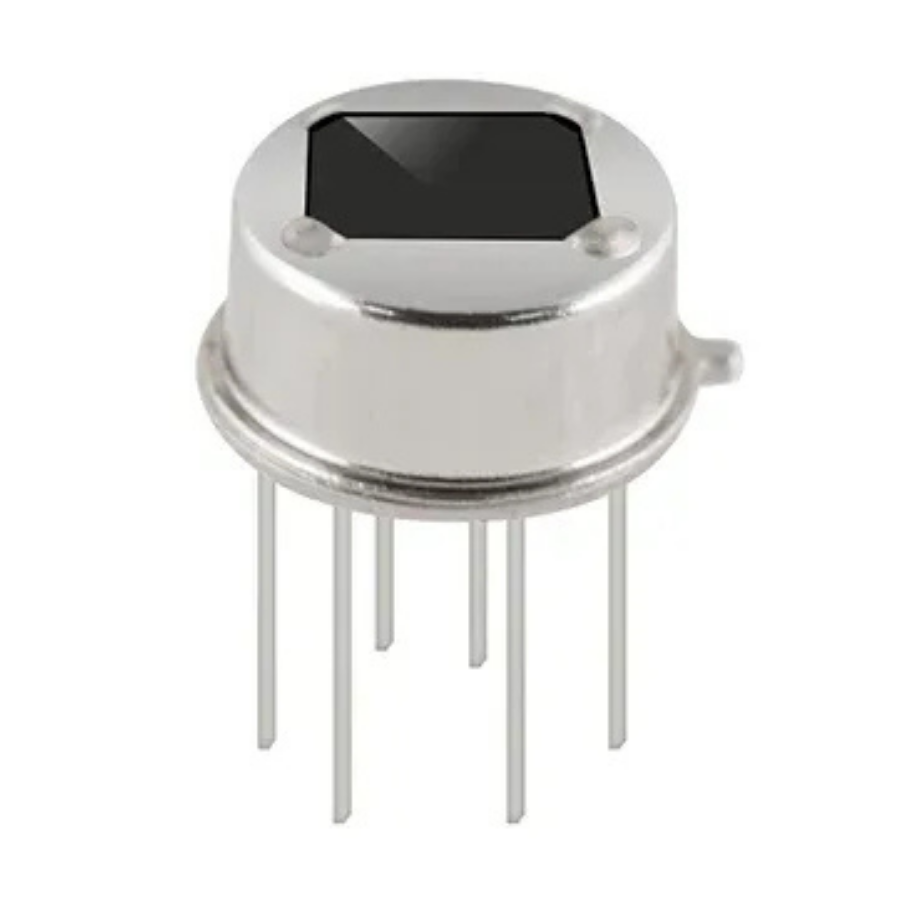

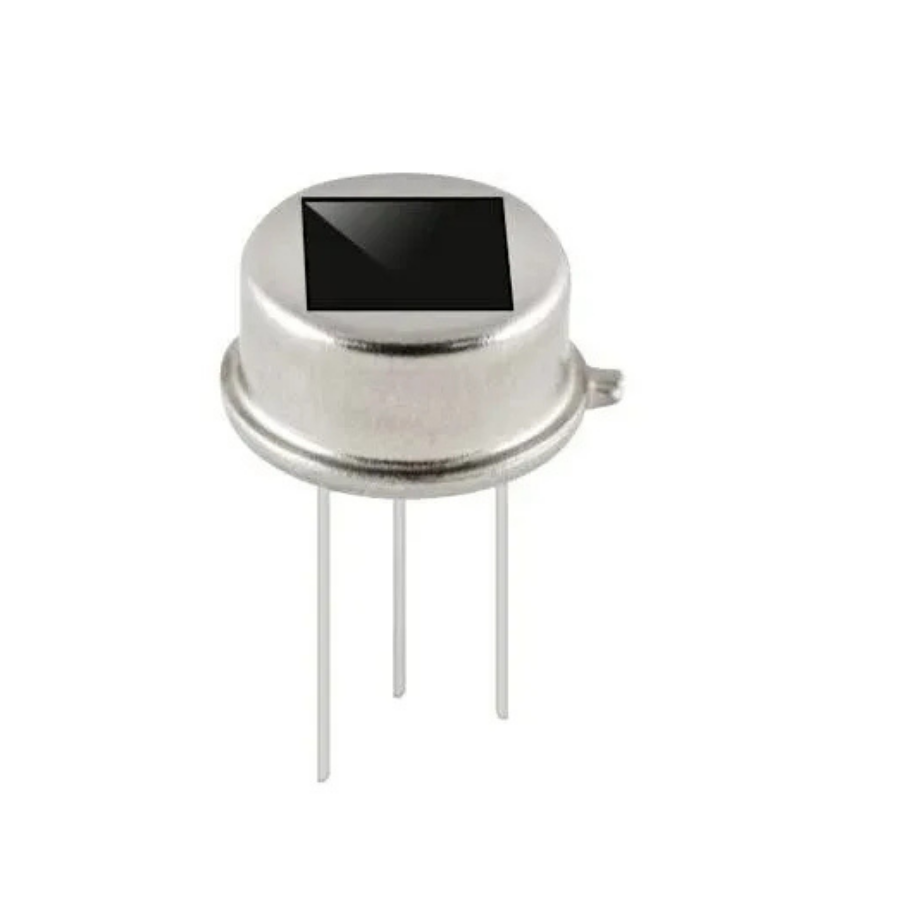

B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting
The B2X2 is a motion detection device featuring four elements, capable of detecting movement in both horizontal and vertical directions. It is commonly used in applications such as ceiling lights and intrusion detection systems.
PIR sensors (Passive Infrared, Pyroelectric, or IR motion sensors) work by detecting the infrared radiation emitted by humans and other objects. Known for their compact size, affordability, low power consumption, ease of use, and durability, PIR sensors are a popular choice for motion detection applications.
Field of View
Equivalent Circuit
Applications
- Household or other appliances
- Start air conditioning or turn on the lights.
- Digital photo frame
- Automatic control for indoor, corridor and stairs lights, etc.
- Lighting appliances
Features
- Quad Elements
- Same horizontal and vertical detection angles
- Slight movement can be detectable
- Low power Consumption
Specifications:
| Window Size | 4*4mm |
|---|---|
| IR Receiving Electrode | 1.1 x 1.1mm 4elements |
| Encapsulation Type | TO-5 |
| Spectral Response | 5～14μ m |
| Transmittance | ≥ 75% |
| Output Signal[Vp-p] | ≥ 3500mV |
| Sensitivity | ≥ 3300V/W |
| Detectivity (D*) | 1.4 ×108 cmHz1/2/W |
| Noise[Vp-p] | <100mV |
| Output Balance | <10% |
| Offset Voltage | 0.3~1.2V |
| Supply Voltage | 3~15V |
| Operating Temp | -30~70ºC |
| Storage Temp | -40~80ºC |
Package Includes
- 1 x B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting
B2X2 4 Elements Infrared Motion Analog PIR sensor for Overview
The B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting is a quad-element passive infrared detector designed to trigger lighting circuits and alarms. By sensing temperature changes caused by human or object movement in both horizontal and vertical planes, it offers reliable motion detection for ceiling lights and security systems.
Key Features of B2X2 4 Elements Infrared Motion Analog PIR sensor for
- Quad-element pyroelectric array for enhanced motion sensitivity
- Equal horizontal and vertical detection angles for uniform coverage
- Detects slight movements, ideal for low-activity zones
- Low power consumption ensures minimal impact on power budgets
- Analog output simplifies interfacing with lighting control circuits
- Compact and durable design for easy integration
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Automated ceiling-mounted LED lighting in corridors and hallways
- Occupancy-triggered lights in offices, restrooms, and meeting rooms
- Intrusion detection sensors for home and commercial security panels
- Energy-saving lighting control in warehouses and storage areas
- Smart home integrations for escalated lighting scenes upon entry
How to Use B2X2 4 Elements Infrared Motion Analog PIR sensor for
Mount the B2X2 sensor behind a translucent cover or Fresnel lens window, then connect VCC (3.3–5 V), GND, and the analog output pin to your lighting control module or microcontroller ADC input. Ensure stable power with a decoupling capacitor and position the sensor at least 2 m from heat sources. Calibrate detection thresholds in your control firmware to match the desired motion sensitivity.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What are the detection angles and range of the B2X2 sensor?
The B2X2 features four thermopile elements arranged to deliver equal horizontal and vertical fields of view, typically covering up to 90° in each direction. Range depends on installation height but generally detects human movement within 4–6 m.
How do I interface the analog output with my microcontroller?
Connect the PIR’s analog output pin to an ADC input on your microcontroller. Use a 0.1 μF decoupling capacitor between VCC and GND to stabilize readings. Read voltage changes corresponding to detected motion and implement thresholding in firmware.
Can this sensor detect very slow or slight movements?
Yes, the quad-element design is optimized to sense slight or gradual changes in infrared radiation, making it suitable for low-activity areas like meeting rooms or passageways.
How to Fix Noisy Sensor Readings: Filtering Techniques for Arduino
You have wired up your sensor, uploaded your sketch, and opened the Serial Monitor — only to see...
Read More →
Colour Sensor TCS3200: Sorting Machine Project with Arduino
The TCS3200 colour sensor detects the colour of objects by shining white LEDs onto a surface and measuring...
Read More →
Sensor Calibration Techniques: Offset, Gain and Linearization
A sensor fresh out of the packet rarely gives perfect readings. The raw output deviates from the true...
Read More →Technical Specifications
| Model | B2X2 |
|---|---|
| Package Quantity | 2 pcs |
| Color | Red |
| SKU | AI0560 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The B2X2 4 Elements Infrared Motion Analog PIR sensor for Lighting is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
