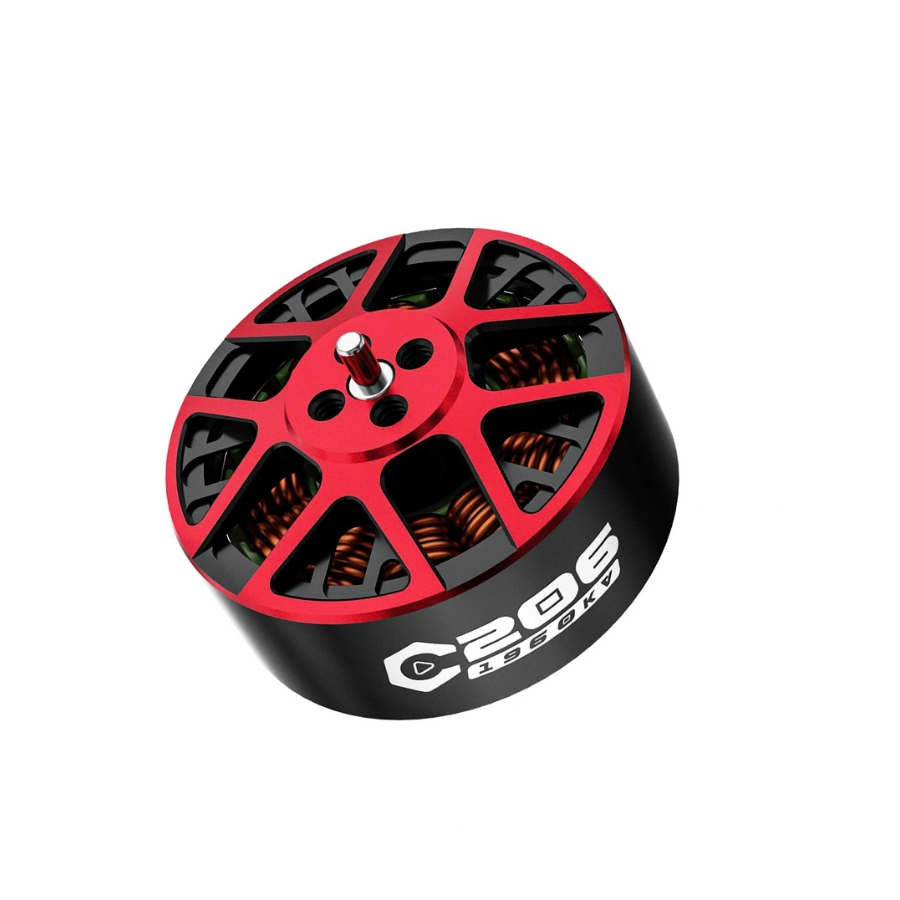

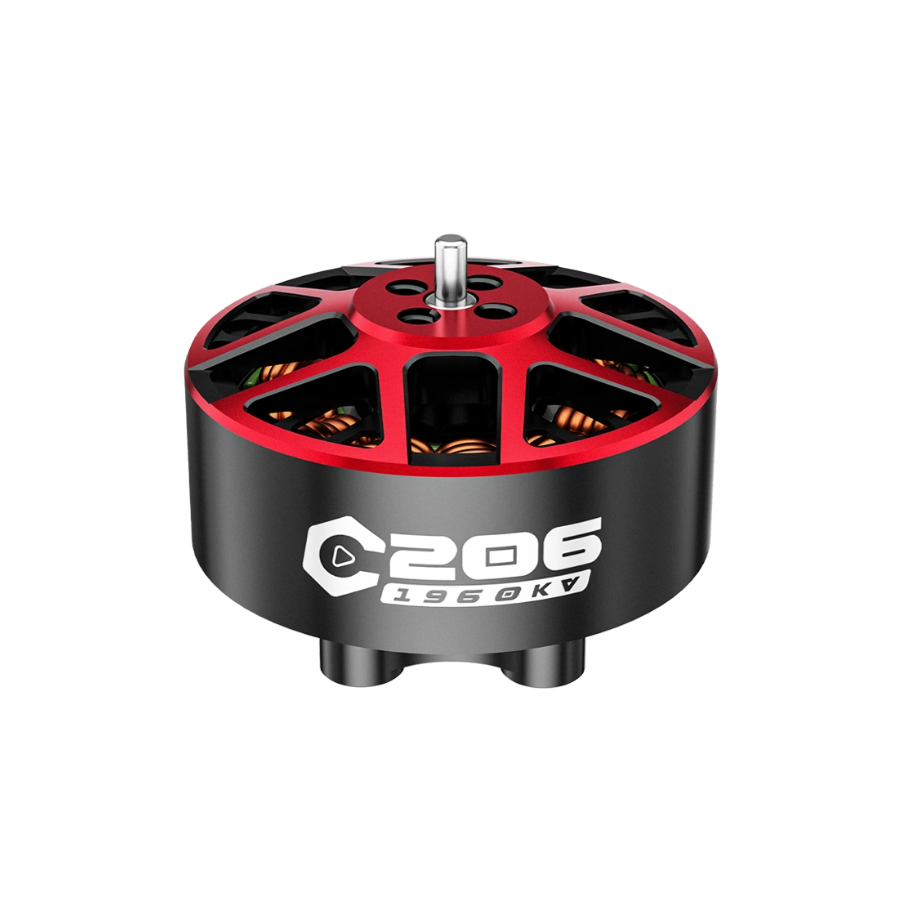

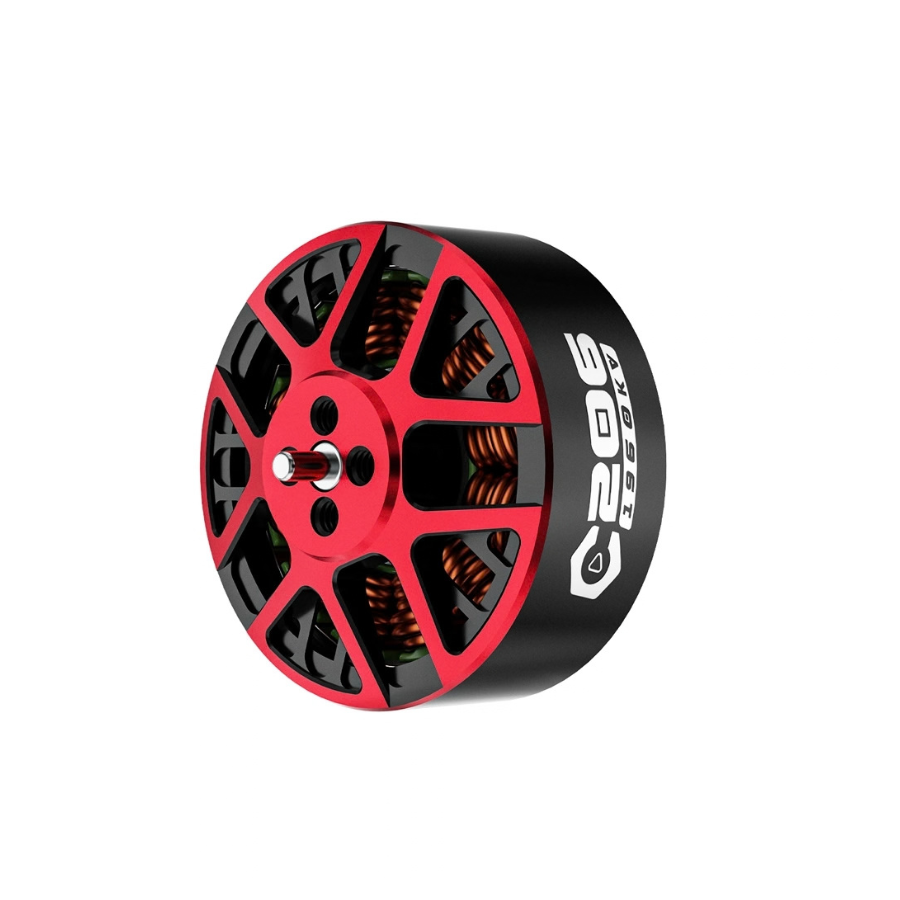

Axisflying C206 V1 6S 1960KV Brushless Motor
Description:
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.
Feature
- C206 V1 is specially designed for 3.5-inch C35 frame & Cinewhoop drones.
- 12N14P structure provides strong torque and delicate throttle control.
- Smooth linear power output for stable and professional cinematic shooting.
- Light weight and high efficiency, easy to carry GoPro cameras.
- IP53 bearing shield design for better durability and crash resistance.
- Compatible with 6S LiPo, matched with 3.5-inch cine propellers.
Axisflying C206 V1 6S 1960KV Brushless Motor
Axisflying C206 V1 6S 1960KV Brushless Motor
Axisflying C206 V1 6S 1960KV Brushless Motor
Axisflying C206 V1 6S 1960KV Brushless Motor
Axisflying C206 V1 6S 1960KV Brushless Motor

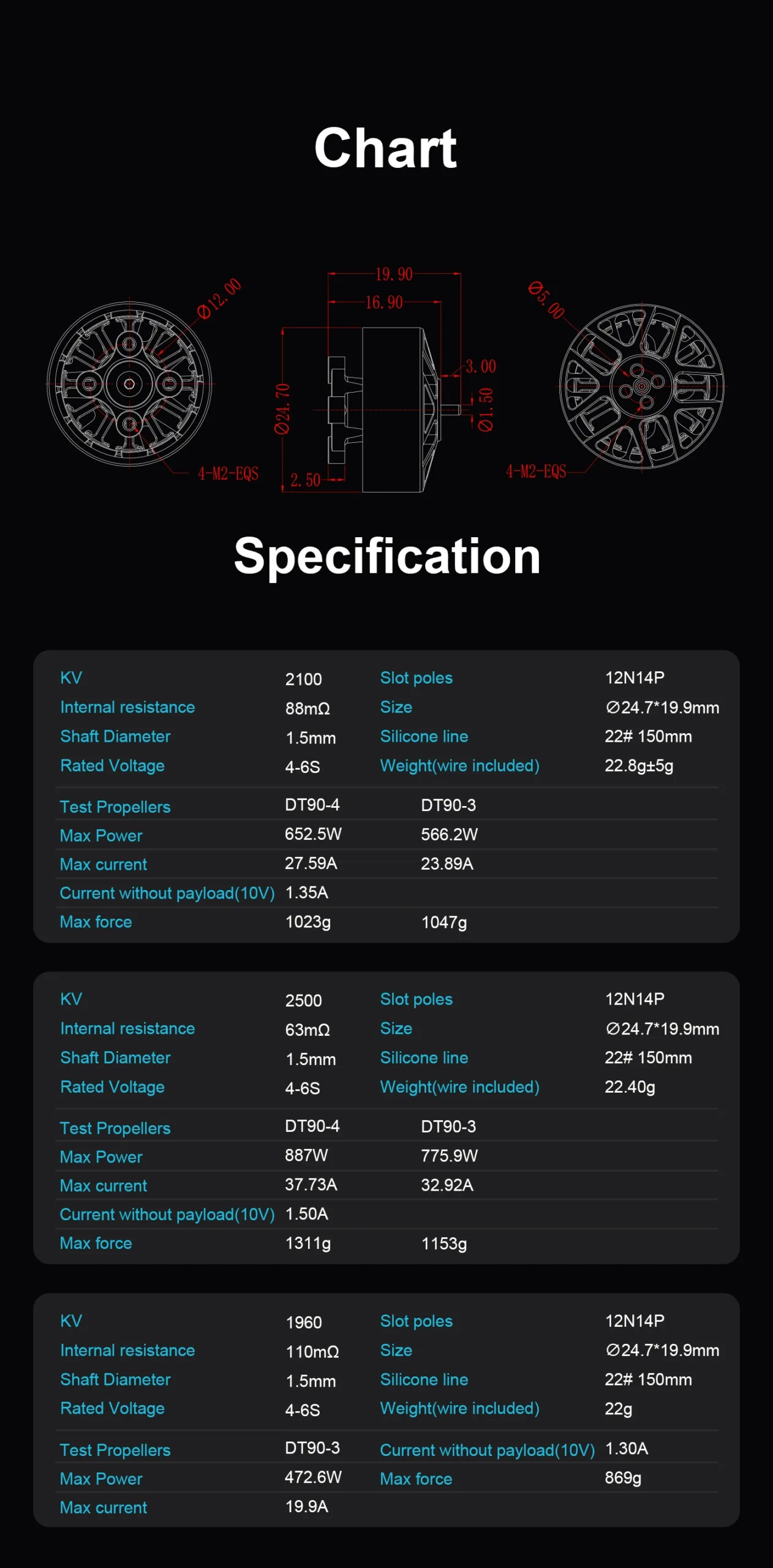

Specifications
C206 V1 1960KV
- Internal resistance: 110mΩ
- Net Weight(wire included): 22g
- Test Propeller: DT90-3
- Max Power: 472.6W
- Max Current: 19.9A
- No-load Current(10V):1.30A
- Max Thrust: 869g
C206 V1 2100KV
- Internal resistance: 88mΩ
- Net Weight(wire included): 22.8±0.5g
- Test Propellers: DT90-4 / DT90-3
- Max Power: 652.5W / 566.2W
- Max Current: 27.59A / 23.89
- No-load Current(10V):1.35A
- Max Thrust: 1023g / 1047g
C206 2500KV(Old version)
- Internal resistance: 63mΩ
- Net Weight(wire included): 22.40g
- Test Propellers: DT90-4 / DT90-3
- Max Power: 887W / 775.9W
- Max Current: 37.73A / 32.92A
- No-load Current(10V):1.50A
- Max Thrust: 1311g / 1153g
Axisflying C206 V1 6S 1960KV Brushless Motor
Package Contents
- 1 × C206-V1 Brushless Motor
- 2 × M2×8 Screws
- 4 × M2×6 Screws
- 1 × M2×4 Screw
- 2 × Axisflying Stickers
- 1 × Original Packaging Box
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Motor Encoder Interfacing: Quadrature Encoder with Arduino
If you have ever tried to make a robot move in a straight line or position a robotic...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Model | C206 |
| Cell Configuration | 6S |
| KV Rating | 1960KV |
| SKU | AI4978 |
| Weight | 0.040300 kg |
| Availability | In Stock |
Applications & Use Cases
The Axisflying C206 V1 6S 1960KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
