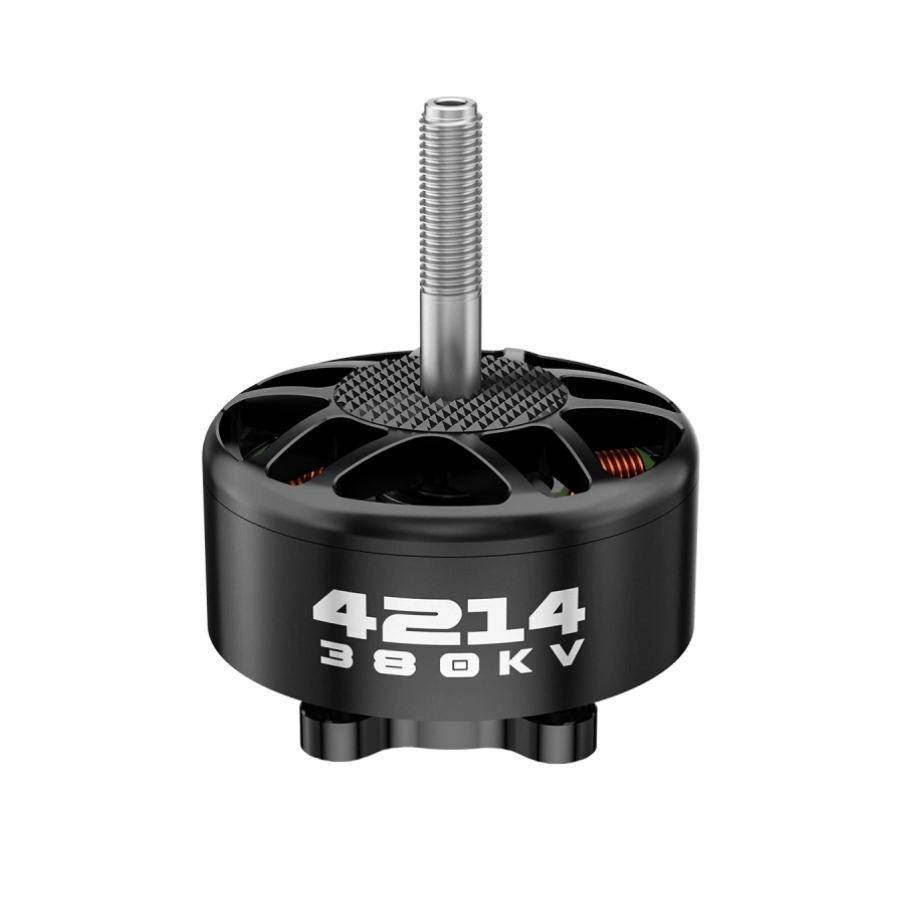

Axisflying AZ4214 6-12S 380KV Brushless Motor
Description:
Feature:
- AZ series professional heavy‑load motor for 13‑inch FPV drones
- Ideal for long‑range, cinematic shooting and heavy‑load flight
- 12N14P structure with high‑strength arc magnets
- High‑temperature enameled wire for stable long‑time operation
- Imported high‑speed bearings for long service life
- High efficiency & low heat for extended endurance
- Wide voltage input for flexible power matching
Recommended Configuration:
- Motor: Axisflying AZ4214 380KV
- Voltage: 6–12S LiPo
- Props: Gemfan 1308 / 1310 / HQ 13×9×3 V2

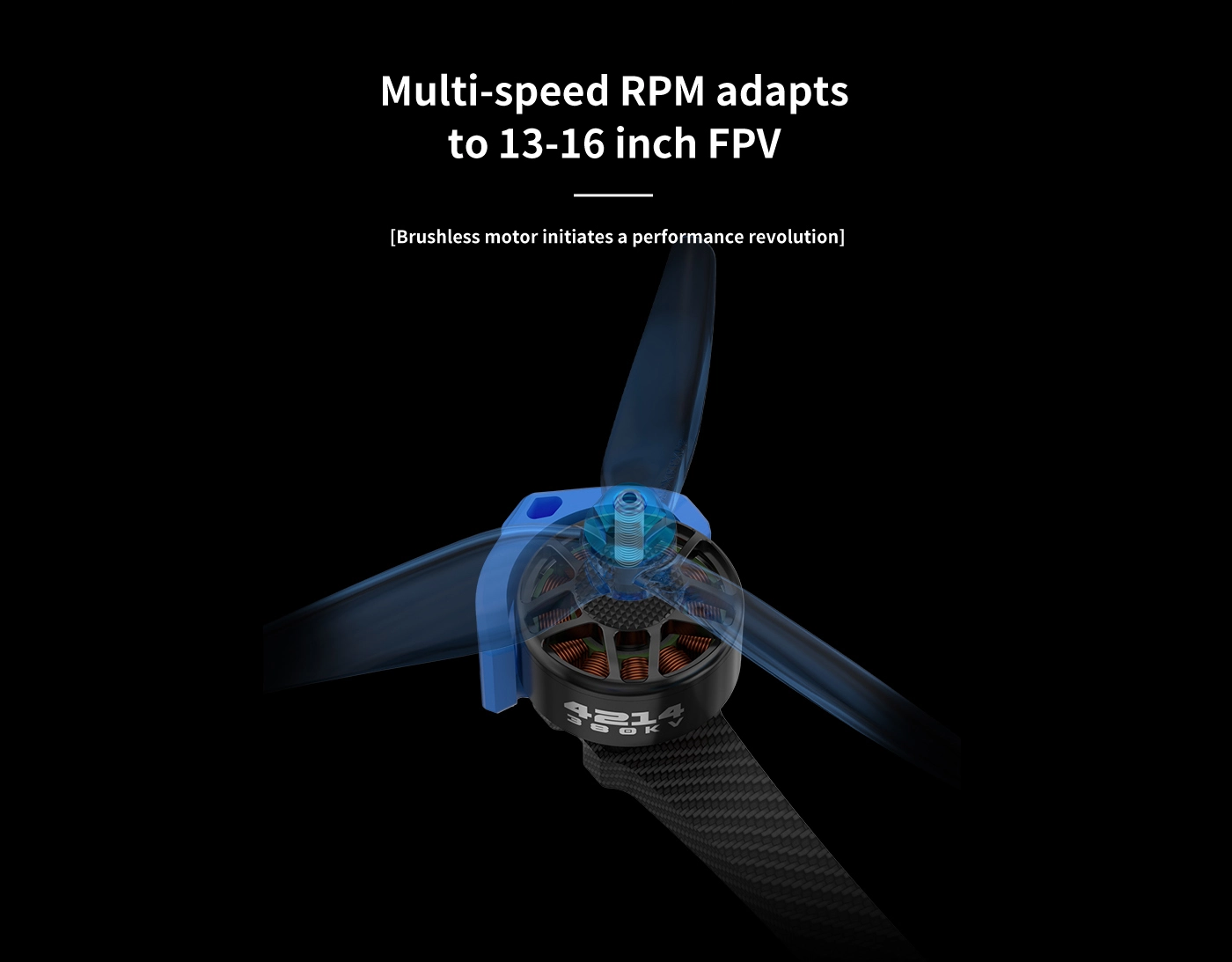

- Application: 13‑inch long‑range, cinematic, heavy‑loading drones
Specifications:
- Model: AZ4214
- KV: 380KV
- Configuration: 12N14P
- Internal Resistance: 54mΩ

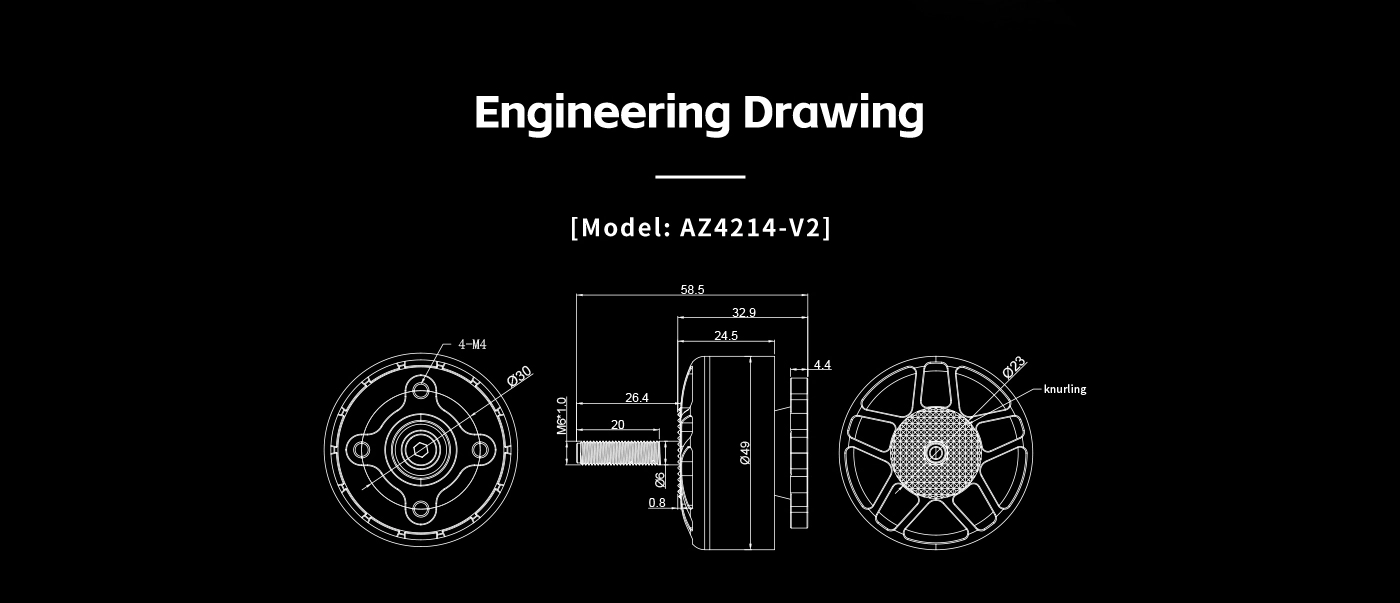

- Size: Φ49×32.5mm
- Shaft Diameter: 6mm
- Silicone Wire: 14# 800mm (included)
- Rated Voltage: 6–12S
- Weight (with wire): 246g
- Max Power: 1616.9W
- Peak Current: 65A
- Max Thrust: 4582.4g
- Idle Current (10V): 1.0A
- Mount: 4×M4
- Prop Nut: M6

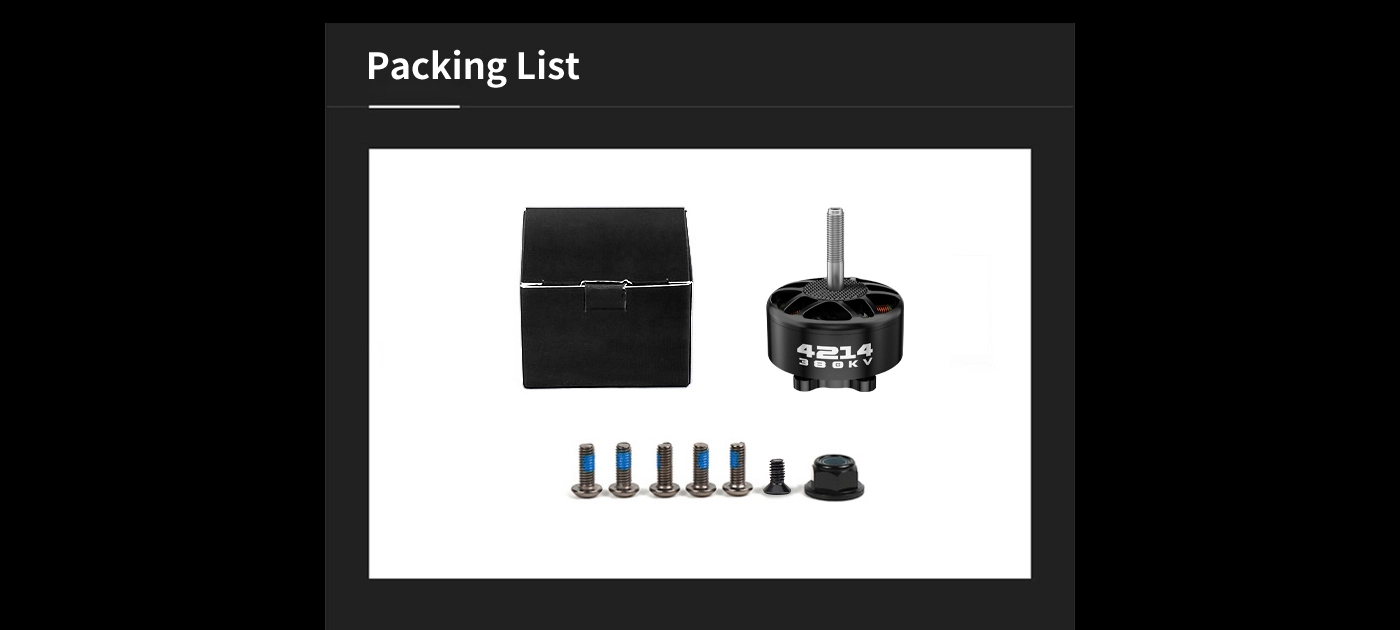

Package Include:
1x AZ4214 380KV Brushless Motor
1x Mounting screws & accessories set
Drone GPS Follow-Me Mode: How to Track a Moving Subject Autonomously
Imagine sending your drone up before a cycling event, pressing a button, and having it autonomously follow the...
Read More →
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones?
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones? Every FPV pilot who has built...
Read More →
Motor Coupling Types: Jaw, Rigid & Oldham for CNC Machines
Motor couplings are one of those components that most hobbyist CNC builders overlook until something goes wrong —...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Model | AZ4214 |
| KV Rating | 380KV |
| SKU | AI4980 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Axisflying AZ4214 6-12S 380KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Axis Flying product sourced from authorized channels
