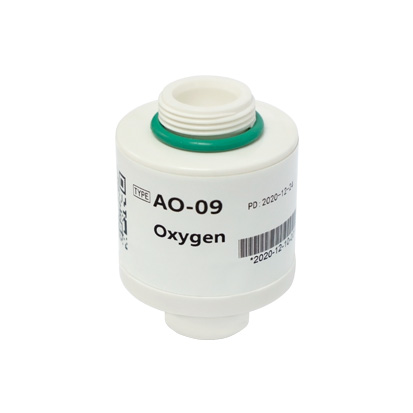

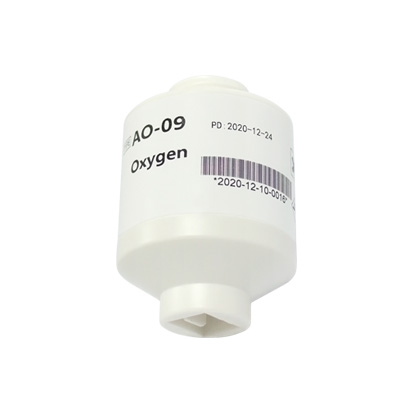

AO-09 Oxygen Sensor
The AO-09 is a high-quality oxygen sensor from Aosong Electronics. It has a long lifespan and a fast response time. It also has a molded body design that is suitable for medical use. The AO-09 is a cost-effective replacement for other sensors, as it offers superior quality at a lower price.
Applications:
AO-09 Medical Oxygen Sensors are intended as an oxygen-sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:
- Sensing device for oxygen
- Control device of oxygen concentrators
- Medical ventilators
- Anaesthesia equipment
- Incubators
Features:
- Meets ISO 80601-2-55
- Linear output from 0% to 100%
- No external power supply
- Temperature compensation
- Excellent signal stability
- Accurate and reliable
- Fast response
- Anti-interference
- Long lasting
Specifications:
- Operating Principle: Partial pressure electrochemical
- Output: 9 mV to 13 mV in 210 mBar O2
- Measurement Range: 0 – 100 Vol.% O2
- Response Time: (T 90 ) <15 s
- Baseline Offset: <200μV
- Accuracy: meets ISO 80601-2-55 requirements
- Cross interference: meets ISO 80601-2-55 requirements
ELECTRICAL:
- Temperature Compensation <2% O2 equivalent(0℃-40℃)
- External Load Resistor ≥ 10 kΩ
- Connector 3P2.5
- MECHANICAL
- Housing Material White ABS
- Weight 36 g (nominal)
- Orientation Any
- Influence of Mechanical Shock < 1 % relative after a fall from 1 m
ENVIRONMENTAL:
- Typical Applications: Critical care anesthesia
- Operating Temperature Range: 0℃ ~ +50℃
- Operating Pressure Range: 0.5 Bar – 2.0 Bar
- Operating Humidity Range: 0% to 99% RH noncondensing
Packages Includes:
1 x AO-09 Oxygen sensor
Datasheet
Circuit Diagram to interface sensor
