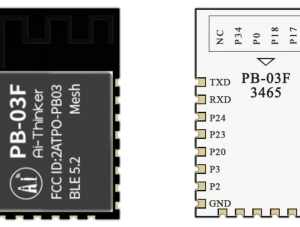

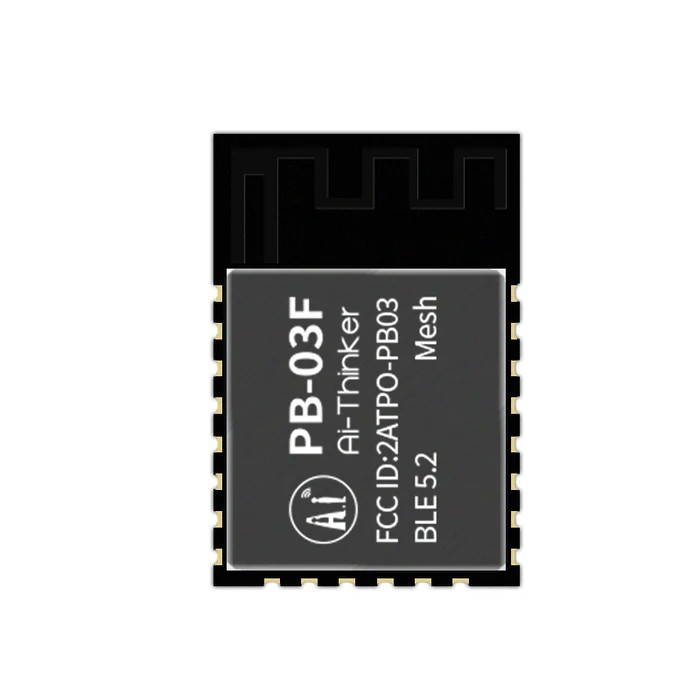

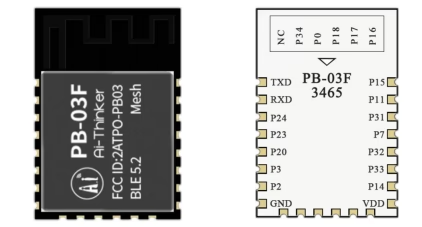

This is the Blue variant of the AI-Thinker PB-03F Bluetooth Module in Ai Thinker ESP Modules. Available at ₹160.48 (₹136.00 + GST) with free shipping across India.
Description:-
The PB-03F is a BLE module created by Shenzhen Ai-Thinker Technology Co., Ltd. It features the PHY6252 (SSOP24) core processor chip, a highly integrated BLE SoC designed for low power consumption, suitable for IoT, mobile devices, wearable electronics, and smart homes. The PHY6252 (SSOP24) chip boasts exceptional low power and RF performance, supporting BLE 5.2. It includes 64 KB SRAM, 256 KB flash, 96 KB ROM, and 256-bit efuse. The chip accommodates various low-power states to meet diverse application power needs. Its RF output power is adjustable, optimizing the balance between communication distance, rate, and power consumption. The PB-03F module offers an array of peripheral interfaces such as UART, PWM, ADC, I2C, SPI, PDM, DMA, and up to 19 IOs. It also features several unique hardware security mechanisms and a hardware encryption accelerator that supports the AES algorithm. The module is compatible with low-power BLE operations, including BLE 5.2 and BLE mesh, and supports Bluetooth rates of 125 Kbps, 500 Kbps, 1 Mbps, and 2 Mbps, along with broadcast expansion, multi-broadcast, and channel selection capabilities.
Resources:
Features:
- Support BLE5.2,rate support:125Kbps,500Kbps,1Mbps,2Mbps
- Own 64 KB SRAM，256KB flash,96 KB ROM，256bit efuse
- Support UART/GPIO/ADC/PWM/I2C/SPI/PDM/DMA interface
- Adopt SMD-22 package
- Support multiple sleep modes, deep sleep current is less than 1uA
- Support for serial local upgrade and remote Firmware upgrade(FOTA)
- Universal AT instructions can be used easy and quickly
- Support for secondary development, with an integrated Windows development environment
Specifications:-
- Model: PB-03F
- Package: SMD-22
- Size: 24.0*16.0*3.1(±0.2)mm
- Antenna: On-board antenna
- Frequency: 2400~2483.5MHz
- Operating temperature: -40℃~85℃
- Storage temperature: -40℃~125℃,<90%RH
- Power supply Voltage: 2.7V~3.6V,Current>200mA

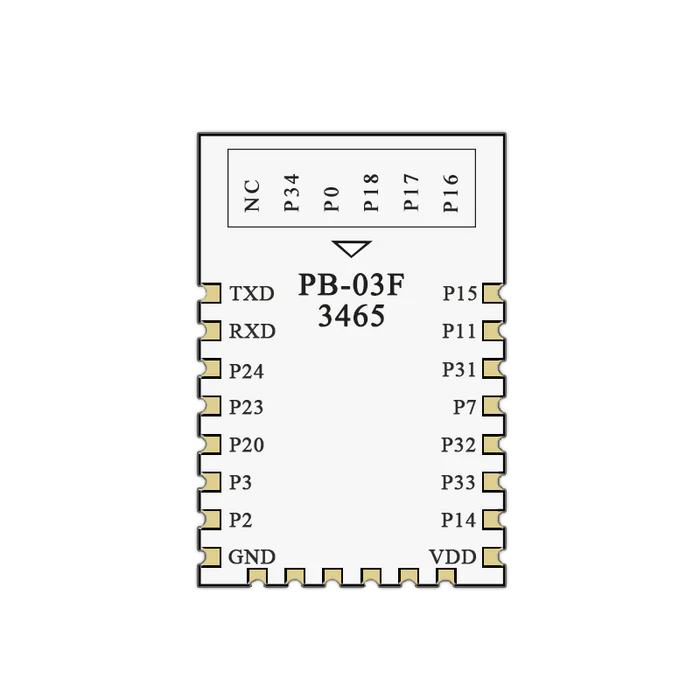

- Interface: UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMAIO 19
- UART rate Default: 115200 bps
- Bluetooth: BLE 5.2
- Security: AES-128
- SPI Flash: 256KB
Product Includes:-
1x AI-Thinker PB-03F Bluetooth Module
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| Interface / Protocol | Bluetooth |
| Color | Blue |
| SKU | AI5664 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The AI-Thinker PB-03F Bluetooth Module is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
