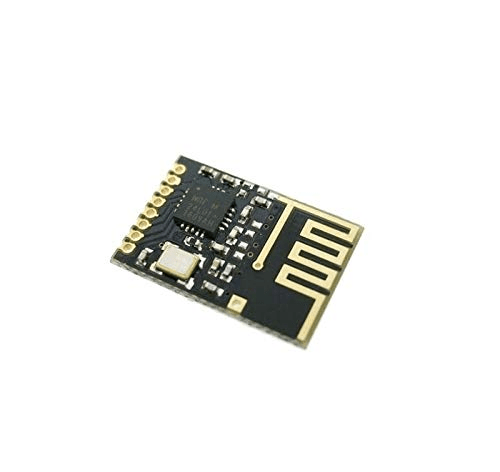

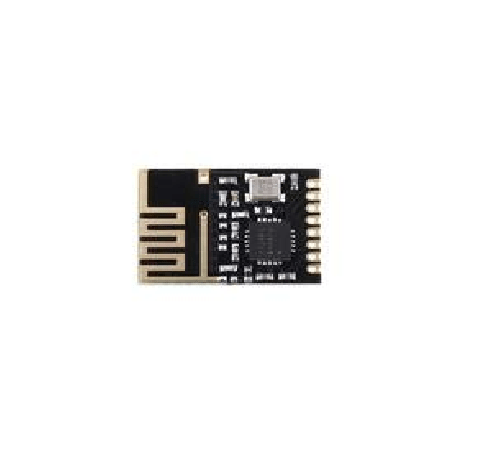

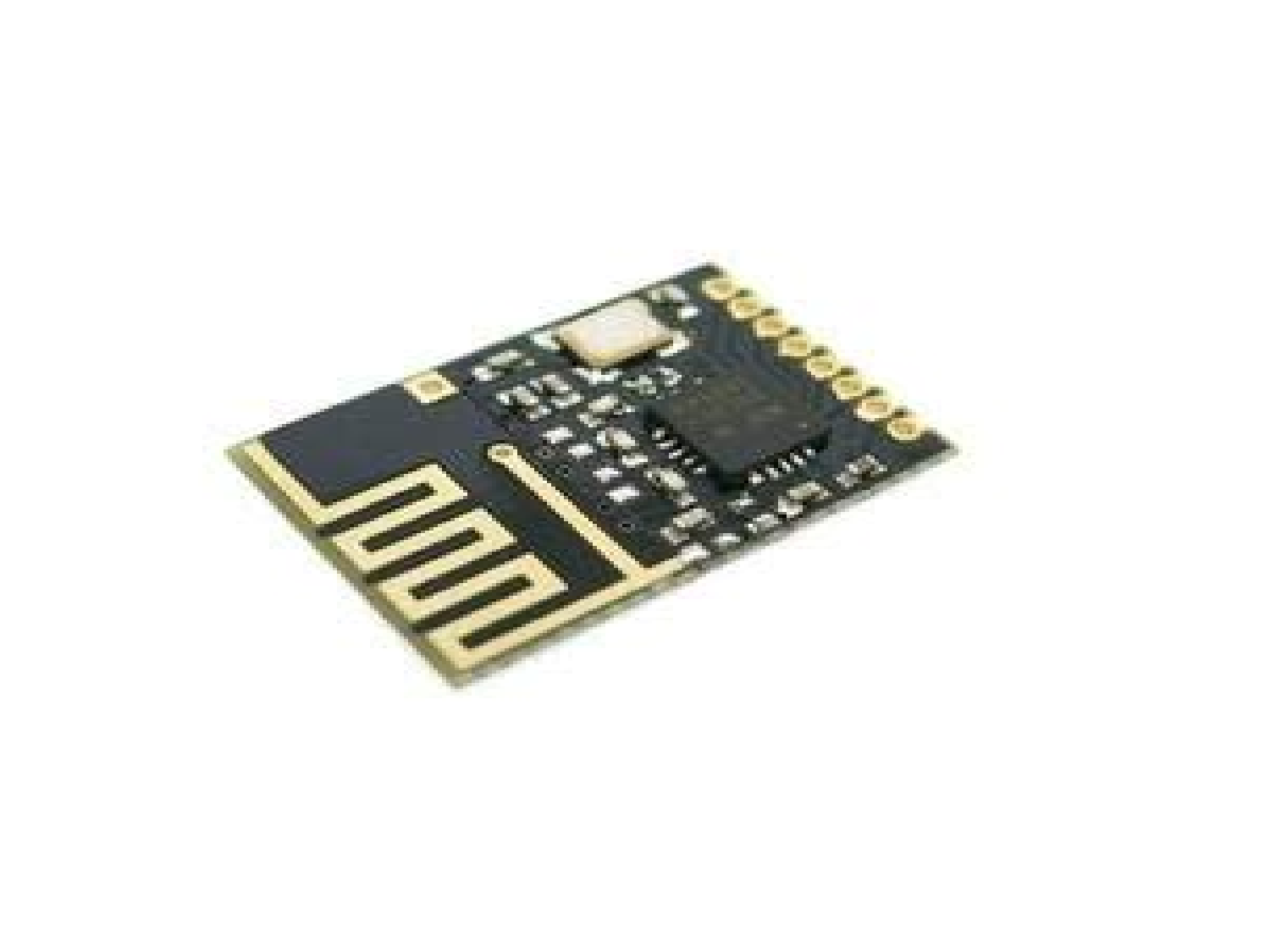

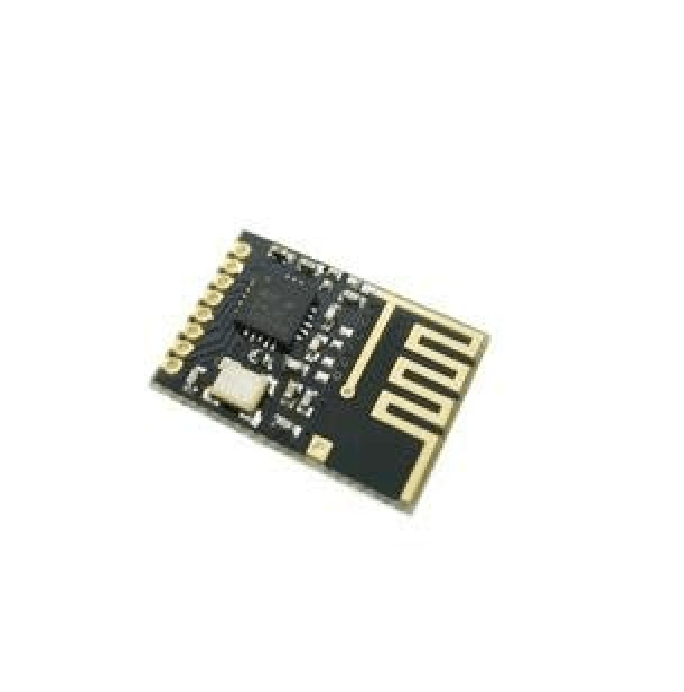

Ai Thinker NF-03 Wireless Transceiver Module Overview
The Ai Thinker NF-03 Wireless Transceiver Module is a compact 2.4 GHz communication unit with an integrated antenna and SPI interface. It delivers high-speed data transmission up to 2 Mbps, making it ideal for reliable links in IoT devices, remote controls, and wireless sensor networks.
Key Features of Ai Thinker NF-03 Wireless Transceiver Module
- Built-in 2.4 GHz on-board antenna for plug-and-play RF connectivity
- Supports reception on six independent channels to avoid interference
- Selectable GFSK/FSK modulation with data rates of 2 Mbps, 1 Mbps, or 250 Kbps
- SPI hardware interface simplifies integration with microcontrollers
- Internally integrated high-PSRR LDO ensures stable power regulation
- Compact, industrial-grade design for durability in varied environments
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Wireless mouse and keyboard communication links
- Remote controls for RC toys, drones, or home automation
- Somatosensory gaming controllers and interactive displays
- Active RFID and NFC tag readers with 2.4 GHz transport
- Low-power mesh sensor nodes in industrial or environmental monitoring
- Custom IoT devices requiring robust, high-rate wireless links
How to Use Ai Thinker NF-03 Wireless Transceiver Module
To deploy the NF-03, connect its SPI pins (MISO, MOSI, SCK, CS) and power pins (VCC, GND) to your microcontroller. Program the module’s configuration registers over SPI to select modulation (GFSK/FSK), data rate, and channel, then enable transmit or receive mode. Ensure proper PCB layout around the built-in antenna and add decoupling capacitors to maximize performance and stability.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many channels can the NF-03 receive?
The NF-03 supports data reception on six distinct channels, allowing you to switch frequencies to avoid interference in crowded 2.4 GHz environments.
Which modulation schemes and data rates are supported?
This module offers both GFSK and FSK modulation methods, with selectable data rates of 2 Mbps, 1 Mbps, or 250 Kbps to balance speed and range.
Do I need an external antenna with NF-03?
No external antenna is required. The NF-03 features a built-in 2.4 GHz antenna—just ensure adequate clearance on your PCB for optimal signal strength.
Technical Specifications
| Model | NF-03 |
|---|---|
| SKU | AI4689 |
| Weight | 0.0026 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Ai Thinker NF-03 Wireless Transceiver Module is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
