Looking for Nf-01 Module 327389? Ai Thinker NF-01-S Wireless Transceiver Module is available at Zbotic with fast shipping across India.
Ai Thinker NF-01-S Wireless Transceiver is a 100mW power 2.4G wireless module, high-altitude rate (up to 2Mbps), using an SPI interface, send and receive in one pure hardware module; high stability, cost performance, Volume, use of all-industry components.
NF-01-S can be widely used in a variety of networking occasions, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low power consumption network of wireless sensor networks, is the ideal solution of Internet of Things application.
Note: Images shown may vary from the actual product in terms of onboard IC and components according to the availability from the supplier
Nf-01 Module 327389 – Features:
- DIP-8 ultra-small package, built-in 2.4G antenna, small size, easy to use
- Supports data reception for six channels
- Supports common modulation such as GFSK / FSK
- Supports 2Mbps / 1Mbps / 250Kbps data rate
- Multi-frequency: 126 frequency, to meet the needs of multi-point communication and frequency hopping communication
- Internal integration of high PSRR LDOs
- Wide supply voltage range: 1.9 ~ 3.6V
- Average emission current as low as 110mA
- Receiver sensitivity: -96dBm @ 250kbps
- Maximum transmit power: + 7dBm
- Four-wire SPI interface for up to 10MHz
- Internal Integrated Smart ARQ Baseband Protocol Engine
- Transmit data hardware interrupt output
- Supports 1bit RSSI output
Package includes:
1 x Ai Thinker NF-01-S Wireless Transceiver Module
Datasheet:
Ai Thinker NF-01-S Wireless Transceiver Module Overview

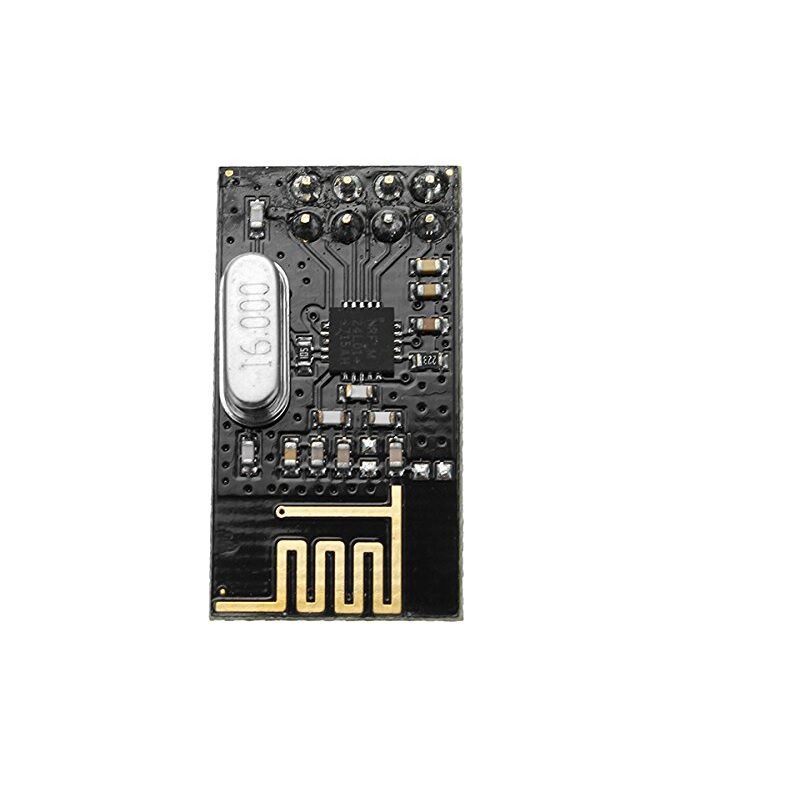

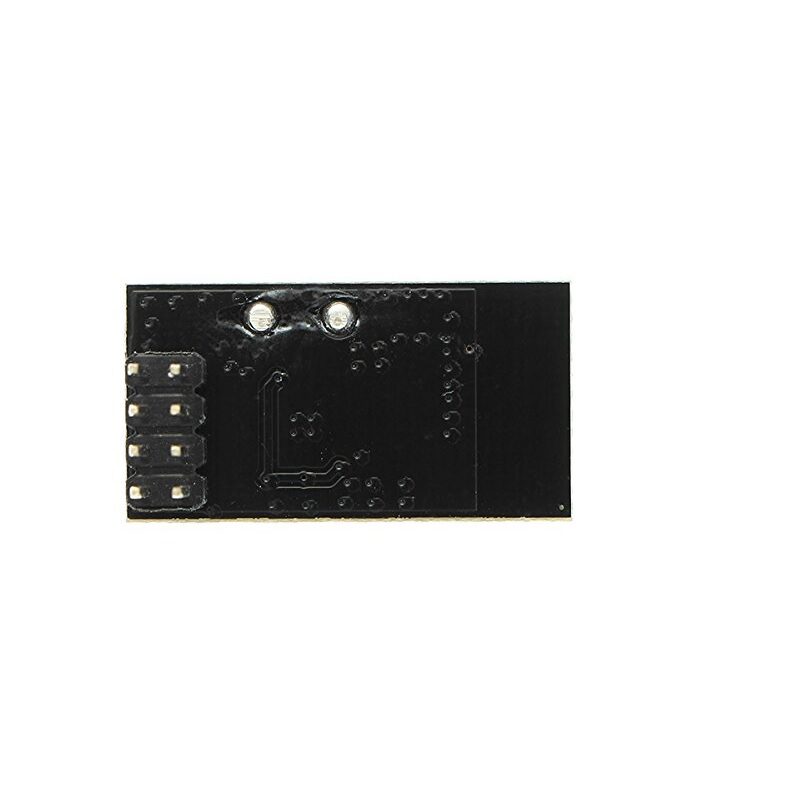

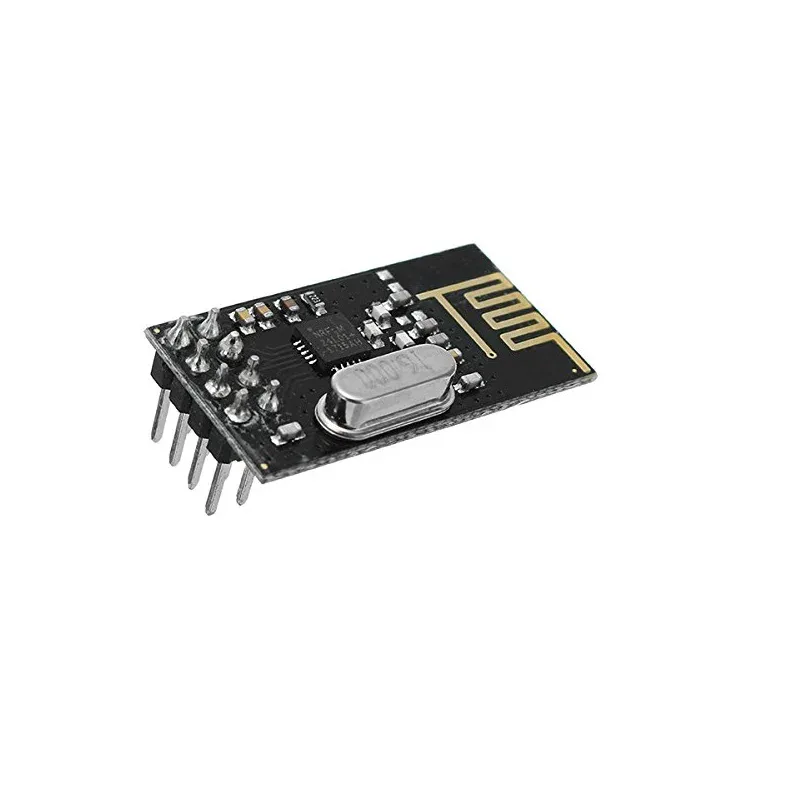

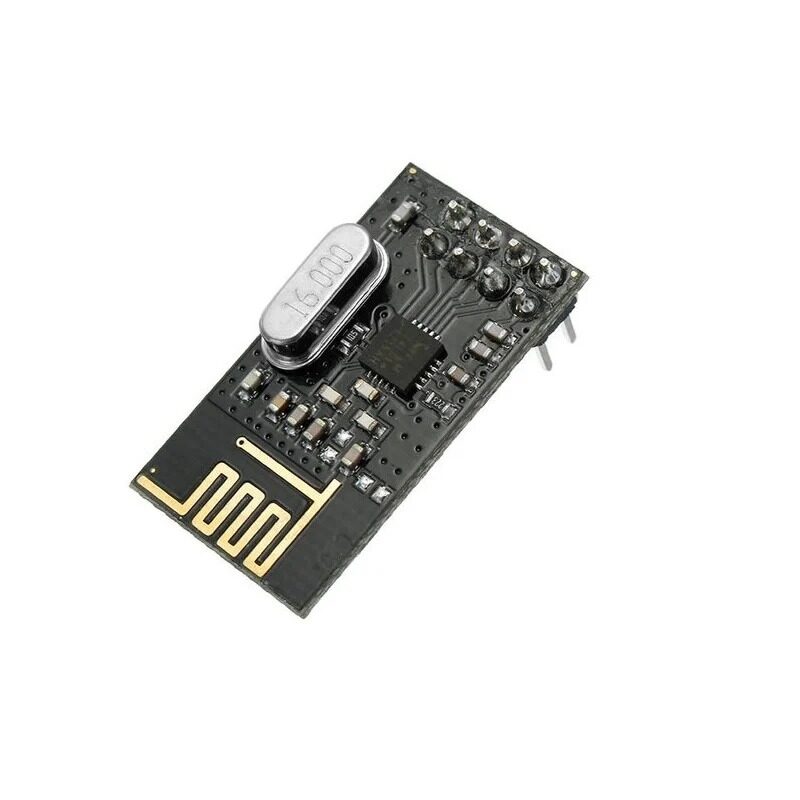

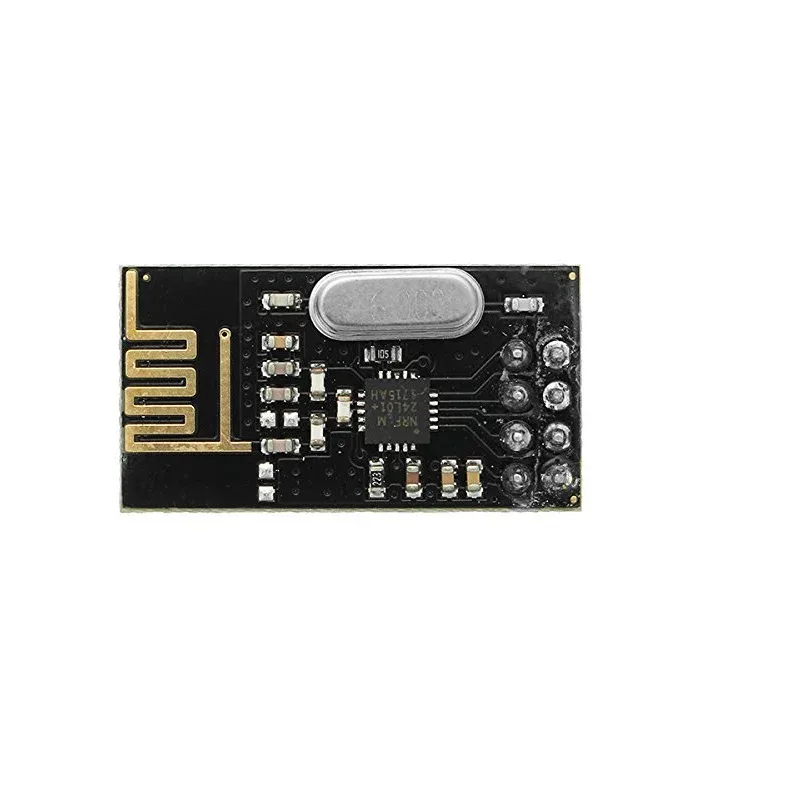

The Ai Thinker NF-01-S Wireless Transceiver Module is a compact 2.4 GHz communication solution in a DIP-8 package, powered by the Si24R1 chip. Featuring a built-in antenna and SPI interface, it delivers up to 2 Mbps data rates across six channels for stable, long-range wireless links.
Key Features of Ai Thinker NF-01-S Wireless Transceiver Module
- Ultra-small DIP-8 package for easy PCB integration
- Si24R1 main chip with GFSK/FSK modulation at 2.4 GHz
- Supports 2 Mbps, 1 Mbps and 250 Kbps data rates and six reception channels
- 100 mW RF output power for up to 100 m line-of-sight range
- Pure hardware send/receive via SPI interface (MOSI, MISO, SCK, CS)
- Genuine Ai Thinker module with fast shipping from Zbotic
Applications and Use Cases
- Wireless remote controls for robots, drones and IoT devices
- Custom 2.4 GHz wireless mouse, keyboard or game controllers
- Sensor node networks in home automation and industrial monitoring
- Active RFID and NFC systems requiring stable 2.4 GHz links
- Telemetry and control data links for embedded robotics projects
- Short-range wireless bridges between microcontroller units
How to Use Ai Thinker NF-01-S Wireless Transceiver Module
Solder the NF-01-S onto your PCB or a breakout board, then connect VCC (3.3 V), GND and the SPI lines (MOSI, MISO, SCK, CS) to your microcontroller. Use SPI commands to configure frequency, data rate and channel on the Si24R1. After initialization, switch the module between TX and RX modes in firmware and handle incoming/outgoing packets via hardware IRQ or polling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does the NF-01-S use?
The NF-01-S uses an SPI interface for both transmitting and receiving. Simply connect the MOSI, MISO, SCK and CS pins to your microcontroller’s SPI port for pure hardware send/receive operation.
How many channels and data rates are supported?
This module supports reception on six independent channels and offers selectable data rates of 2 Mbps, 1 Mbps and 250 Kbps using GFSK or FSK modulation.
What range can I expect with 100 mW output?
With its 100 mW RF power, the NF-01-S can achieve up to 100 meters line-of-sight range under ideal conditions. Indoor or obstacle-rich environments may reduce effective range.
Technical Specifications
| Model | NF-01-S |
|---|---|
| SKU | AI1709 |
| Weight | 0.0026 kg |
| Availability | In Stock |
Applications & Use Cases
The Ai Thinker NF-01-S Wireless Transceiver Module is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
