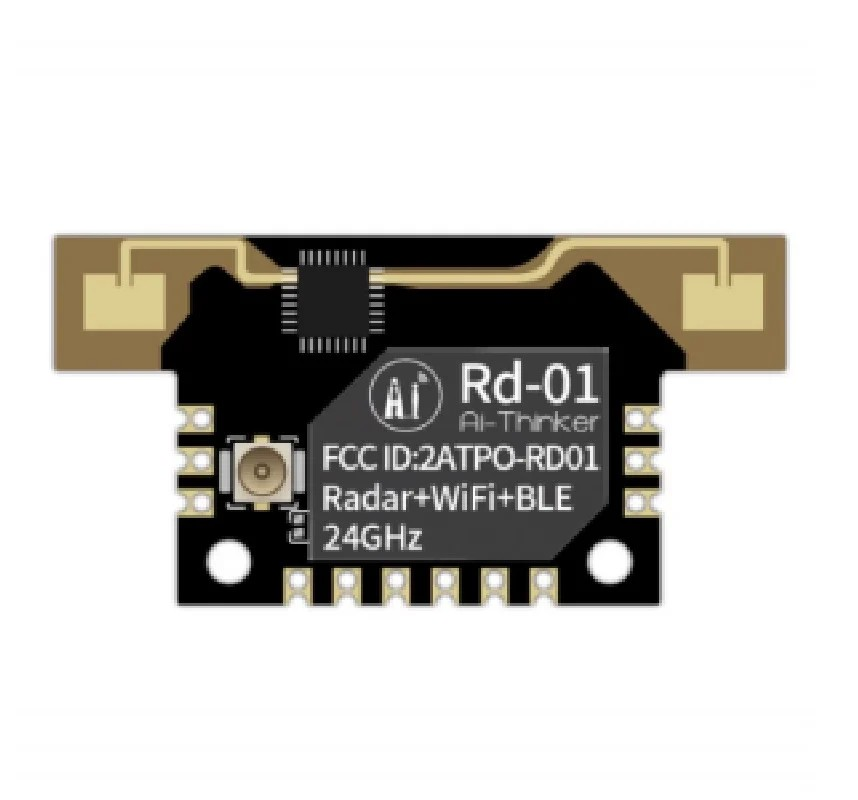

The Rd-01 is a radar module created by Shenzhen Anxinke Technology Co., LTD, supporting Wi-Fi and BLE. It features the S3KM111L chip from Sidian Micro, which is a single-wave sensor SoC utilizing FMCW radar technology. Operating in the 24GHz band, it offers up to 1 GHz of modulation bandwidth. The FMCW continuous wave detects targets within a designated space. This, combined with signal processing and a precise human body sensing algorithm, allows for the detection of both motion and stillness in humans.
For Wi-Fi and BLE, the module uses the BL602 chip as its core processor, supporting Wi-Fi 802.11b/g/n and BLE 5.0. The BL602 includes a low-power 32-bit RISC CPU, 276KB RAM, and multiple peripheral interfaces such as SPI, UART, I2C, PWM, ADC, and GPIO. The Rd-01 can detect and report the presence of moving or stationary humans in real-time via Wi-Fi and BLE. It comes with visual configuration tools for easy setup of detection range, sensitivity, and delay times when no humans are detected. Additionally, it allows for the wireless configuration of radar parameters over Wi-Fi and BLE, enhancing the efficiency of installation, operation, and maintenance.
Features:
- SMD-12 package, compatible with standard socket or pin interface
- Radar support 24 GHz ISM frequency band
- The radar’s max sensing range is up to 5 meters
- It can realize the intelligent parameter adjustment of radar through Bluetooth, convenient
and fast - Support roof, hang a wall to install a variety of ways
- Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Support 20 MHZ bandwidth, the highest rate of 72.2 Mbps
- Supports IEEE 802.11 b/g/n agreement
Specifications:
- Model: Rd-01
- Product type: WIFI+BLE+24G radar module
- Chip: BL602+S3KM1110L
- Antenna: Radar: on-board antenna
Wi-Fi&BLE：IPEX - Frequency: Radar: 24G ~24.25GHz
Wi-Fi：2400 ~ 2483.5MHz - Operation temperature: -40℃ ~ 85℃
- Interfaces: UART/GPIO/ADC/PWM/I2C/SP
- Power supply: Support voltage 3.0V ~ 3.6V
- Length: 36mm
- Width: 19mm
Package Includes:
1 x Ai Thinker RD-01
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| Model | RD-01 |
| Interface / Protocol | WiFi, BLE, 4G |
| SKU | AI5656 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Ai-Thinker RD-01 24G Radar Human Body Induction Module/Radar + WiFi + BLE Module is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
