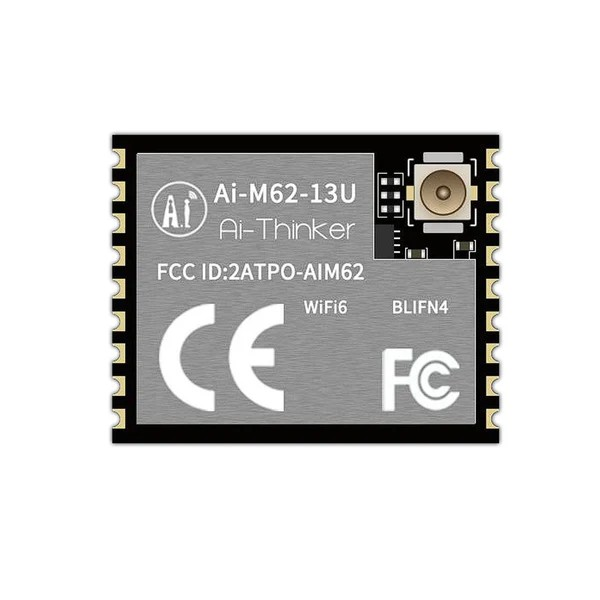

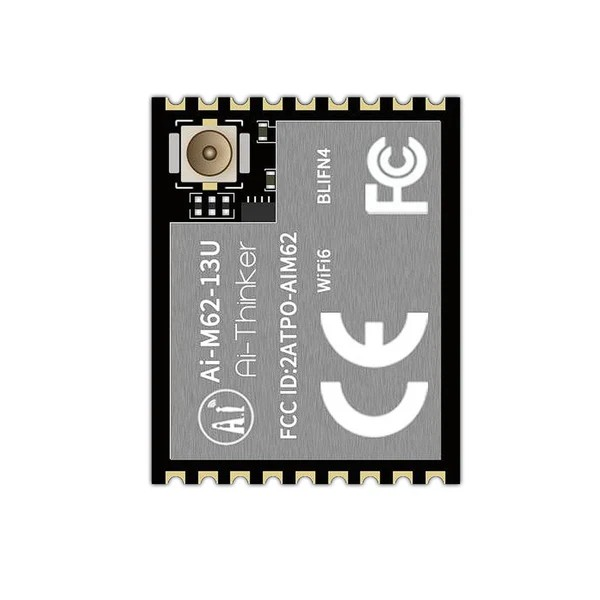

Ai-Thinker Ai-M62-13U Wi-Fi BLE Module

Looking for M62 Module? Ai-Thinker Ai-M62-13U Wi-Fi BLE Module is available at Zbotic with fast shipping across India.

Description:

The Ai-M62-13U is a Wi-Fi 6 + BLE5.3 module created by Ai-Thinker, featuring a BL616 chip as its core processor. It supports the Wi-Fi 802.11b/g/n/ax and BLE protocols, as well as the Thread protocol. The BL616 chip comprises a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, achieving a maximum frequency of 320MHz. The Ai-M62-13U module boasts an array of peripheral interfaces, such as Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, and GPIO. Its versatile application extends across audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronics, and smart homes. Additionally, the Ai-M62-13U Sec Eng module includes support for AES/SHA/PKA/TRNG, image encryption, signature startup, and caters to a variety of security needs within IoT applications.

Specifications:

• Model: Ai-M62-13U
• Antenna: IPEX
• Frequency: 2400 ~ 2483.5MHz
• Operating Temperature: -40℃ ~ 85℃
• Storage Temperature: -40℃ ~ 125℃, < 90%RH
• Power Supply: Support voltage 2.97V ~ 3.6V, supply current ≥500mA
• IO: 11
• UART Rate: Default 115200 bps
• Security: WPS/WEP/WPA/WPA2/WPA3
• Flash: Default 4MByte, Support expansion
• Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO and so on

Features:

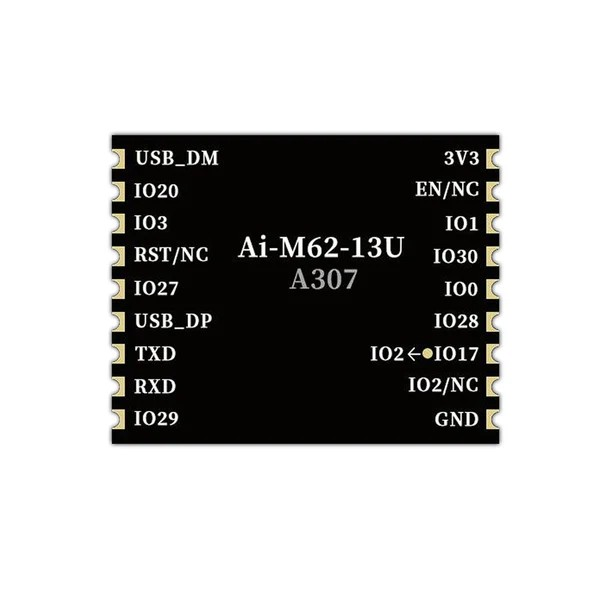

• SMD-18 package
• Supports 2.4GHz operating frequency band
• Support IEEE 802.11 B/g/n/ax
• Support BLE5.3
• Support Thread
• Support Wi-Fi/BLE/Thread coexistence
• Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
• Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4Mbps
• Support STA, SoftAP, STA
• 32-bit RISC-V CPU with FPU and DSP with a maximum dominant frequency of 320MHz
• 532KB SRAM,128KB ROM,4Kb eFuse
• Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
• Integrated RF Balun, PA/LNA
• TRNG (True Random Number Generator) is supported
• BLE-enabled Wi-Fi fast connection

Package Included:

1 x Ai-Thinker Ai-M62-13U Wi-Fi BLE Module

Ai-Thinker Ai-M62-13U Wi-Fi BLE Module Overview

The Ai-Thinker Ai-M62-13U is a compact Wi-Fi 6 and Bluetooth 5.3 combo module based on the BL616 RISC-V processor. It integrates 802.11b/g/n/ax, BLE and Thread protocols, making it ideal for high-performance wireless connectivity in embedded and IoT applications.

Key Features of Ai-Thinker Ai-M62-13U Wi-Fi BLE Module

• Wi-Fi 6 (802.11ax) & Bluetooth 5.3 support for high-throughput wireless communication
• BL616 32-bit RISC-V CPU up to 320 MHz with FPU, DSP, cache and onboard memory
• Multiple interfaces: Audio Codec, USB 2.0, SDU, SD/MMC, SPI, UART (115200 bps), I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO
• Integrated IPEX antenna connector operating at 2.4 GHz (2400–2483.5 MHz)
• Wide temperature range: –40 °C to 85 °C (operating), –40 °C to 125 °C (storage)
• 4 MB onboard flash (expandable) and up to 11 general-purpose I/O pins
• Security protocols: WPS, WEP, WPA, WPA2 and WPA3
• Fast shipping from Zbotic across India with genuine product guarantee

Applications and Use Cases

• Smart speakers and audio streaming devices using the integrated audio codec interface
• Wireless sensors and actuators in home automation networks leveraging Thread and BLE
• Portable medical and wearable electronics benefiting from low-power RISC-V processing
• USB-connected IoT gateways or data loggers via USB 2.0 or SD/MMC storage
• Smart doorbells and video intercoms requiring dual-band Wi-Fi and high security
• Industrial monitoring systems using SPI, UART or I2C for peripheral connectivity

How to Use Ai-Thinker Ai-M62-13U Wi-Fi BLE Module

Begin by supplying a stable 3.3 V power source (2.97–3.6 V) capable of ≥500 mA and connect your external 2.4 GHz antenna to the IPEX port. Use the default UART at 115200 bps for initial firmware flashing with Ai-Thinker’s SDK over USB 2.0 or SPI. Configure Wi-Fi credentials and security (WPA3) via AT commands or the provided API, then integrate BLE or Thread services through the peripheral interfaces as required.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What wireless protocols are supported by the Ai-M62-13U?

The module supports Wi-Fi 802.11b/g/n/ax (Wi-Fi 6) and Bluetooth 5.3, along with Thread mesh networking for low-power device connectivity.

How do I expand the onboard flash memory?

Ai-M62-13U comes with 4 MB of built-in flash and supports external flash expansion via its SD/MMC interface or SPI connection, allowing additional storage for firmware and data.

Which interface should I use for audio applications?

Use the integrated Audio Codec interface in conjunction with I2S for digital audio streaming and GPDAC for analog output, enabling high-quality sound in smart speaker or intercom designs.
