ADTi 42L 42MP Surveyor Camera (Full Frame) For Mapping & Surveying
The ADTi 42L 42MP Surveyor Camera, designed specifically for advanced drone applications, is a high-resolution, lightweight camera. It features the lightest full-frame drone mapping camera on the market. The ADTi 42MP Camera 42L offers outstanding performance and unmatched versatility, ideal for aerial mapping and surveying tasks.
What sets the ADTi 42L 42MP Surveyor Camera apart as an exceptional choice?
Exceptional Image Quality: The ADTi 42L Mapping Camera features a 42-megapixel full-frame Sony CMOS sensor, ensuring outstanding image quality with extraordinary detail. The Bionz X image processor further boosts the camera’s performance, providing excellent dynamic range and very low noise levels, which are vital for precise mapping and inspection tasks.
Extensive Lens Compatibility: The ADTi 42MP 42L Drone Camera is designed to work solely with ADTi’s lightweight FF lenses, including 18MM, 40MM, 50MM, and 56MM full-frame lenses. Although it does not support E-mount lenses, this exclusivity guarantees enhanced performance with ADTi’s premium lens collection, allowing users to select the ideal lens for their particular requirements.
Robust Design and Features: The ADTi 42MP 42L Surveyor features a robust industrial-grade aluminum and carbon fiber construction, making it both sturdy and light. Weighing only 152 grams, it stands as the lightest full-frame mapping camera on the market, reducing its impact on drone flight dynamics. Its integrated multi-interface hot shoe output for PPK (Post Processed Kinematics) improves geo-tagging precision, crucial for accurate aerial surveys.
Effortless Integration and Compatibility: Tailored for use with sophisticated drone systems, the ADTi 42L Full Frame Camera is compatible with the Gremsy Pixy S 3-axis camera gimbal and the ADTi 2-Axis Nadir fixed-wing gimbal. It also operates seamlessly with Airpixel Entire for MAVlink, facilitating smooth functioning and data acquisition across diverse flight scenarios. Note, however, that the 42L model is not compatible with Airpixel R3. The ADTi 42L Full Frame Camera supports the Airpixel Entire System for geotagging and MAVlink integration.
ADTi 42L 42MP Surveyor Camera: Comprehensive Specifications
Image Sensor
- Sensor Type: CMOS
- Sensor Manufacturer: Sony
- Effective Megapixels: 42.4
- Sensor Format: Full Frame
- Sensor Size: 861.6mm² (35.90mm x 24.00mm)
- Approximate Pixel Pitch: 4.51 microns
- Focal Length Multiplier: 1.0x
- Aspect Ratio: 3:2
- Color Filter Type: RGBG
- Anti-Aliasing Filter: None
- Color Depth (bits): 26
- Maximum Effective ISO: 3,434
Image Capture
- Image Resolution: Various resolutions up to 7952 x 5304 (42.2 MP, 3:2)
- Image File Format: JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
- Continuous-mode frames/second: 5.0
Video Capture
- Video Resolution: Up to 3840×2160 (30p/25p/24p)
- Video File Format: XAVC S, AVCHD 2.0, or MP4
- Audio: LPCM, Dolby Digital (AC-3) or MPEG-4 AAC-LC, stereo
- HD Video Out: Yes
- HD Video Connection: HDMI
Lens & Optics
- Lens Mount: Sony E
- Auto Focus: Yes
- Manual Focus: Yes
Shutter Type
- Speed: 1/8000-30sec
Camera Dimensions and Weight
- Camera Size: 9.27.43.1 cm
- Camera Weight (body): 152 g
- Package Size: 505025 cm
- Package Weight: 800 g
Power and Operating Conditions
- Power: 10-25V DC Lipo or Li-ion
- Operating Temperature: -10 to 40 °C
ADTi 42L 42MP Surveyor Camera
Elevate your drone surveying and mapping capabilities with the ADTi 42MP 42L Full Frame Mapping Camera Surveyor, the ultimate instrument for precise, high-performance, and dependable aerial imaging.

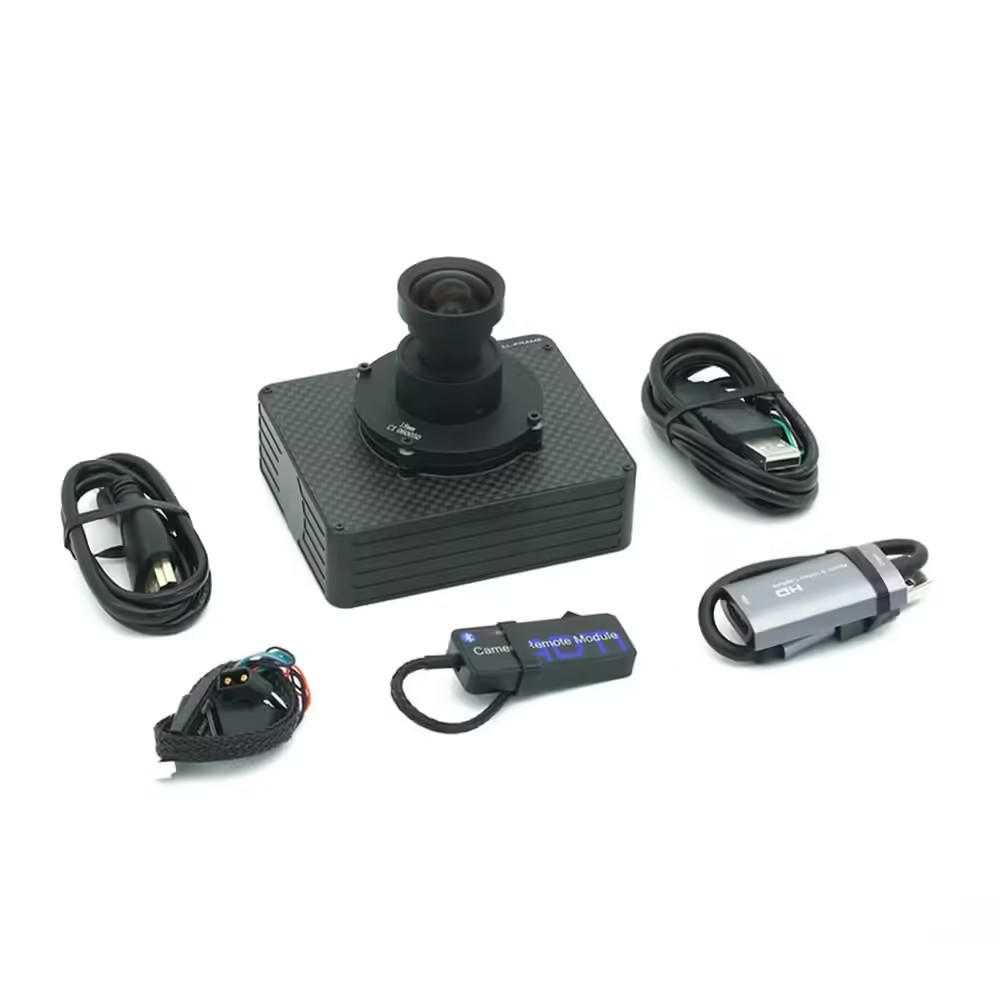

Package Include.
1 X ADTi 42MP 42L Surveyor Drone Mapping Cameras.
