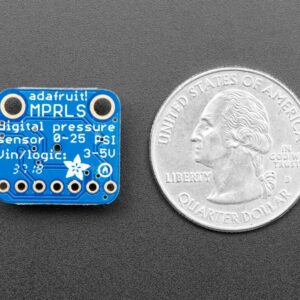

Looking for Adafruit Mprls Ported Sensor? Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25 PSI RoHS Compliant is available at Zbotic with fast shipping across India.
We stock a few barometric pressure sensors, great for altitude and weather measurements. This pressure sensor is special because it comes with a metal port! Unlike other pressure sensors, you can easily attach a tube to it, to measure air pressure inside a close space. In particular we think this would be a great sensor for use with making DIY assistive tech “Sip & Puff” interfaces, or measuring the pressure within a vacuum chamber or other pressurized container.
Unlike most ported pressure sensors, this one uses I2C, it’s really easy to use with any microcontroller. Inside is a silicone-gel covered pressure sensing gauge with a pre-calibrated and compensated 24 bit ADC. We have example code and libraries for Arduino or CircuitPython/Python. You can measure absolute pressure 0 to 25 PSI, which is a great range since ambient pressure here on Earth is about 14.5 PSI.

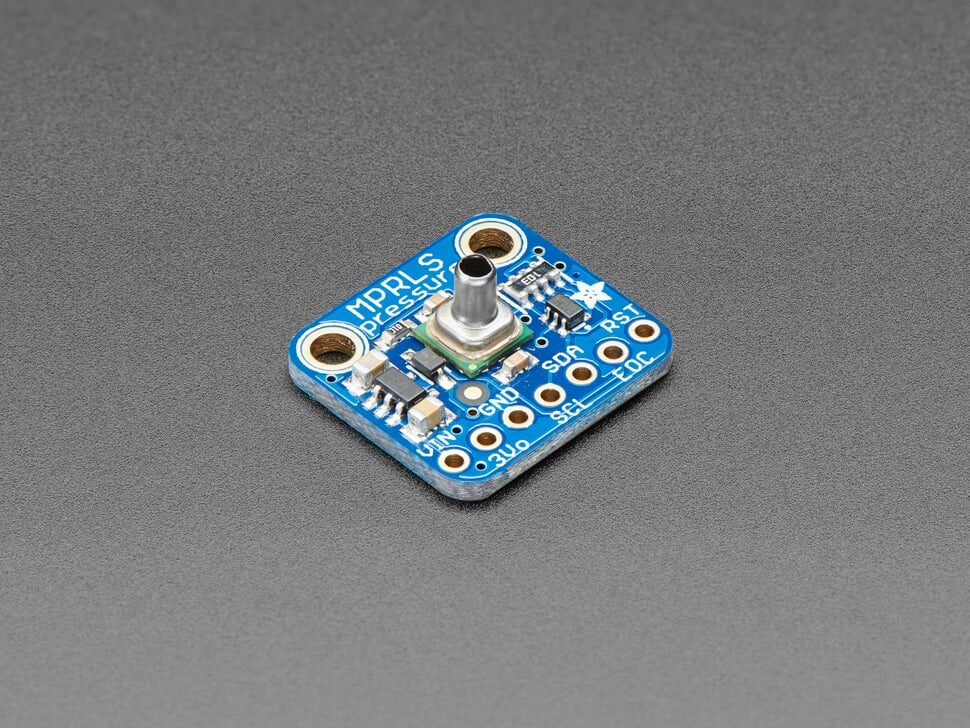

The port is made of stainless steel and is 3.7mm long and 2.5mm diameter. It doesn’t come with tubing so be sure to purchase some tubing to attach to the port.

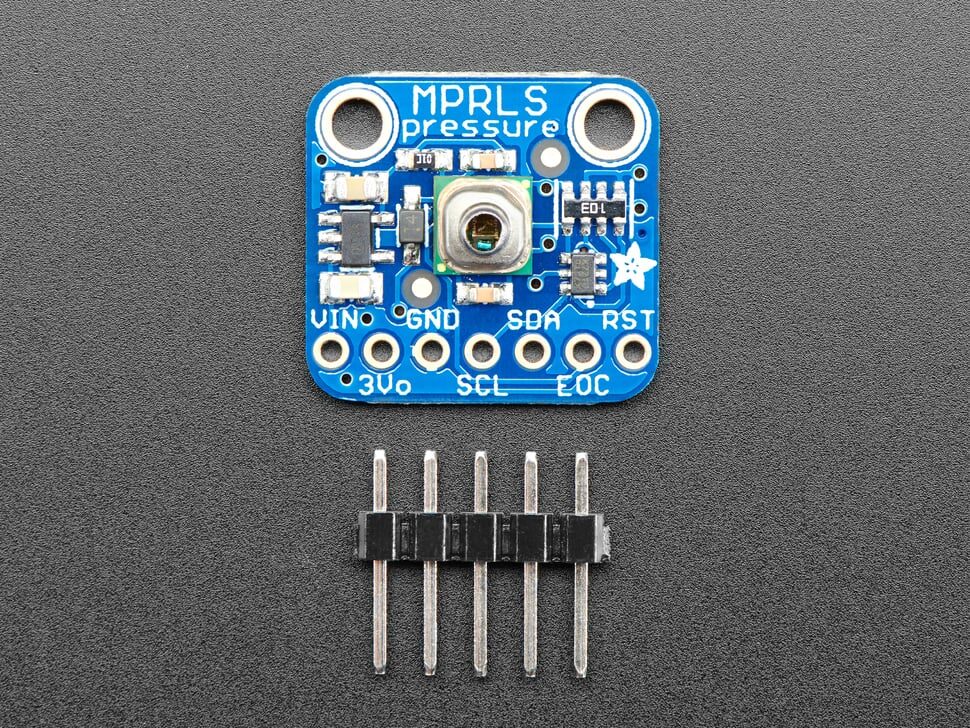

We’ve placed this nice sensor on a breakout board with 3.3V power regulation and level shifting so you can use it with any kind of microcontroller or microcomputer, from an Arduino compatible to Raspberry Pi
Features:

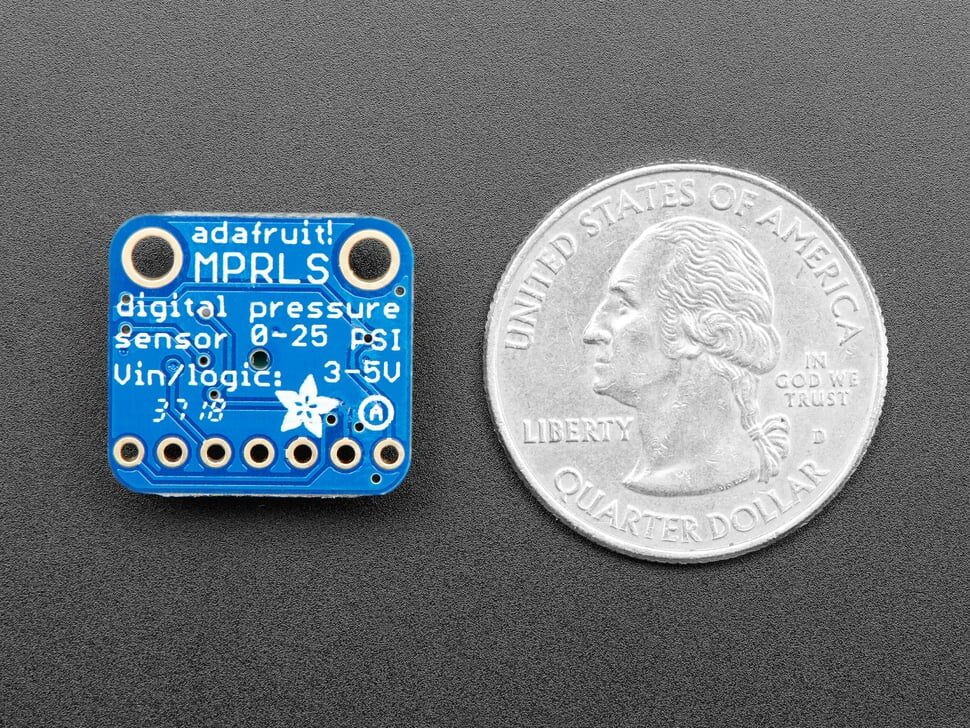

- Very small size
- You can use with Arduino
- Power Pins: 3-5V
- I2C Logic pins:
SCL – I2C clock pin, connect to your microcontrollers I2C clock line.
SDA – I2C data pin, connect to your microcontrollers I2C data line. - You can program with python
Packages Includes:
1 x Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25 PSI RoHS Compliant
Datasheet:
Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25 Overview
The Adafruit MPRLS Ported Pressure Sensor Breakout is a compact, absolute pressure gauge that measures from 0 to 25 PSI with high precision. It features a stainless steel port for easy tubing connections and a factory-calibrated, temperature-compensated 24-bit ADC output over I2C.
Key Features of Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25
- Absolute pressure range: 0–25 PSI
- Silicone-gel covered sensing element with pre-calibrated 24-bit ADC
- Stainless steel pressure port (3.7 mm length, 2.5 mm diameter) for secure tubing
- I2C interface with built-in 3.3 V regulator and level shifting
- Ultra-lightweight design (2 g) for portable or space-constrained builds
- RoHS compliant and ready for industrial, educational, or DIY projects
- Fast shipping across India from Zbotic
Applications and Use Cases
- Assistive “Sip & Puff” interfaces for hands-free control devices
- Vacuum chamber or pressurized enclosure monitoring
- Leak detection and pressure testing in pneumatic systems
- Environmental or barometric pressure logging for remote sensors
- Pneumatic actuator feedback in robotics and automation
- Physics and engineering lab experiments in pressure measurement
How to Use Adafruit MPRLS Ported Pressure Sensor Breakout – 0 to 25
Wire VCC to 3.3 V (or 5 V if using the breakout’s regulator), GND to ground, SDA to your MCU’s SDA pin and SCL to SCL. Attach a flexible tube (inner diameter ~2.3 mm) to the stainless steel port, install the Adafruit_MPRLS library in your Arduino or CircuitPython environment, then call the provided functions to read calibrated pressure values over I2C.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I connect this sensor directly to a 5V microcontroller?
Yes. The breakout includes a 3.3 V regulator and I2C level shifters, making it safe for direct connection to 5 V logic without additional components.
What tubing fits the stainless steel port?
The port measures 2.5 mm in diameter; use flexible tubing with an inner diameter of approximately 2.2–2.4 mm and secure it with a small hose clamp or zip-tie.
Is the sensor ready to use out of the box?
Absolutely. The MPRLS breakout is factory-calibrated and temperature-compensated. Simply wire it to your microcontroller, load the Adafruit driver, and begin reading precise pressure data immediately.
