This is the 5V variant of the 6 Channel 5V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive in Relay Modules. Available at Original price was: ₹733.96.₹634.84Current price is: ₹634.84. (₹538.00 + GST) with free shipping across India.

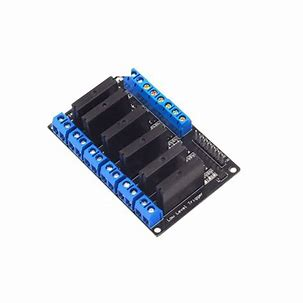

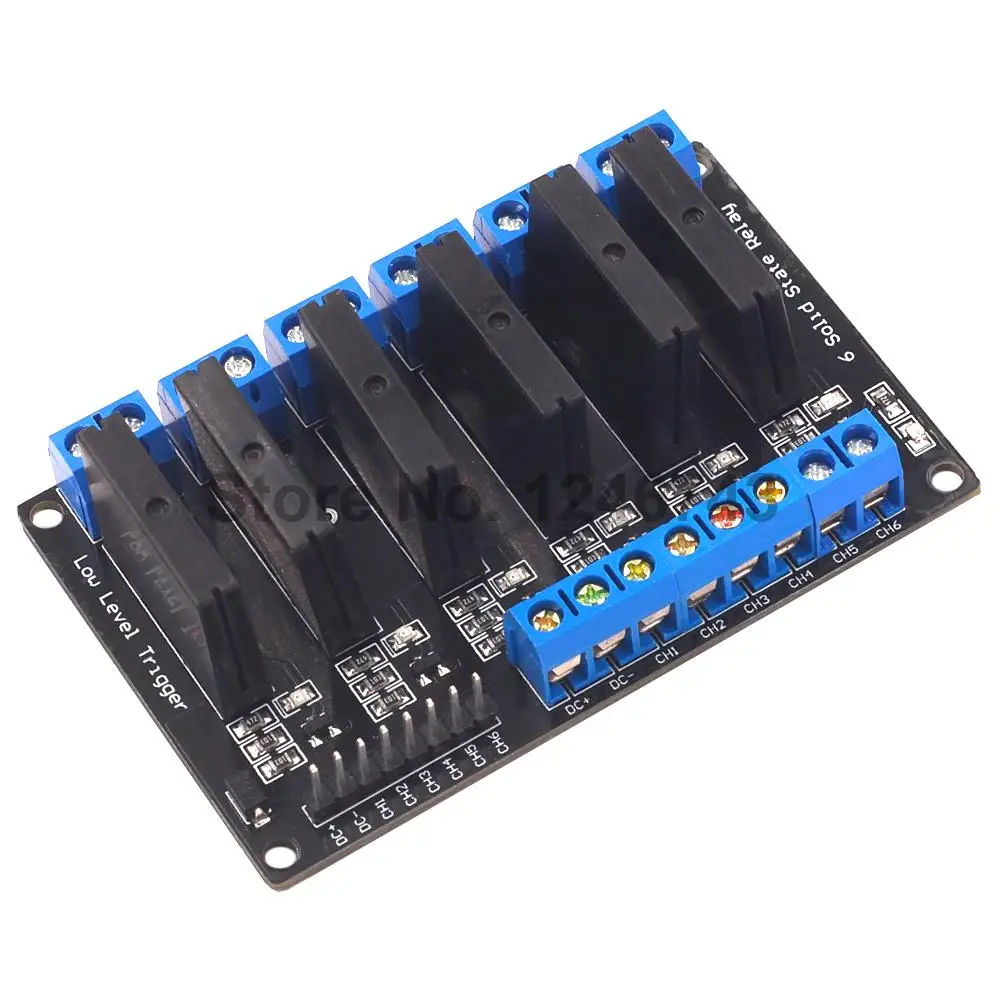

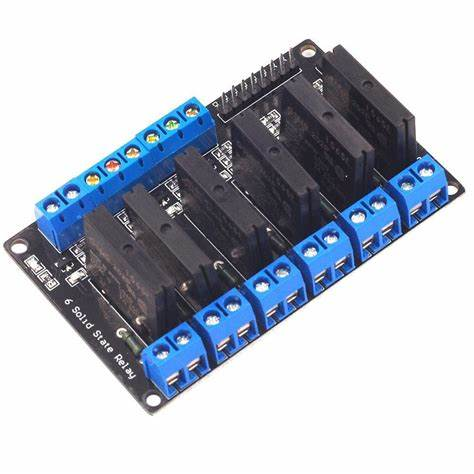

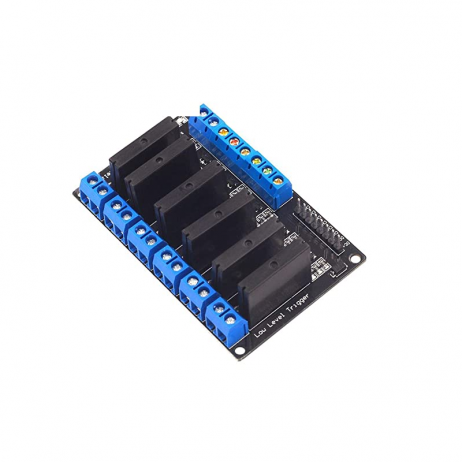

6 Channel 5V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive
Upgrade your control system with the 5V 6-Channel SSR Solid State Relay Module, featuring the reliable Omron G3MB-202P SSR relay capable of controlling up to 2A at 240VAC. This module provides seamless switching functionality for various applications while offering enhanced durability and noise-free operation.
Features:
- Omron G3MB-202P SSR Relay: Delivers efficient control of up to 2A at 240VAC, ensuring reliable switching performance.
- 6-Channel Configuration: Control up to 6 independent loads with ease, offering versatility in your projects.
- Solid State Relay Technology: Enjoy noise-free operation and extended lifespan compared to traditional mechanical relays, enhancing overall reliability.
- Separate Terminals for Each Channel: Each relay channel features three separate terminals: NO (Normal Open), COM (Common), and NC (Normal Closed), allowing for flexible wiring configurations.
- Input Control Signal Voltage: Accepts input control signal voltage ranging from 0 to 5V, with 0-2.5V indicating a low level (relay OFF) and 3-5V indicating a high level (relay ON), ensuring compatibility with various control systems.
- LED Indicator: Equipped with LED indicators for each relay, providing convenient status monitoring.
- Assembled and Electrically Tested: Each module is assembled and subjected to electrical testing to ensure optimal performance and reliability.
- Microcontroller Compatibility: Can be easily controlled directly by a microcontroller, simplifying integration into your control setup.
- Wide Range of Applications: Suitable for controlling various appliances and equipment requiring large current switching, offering versatility in usage scenarios.
Input Parts:
- DC+: Connects to power positive for the supply voltage.
- DC-: Connects to power negative for the ground connection.
- CH1-CH6: Individual relay module signal trigger points with effective low-level triggering, enabling precise control over each channel.
Enhance your control capabilities with the 5V 6-Channel SSR Solid State Relay Module, designed to deliver reliable performance, ease of use, and flexibility for a variety of applications. Whether you’re controlling appliances, equipment, or other devices, this module provides a robust solution for your switching needs.
Specifications:
| Part Number | G3MB-202P |
|---|---|
| Trigger Current (mA) | 2 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 240@2A |
| Max. Load | 2A @240V AC |
| Shipping Weight | 0.053 kg |
| Shipping Dimensions | 11 × 8 × 1 cm |
Package Includes:
1 x 6 Channel 5V Relay Module Solid State Low-Level SSR DC Control 250V 2A with Resistive Fuse
