LM393 Linear Hall Effect Sensor Module
The LM393 Linear Hall Effect Sensor Module, utilizing the S49E linear hall effect sensor, integrates both digital and linear output capabilities. Its primary function is to detect the presence of a magnetic field, providing a high-level signal when such a field is detected. With its versatile applications, this module proves useful in various scenarios such as RPM sensing for counting shaft revolutions, measuring robot speed and distance, monitoring door switches, and determining robot arm positions. Essentially, it serves as a reliable tool for detecting magnetic fields across a spectrum of applications.

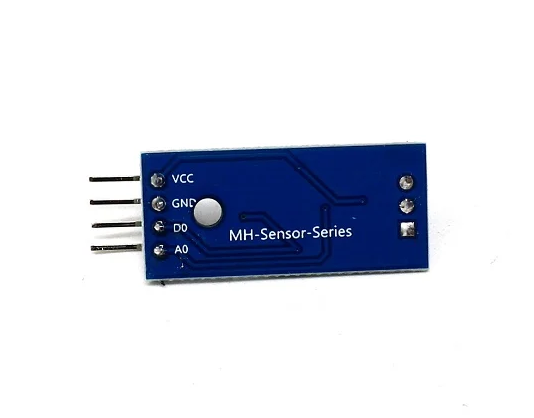

Pin Description:
- VCC: 2.3 volts to 5.3 Volts
- GND: power supply ground
- AOUT (analog sensor output): Arduino/ MCU input
- DOUT (digital sensor output): Arduino/MCU input
Applications:
- Motor shaft speed measurement (shaft encoder)
- Object position detection.
Features:
- S49E hall sensor
- Features wide-range voltage comparator LM393.
- Signal output indicator.
- Analog / Digital output
Package Includes:
1 x Hall Sensor Module LM393 Linear Hall Effect
