Looking for Sct-013 Sensor 10a? SCT-013-010 Non-invasive Split Core Current Transformer AC current sensor 10A is available at Zbotic with fast shipping across India.

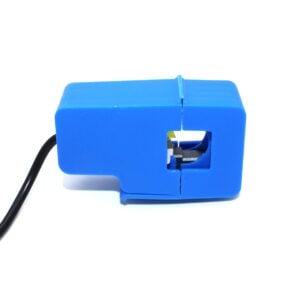

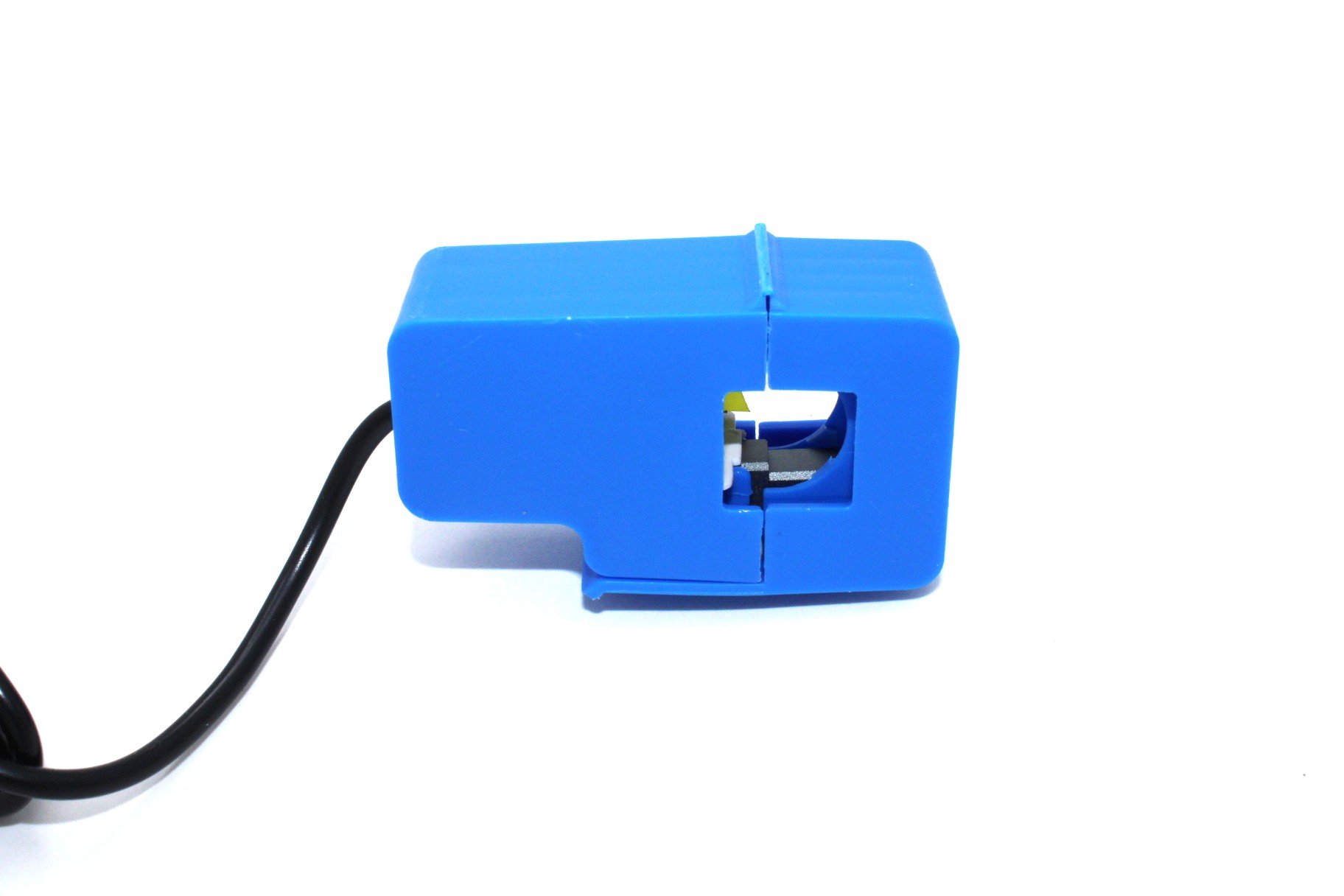

SCT-013-010 Non-invasive Split CoreCurrent Transformer ACcurrent sensor 10A

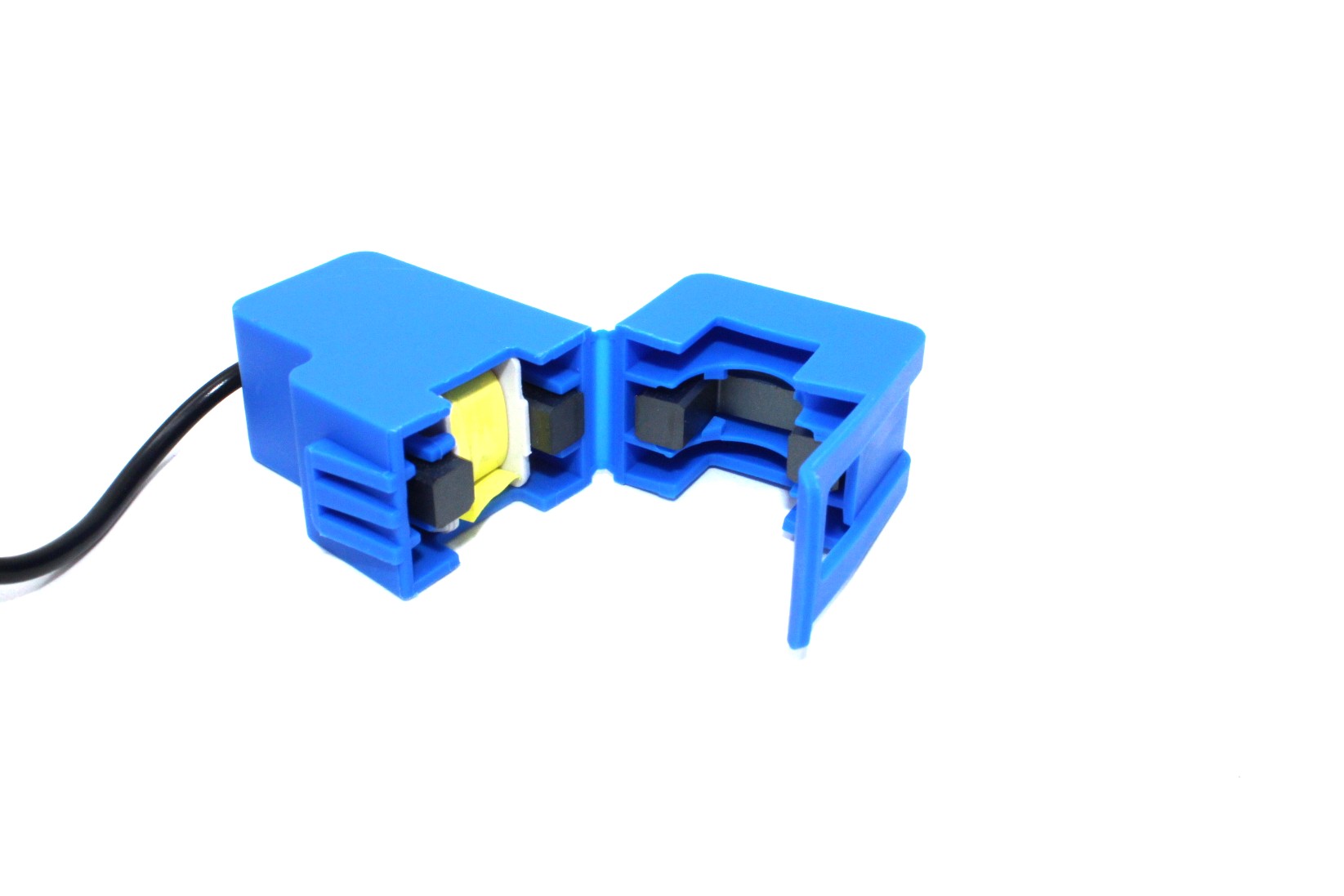

If you’re looking for an easy and affordable way to detect current, the SCT-013-010 AC Current Sensor is the perfect solution. This high-quality, non-invasive current sensor allows you to measure AC current up to 10 amperes without the need for direct electrical contact. Featuring a split core design, it functions as a current transformer, making it simple to clamp around an existing wire and begin measuring current instantly. Ideal for various applications, the SCT-013-010 provides a reliable and convenient way to monitor AC current in your projects.
Specifications
- Color BLUE
- Brand name YHDC
- part number SCT013
- Model number SCT013 10A/
- Tension 1 volt
- Current rating 10.0 amps
Features
- Opening size: 13m × 13m
- Non-linearity ±3% (10%-120% rated input current)

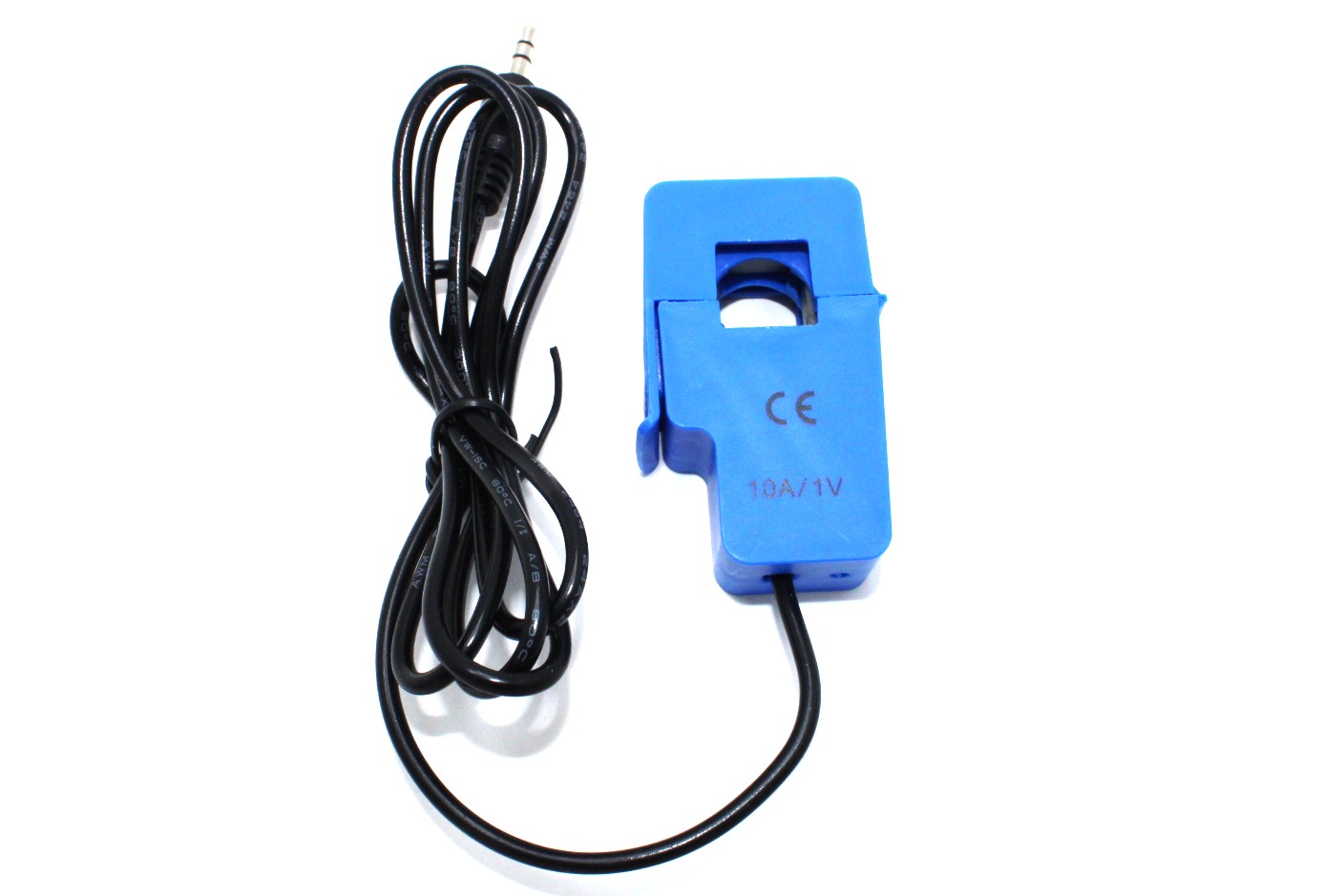

- 1.5m lead wire, Φ3.5 three core standard outlet plug
- Current output type or voltage output type (voltage output built-in type sampling resistor)
Package Include
- 1x SCT-013-010 Non-invasive Split CoreCurrent Transformer ACcurrent sensor 10A
SCT-013-010 Non-invasive Split Core Current Transformer AC Overview
The SCT-013-010 is a non-invasive split core current transformer from YHDC designed to measure AC currents up to 10 A without cutting the conductor. Its clamp-on design allows quick installation around existing wiring for safe, real-time current monitoring in energy management and electrical diagnostics.
Key Features of SCT-013-010 Non-invasive Split Core Current Transformer AC
- Non-invasive split core design for fast, clamp-on installation
- Measures AC current up to 10 A
- 1 V output at full-scale current for straightforward interfacing
- Durable construction with precision core material
- Blue housing for easy identification
- Fast dispatch from Zbotic with pan-India shipping
Applications and Use Cases
- Energy consumption monitoring in residential sub-panels
- Overcurrent detection in industrial control cabinets
- Integration with Arduino, Raspberry Pi and other microcontroller projects
- Current tracking in solar PV installations
- Load monitoring for UPS systems and battery chargers
How to Use SCT-013-010 Non-invasive Split Core Current Transformer AC
Open the split core clamp and secure it around the live conductor you wish to monitor. Connect the sensor’s output leads to your measurement device or data acquisition system, ensuring proper grounding. Power up your monitoring setup and read the voltage output; 1 V corresponds to the full 10 A AC load.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What output does the SCT-013-010 provide at 10 A?
At its 10 A AC rating, the SCT-013-010 delivers 1 V AC, making it easy to interface with ADC inputs on microcontrollers and data loggers.
Do I need to power the sensor separately?
No external power is required. The SCT-013-010 works as a passive current transformer; it generates an AC voltage output proportional to the measured current.
Can I install the SCT-013-010 on a live circuit?
Yes. Its split core design allows you to clamp it around a live conductor without interrupting power, ensuring safe, non-disruptive installation.
EEG Brain Sensor Module: NeuroSky MindWave Arduino Guide
Reading your own brainwaves with an Arduino — what once seemed like science fiction is now a weekend...
Read More →
Sound Pressure Sensor: Build a Clap Switch and Noise Meter
Sound sensors open up a fascinating category of human-machine interaction. A light clap turns on a lamp. A...
Read More →
UV Index Sensor VEML6075: Safe Sun Exposure Monitor Build
Ultraviolet radiation from the sun causes sunburn, accelerates skin aging, and is the primary cause of skin cancer...
Read More →Technical Specifications
| Model | SCT-013-010 |
|---|---|
| Current Rating | 10A |
| SKU | AI3603 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The SCT-013-010 Non-invasive Split Core Current Transformer AC current sensor 10A is a versatile current and voltage sensor used across a wide range of applications including power monitoring, energy metering, battery management, solar panel monitoring, and industrial current sensing.
Common use cases:
- Monitoring power consumption of appliances
- Building a solar panel efficiency tracker
- Current sensing in a battery management system
This product is ideal for power electronics engineers and IoT developers.
Technical Tip: Hall-effect sensors are non-invasive (no wire cutting needed). Shunt-based sensors offer higher accuracy. Match the sensor range to your application.
