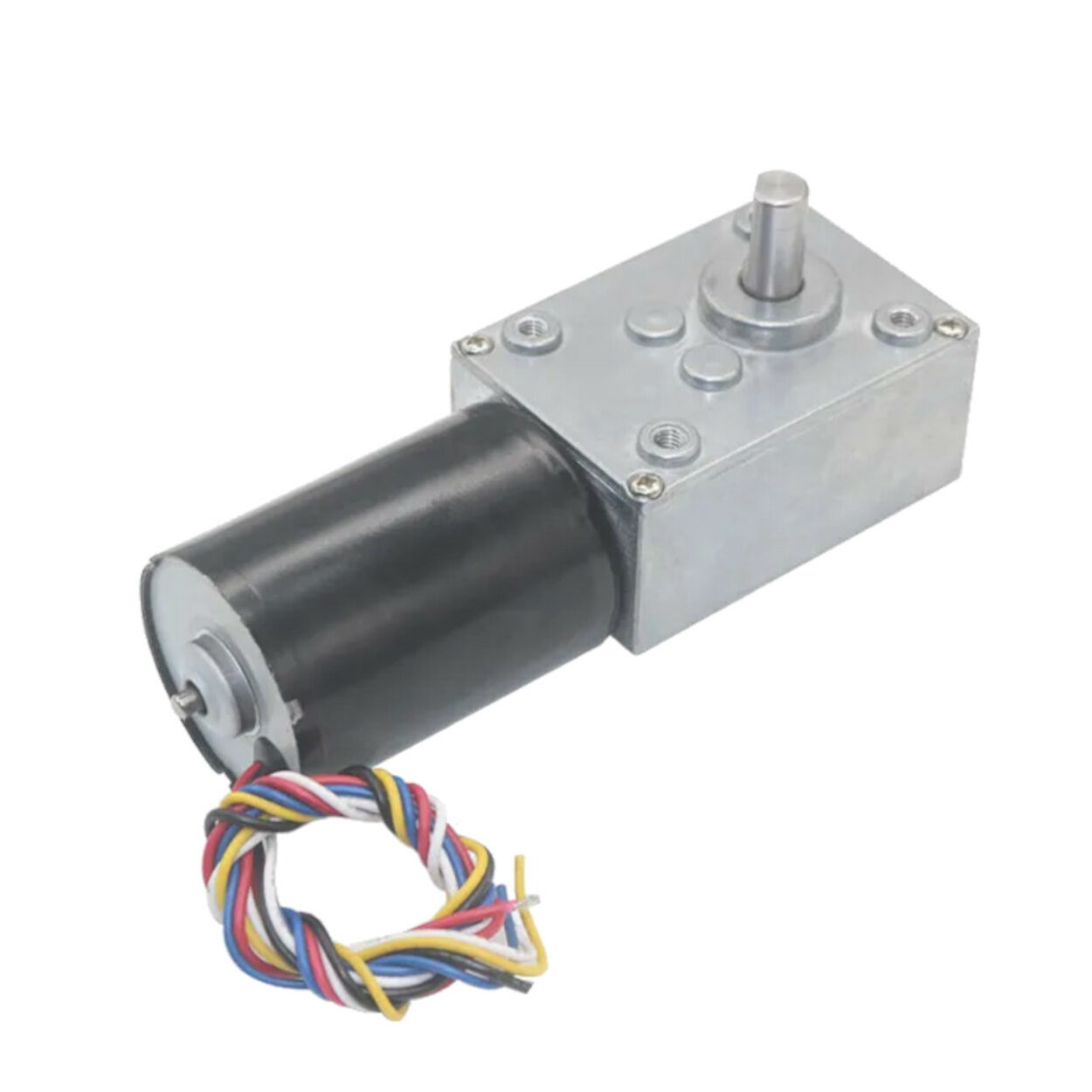

Name: 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder
Brand: Zbotic
SKU: AI3798
Price: 2846.16 INR
Availability: OutOfStock
Rating: 4.47 (19 reviews)

This is the Red variant of the 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder in DC Motor with Encoder. Available at ₹2,846.16 (₹2,412.00 + GST) with free shipping across India.

Looking for 24v Motor 459462? 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder is available at Zbotic with fast shipping across India.

5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder

The brushless geared motor combines a brushless high-speed motor with a gearbox, creating a comprehensive DC brushless geared motor that significantly reduces project maintenance costs. When the project’s load remains within the rated torque of the motor, it becomes an ideal choice for smart devices requiring long-term reliability. Controlled by frequency conversion technology, the brushless motor offers superior energy efficiency compared to carbon brush motors.

The motor is a Gear DC motor with a micro-turbine worm, you can change the wiring connection to change motor rotation

Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock

The reducer output shaft is arranged vertically with the motor shaft, whole motor output

Metal gears are characterized by high precision, durability, and low loss.

Specification:

Parameter	Specification
Model	5840-3650
Voltage	24V
Speed	80 RPM (Rotations Per Minute)
Motor Type	Brushless DC
Gear Type	Worm Gear Reduction
Encoder	Included
Operating Temperature	-10°C to +50°C

Package Include:

1 x 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder

5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Overview

The 5840-3650 is a 24V brushless DC worm gear reduction motor with built-in encoder, delivering a precise 80 RPM output and high torque for low-speed applications. Its full-metal gearbox and frequency-conversion control make it suitable for projects demanding long-term reliability, energy efficiency, and minimal maintenance.

Key Features of 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction

Brushless DC Motor: High efficiency and low maintenance compared to brushed alternatives.
Worm Gear Reduction: Full-metal gearbox provides 15 kg·cm rated torque, 39 kg·cm stall torque for strong low-speed drive.
Integrated Encoder: Built-in position feedback for closed-loop control and precise speed regulation.
Compact Dimensions: Measures 115 × 40 × 55 mm with an 8 × 15 mm shaft, ideal for space-constrained installations.
Energy Efficient: Frequency conversion drive reduces power consumption under rated load.
Fast Shipping from Zbotic: In-stock item ships nationwide across India within 24 hours.

Applications and Use Cases

Robotic arms and joint actuation where precise low-speed torque is required.
Conveyor systems in packaging machinery demanding controlled feed rates.
Automated gates, sliding doors, and security barriers for smooth, reliable movement.
Camera pan-tilt heads or telescope mounts needing accurate positioning feedback.
Medical devices such as patient lifts or diagnostic equipment requiring quiet operation.

How to Use 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction

Mount the motor securely to your frame using the gearbox housing, then couple the 8 mm output shaft to your load. Connect a compatible 24 V brushless DC driver with encoder inputs, wiring the three motor phases and encoder signals per manufacturer’s diagram. Adjust the driver parameters for 80 RPM nominal speed and set current limits to 1.6 A continuous. Verify rotation direction and fine-tune acceleration profiles for smooth startup.

Why Buy from Zbotic?

Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What driver is required to control this brushless motor?

You need a 24 V brushless DC motor controller (ESC) that supports encoder feedback. Configure the driver for 80 RPM target speed, set the continuous current limit to 1.6 A, and connect the three phase wires plus the A/B encoder channels to the controller’s inputs.

How do I mount and align the worm gear output shaft?

Use four M3 screws through the gearbox flange to secure the unit. Align the 8 mm steel output shaft with a mating coupling or pulley, ensuring minimal radial load. Tighten set screws on the shaft coupling to prevent slippage under high torque.

Can this motor handle loads above 15 kg·cm torque?

If your application requires short bursts up to 39 kg·cm, the stall torque specification covers those peaks. For continuous operation, keep the load within the 15 kg·cm rated torque to avoid overheating and ensure long service life.

Tags: 24V BLDC Motor Brushless Motor Buy Online India Encoder Gear Mechanical Zbotic

Technical Specifications

Operating Voltage	24V
Speed	80 RPM
Color	Red
SKU	AI3798
Weight	0.46995 kg
Availability	Out of Stock

Applications & Use Cases

The 5840-3650 24V 80RPM/MIN Brushless DC Worm Gear Reduction Motor with Encoder is a versatile dc motor with encoder used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.

Common use cases:

Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups

This product is ideal for electronics enthusiasts, engineers, and students.

Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
