The EFT E610P 10L Hexacopter Agricultural Spraying Drone Kit revolutionizes agricultural practices with its advanced capabilities. This professional-grade hexacopter offers an efficient and precise solution for crop spraying and agricultural tasks. Equipped with a powerful 10L tank, this drone kit enables the targeted application of fertilizers, pesticides, and other agricultural substances with accuracy and minimal waste. Its robust build and reliable flight performance ensure seamless operation even in challenging environments.

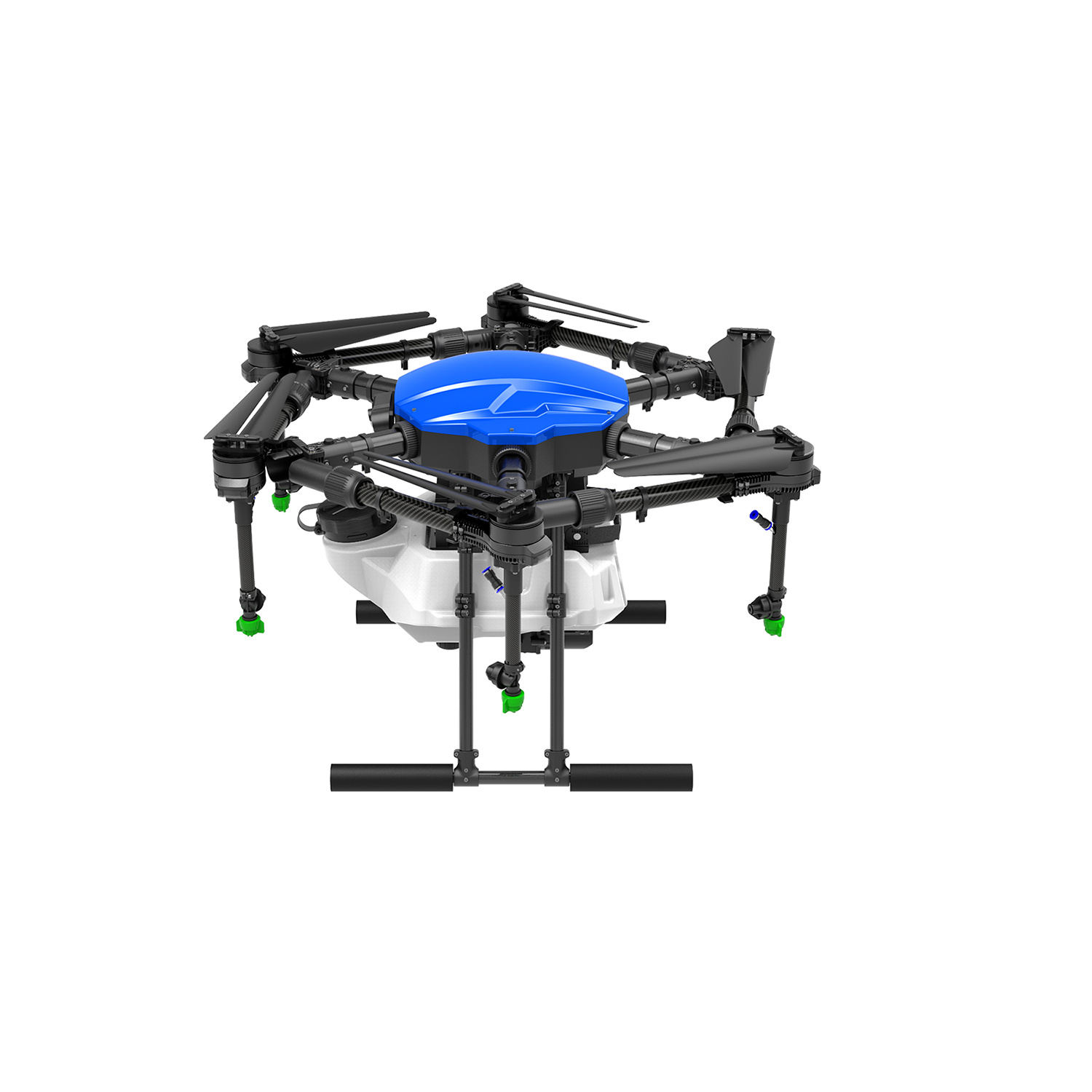

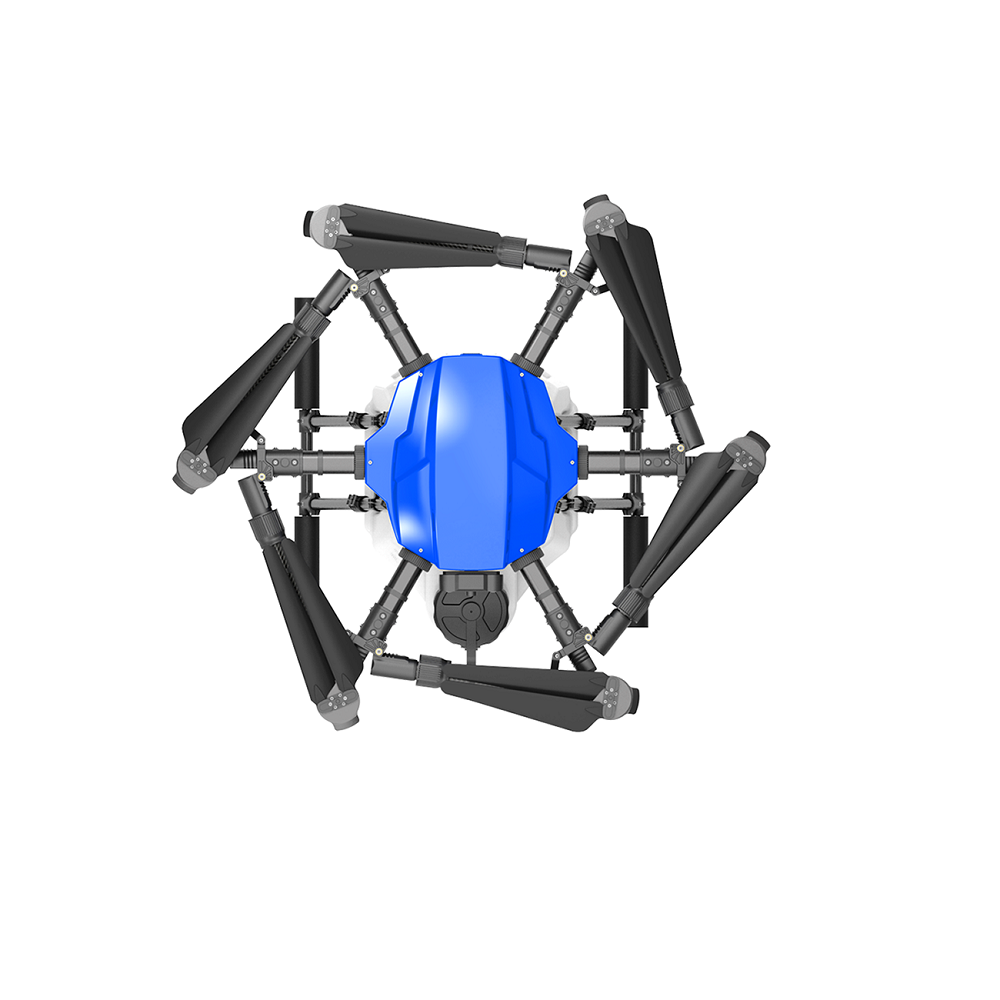

Introducing the Classic Folding Body:
A timeless design reinvented for modern convenience. Our latest product maintains the classic foldable body design, ensuring seamless transportation and effortless transitions.
The EFT E610P boasts intelligent flight control systems, incorporating GPS positioning and waypoint navigation for precise and automated spraying operations. With its impressive payload capacity and extended flight time, it efficiently covers vast areas, saving valuable time and resources along the way. Experience the epitome of efficiency and convenience with the EFT E610P Classic Folding Body.

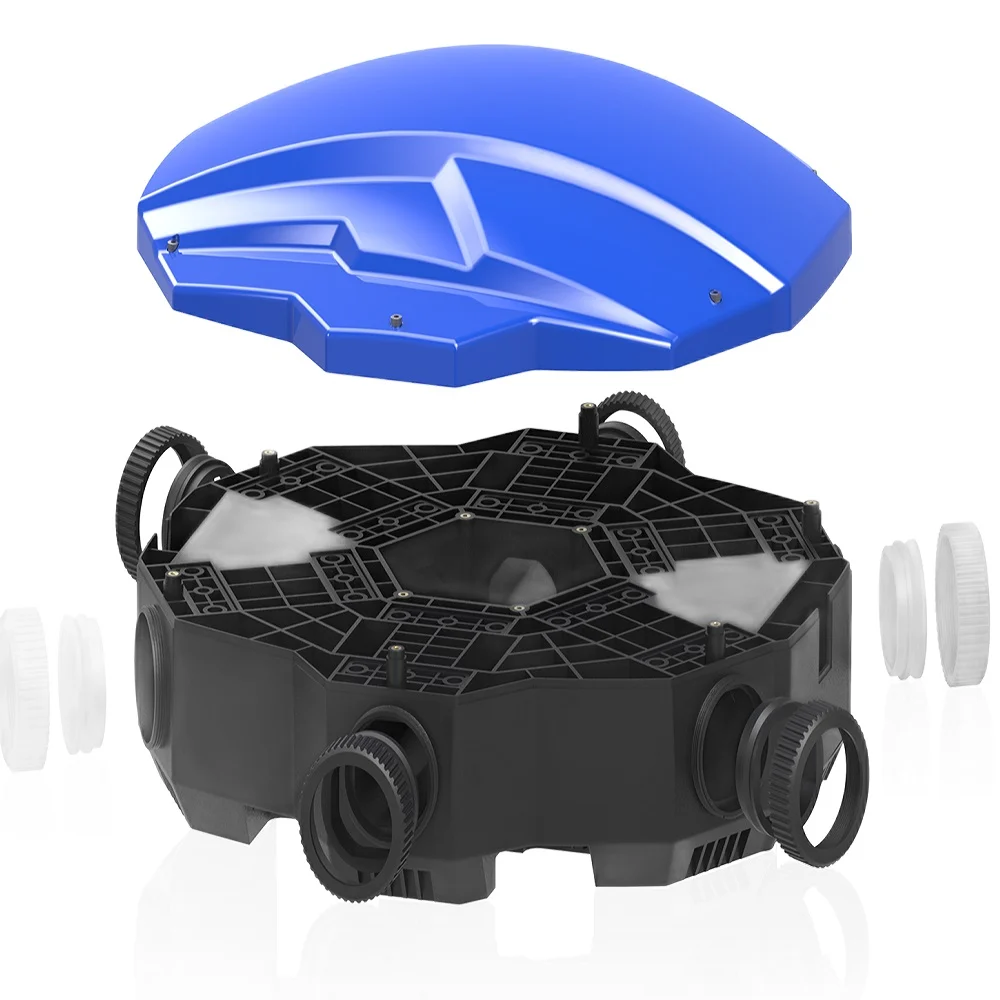

Integrated Power Supply Wiring:
Transform your agricultural operations with the EFT E610P 10L Hexacopter Agricultural Spraying Drone Kit. This innovative solution offers integrated power supply wiring, centralized power supply, and separate signal and power supply to minimize interference and optimize performance. Elevate your farming practices with enhanced efficiency, accuracy, and productivity. Experience the future of agriculture with the EFT E610P 10L Hexacopter Agricultural Spraying Drone Kit.
Features:
- Efficient Agricultural Spraying
- 10L Tank Capacity
- Robust Build
- High Payload Capacity
- Safety Features
- Precision and Accuracy
- Scalable and Customizable
Specifications:
| Motor Model | Hobbywing Xrotor X6 Plus 2388 or 2480 180KV motor Stator Size: 62 *15mm (Diameter× Thread Pitch) KV Rating: 180rpm/V Motor Size: φ69.4 |
|---|---|
| Propeller | Size: 23 x 8.8 Inch Total weight( inc. adapter) 107gm (for 6 Props) |
| ESC | 80A FOC |
| Supply voltage | 12S |
| Maximum take-off weight | 25 Kg |
| Wheelbase | 1404mm |
| Opening size | 1495 x 1308 x 500mm |
| Size after Folding | 945 x 848 x 500mm |
| Sprayer Tank capacity | 10 Liter |
| Shipping Weight | 9.5 kg |
| Shipping Dimensions | 72 × 50 × 50 cm |
Package Include:
1 x E610P Hexacopter Frame with all accessories
6 x Hobbywing Xrotor X6 Plus 2388 or 2480 180KV Motor
3 x CW Propeller
3 x CCW propeller
1 x 10 Litre Sprayer Liquid Tank
1 x 5 Ltrs Brushless Spray Pump
4 x Nozzle
1 x RTK Mount
1 x Front Radar Mount
1 x Height Radar Mount
EFT E610P 10L Hexacopter Agriculture Spraying Drone PNP Set Overview
The EFT E610P 10L Hexacopter Agriculture Spraying Drone PNP Set is a professional plug-and-play aerial platform engineered for precise agricultural treatments. Equipped with a 10 L chemical tank and foldable hexacopter frame, it enables efficient application of fertilizers, pesticides and herbicides over large fields.
Key Features of EFT E610P 10L Hexacopter Agriculture Spraying Drone PNP Set
- Dual Xrotor X6 Plus 2388 or 2480 180KV brushless motors for reliable lift under load
- 23 inch propellers optimized for high thrust and stable flight
- 80 A FOC ESC compatible with 12S systems for smooth and responsive motor control
- 10 L spray tank with a maximum take-off weight of 25 kg for extended coverage
- Foldable carbon-fiber frame reduces from 1495×1308×500 mm to 945×848×500 mm for easy transport
- Fast shipping from Zbotic with genuine product assurance
Applications and Use Cases
- Fertilizer spraying over vast paddy and cereal fields
- Pesticide application in orchards, vineyards and plantations
- Herbicide distribution in row crops and turf management
- Targeted foliar feeding on high-value horticultural plots
- Combined aerial scouting and spraying for precision agriculture
How to Use EFT E610P 10L Hexacopter Agriculture Spraying Drone PNP Set
Unfold the carbon-fiber arms and secure them with the integrated locking pins, install the 23 inch propellers, mount the 10 L spray tank, connect each 80 A ESC to your 12S battery and calibrate your flight controller. Fill the tank with a properly mixed solution, plan your flight path using your ground station software, then initiate take-off and activate the spray pump to begin treatment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What components are included in the PNP Set?
The PNP set includes the foldable carbon-fiber frame, six Xrotor X6 Plus 2388 or 2480 180KV motors, six 80 A FOC ESCs, 23″ propellers, landing gear, the 10 L spray tank and all necessary mounting hardware. You will need to add a compatible flight controller, receiver, transmitter and a 12S battery to complete the system.
How does the folding mechanism reduce transport size?
By unlocking the integrated pins on each arm, the hexacopter frame collapses from its full span of 1495×1308×500 mm down to a compact 945×848×500 mm footprint, allowing easy storage in cases or vehicle trunks.
What battery specification is recommended?
The EFT E610P is designed to run on a 12S (44.4 V nominal) lithium battery pack. Use a high-discharge battery with adequate capacity and C-rating to reliably power the 80 A ESCs and support the drone’s 25 kg take-off load.
