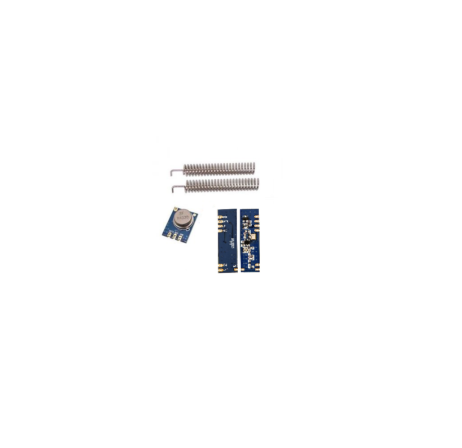

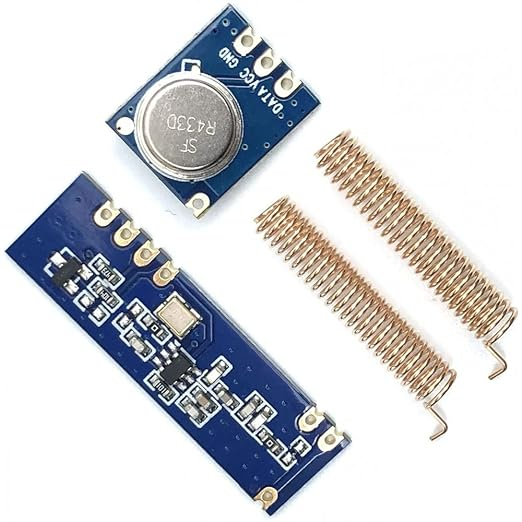

Introducing the 433MHz 100 Meters STX882 ASK Transmitter Module and SRX882 Superheterodyne Receiver Module Antenna Set, the perfect combination for your wireless communication projects.

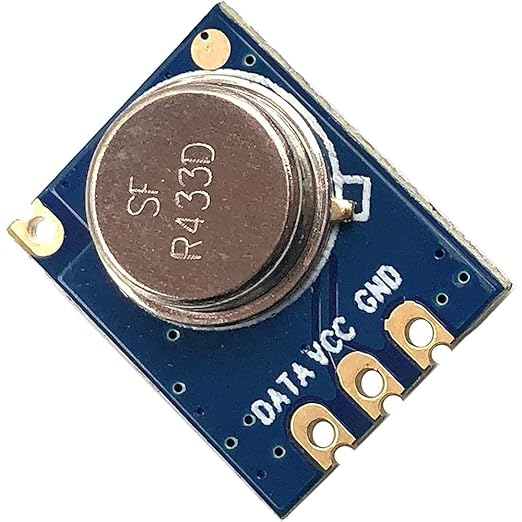

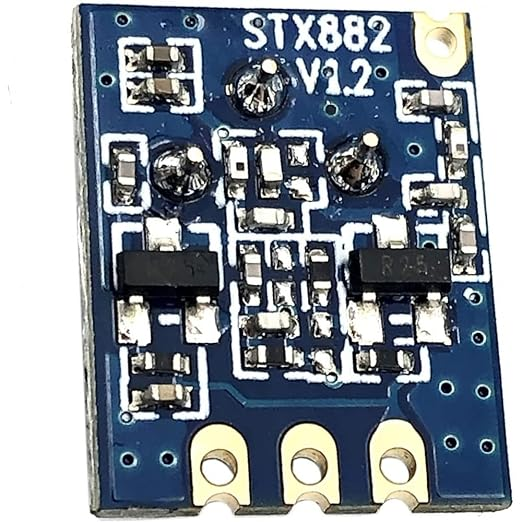

The STX882 is a powerful ASK transmitter module known for its compact size, ultra-high power, and low harmonics. With exceptional stability and the ability to operate at 50mW power at 3.6V, it stands out as the market leader in transmitter power modules. Its data port can be seamlessly connected to a microcontroller, simplifying wireless product development and production.

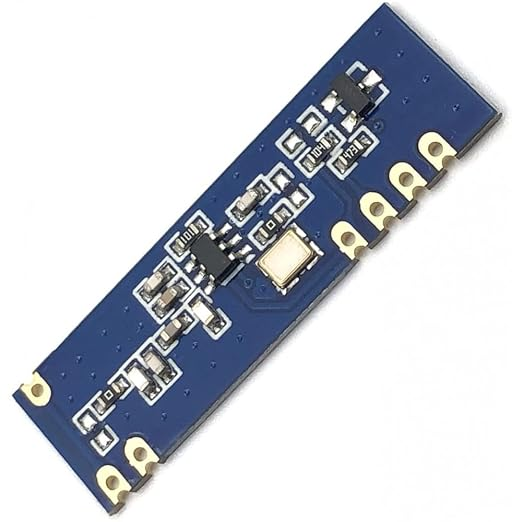

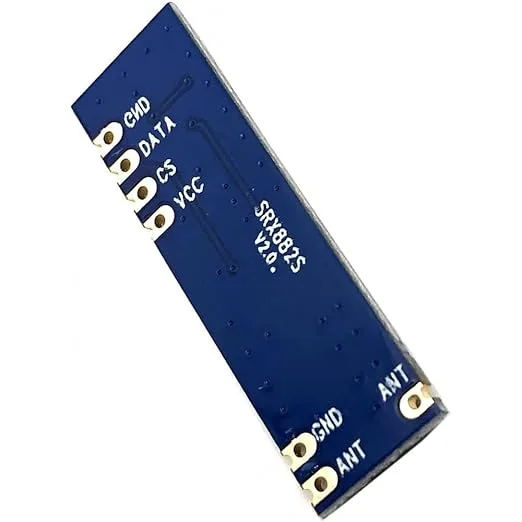

Complementing the transmitter, the SRX882 Superheterodyne Receiver Module boasts micropower consumption and robust driving force. Serving as a perfect match to the STX882 or STX888, it offers direct connectivity to a microcontroller for enhanced convenience in wireless product development.
Choose the suitable antenna for optimal performance:

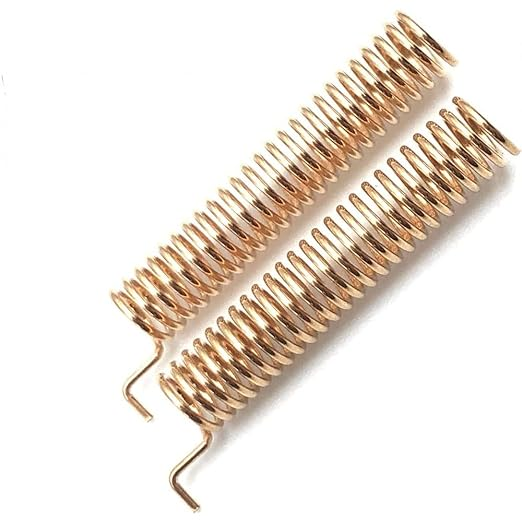

- SW315-TH23 Gold Plated Spring Antenna: Specifically designed for 315MHz wireless communication systems, featuring excellent VSWR, compact size, easy installation, and stable performance with good anti-vibration and aging resistance.
- SW433-TH22 Gold Plated Spring Antenna: Tailored for 433MHz wireless communication systems, offering similar advantages to the SW315-TH23 antenna.
Features:
- Frequency Range: 433MHz
- Modulation Mode: ASK / OOK
- Super Anti-power Interference
- Low-power Sleep Mode (<1μA)
- Low Self-radiation
- Compact Size
- Frequency Stability and Reliability
- Compliance with Various International Testing Standards
- Antenna Dimensions: 36 x 5.5 mm (Height x Diameter)
Specification:
| Specification | STX882 Transmitter Module | SRX882 Receiver Module |
|---|---|---|
| Frequency Range | 433MHz | 315MHz – 433.92MHz |
| Modulation Mode | ASK / OOK | N/A |
| Power | Ultra-high power | Micropower |
| Harmonics | Low | N/A |
| Supply Voltage | N/A | 2.4V – 5.5V |
| Operating Temperature Range | N/A | -30°C to 85°C |
| Data Port Connectivity | Microcontroller compatible | Microcontroller compatible |
| Sleep Mode | < 1μA | N/A |
| Self-radiation | Low | N/A |
| Antenna Compatibility | SW315-TH23 Gold Plated Spring Antenna (315MHz) | SW315-TH23 Gold Plated Spring Antenna (315MHz) |
| SW433-TH22 Gold Plated Spring Antenna (433MHz) | SW433-TH22 Gold Plated Spring Antenna (433MHz) |
Upgrade your wireless communication capabilities with the reliable and versatile 433MHz STX882 ASK Transmitter Module and SRX882 Superheterodyne Receiver Module Antenna Set. Ideal for hobbyists, engineers, and enthusiasts seeking top-notch performance and convenience in their projects
Package Includes :
1 x STX882 Transmitter Module.
1 x SRX882 Receiver Module.
2 x Antennas.
Technical Specifications
| Model | STX882 |
|---|---|
| Frequency | 433MHz |
| Package Quantity | 882 pcs |
| SKU | AI2385 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 433MHz 100 Meters STX882 ASK Transmitter Module + SRX882 Superheterodyne Receiver Module + Antenna is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
