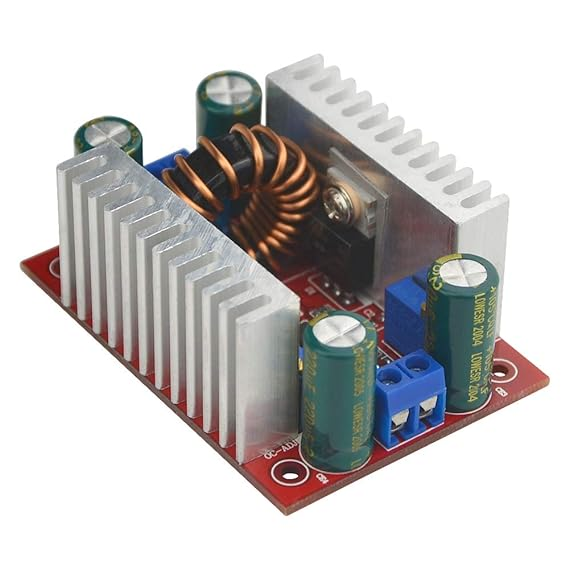

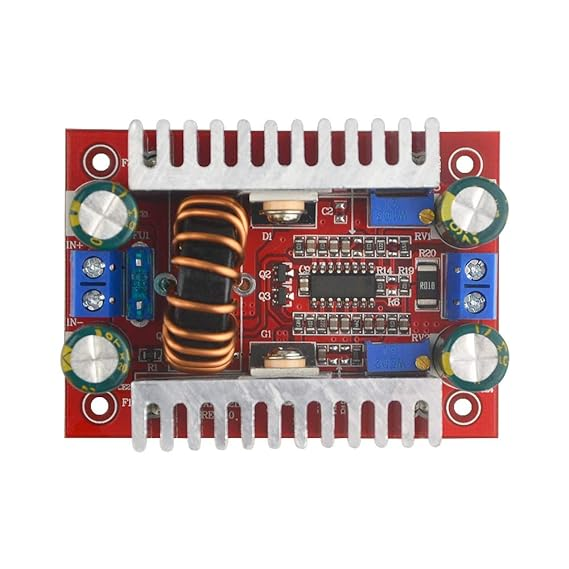

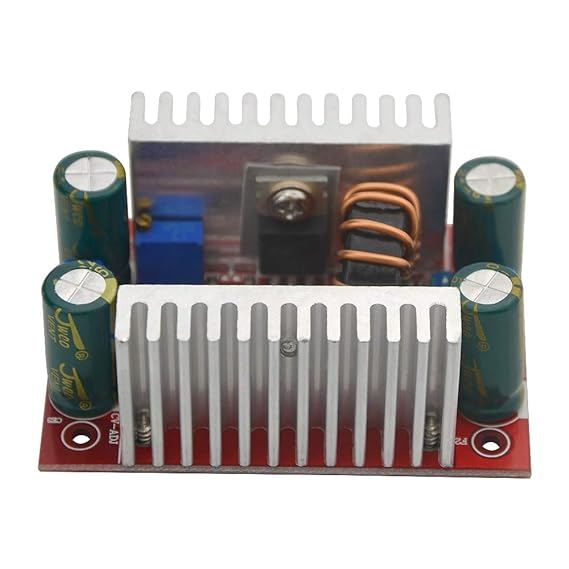

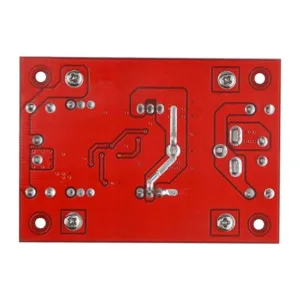

400WDC-DC High-Power Constant Voltage Constant Current Boost Power Module LED Boost Driver Laptop Battery Charging
Module name: 400W boost constant current module.
Module nature: Non-isolated boost module (BOOST)
Input voltage: DC8.5V-50V.
Input current: 15A (MAX) over 8A, please strengthen heat dissipation.
Static working current: 10mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)
Output voltage: 10-60V continuously adjustable, 12-80V fixed output.
Output current: 12A MAX, more than 7A, please strengthen heat dissipation (related to the input and output pressure difference,
the greater the pressure difference, the smaller the output current)
Constant current range: 0.2-12A
Output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, Input 36V*5A=180W, input 48V*5A=240W
Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference)
Overcurrent protection: Yes (when the input exceeds 15A, the output voltage is automatically reduced, and there is a certain range of error.)
Input reverse connection protection: None, (if you need more reverse connection current, please connect a diode in series with the input)

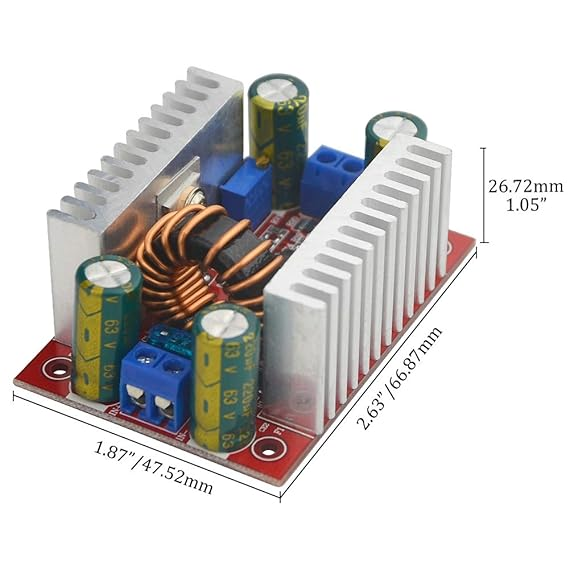

Installation method: 4pcs 2.5mm screw holes
Wiring mode: Wiring output
PACKAGE INCLUDES
1 X 400WDC-DC High-Power Constant Voltage Constant Current Boost Power Module LED Boost Driver Laptop Battery Charging
BALDEVBHAI BHARATBHAI NAKIYA (verified owner) –
YASH VERMA (verified owner) –
Product is working fine without any issues so far
SUBHADEEP M. (verified owner) –
It doesn’t have an indicator or short circuit protection so remember it before using this circuit it’s giving really high voltage ⚡⚡.
