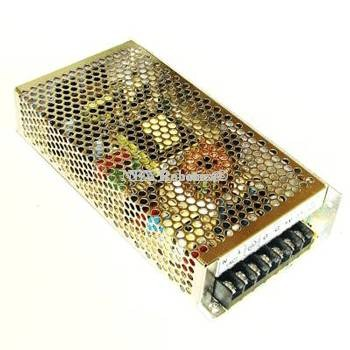

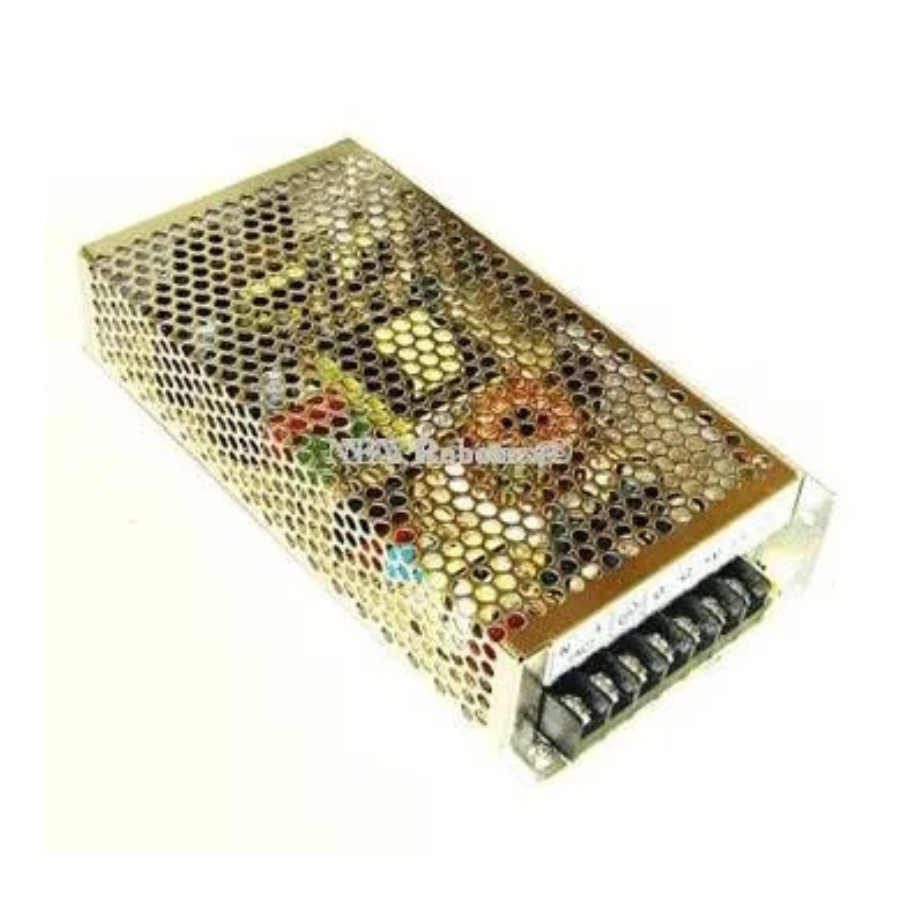

This is the 24V variant of the SMPS 24V 6AMPS in Switch Mode Power Supply. Available at ₹979.40 (₹830.00 + GST) with free shipping across India.
Introduction
This high-quality 24V, 6Amp SMPS is designed for industrial use. It is utilized in heavy-duty robotics applications and features built-in short circuit, overload, and overvoltage protection. It can tolerate an input of 1500V AC for up to 60 seconds. The output voltage is adjustable by up to ±10% of the rated output voltage.
Specifications
- Output: 24V, 6Amp
- Input:180V to 260V AC , 47 to 63Hz
- LED power indication
- DC calibration range: +-10% of the output voltage
- Overload protection: up to 150% with auto recovery
- Over voltage protection: up to 135% of the output voltage
- Short Circuit protection: long term
- Setup time: Less than 1 second
- Hold-up time: greater than 20mS
- Over voltage tolerance for input to output: 1500V AC for 60 seconds
- Over voltage tolerance for input to ground: 1500V AC for 60 seconds
- Over voltage tolerance for output to ground: 500V DC for 60 seconds
- Operating temperature: 0 to 450C
- Operating Humidity: 20% to 80% Non condensing (very important)
- Power conversion efficiency: 80%
- Safety standards: EN60950, GB4943
- Dimension: 199 x 98 x 40mm
- Product weight: 664gms
Package contains
24V, 6Amp SMPS
Technical Specifications
| Operating Voltage | 24V |
|---|---|
| SKU | AI5748 |
| Weight | 0.58 kg |
| Availability | In Stock |
Applications & Use Cases
The SMPS 24V 6AMPS is a versatile switch mode power supply used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
