3D printer 128×64 Smart LCD controller for ramps 1.4

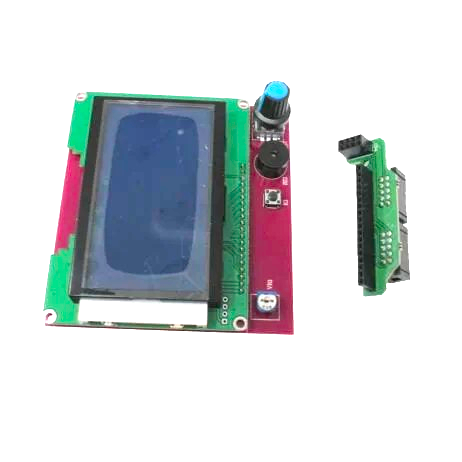

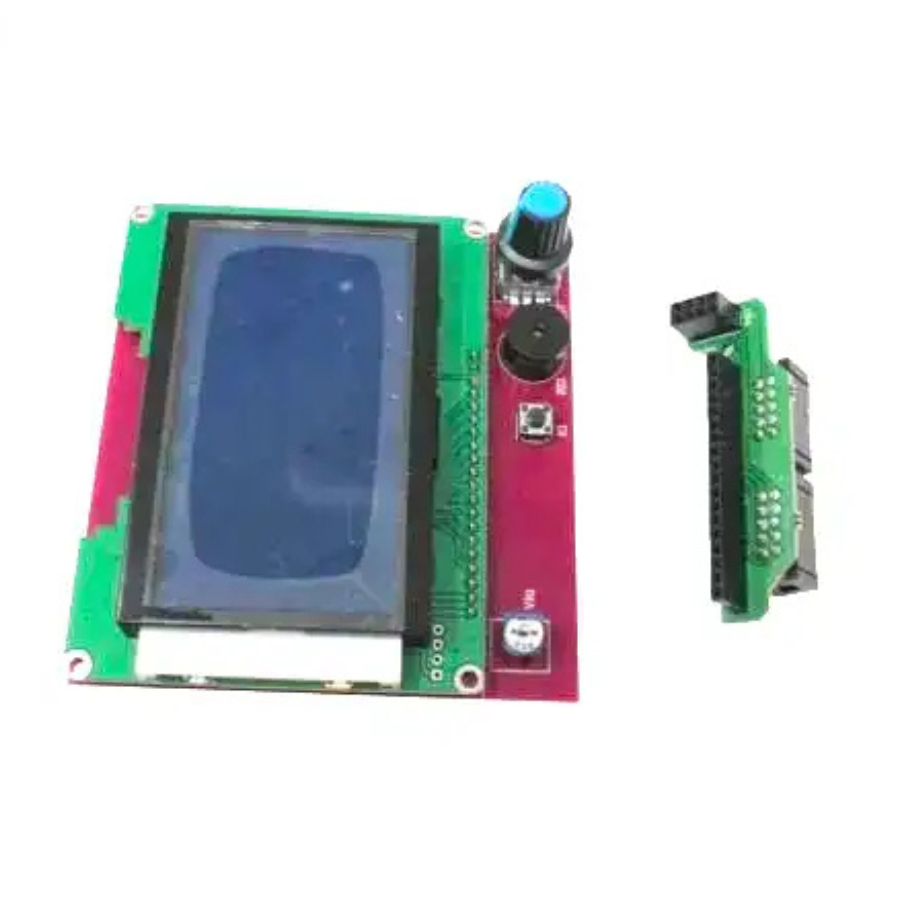

This product is a 3D printer 128×64 Smart LCD controller for ramps 1.4. It has an SD-Card reader, a rotary encoder and a 128×64 LCD display. You can easily connect it to your RAMPS board with the “smart adapter” included.
With this panel, you can print your 3D designs from an SD card without using a PC. You can also control the calibration and movements of the axes with the rotary encoder on the panel. This 128×64 screen shows more information than the 2004 Smart LCD Controller With Adapter, making it easier for you to run the 3D printer without a computer.
Marlin V1 (new)
We have provided the Arduino Code to Start smart LCD with RAMPS. You have to open the “Arduino code pdf “(Which is Provided below the ATTACHMENTS tab ) and go to “Configuration.h” and change as
Installation: In “Configuration.h”
Change “#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER” (just remove the // at the beginning)
Upload the code, power off the Arduino, connect the panel, reapply power, and everything should work.
or
Step 1: Download and install U8glib to your ARDUINO IDE’s library folder
Step 2: Edit Configuration.h in Marlin firmware, Search and Uncomment (just remove the // at the beginning)
#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER
Step 3: Then Compile and Upload the firmware
Step 4: Power off the Arduino, connect the panel, reapply power, and everything should work.
We are selling the range of 3D printer accessories with which you can build a 3D Printer of your own and also, we are selling fully assembled 3D printers too, cool!!! so do not forget to check our 3D Printers category (click on the name below)
Features:
- Large screen display 128×64 LCD (3.2″)

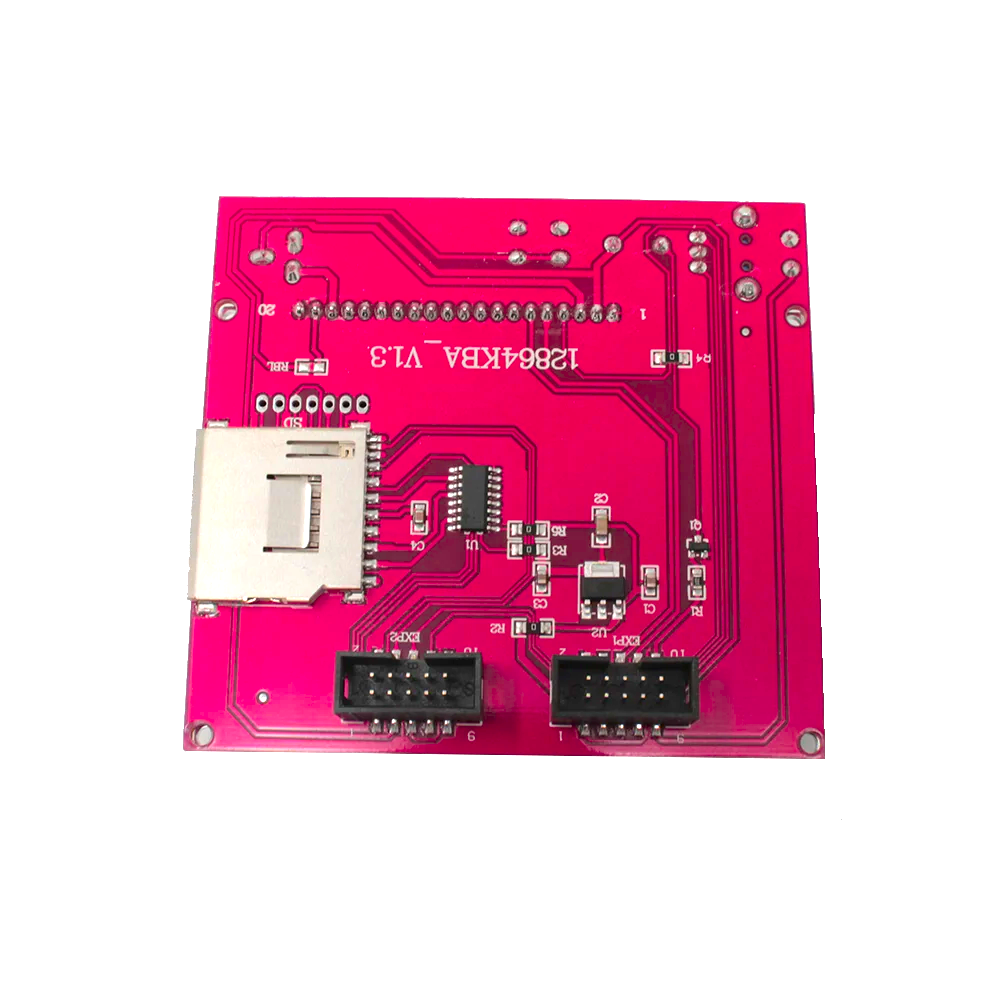

- SD card slot at the back, able to directly select a file and print.
- The product comes encoder parameter adjustment can be achieved, and the file selection print.
- Plug & play on the RAMPS but need to modify the firmware to support.
- LCD 12864 Smart Controller fully supported by Marlin Firmware.
Specification:
| Cable Length (cm) | 30 |
|---|---|
| Input Supply Voltage (VDC) | 5 |
| Length (mm): | 93 |
| Width (mm) | 87 |
| Height (mm) | 14 |
| Shipping Weight | 0.13 kg |
| Shipping Dimensions | 15 × 12 × 4 cm |

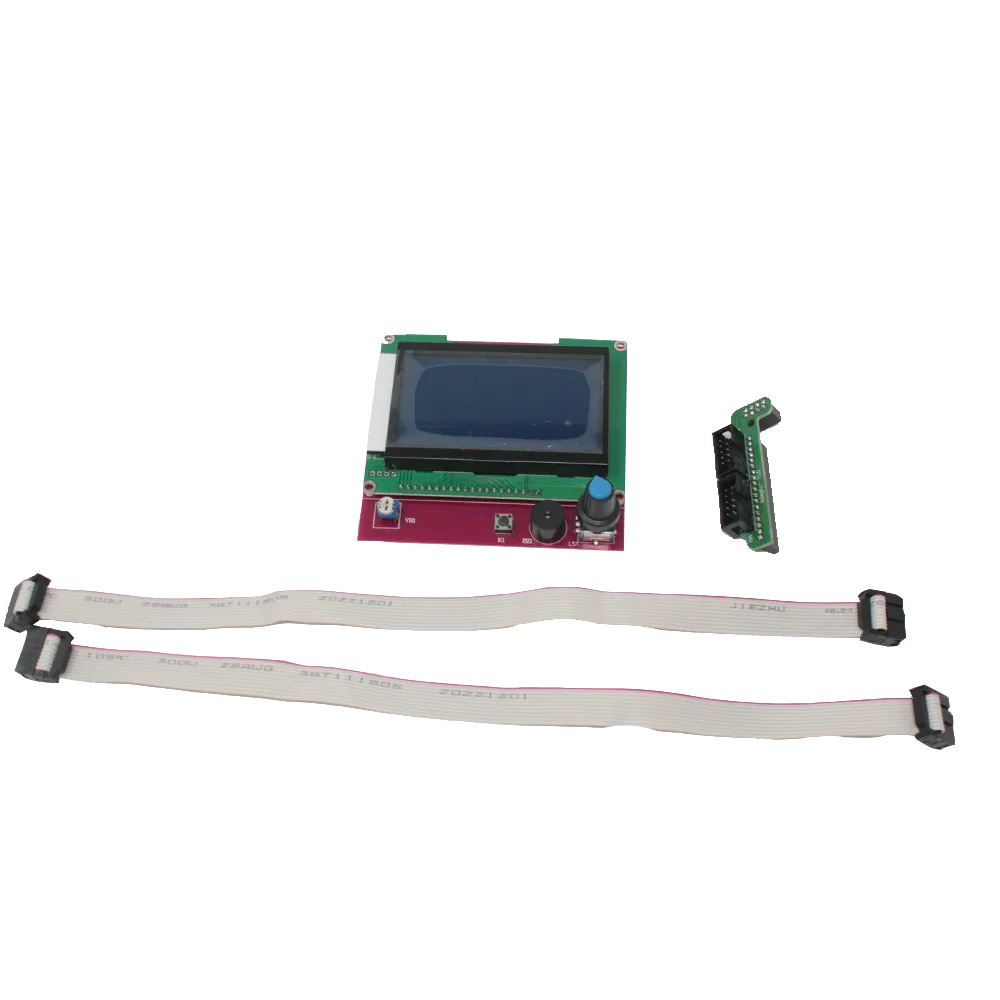

Package Includes:
1 x 128×64 Smart LCD controller for ramps 1.4.
1 x Smart Adapter.
2 x 30cm FRC Cable.
