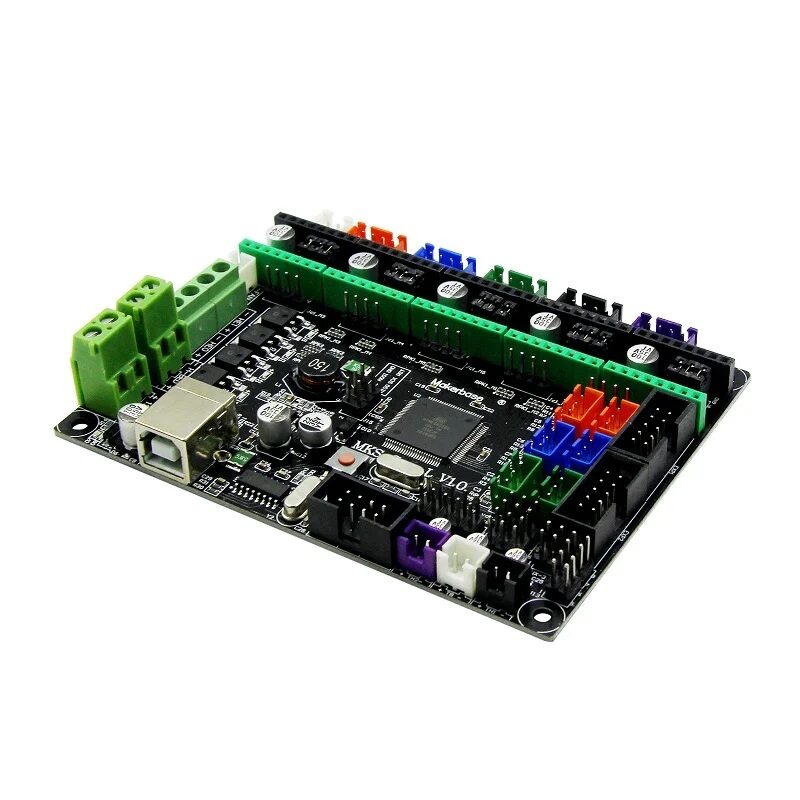

1.4 MKS Gen L V1.0- Mega2560 R3 RAMPS 3D Printer Controller Board

1.4 MKS Gen L V1.0- Mega2560 R3 RAMPS 3D Printer Controller Board

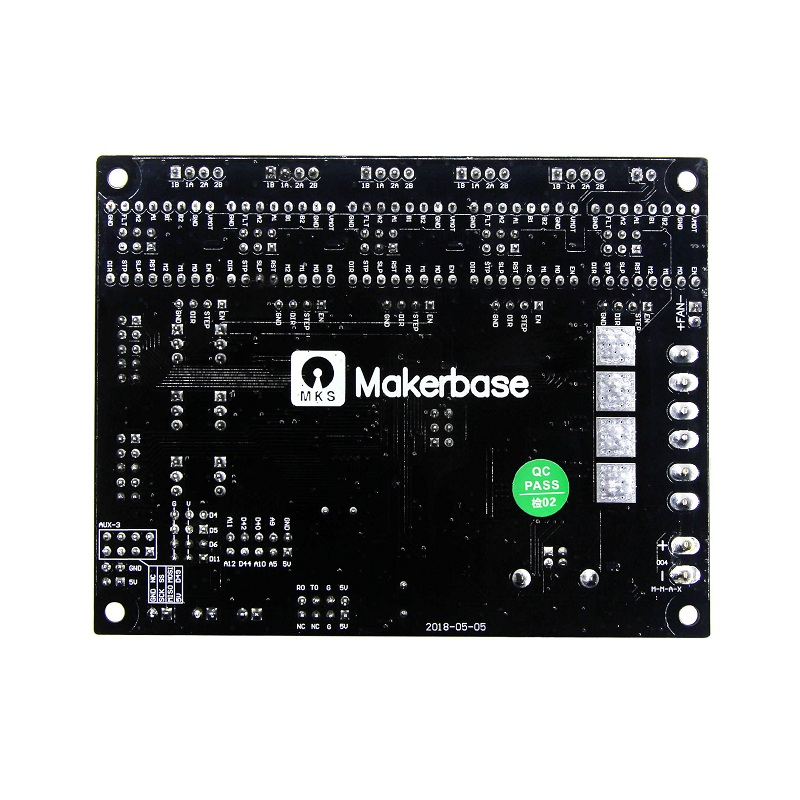

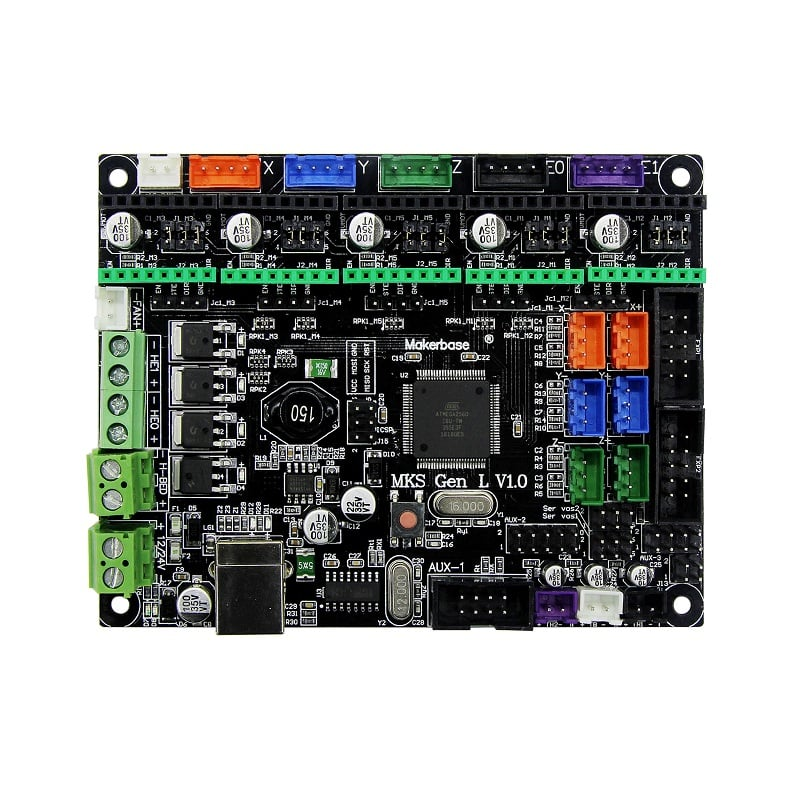

The MKS-GEN L V1.0, developed by Makerbase, serves as an optimized solution for the inherent issues found in open-source controller boards like the Ramps 1.4, particularly tailored for 3D printers. This product introduces enhanced flexibility, addressing the limitations of its predecessors.

Meanwhile, the MKS BASE-L emerges as a comprehensive electronics solution, catering to Reprap and other CNC devices. Featuring an onboard ATmega2560 and powered by A4982 stepper drivers, it offers five motor outputs. Compatible with firmware utilized by Ramps1.4, this board stands out for its adaptability to various power sources, ranging from 12V to 24V.

Designed with versatility in mind, the MKS BASE-L proves ideal for manufacturers engaged in batch production of 3D printers, serving as the primary control board. Distinguishing itself from the Ramps1.4, it incorporates an additional E1 heating output, further enhancing its utility and functionality in diverse applications.

Features:

1. Arduino MEGA compatible Atmega2560 and FT232 processors are compatible with all RAMPS class firmware

2. Firmware can have the same configuration as ramps1.4

3. Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board

4. Easy connect MKS TFT to AUX-1

5.3x temperature ADC connectors for thermistors

6.up 5 motor driver with A4982

7.4x PWM enable mosfet outputs voltage selector switch for MainPower. (Bed, Extruder0, Extruder1, Fans)

8.4 layers PCB, optimize heat dissipation.

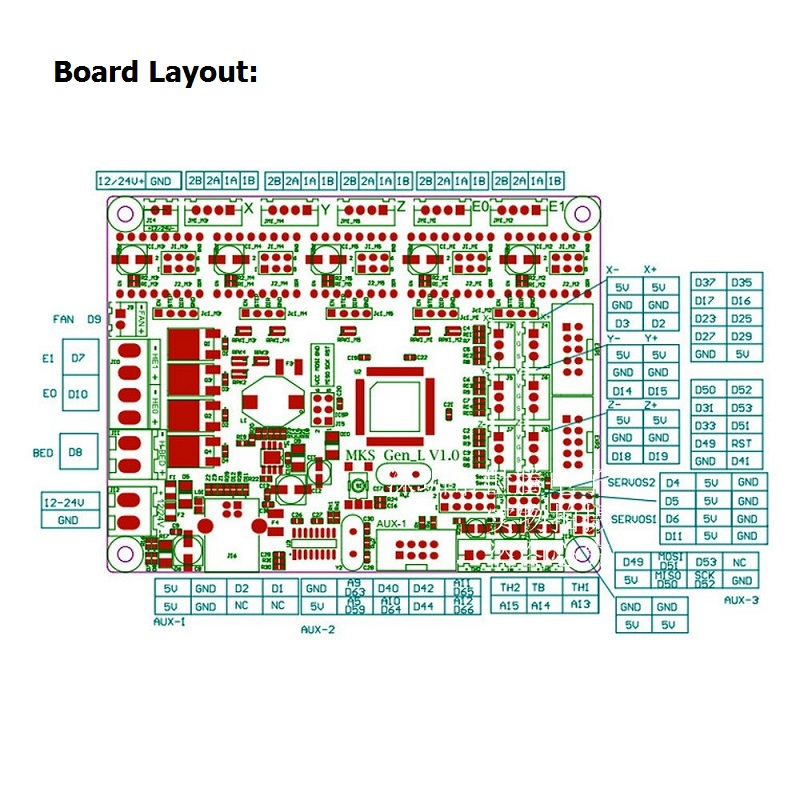

9.6x end stop connectors with power supply Xmin / Xmax / Ymin / Ymax / Zmin / Zmax

10. Resettable fuse for short circuit.

Compare MKS BASE, here are the differences.

MKS BASE-L:

1. Adopt a USB 16u2 drive instead of FT232.

2. The power module uses 2596.

3. HR4982 stepper drivers are built in place.

Specification:

Model Number	MKS Gen L V1.0
Operating Power	12V-24V
Support Ramps	1.4
Cable Length (cm)	50
Length (mm)	110
Width (mm)	90
Height (mm)	18.5
Weight (gm)	110
Shipping Weight	0.12 kg
Shipping Dimensions	16 × 13 × 3 cm



PACKAGE INCLUDES

1 X 1.4 MKS Gen L V1.0- Mega2560 R3 RAMPS 3D Printer Controller Board

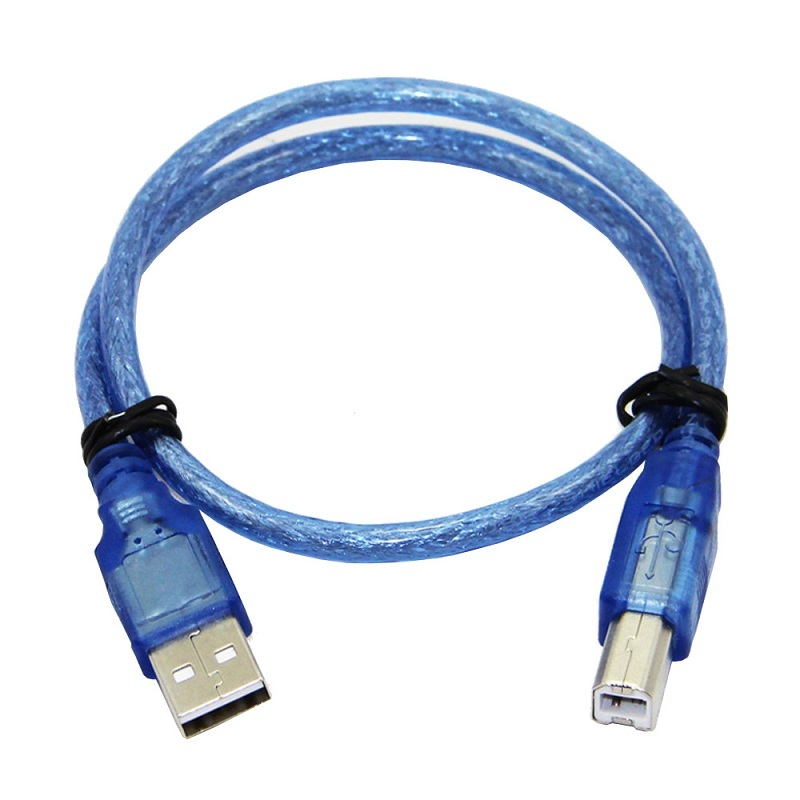

1 x USB interfacing cable (0.5Meter)
