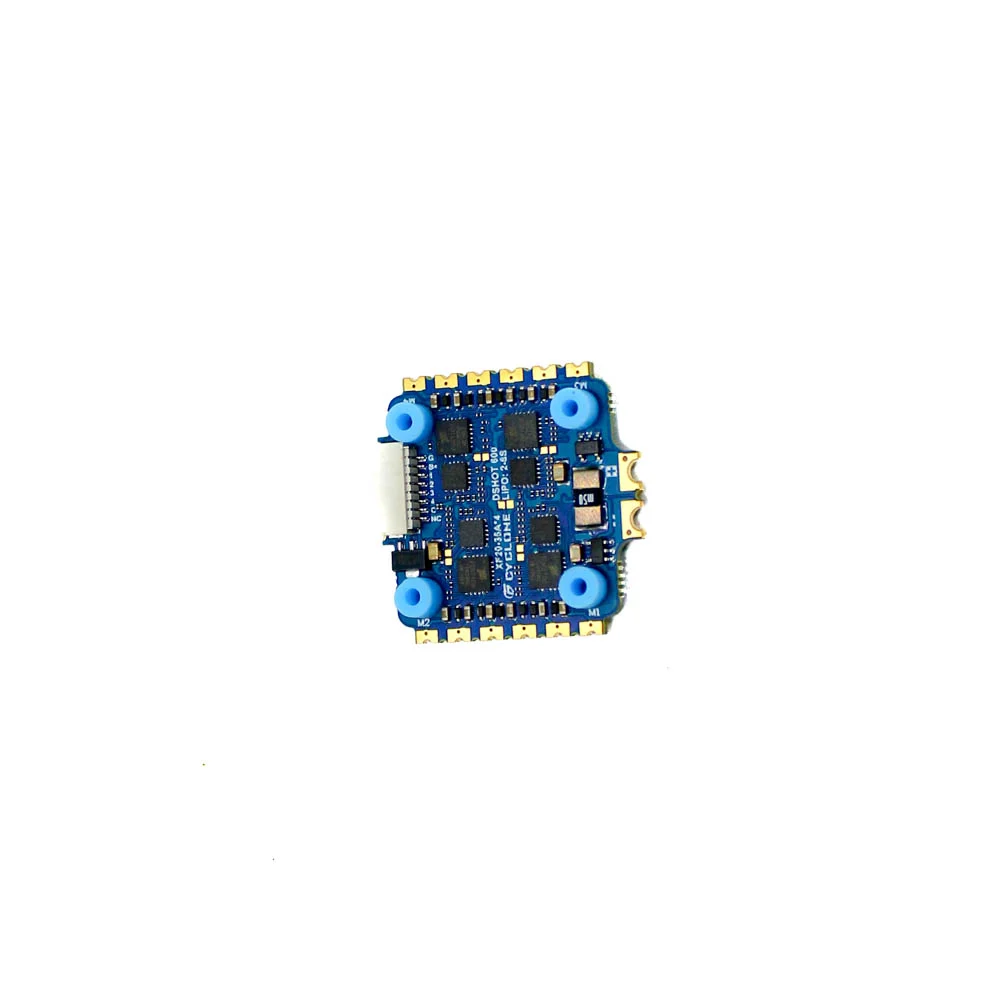

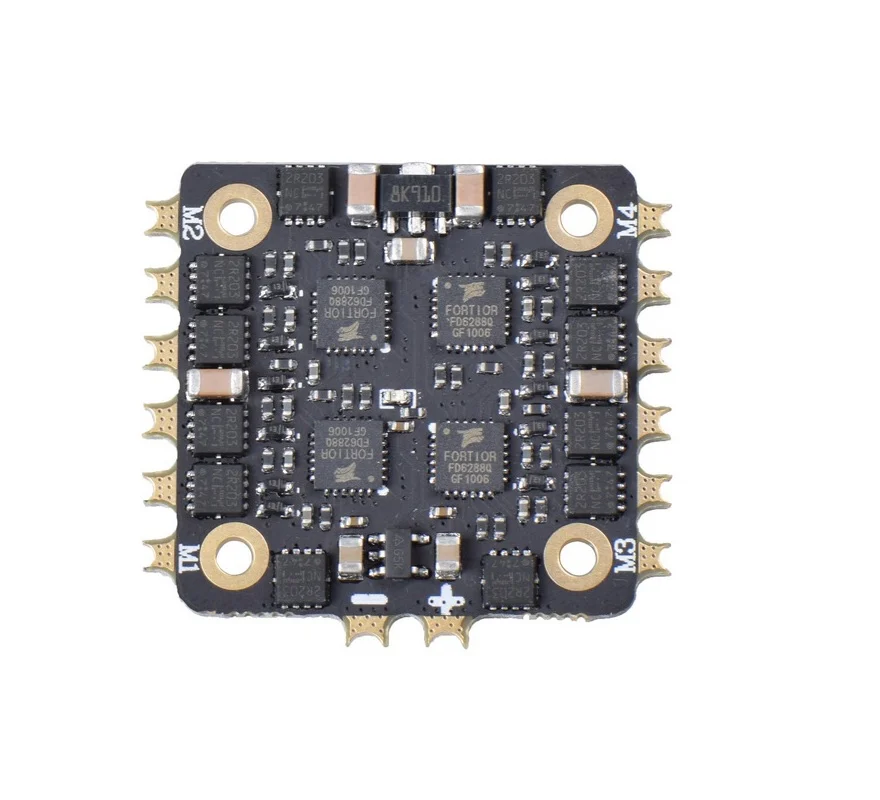

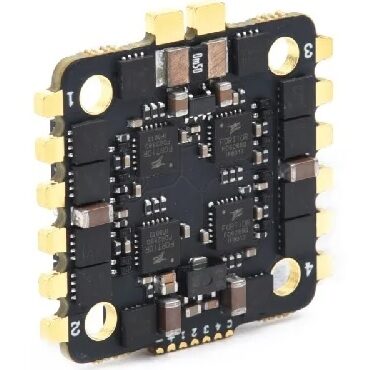

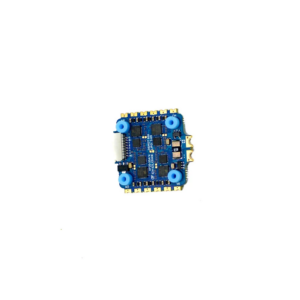

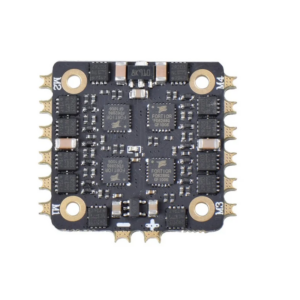

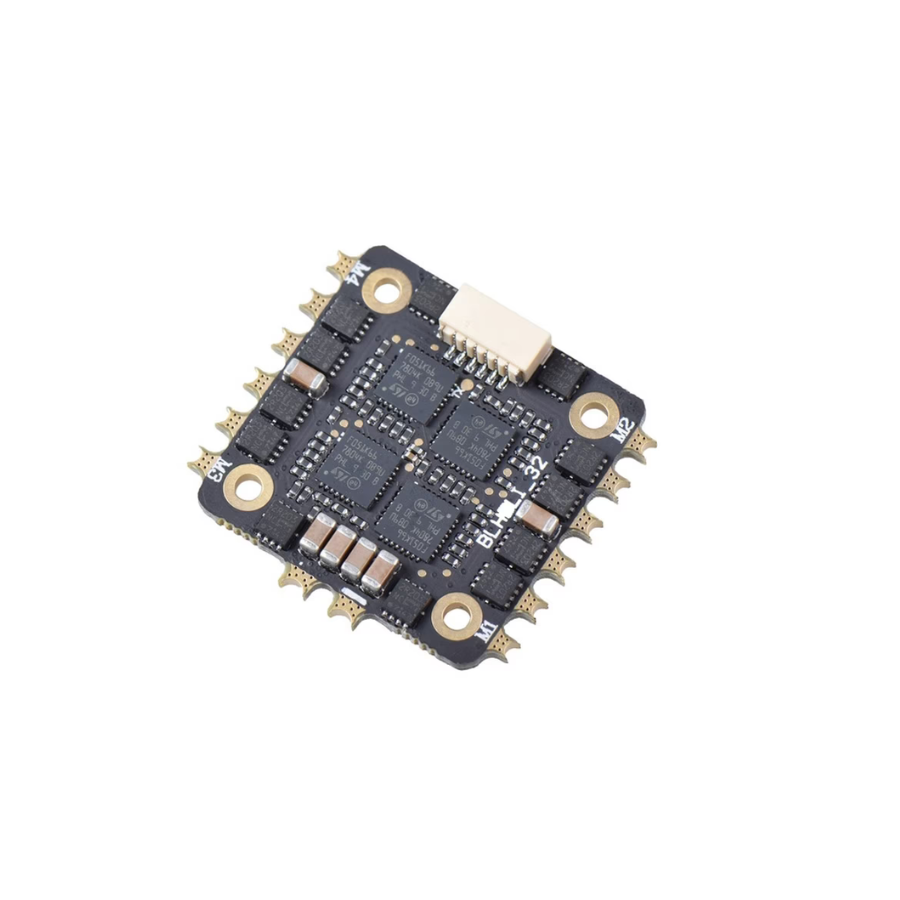

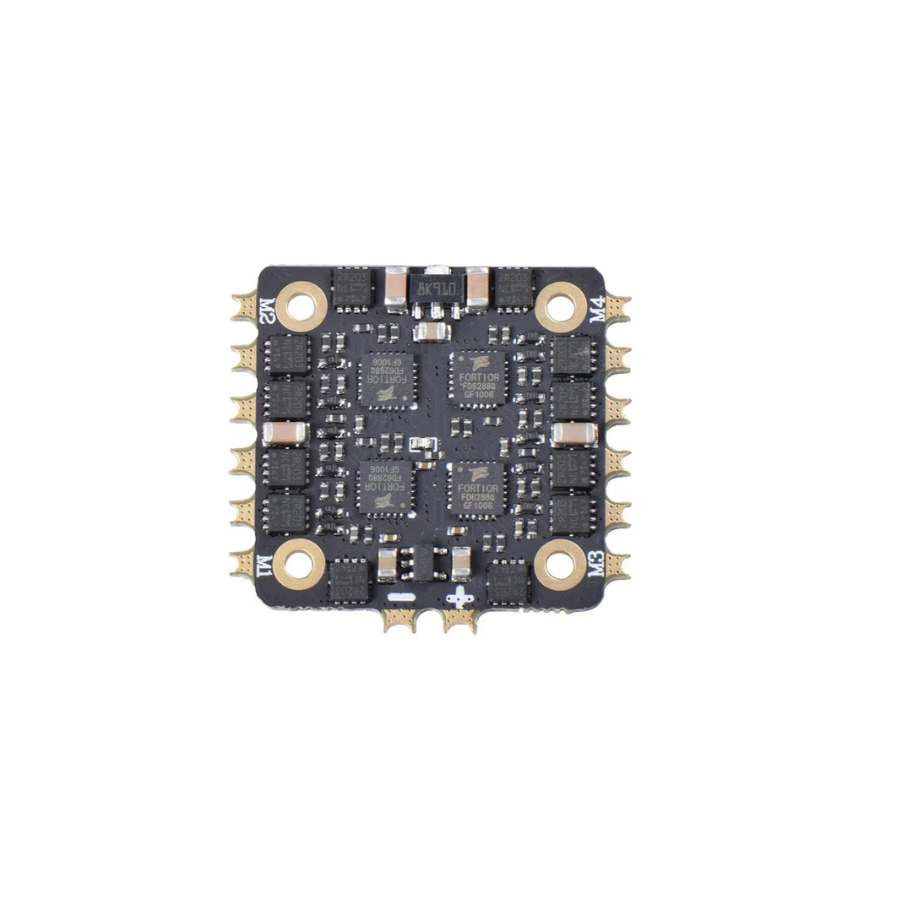

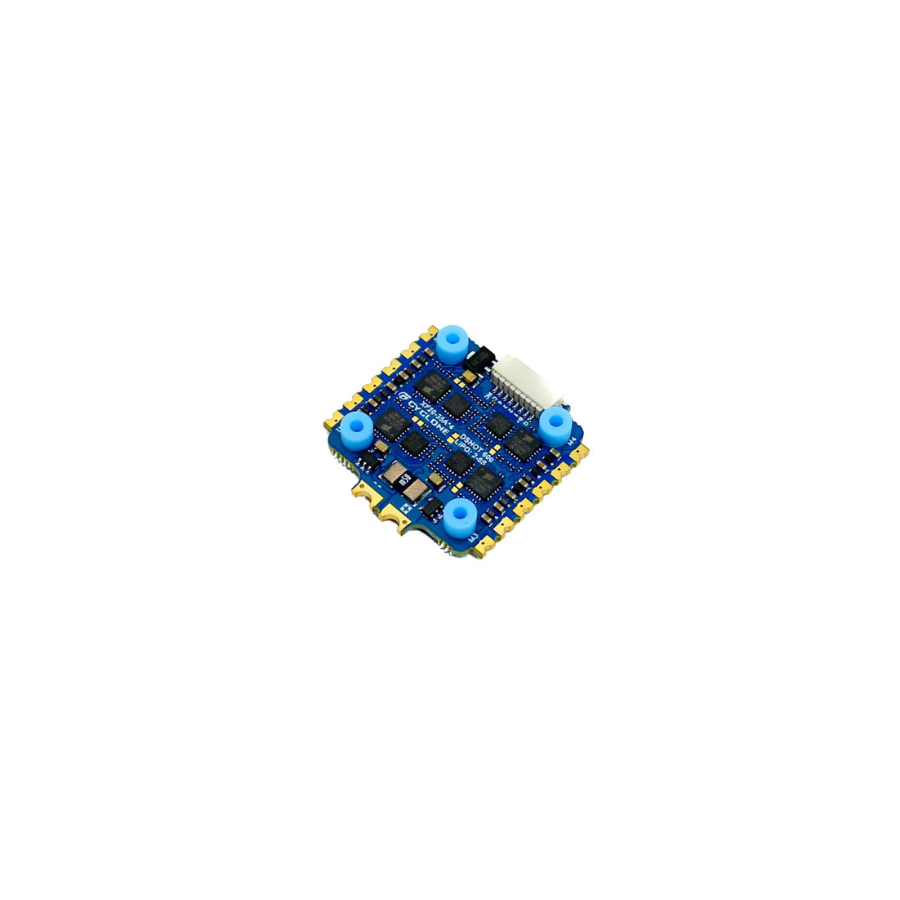

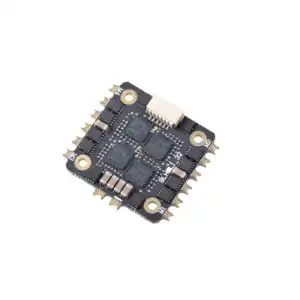

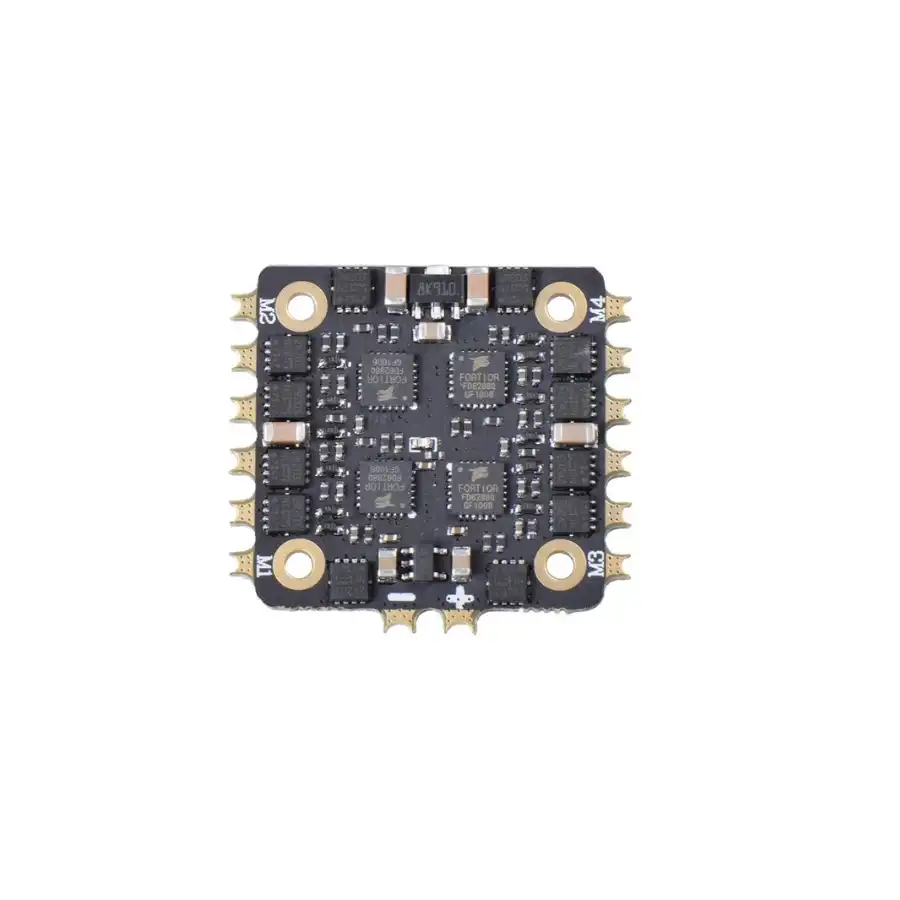

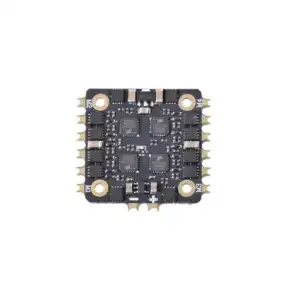

35A V2.1 2-5S 4-in-1 Brushless ESC for RC Drone FPV Racing
If you’re looking to build a drone and need guidance on choosing the right ESC, you’re in the right place! At ZBOTIC, we offer everything you need to launch your drone project.
Consider the BLS U 35A V2.1 2-5S 4-in-1 electronic speed control (ESC) system. This advanced BLHELI_S 35A V2.14 ESC features high system integration in a compact design, making it significantly smaller than standard options while delivering exceptional performance with support for up to 5S batteries. It is compatible with models J-H-30 and J-H-25 and supports various protocols, including ONESHOT125, ONESHOT42, MULTISHOT, DSHOT150, DSHOT300, and DSHOT600. The pads are designed to be half-expanded for enhanced space efficiency and durability.
An electronic speed controller regulates the speed of an electric motor and may also offer motor reversing and dynamic braking capabilities.
Features:
- Firmware: BLHELI 32 ESC
- programmable PWM frequency of up to 48KHz
- Processor: 32-bit ARM architecture
- Power supply: 2-5S (7.4-16.8V)
- Continuous current: 25A
- Burst current: 35A (5S)
- Support : ONESHOT125, ONESHOT42, MULTISHOT,DSHOT150, DSHOT300, DSHOT600
- Support : 2-5S voltage input, 4PWM input
- Auto-timing for higher efficiency and reliability
SPECIFICATION-
| Item name | 35A Blheli_32 Brushless ESC |
|---|---|
| Power supply | 2-5S (7.4-16.8V) |
| Board size | 31*31MM |
| Continuous current | 25A |
| Peak | 35amps |
| Processor | MCU EFM8BB21F16G |
| Firmware | BLHELI 32 ESC |
| Install hole | 20*20MM |
| Hole diameter | 2MM |
| Length (mm) | 31 |
| Width (mm) | 31 |
| Height (mm) | 6.4 |
| Weight (gm) | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 8 × 6 × 1 cm |
Package Includes:
1 x 25A Blheli_32 Brushless ESC
35A V2.1 2-5S 4-in-1 Brushless ESC for RC Drone FPV Racing Overview
The 35A V2.1 2-5S 4-in-1 Brushless ESC is a compact, high-integration speed controller designed for FPV racing drones. It combines four BLHeli_32 ESC circuits on a single board, handling 2-5S LiPo input and delivering precise motor control for agile flight performance.
Key Features of 35A V2.1 2-5S 4-in-1 Brushless ESC for RC Drone FPV Racing
- BLHeli_32 firmware on a 32-bit ARM processor for fast, smooth throttle response
- Power input range: 2-5S LiPo compatible
- Continuous current rating: 25A per channel with 35A peak capability
- Support for ONESHOT125, ONESHOT42, MULTISHOT, DSHOT150, DSHOT300, DSHOT600 protocols
- Half-expanded solder pads for space-efficient, durable motor and power connections
- Compact 4-in-1 design, significantly smaller than individual ESC units
- Compatible with J-H-30 and J-H-25 frame models
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- FPV racing quads requiring high-speed throttle control
- Freestyle drone builds where compact ESC layout saves weight
- Mini quad prototypes using 2-5S power systems
- Indoor and outdoor aerial cinematography rigs
- Custom multirotor platforms needing synchronized motor performance
How to Use 35A V2.1 2-5S 4-in-1 Brushless ESC for RC Drone FPV Racing
Solder your LiPo power leads and four motor wires to the half-expanded pads, then connect the ESC’s signal wires to your flight controller’s motor output pads. Use BLHeliSuite on a compatible USB-to-serial adapter to calibrate throttle range, select preferred protocol (e.g., DSHOT600), and adjust timing before flight testing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What battery voltages does this ESC support?
This 4-in-1 ESC accepts 2-5S LiPo batteries. Do not exceed 5S to avoid damage.
Which signal protocols are available?
It supports ONESHOT125, ONESHOT42, MULTISHOT, DSHOT150, DSHOT300, and DSHOT600 for versatile flight controller compatibility.
What are the current limits?
Each channel is rated for 25A continuous current with short-term peaks up to 35A, ideal for high-performance racing setups.
