Looking for 3.2 Inch Tft Screen Module? 3.2″ Inch TFT Screen Module for MEGA 2560 R3 (Non-touch) is available at Zbotic with fast shipping across India.
3.2″ Inch TFT Screen Module for MEGA 2560 R3:
PRODUCT DESCRIPTION

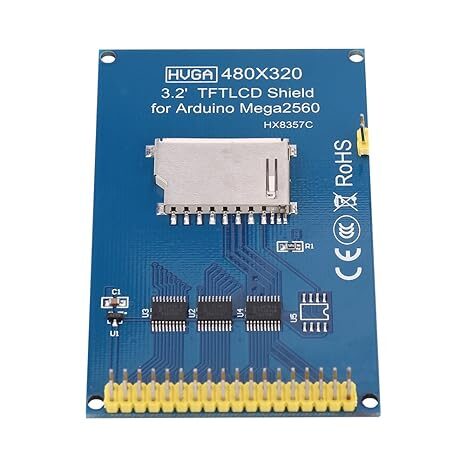

This Module can directly insert into the Mega2560 Board, it also includes the SD card socket and SPI FLASH circuit. Support Mega2560 directly inserted. With Full-angle IPS TFT panel.
- his module is 3.2″ TFT LCD with 262 color 480×320 resolutions.
- Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit.
- This Module can directly insert into the Mega2560 Board, it also includes the SD card socket and SPI FLASH circuit.
- Support Mega2560 directly inserted. With Full-angle IPS TFT panel.
- On-board level conversion chip for 5V/3.3V MCU. Compatible with 3.3/5V operation voltage level.
PACKAGE INCLUDES
1 X 3.2″ Inch TFT Screen Module for MEGA 2560 R3 (Non-touch)
3.2″ Inch TFT Screen Module for MEGA 2560 R3 Overview

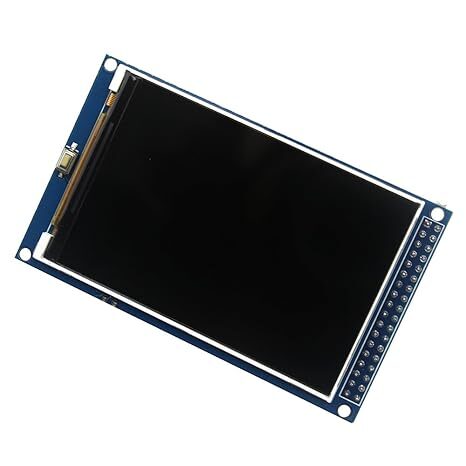

The 3.2″ Inch TFT Screen Module for MEGA 2560 R3 is a non-touch IPS display shield designed specifically for Arduino Mega2560 R3 boards. With a 480×320 resolution and onboard power and level conversion circuits, it provides a plug-and-play graphical interface for embedded projects.
Key Features of 3.2″ Inch TFT Screen Module for MEGA 2560 R3
- 3.2″ IPS TFT panel with 480×320 pixels and 262K color depth for wide viewing angles
- Onboard 5V–3.3V power conversion and level shifting for direct Mega2560 R3 connection
- Built-in SD card socket and SPI flash circuit to store images, fonts, and data
- Shield form factor, plugs directly into the Mega2560 R3 headers—no wiring required
- Compatible with popular Arduino TFT libraries (e.g., MCUFRIEND_kbv)
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Graphical user interfaces for Arduino-based control panels and instrumentation
- Real-time data visualization for sensors, IoT gateways, and home automation
- Custom menus and icons for robotics projects and interactive prototypes
- Embedded gaming consoles and retro handheld devices
- Image slideshow or photo viewer using onboard SD card socket
- Firmware development and debugging display for educational labs
How to Use 3.2″ Inch TFT Screen Module for MEGA 2560 R3
To use this module, simply align and plug it into the 2×17 header of your Arduino Mega2560 R3. Install a compatible TFT library (such as MCUFRIEND_kbv), select the correct driver ID in your sketch, and upload example code. The onboard SD socket is accessed via SPI pin D10 as chip select. Power is supplied directly from the Mega2560’s 5V rail.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this display compatible with Arduino Uno?
While you can wire it manually, the shield is designed to match Mega2560 R3 pin layout. On an Uno you’ll need custom jumper wiring and ensure 5V-to-3.3V conversion is maintained.
Do I need an external power supply for the TFT module?
No external supply is required. The onboard converter draws from the Mega2560’s 5V pin to generate 3.3V for the display and level shifters.
How do I read files from the SD card socket?
Connect an SD library-enabled sketch and set pin D10 as chip select. Insert a FAT-formatted microSD card, then use standard SD.begin() and SD.open() calls to load images or data.
Best Arduino Simulator Tools: Tinkercad vs Wokwi vs Proteus
Burning through physical Arduino boards and components to test every idea gets expensive fast. An Arduino simulator lets...
Read More →
Arduino Debouncing: Clean Button Input Techniques
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Best Arduino Books and Courses for Advanced Makers India
Moving beyond the beginner blink-an-LED stage requires structured learning, and the best arduino books courses india are the...
Read More →Technical Specifications
| SKU | AI3904 |
|---|---|
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 3.2" Inch TFT Screen Module for MEGA 2560 R3 (Non-touch) is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
