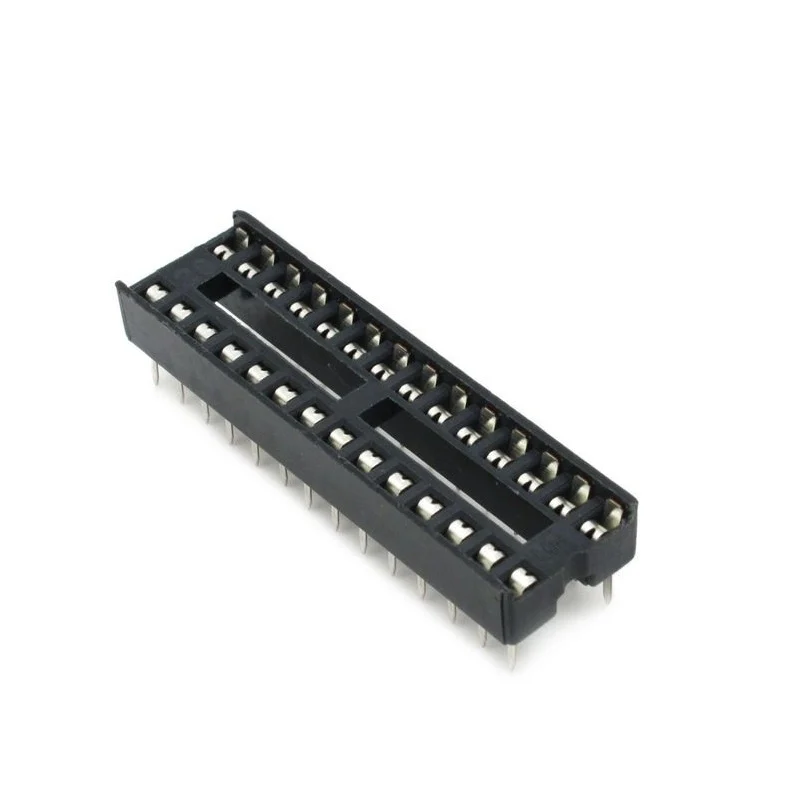

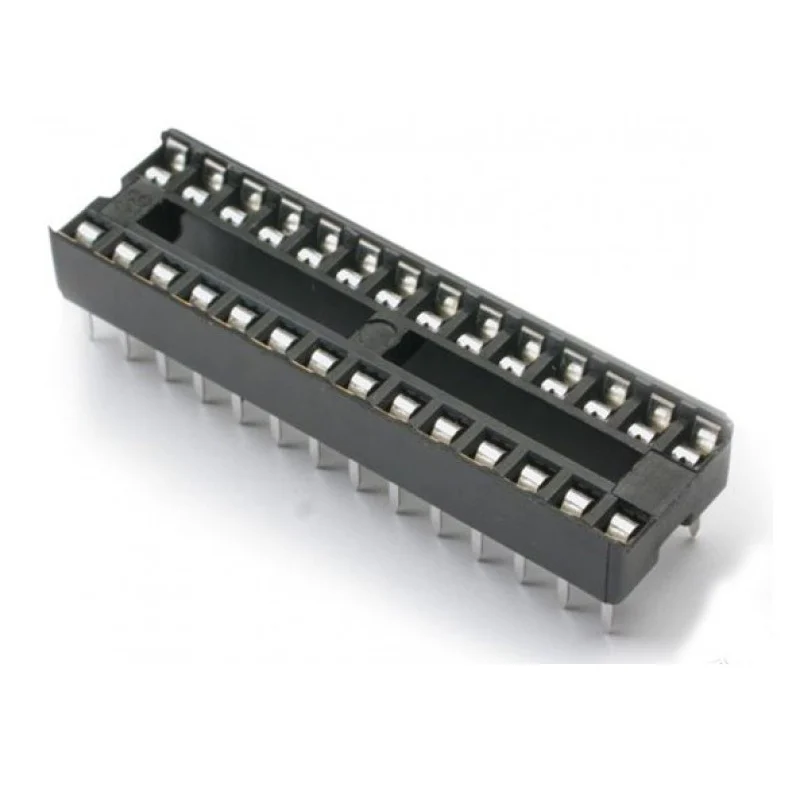

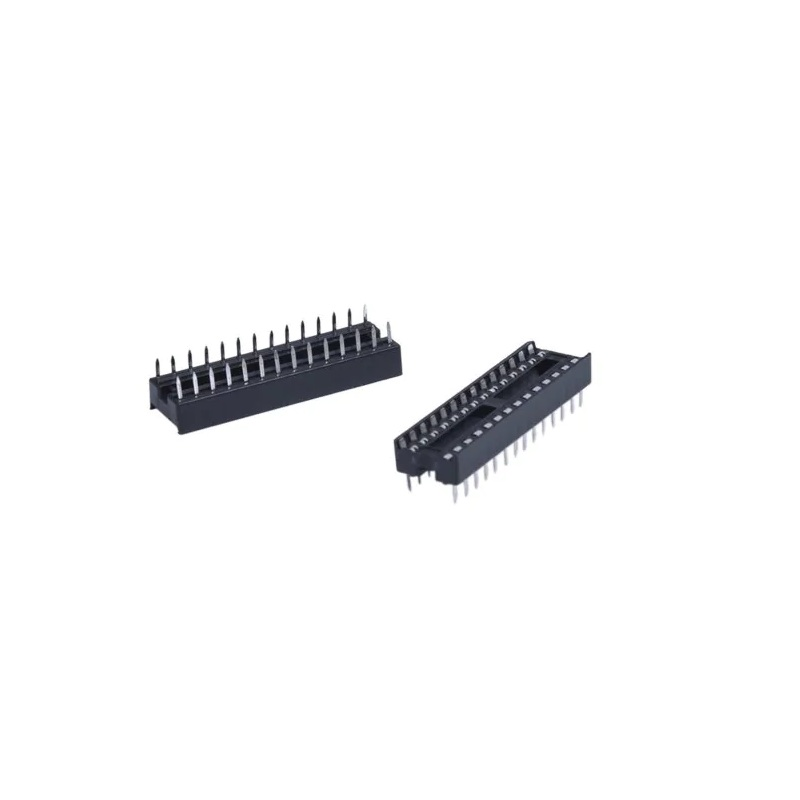

28 Pin IC Base
A 28 pin narrow IC socket base adaptor is a holder for a 28 pin IC that can be soldered onto the PCB and allows the IC to be inserted or removed as needed. It serves as a detachable IC holder for a narrow IC.
The socket protects the IC from heat damage during soldering, especially for temperature sensitive ICs. It also facilitates working with microcontroller ICs that can be taken out for programming.
Features
- 28 pins.
- JDEC compliant.
- Molded notch for proper orientation.
- Easy to insert and remove ICs.
Specifications:
| Current Handling Capacity (A) | 1 |
|---|---|
| No. of Contact Points | 28 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature (°C) | -25 to 85 |
| Flammability Rating | UL94V-0 |
| Color: | Black |
| Insertion Force | 340g max per contact |
| Exertion Force | 80g max per contact |
| Length (mm): | 35 |
| Width (mm): | 10 |
| Height (mm): | 4 |
| Weight (g): | 1 (approx) (each) |
Package Includes
- 1 x 28 Narrow Pin DIP IC Socket Base Adaptor (5 pcs).
28 Pin IC Base (DIP) – Overview
The 28 Pin IC Base (DIP) is a narrow 28-pin socket adaptor sold in packs of five units that solders directly onto a PCB to hold DIP packages securely. It simplifies insertion and removal of ICs during prototyping, repair, or programming without subjecting sensitive chips to repeated soldering heat.
Key Features of 28 Pin IC Base (DIP) –
- 28 contact points with phosphor bronze contacts and tin plating for reliable conductivity
- JDEC compliant design with molded notch to ensure proper pin-1 orientation
- Heat-resistant construction (UL94V-0 rated) protects ICs during through-hole soldering
- Wide operating range from –25°C to 85°C for stable performance in diverse environments
- Easy insertion and removal of narrow DIP ICs accelerates prototyping and maintenance
- Genuine product quality and fast shipping from Zbotic
Applications and Use Cases
- Mounting microcontroller ICs for in-circuit programming and debugging
- Replacing worn or damaged sockets on vintage audio, video, or communications boards
- Building custom prototype PCBs in electronics workshops and university labs
- Field servicing of industrial control modules requiring quick chip swaps
- DIY robotics and automation projects needing removable logic or driver ICs
How to Use 28 Pin IC Base (DIP) –
Place the socket onto your PCB footprint, align the molded notch with the pin-1 marking, and solder each lead using standard through-hole techniques. Once soldered, simply insert the 28-pin IC into the base by matching its notch to the socket’s, press gently until seated, and remove or replace the chip as needed without reheating the board.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does this socket protect ICs during soldering?
Yes. The 28 Pin IC Base is made with UL94V-0 flame-retardant materials and high-temperature contacts, shielding sensitive ICs from soldering heat and preventing damage.
Can I use this socket with all 28-pin DIP ICs?
It is JDEC compliant for standard narrow 28-pin DIP packages. It fits most logic, microcontroller, memory, and analog ICs designed in the narrow DIP form factor.
How do I ensure correct IC orientation?
The molded notch on the socket aligns with the notch or dot marking on your IC and the silkscreen on your PCB. Match these indicators before seating the chip to avoid reversed insertion.
Technical Specifications
| Pin Count | 28-pin |
|---|---|
| Package Quantity | 5 pcs |
| SKU | AI0624 |
| Weight | 0.01105 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 28 Pin IC Base (DIP) - (Pack OF 5) is a versatile ic base used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
