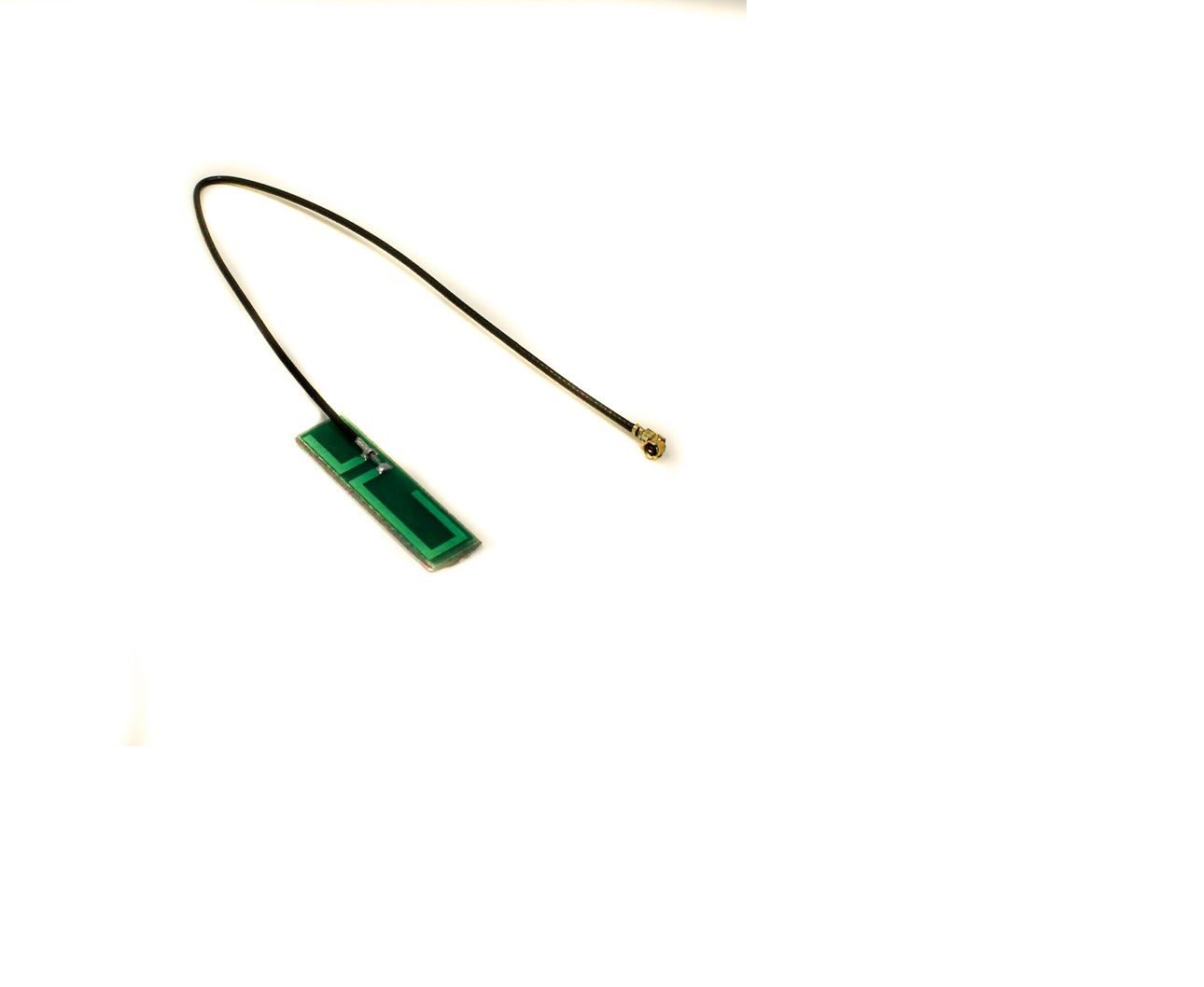

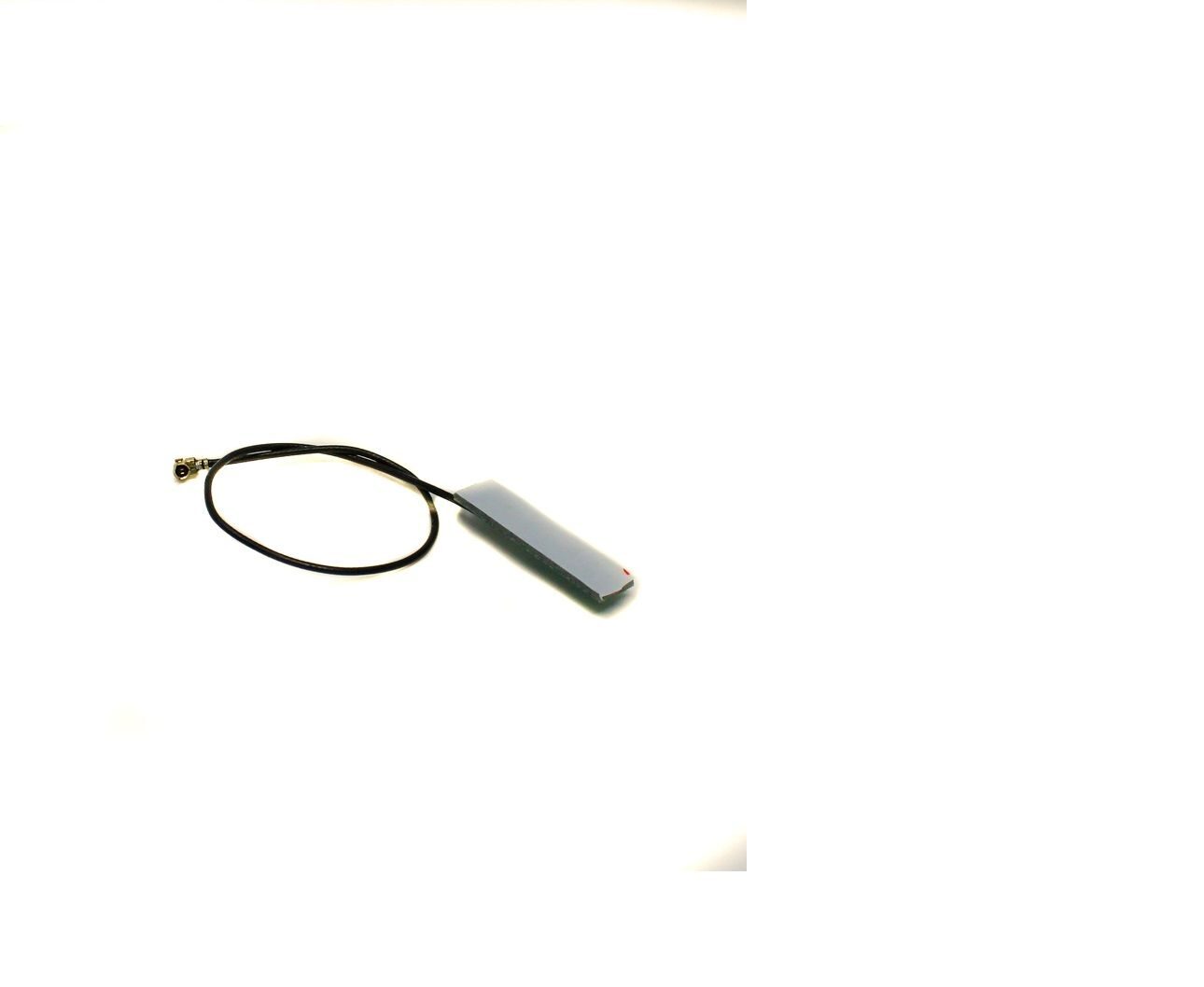

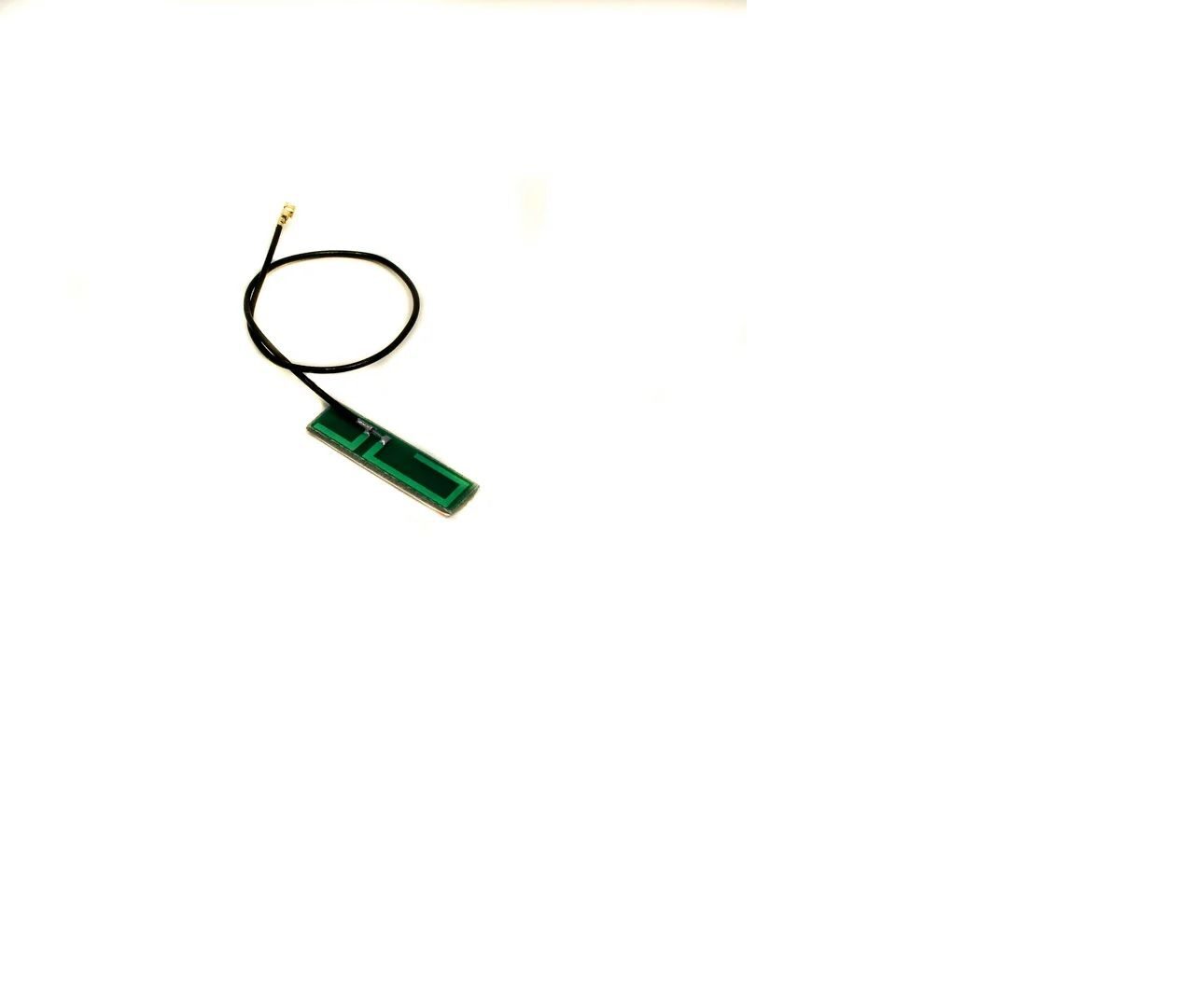

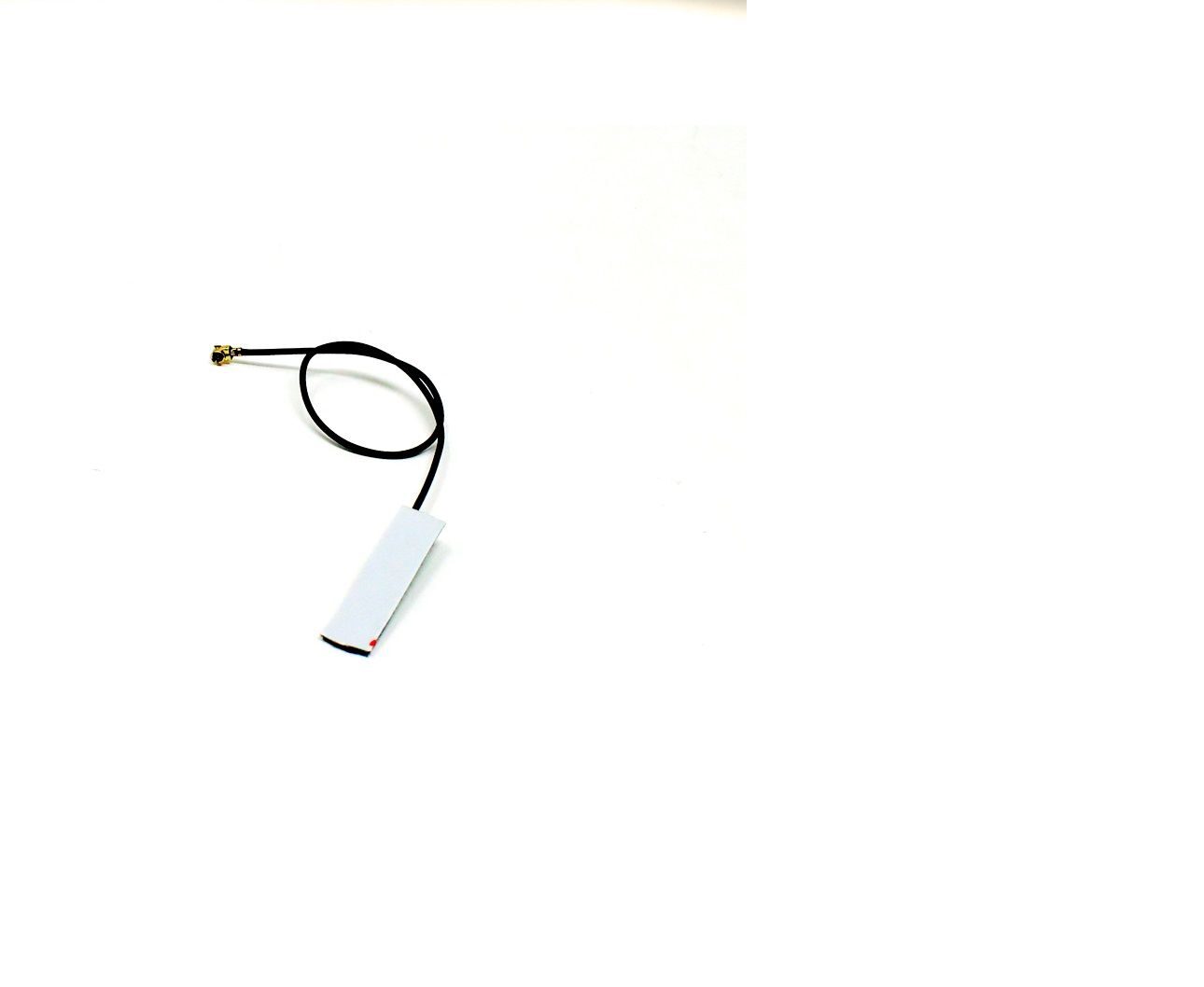

2400–2500 MHz 3 dBi Sticker Antenna(V1.0)
This is PCB Antenna having a frequency of 2400–2483 MHz and 1.8dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in telecommunication to communicate. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.
Application: Wifi, Bluetooth, Zigbee, ISM.
Features:
- Compact Size
- High quality
- Low cost
- 3M high-quality adhesive
- Masking for corrosion-free
Specifications:
| Item Type: | Sticker Antenna |
|---|---|
| Frequency (MHz) | 2400 to 2483 |
| Gain | 1.8 dBi |
| VSWR | <2.0 |
| Model No. | LWC-2400-CHIP-03 (V1.0) |
| Impedance (Ω) | 50 |
| Polarization | Linear |
| Power Handling (W) | 10 |
| HPBW | H: 3600 / V: 30 |
| Cable | 0.81 or 1.13mm Mini Coaxial |
| Connector | MHF1 |
| Operating Temperature (°C) | -30 to 60 |
| Humidity | 5 – 95% |
| Length (mm): | 27 |
| Width (mm): | 7 |
| Height (mm): | 2 |
| Weight (g): | 5 |
Package Includes:
1 x Chip Antenna 2400MHz
